PPC-CM5-050

Спецификации

SKU

CS12720RA5050P

Нетно тегло

310 g

Процесор

ARM: Raspberry Pi CM5

Тактова честота на процесора

Quad(4) Core Cortex-A76 at 2.4GHz

Оперативна памет

Based on CM5

Вградена памет (eMMC)

Based on CM5

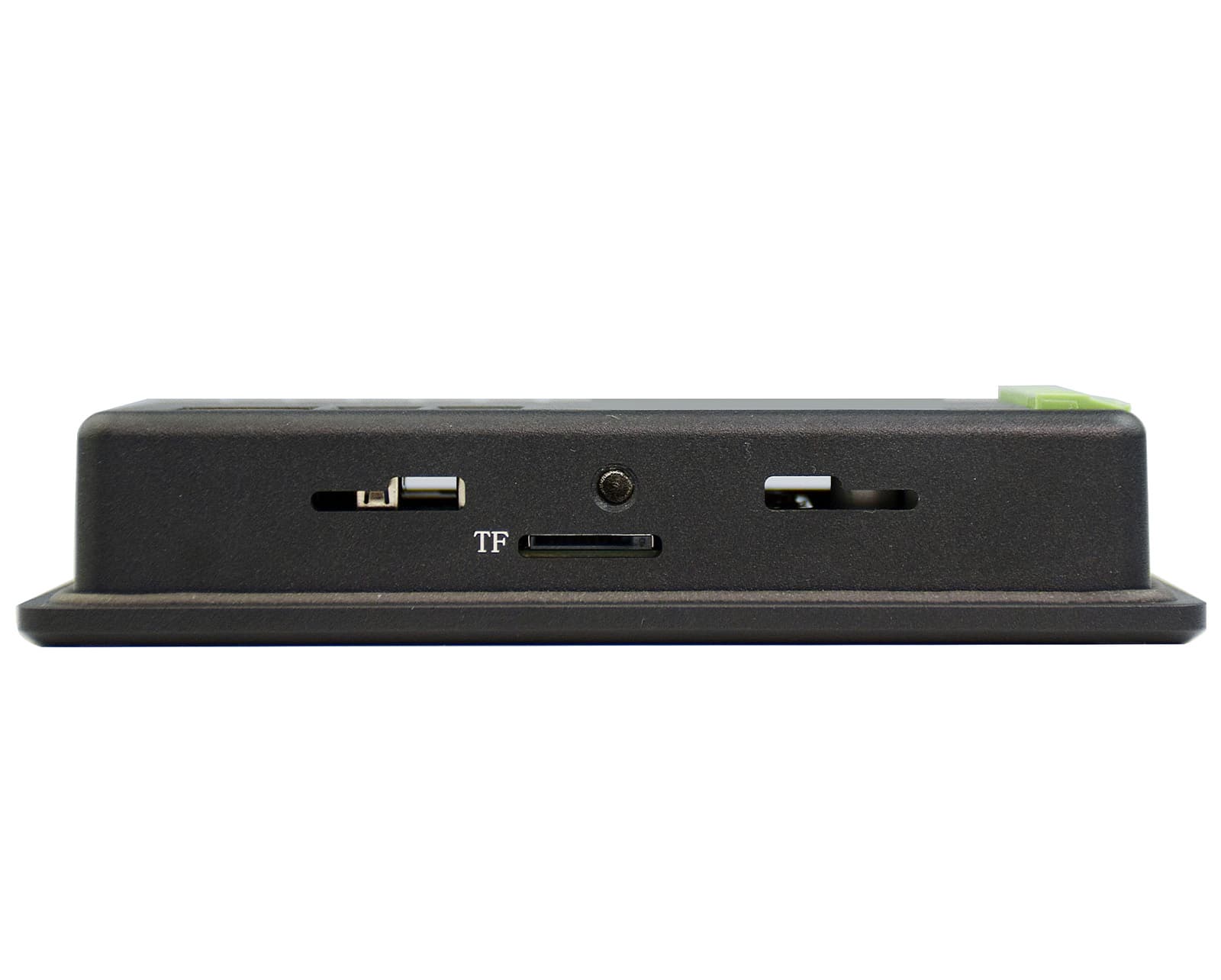

Постоянна памет

Support 1 x TF Card, only used with CM5 Lite to boot system, can not be used as an external storage for CM5.

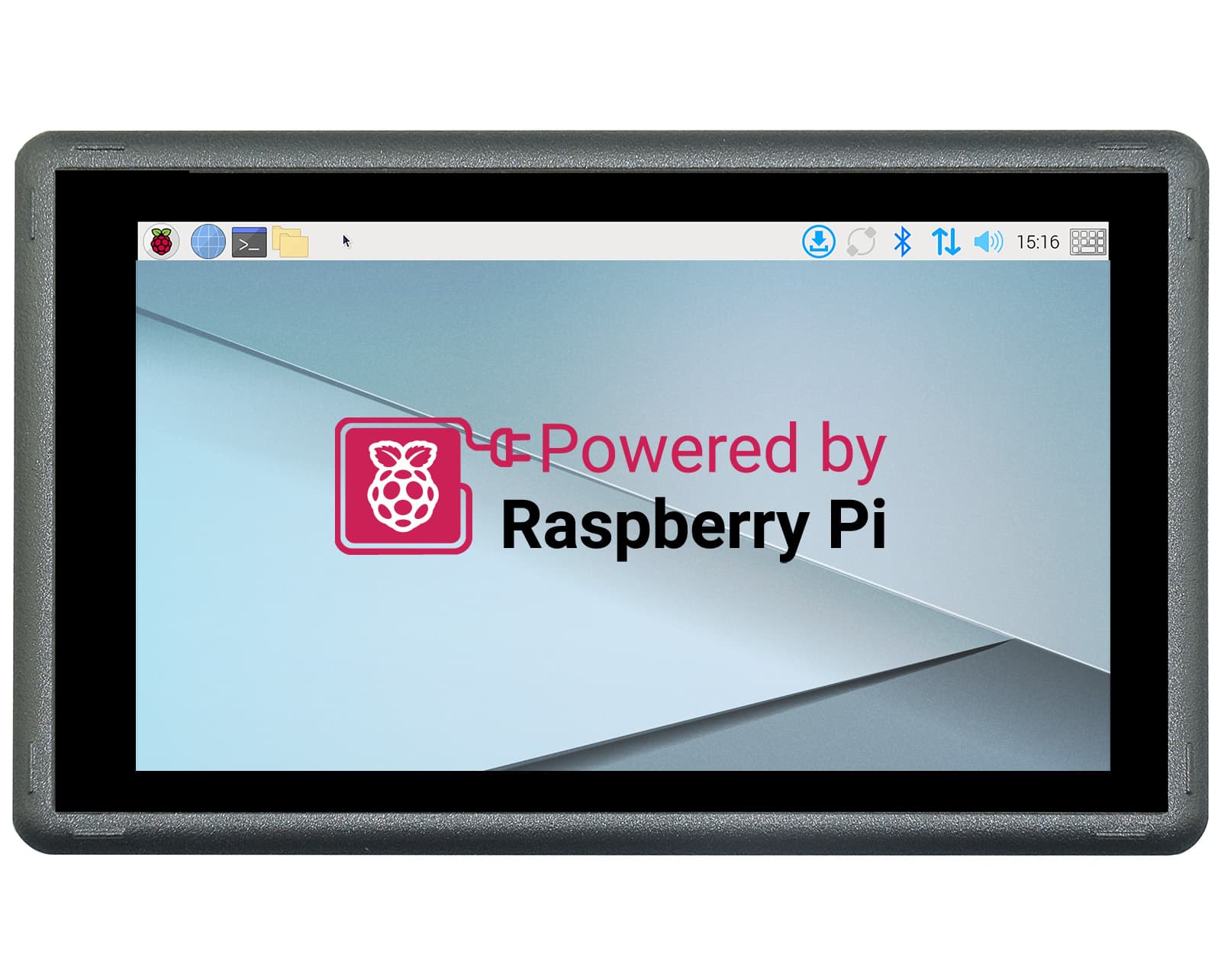

Диагонал на екрана

5.0″

Разделителна способност

1280 x 720

Яркост

400 NIT

Сензорен екран

Capacitive + Armored Glass

USB

1 x USB Type-C; 2x USB 3.0 HOST

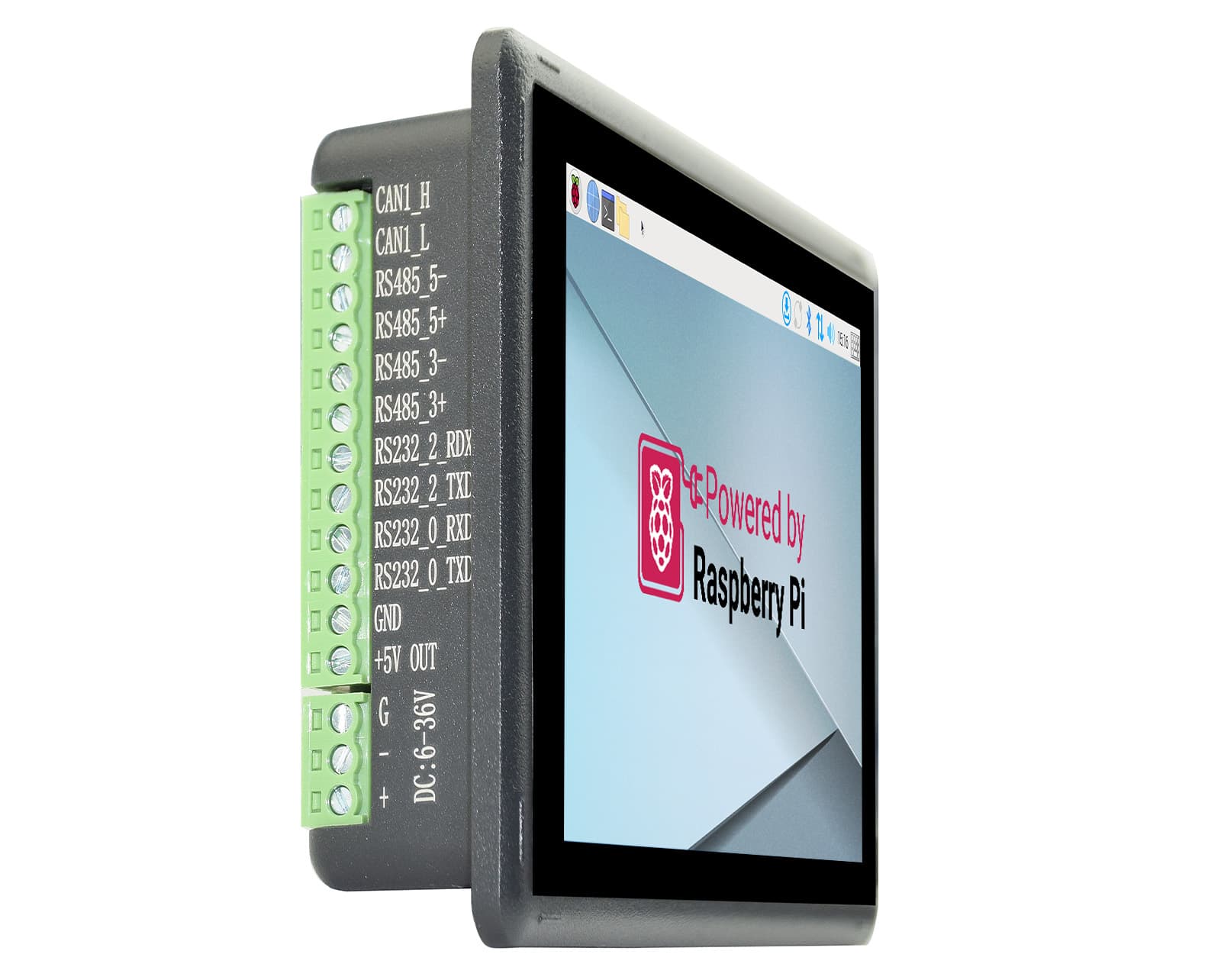

CAN

1 x CAN FD BUS, Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps

GPIO

Not supported

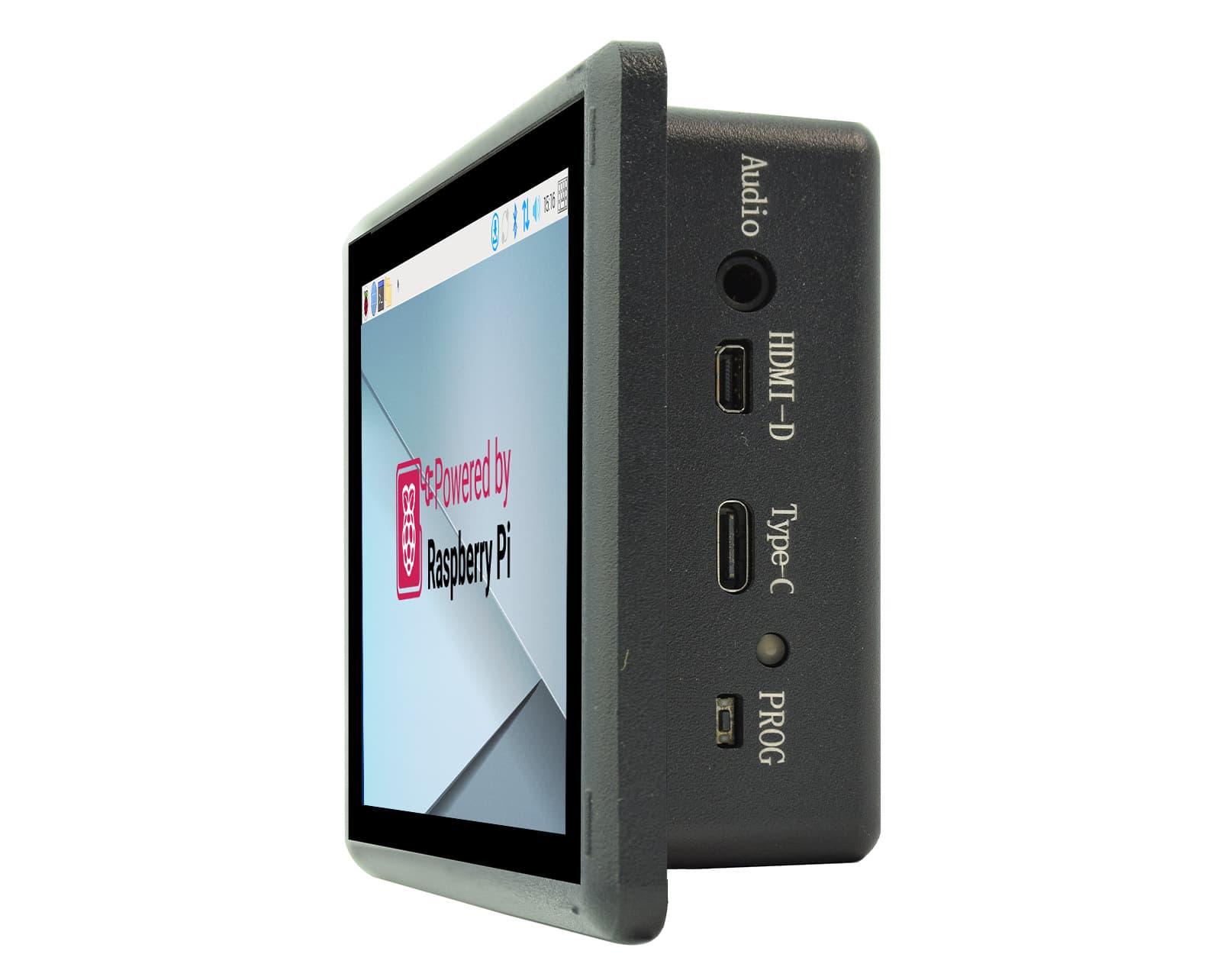

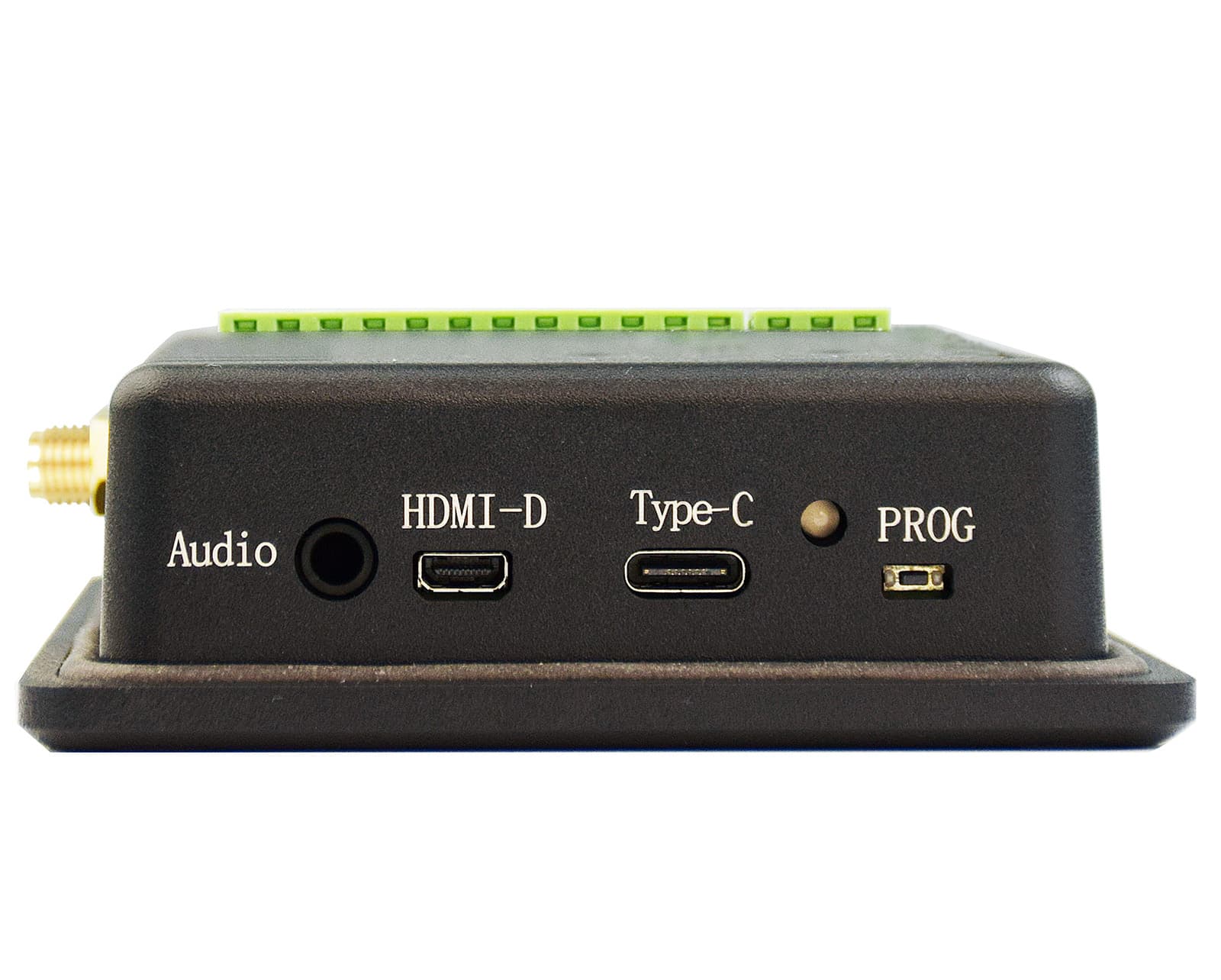

HDMI

1 x HDMI-D(Micro HDMI) 2.0, can be driven up to 4K 60FPS

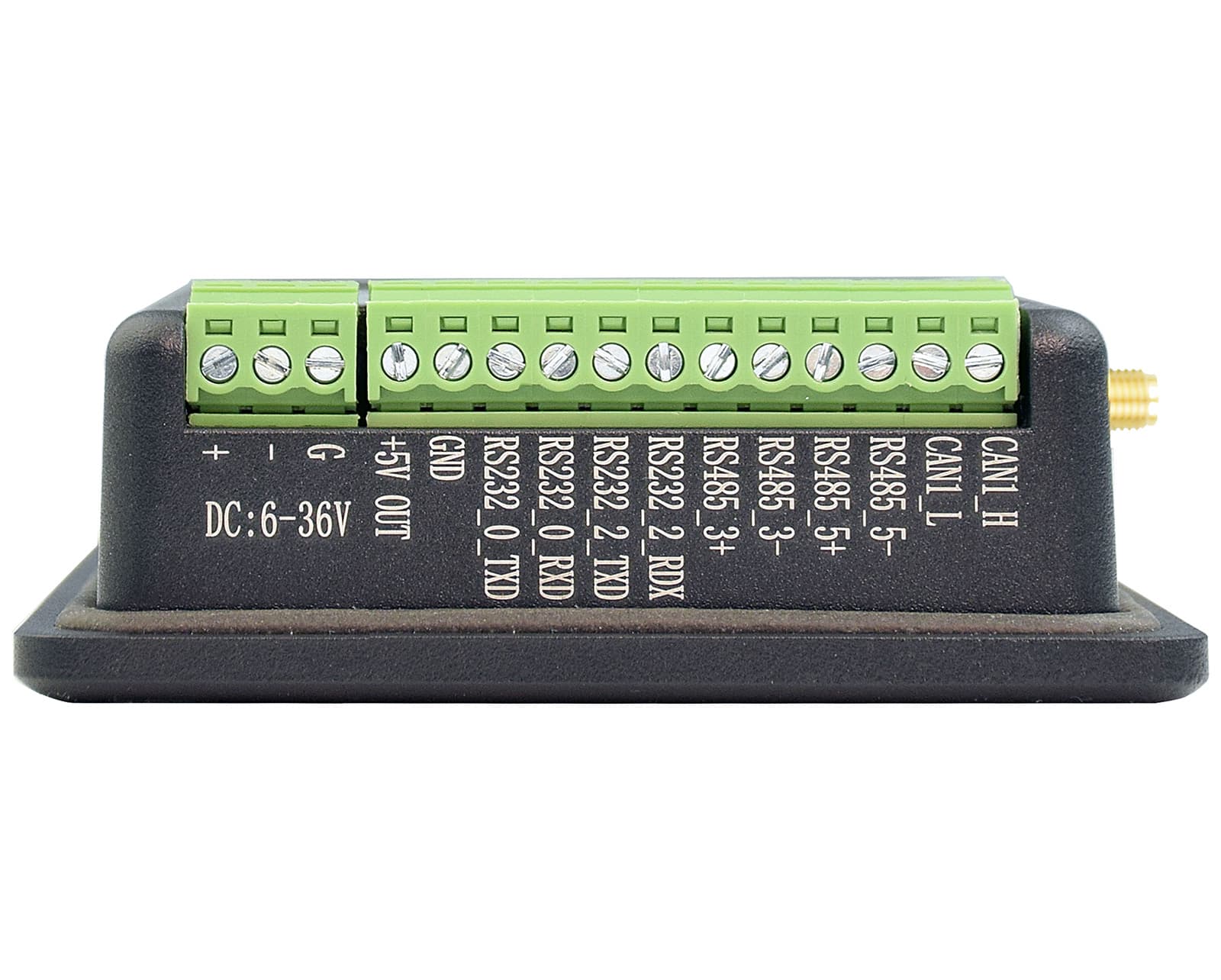

RS232

2 x RS232 by default, up to 4 x RS232

RS485

2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232

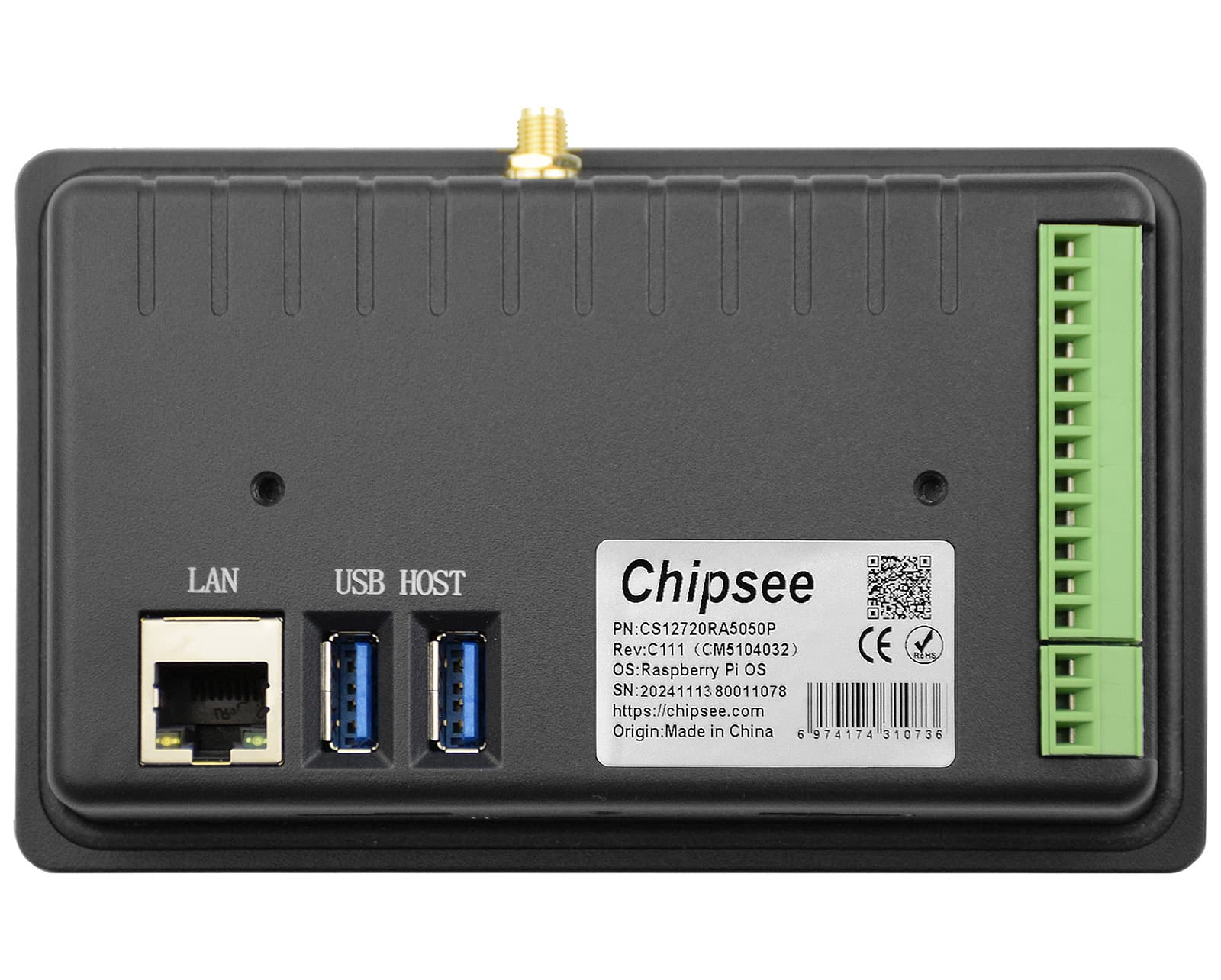

Ethernet

1 x Giga LAN

I2C

Not supported.

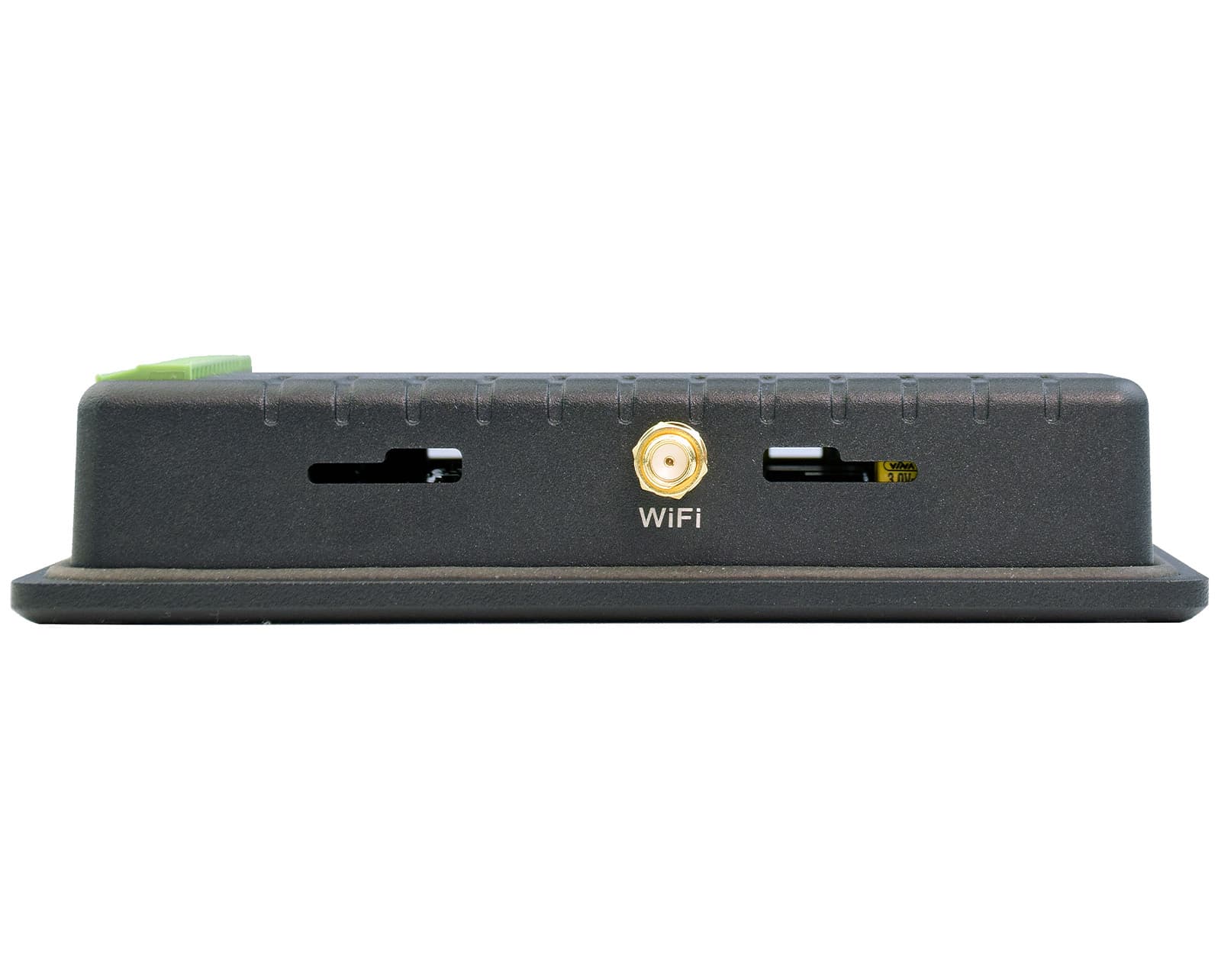

Wi-Fi / Bluetooth

Depends on CM5

4G

Not supported

Аудио

3.5mm Audio In/Out Connector; Internal 2W Speaker

Зумер

Onboard, driven by GPIO

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

Входно захранване

9~30V DC

Консумация

9.6W max, 6W typical

Работна температура

-20℃ ~ 60℃

Ток при 12 V

800mA

Камера

Yes, not mounted by default. Available on the board in the embedded PC. Requires a customized case to be exposed in an enclosed PC.

Операционна система

Raspberry Pi OS

Начин на монтаж

VESA, PANEL

Модул Raspberry Pi CM5

CM5102016 ($113): WiFi+2GB DDR+16GB eMMC; CM5104032 ($156): WiFi+4GB DDR+32GB; CM5108032 ($233): WiFi+8GB DDR+32GB
