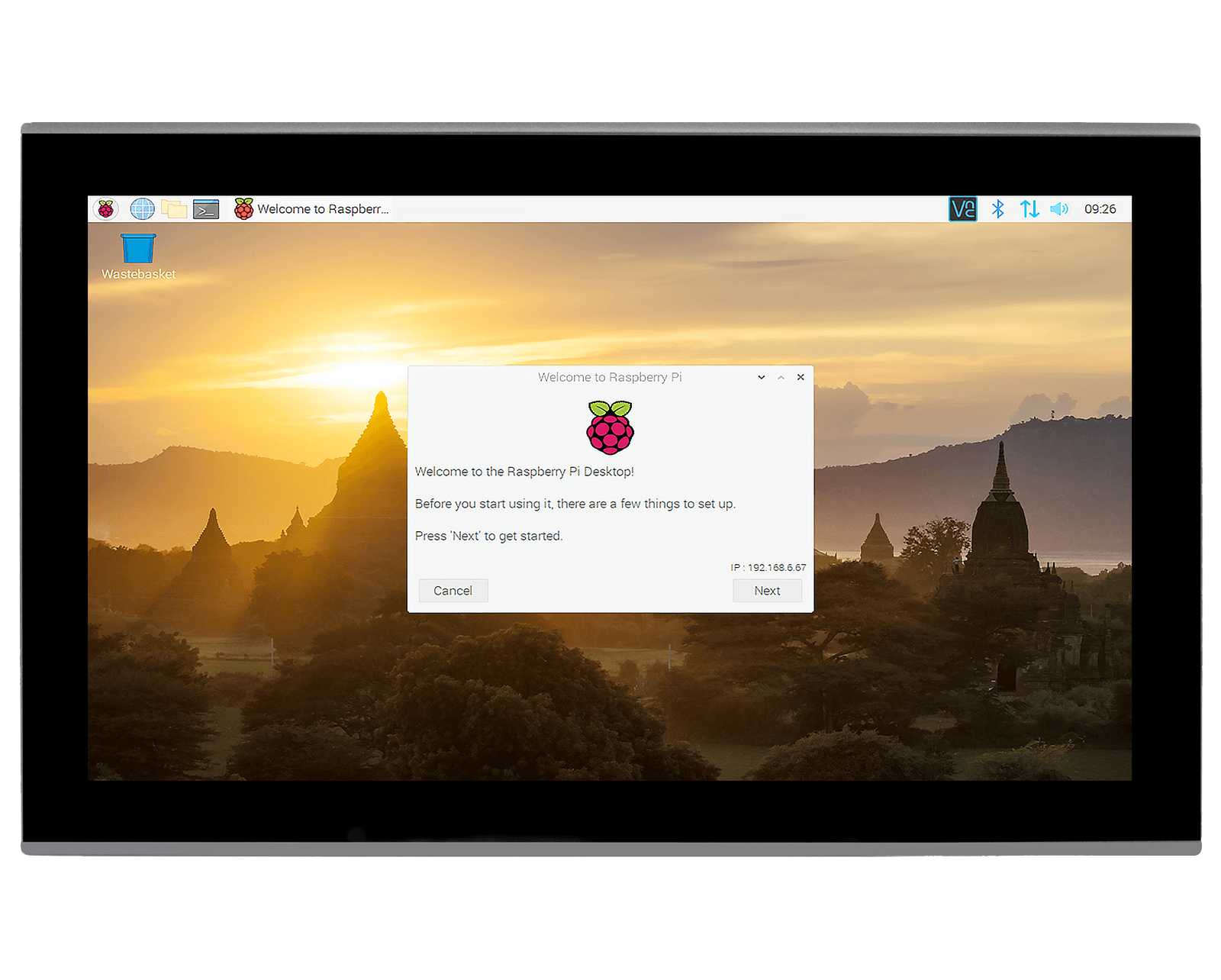

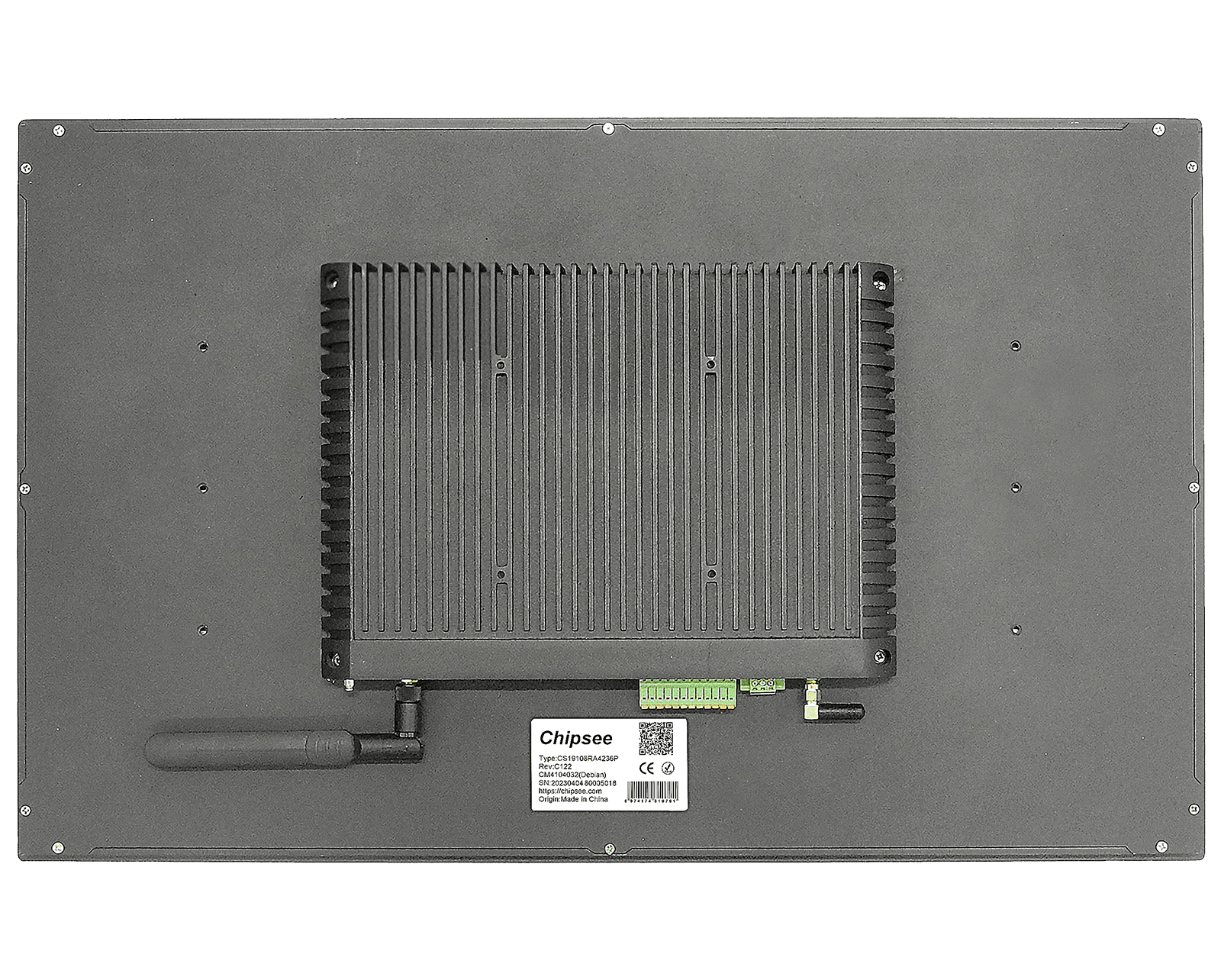

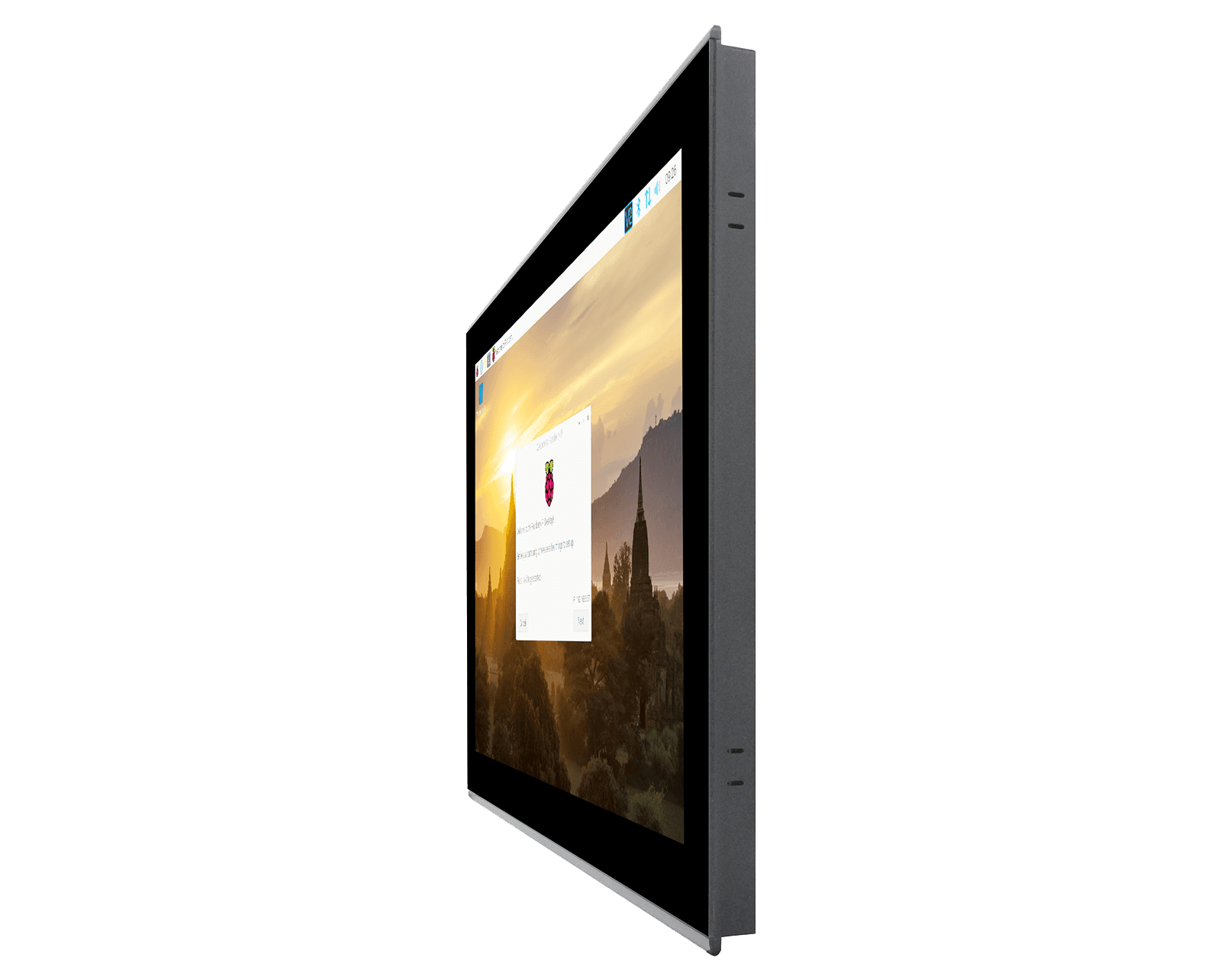

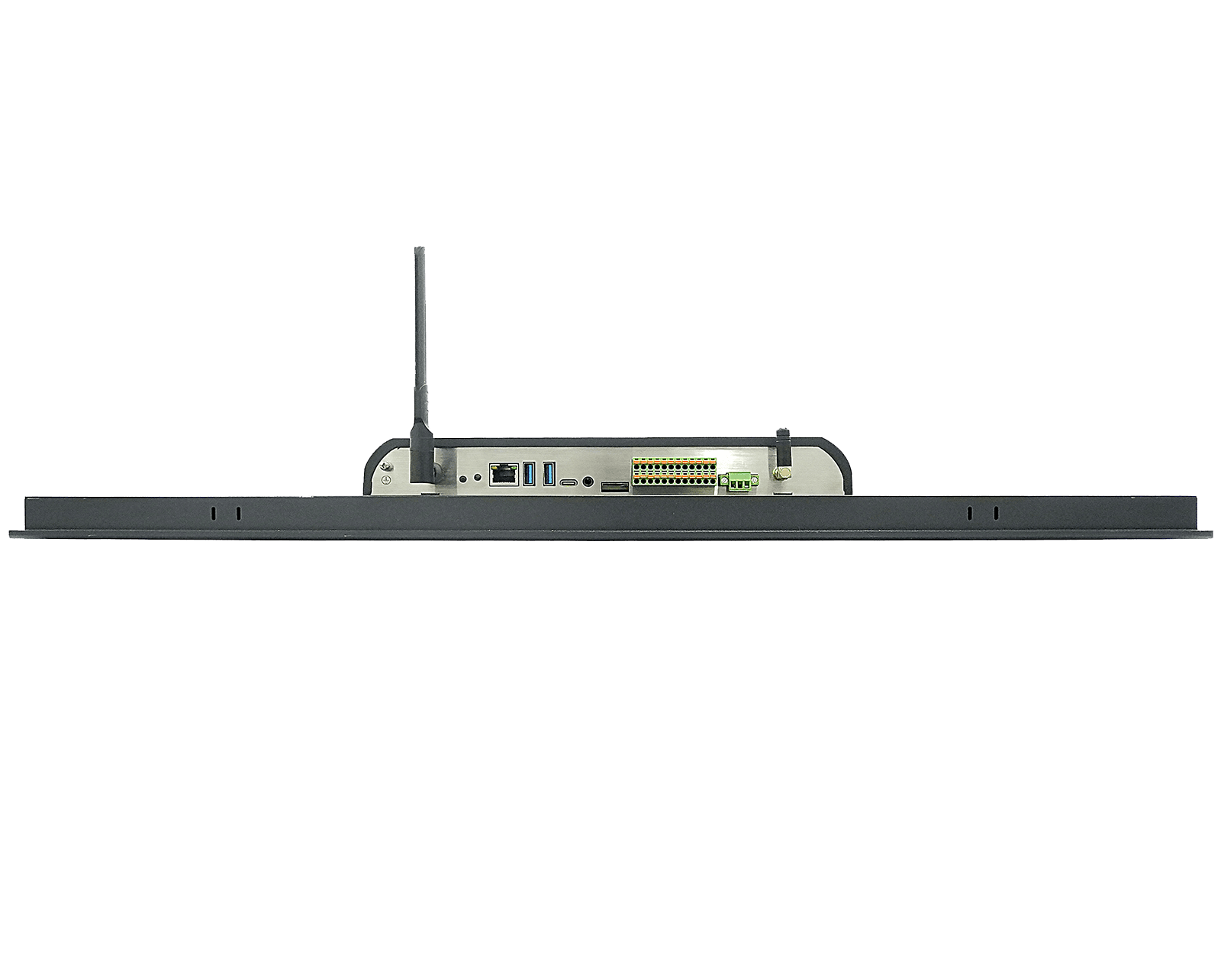

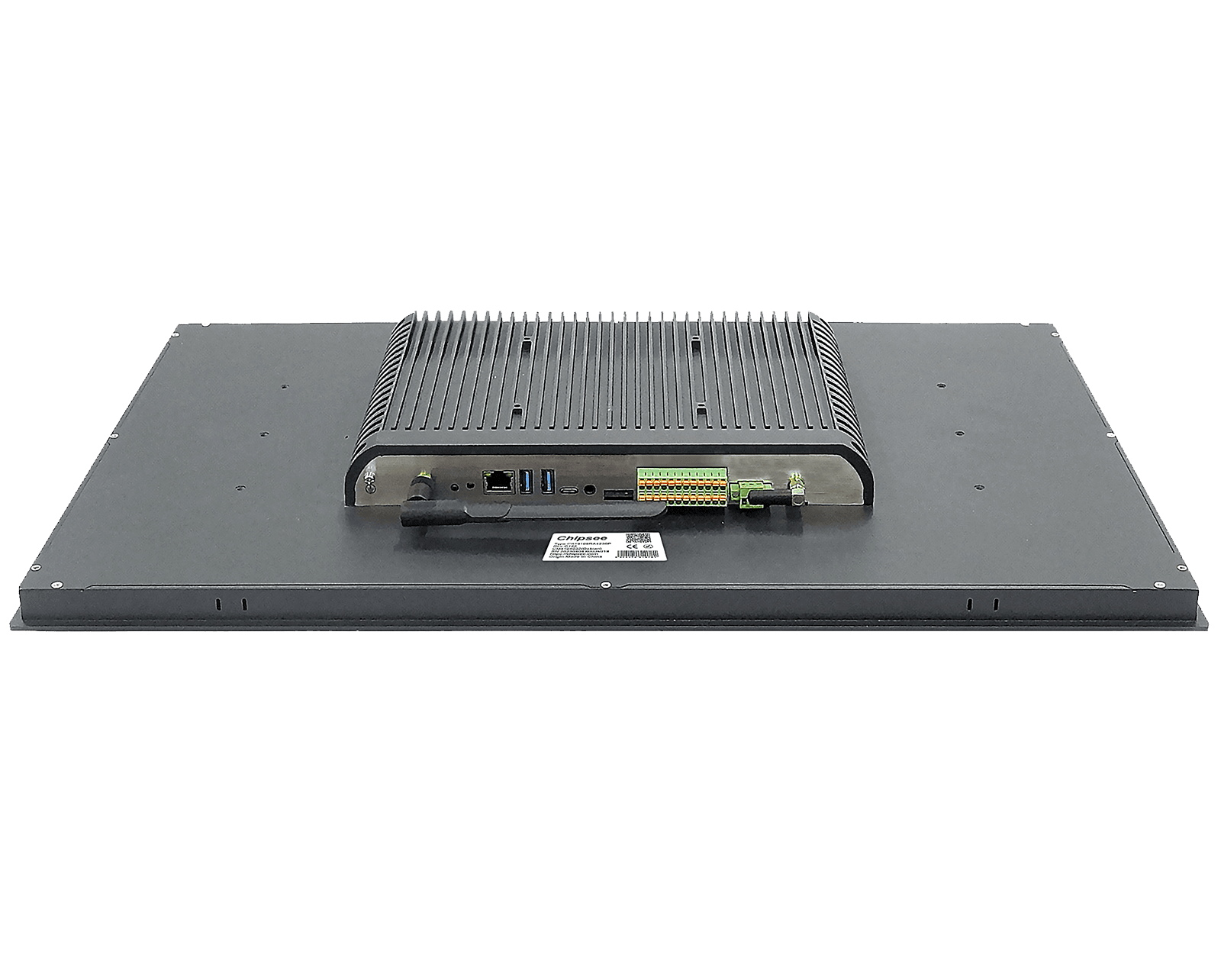

PPC-CM4-236

Спецификации

SKU

CS19108RA4236

Нетно тегло

7500 g

Форм-фактор

Panel

Процесор

ARM: Raspberry Pi CM4

Оперативна памет

2/4/8 GB, Based on CM4

Flash памет

Based on CM4

Външна памет

TF (microSD) Card Slot

Диагонал на екрана

23.6

Разделителна способност

1920*1080

Яркост

250 NIT

Сензорен екран

Capacitive

Wi-Fi / Bluetooth

Depends on the Compute Module 4 selected.

Zigbee

Optional

USB

2 x USB 3.0 Host, 1 x USB OTG

CAN

1 x CAN

RS232

2 x RS232 by default, up to 4 x RS232

RS485

2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232

GPIO

8 Channels, 4 Input, 4 Output

I2C

Not supported

SATA II

Not supported

Зумер

Onboard, driven by GPIO

Ethernet

1x RJ45, 1 Gbps

Аудио

3.5mm Audio In/Out Connector; Internal 2W Speaker

RTC

Yes, High Accuracy RTC with Lithium Button Coin battery (lithium battery not included)

Операционна система

Raspberry Pi OS

Входно захранване

15~36V DC

Ток при 15 V

1.57A max

Консумация

19.92W (15V x 1.33A) Typical, 23.52W (15V x 1.57A) Max

Работна температура

0℃~50℃

Начин на монтаж

Panel Mounting & VESA

Модул Raspberry Pi CM4

CM4002000 ($57): 2GB DDR, no WiFi, or eMMC; CM4002016 ($79): No WiFi/BT+2GB DDR+16GB eMMC; CM4002032 ($100): No WiFi/BT+2GB DDR+32GB eMMC; CM4102016 ($100): WiFi+2GB DDR+16GB eMMC; CM4102032 ($105): WIFI+2GB DDR+32GB eMMC; CM4104016 ($137): WIFI+4GB DDR+16GB eMMC; CM4104032 ($142): WIFI+4GB DDR+32GB eMMC; CM4108032 ($216): WIFI+8GB DDR+32GB eMMC
