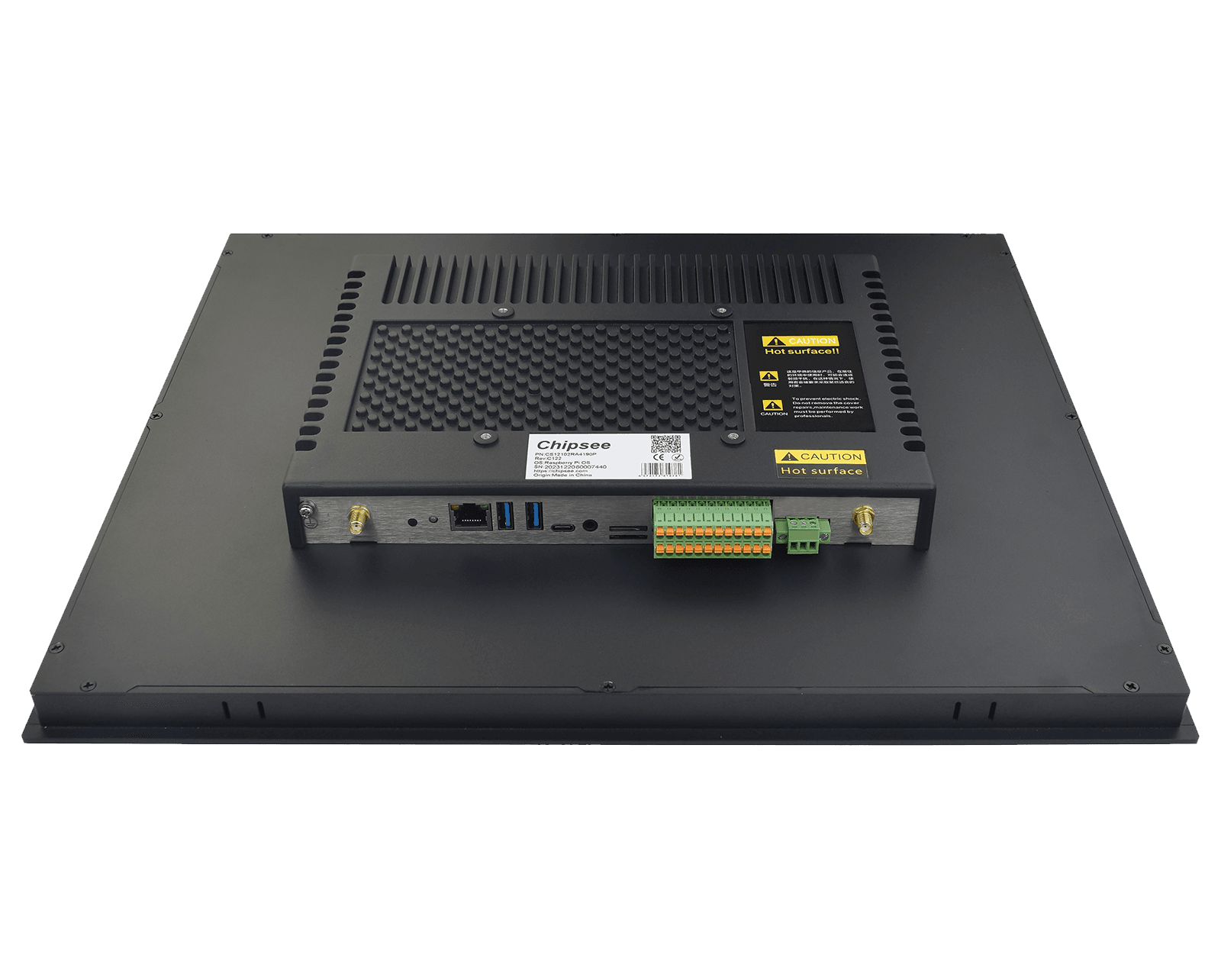

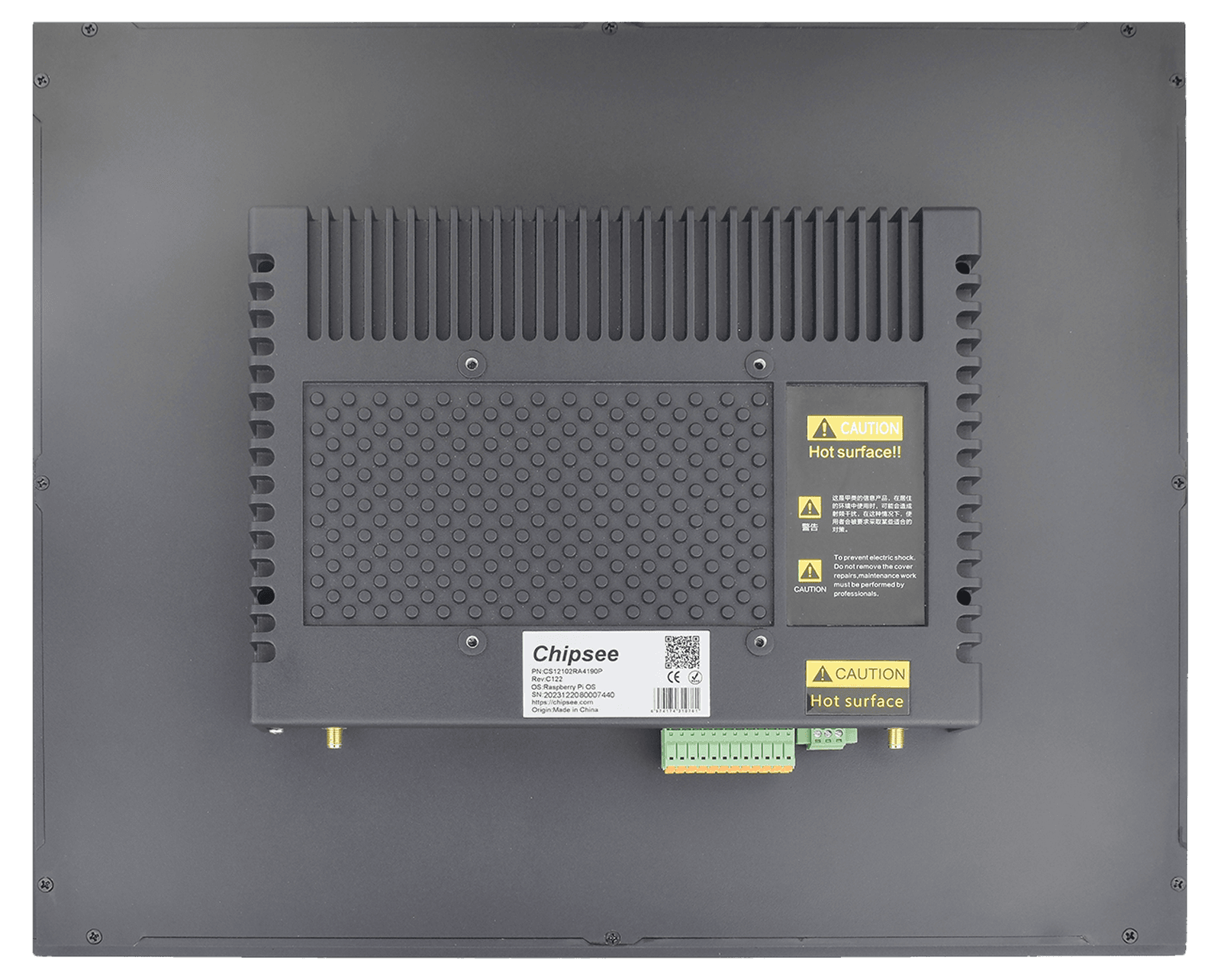

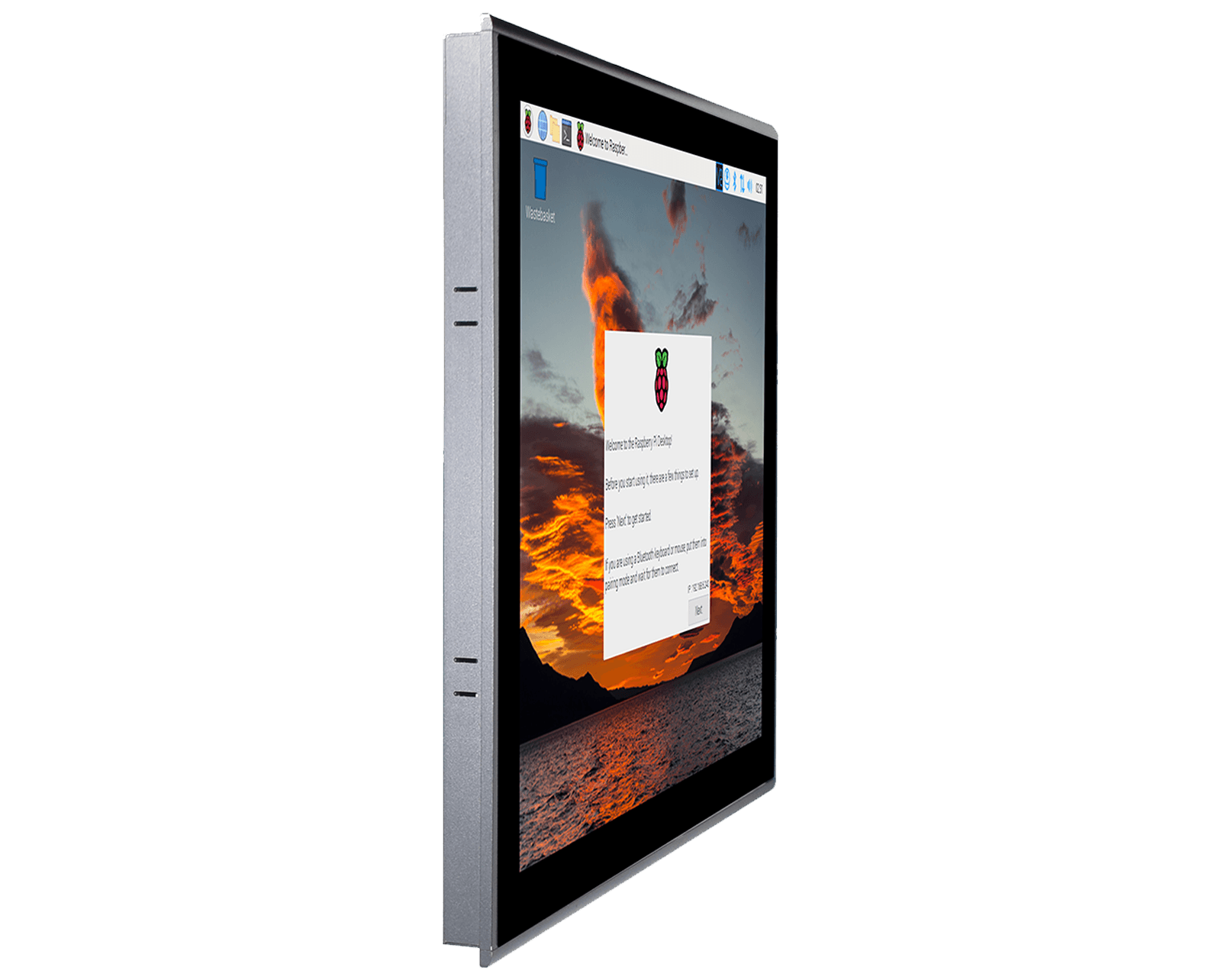

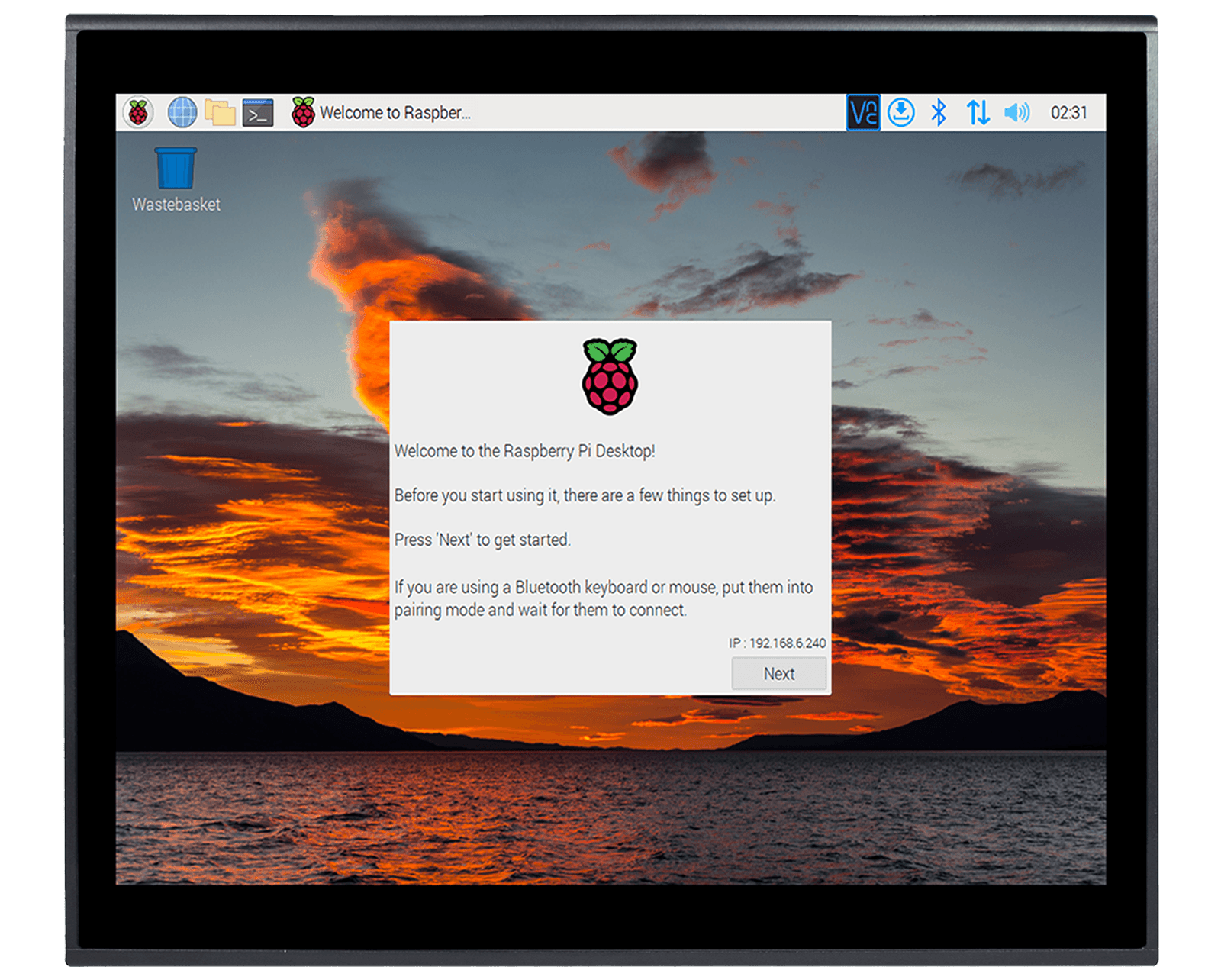

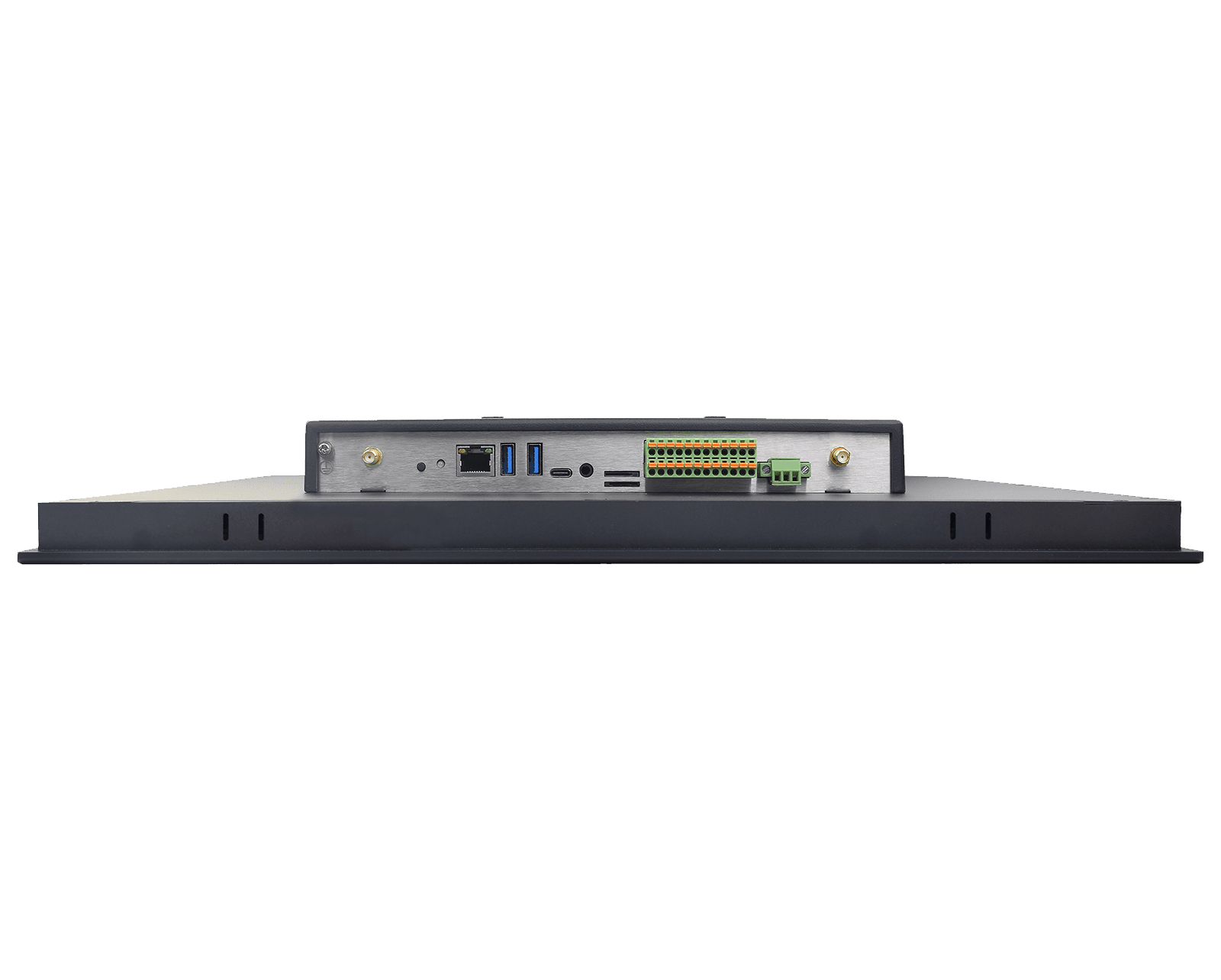

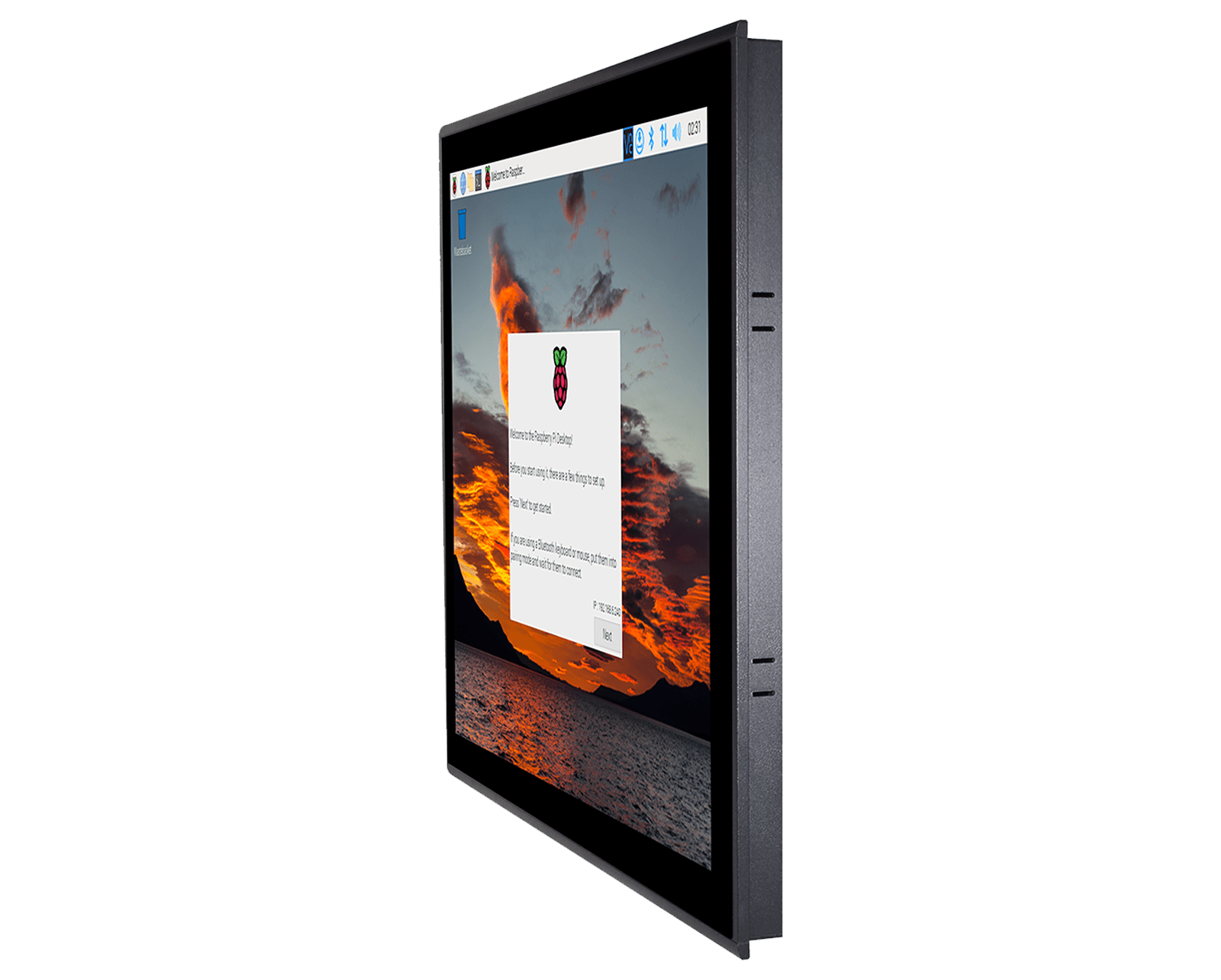

19.0" Панелни компютри и HMI — ARM: Raspberry Pi CM4, 2/4/8 GB, Based on CM4, 16/32 GB, Based on CM4, Raspberry Pi OS
Спецификации
- SKU
- CS12102RA4190
- Нетно тегло
- 5400 g
- Форм-фактор
- Panel
- Процесор
- ARM: Raspberry Pi CM4
- Оперативна памет
- 2/4/8 GB, Based on CM4
- Вградена памет (eMMC)
- 16/32 GB, Based on CM4
- Диагонал на екрана
- 19.0″
- Разделителна способност
- 1280*1024
- Яркост
- 370 NIT
- Wi-Fi / Bluetooth
- CM4 dependable
- 4G / LTE
- Optional
- Zigbee
- Optional
- USB
- 1 x USB OTG; 2x USB 3.0 HOST
- CAN
- 1 x CAN-BUS
- RS232
- 2 x RS232 by default; up to 4 x RS232
- RS485
- 2 x RS485 by default that can be configured as 2 x RS232
- LAN
- 1 x Channel Giga LAN
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- Not supported
- I2C
- Not supported
- SATA II
- Not supported
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Зумер
- Onboard, driven by GPIO
- Аудио
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Операционна система
- Raspberry Pi OS
- Входно захранване
- 15~36V DC
- Ток при 15 V
- 1.18A typical; 1.34A max
- Консумация
- 20.16W (max)
- Работна температура
- 0℃~50℃
- Начин на монтаж
- Panel, VESA
