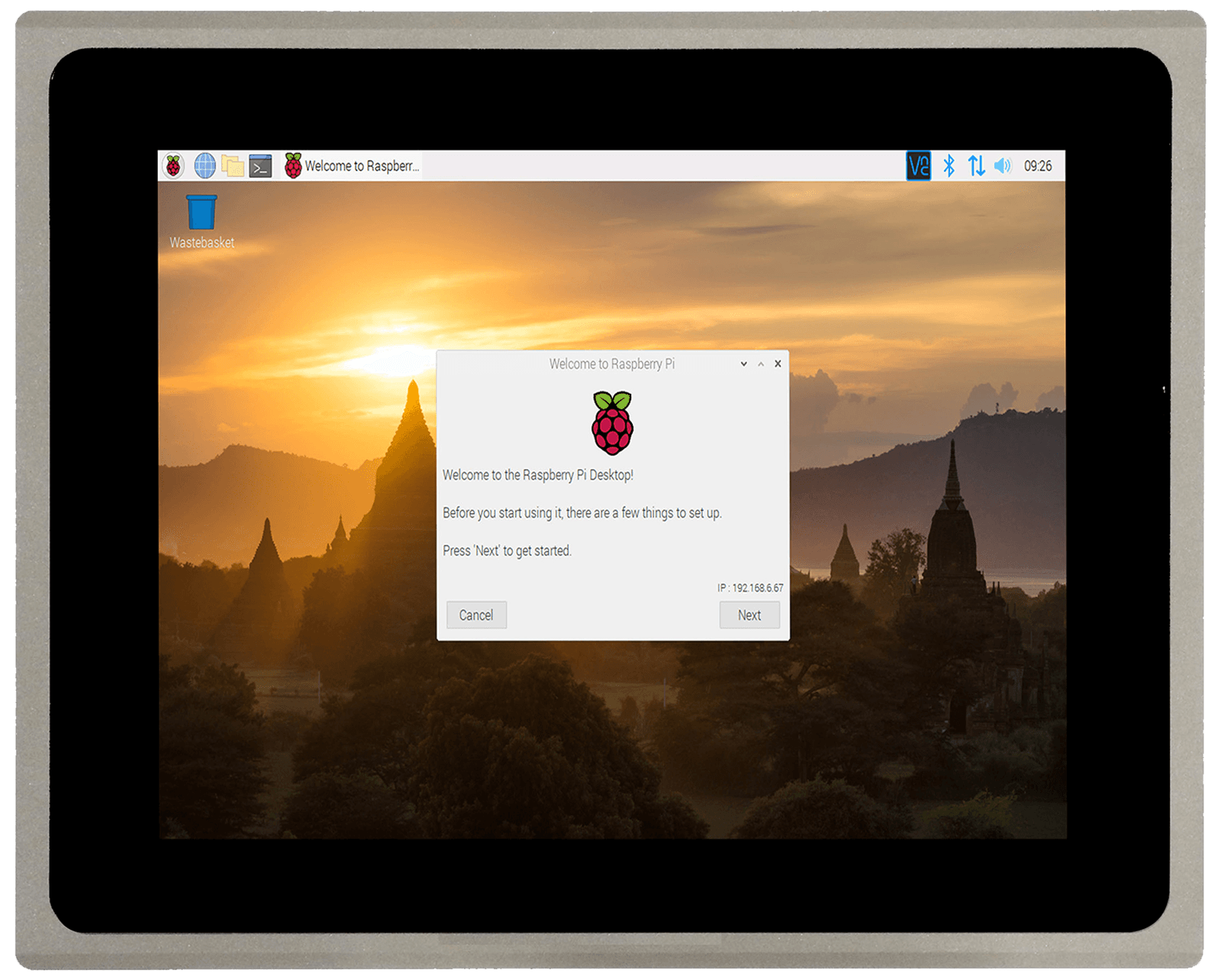

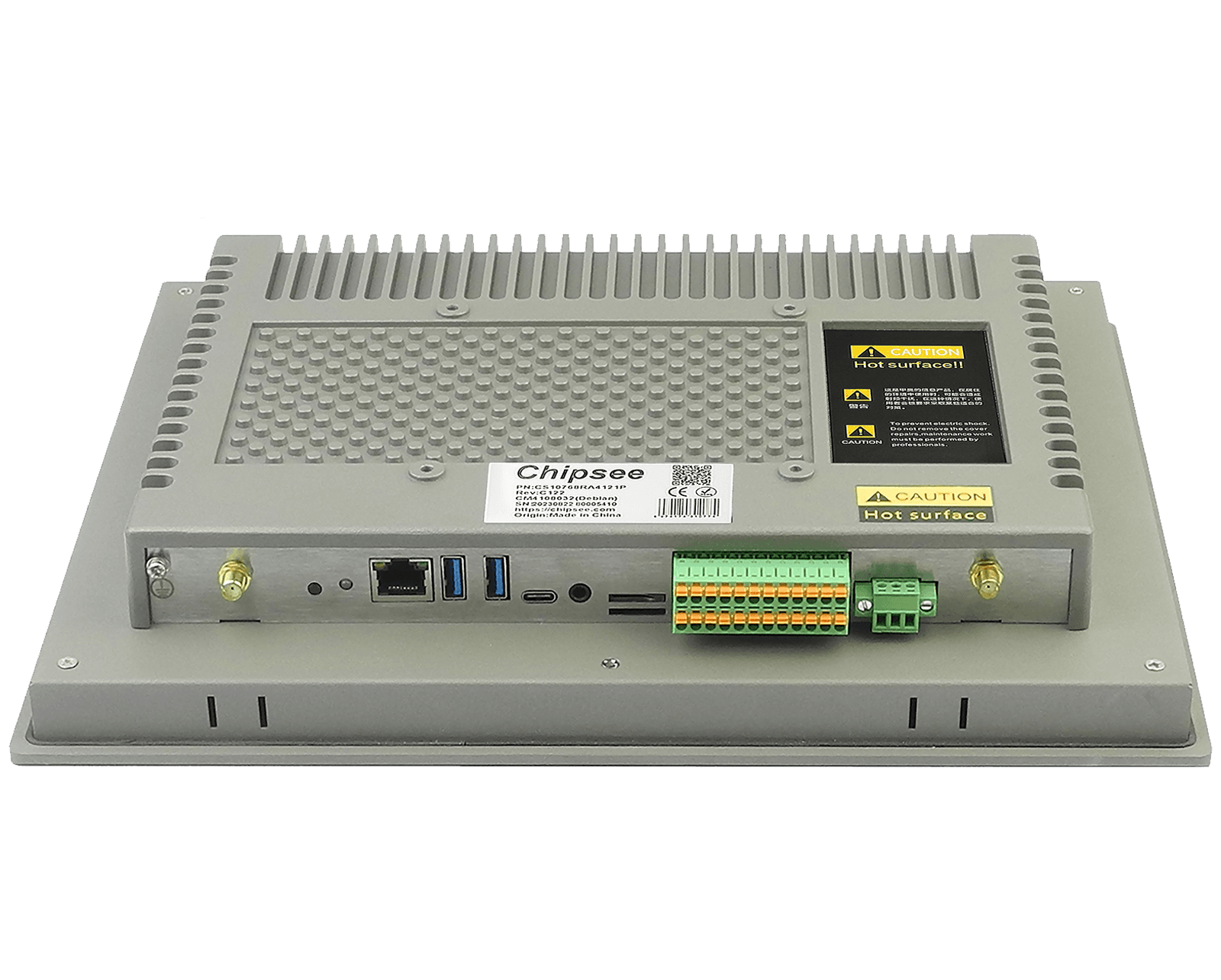

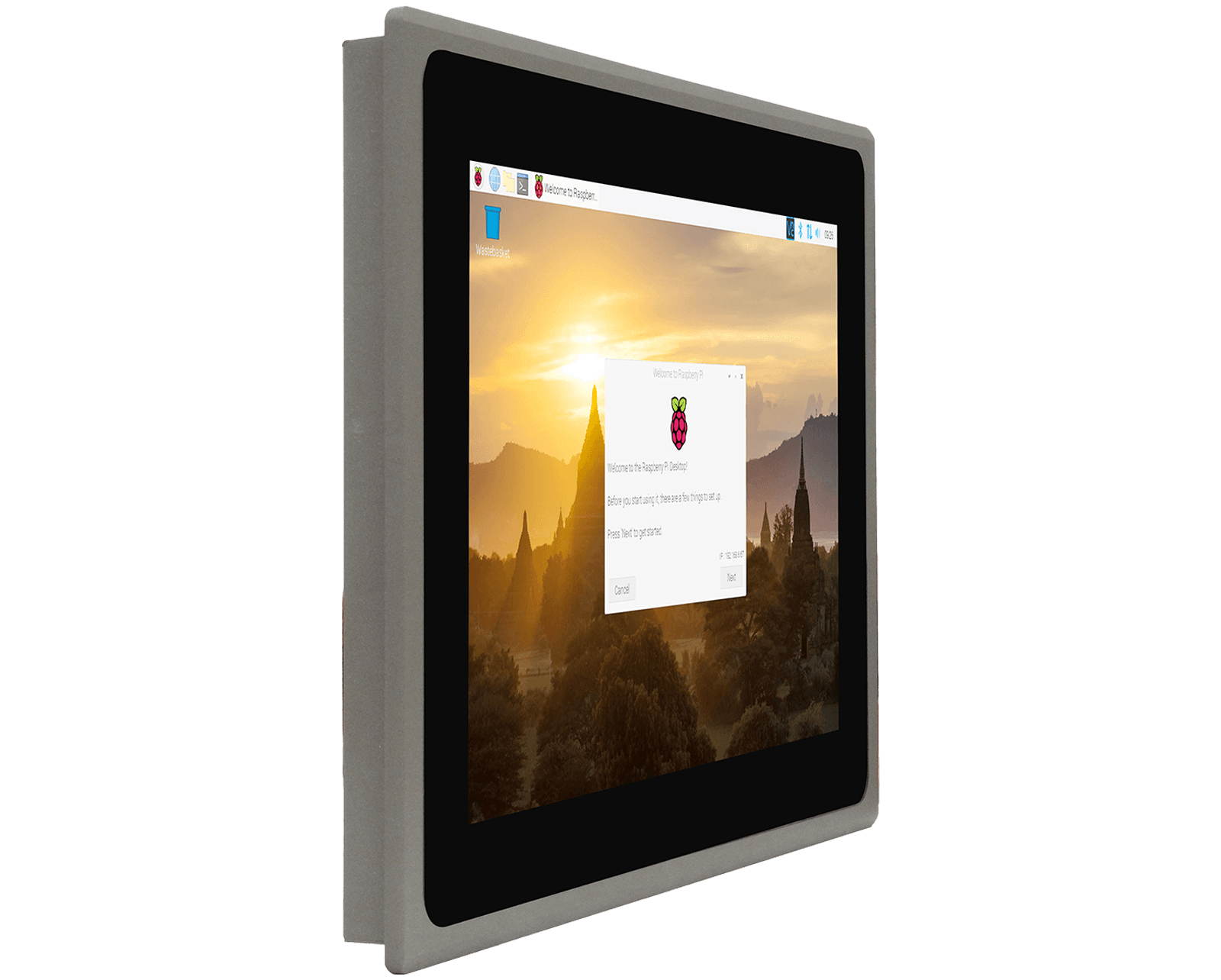

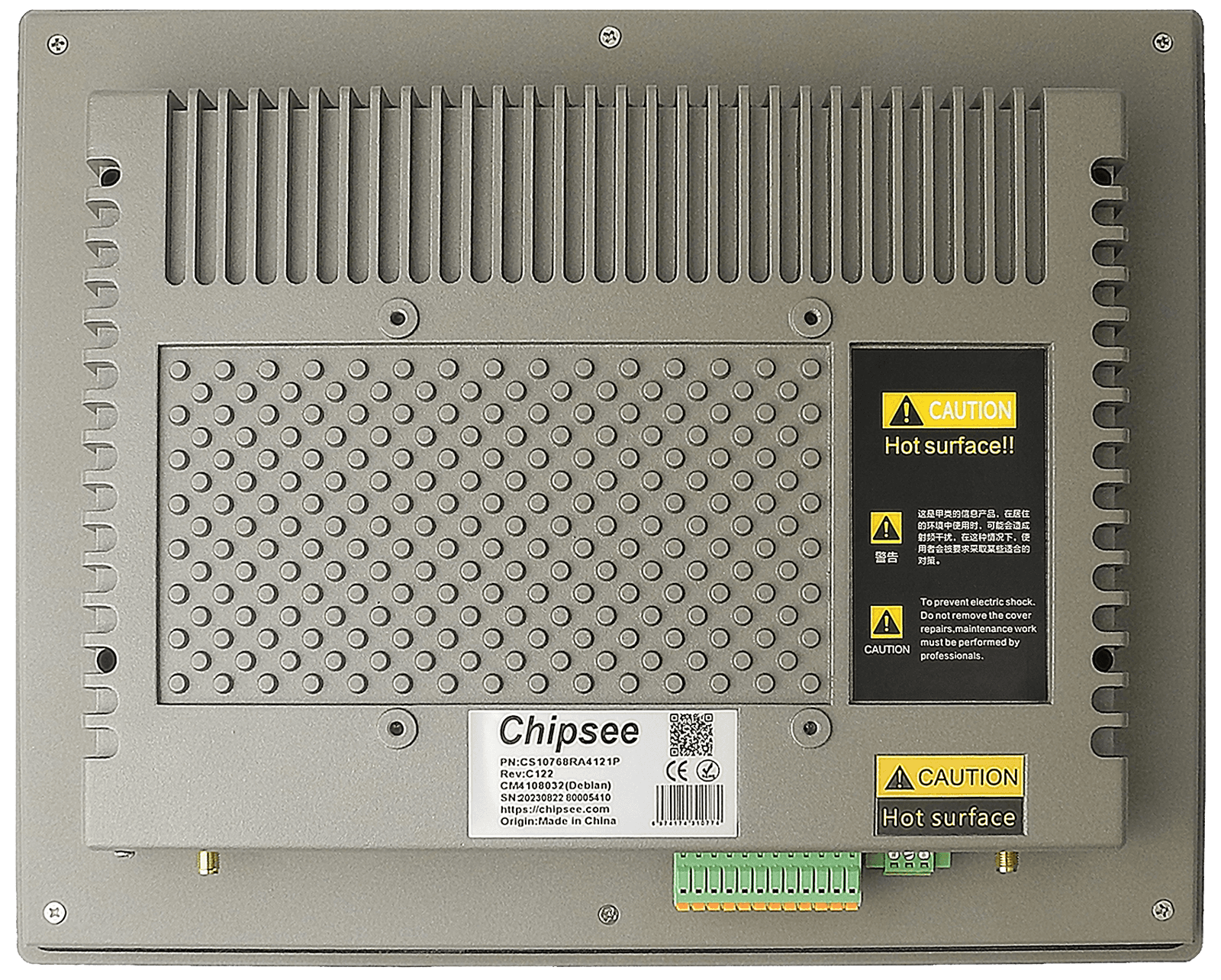

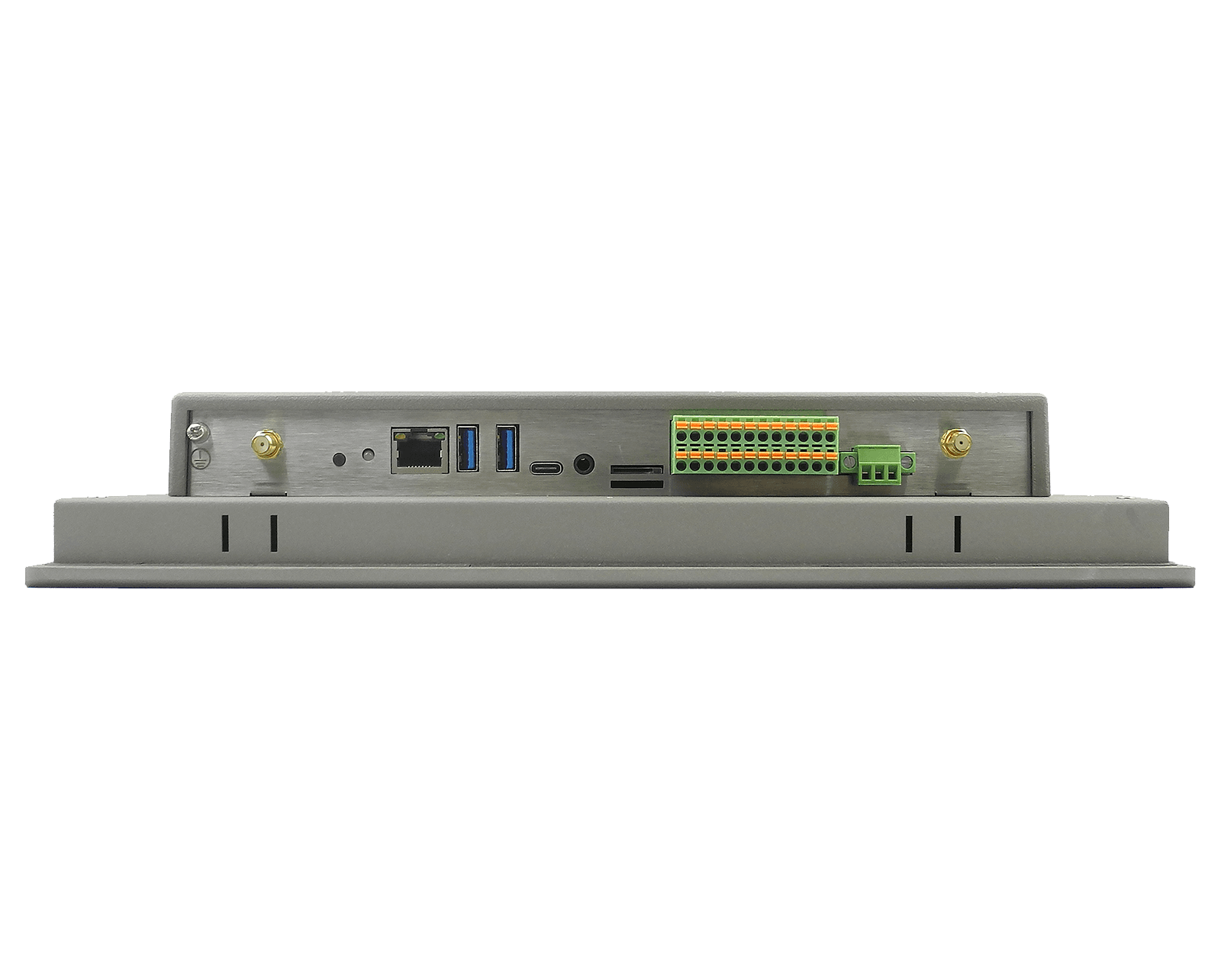

PPC-CM4-121

Спецификации

SKU

CS10768RA4121

Нетно тегло

3100 g

Форм-фактор

Panel

Процесор

ARM: Raspberry Pi CM4

Flash памет

16GB

Външна памет

TF (microSD) Card Slot

Диагонал на екрана

12.1"

Разделителна способност

1024*768

Яркост

400 NIT

Сензорен екран

Capacitive

Wi-Fi / Bluetooth

Depends on the Compute Module 4 selected.

Zigbee

Optional

USB

2 x USB 3.0 Host, 1 x USB OTG

CAN

1 x CAN

RS232

2 x RS232

RS485

2x RS485

GPIO

8 Channels, 4 Input, 4 Output

Ethernet

1x RJ45, 1 Gbps

Аудио

3.5mm Audio In/Out Connector; Internal 2W Speaker

Зумер

Onboard, driven by GPIO

RTC

High Accuracy RTC with Lithium Button Coin battery (lithium battery not included), can work 1 week after power off

Операционна система

Raspberry Pi OS

Входно захранване

15~36V DC

Ток при 15 V

0.80A Max

Консумация

13.2W

Начин на монтаж

Panel Mounting & VESA

Модул Raspberry Pi CM4

CM4002000 ($57): 2GB DDR, no WiFi, or eMMC; CM4002016 ($79): No WiFi/BT+2GB DDR+16GB eMMC; CM4002032 ($100): No WiFi/BT+2GB DDR+32GB eMMC; CM4102016 ($100): WiFi+2GB DDR+16GB eMMC; CM4102032 ($105): WIFI+2GB DDR+32GB eMMC; CM4104016 ($137): WIFI+4GB DDR+16GB eMMC; CM4104032 ($142): WIFI+4GB DDR+32GB eMMC; CM4108032 ($216): WIFI+8GB DDR+32GB eMMC
