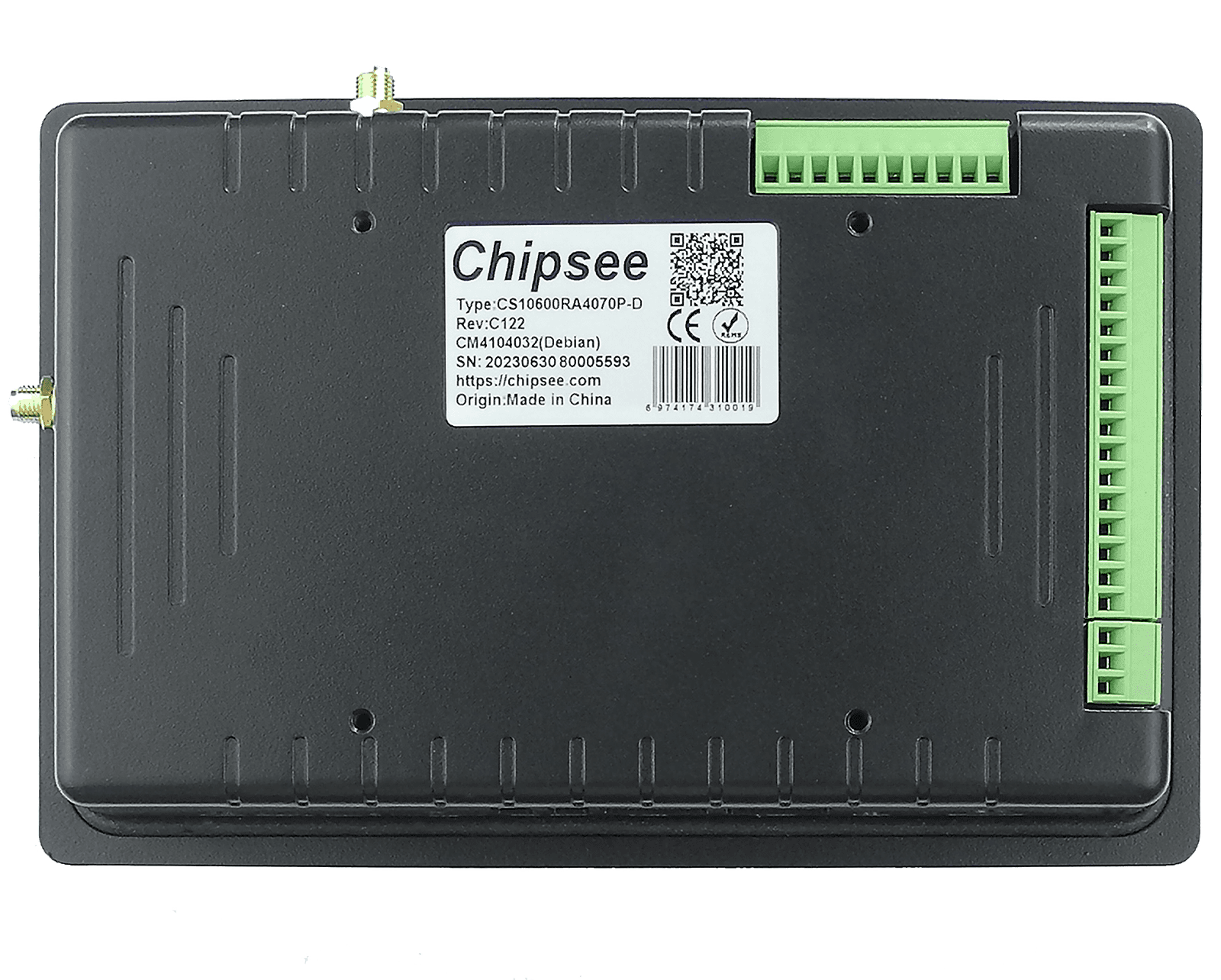

PPC-CM4-070-D

Спецификации

SKU

CS10600RA4070P-D

Нетно тегло

700 g

Форм-фактор

Panel

Процесор

ARM: Raspberry Pi CM4

Оперативна памет

2/4/8 GB, Based on CM4

Flash памет

Based on CM4

Външна памет

TF (microSD) Card Slot

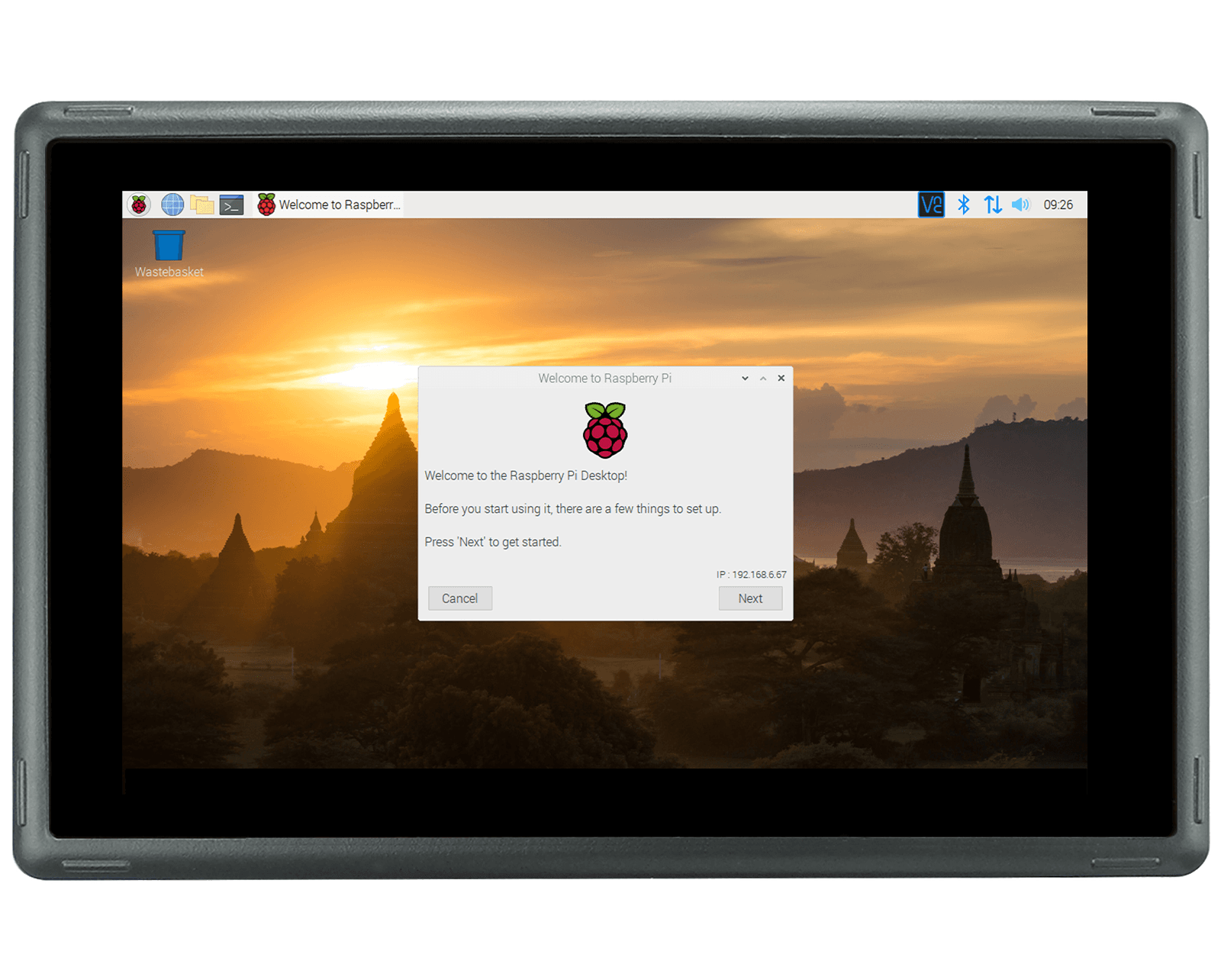

Диагонал на екрана

7.0″

Разделителна способност

1024*600

Яркост

500 NIT

Сензорен екран

Capacitive

Wi-Fi / Bluetooth

Depends on the Compute Module 4 selected.

4G

Optional

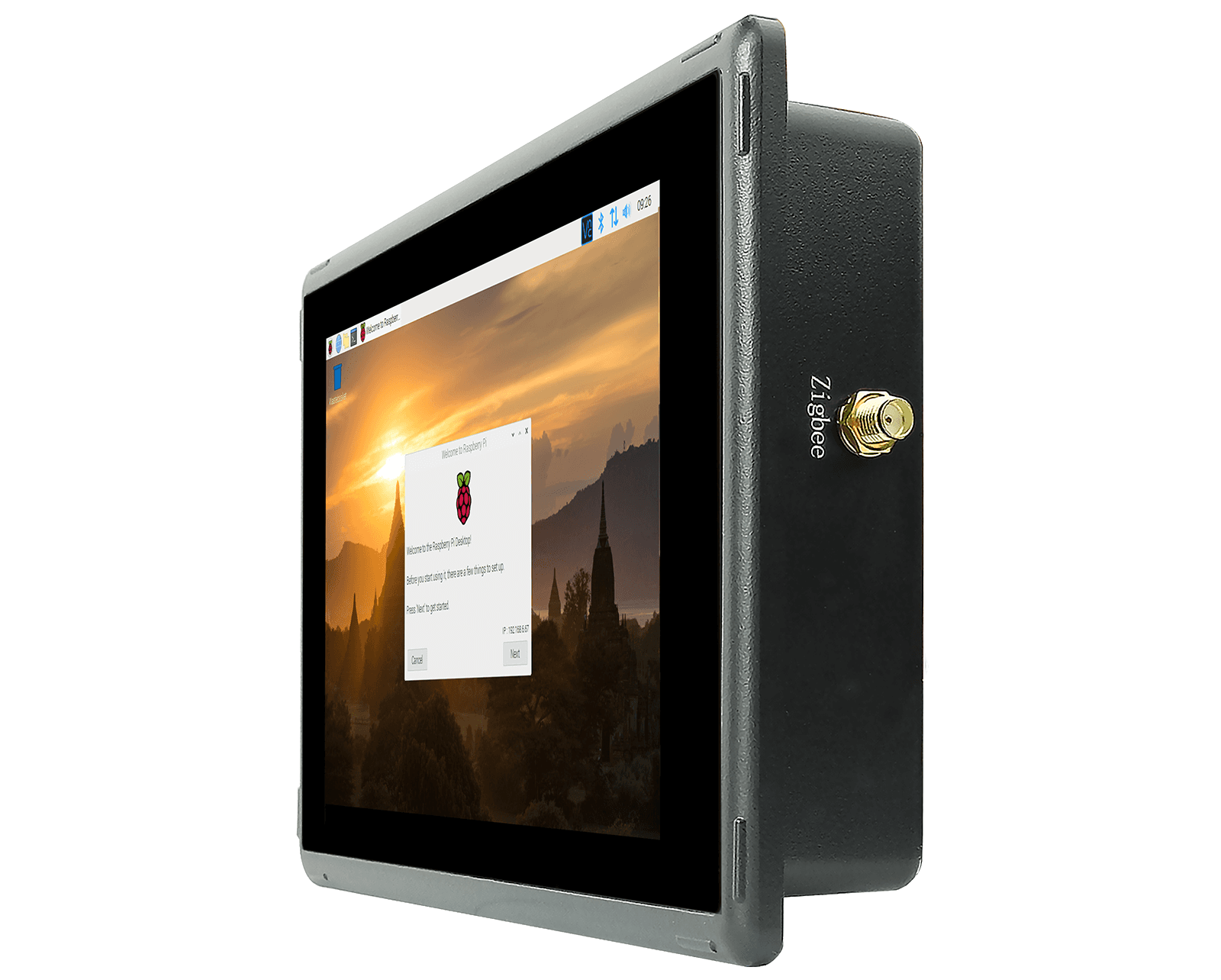

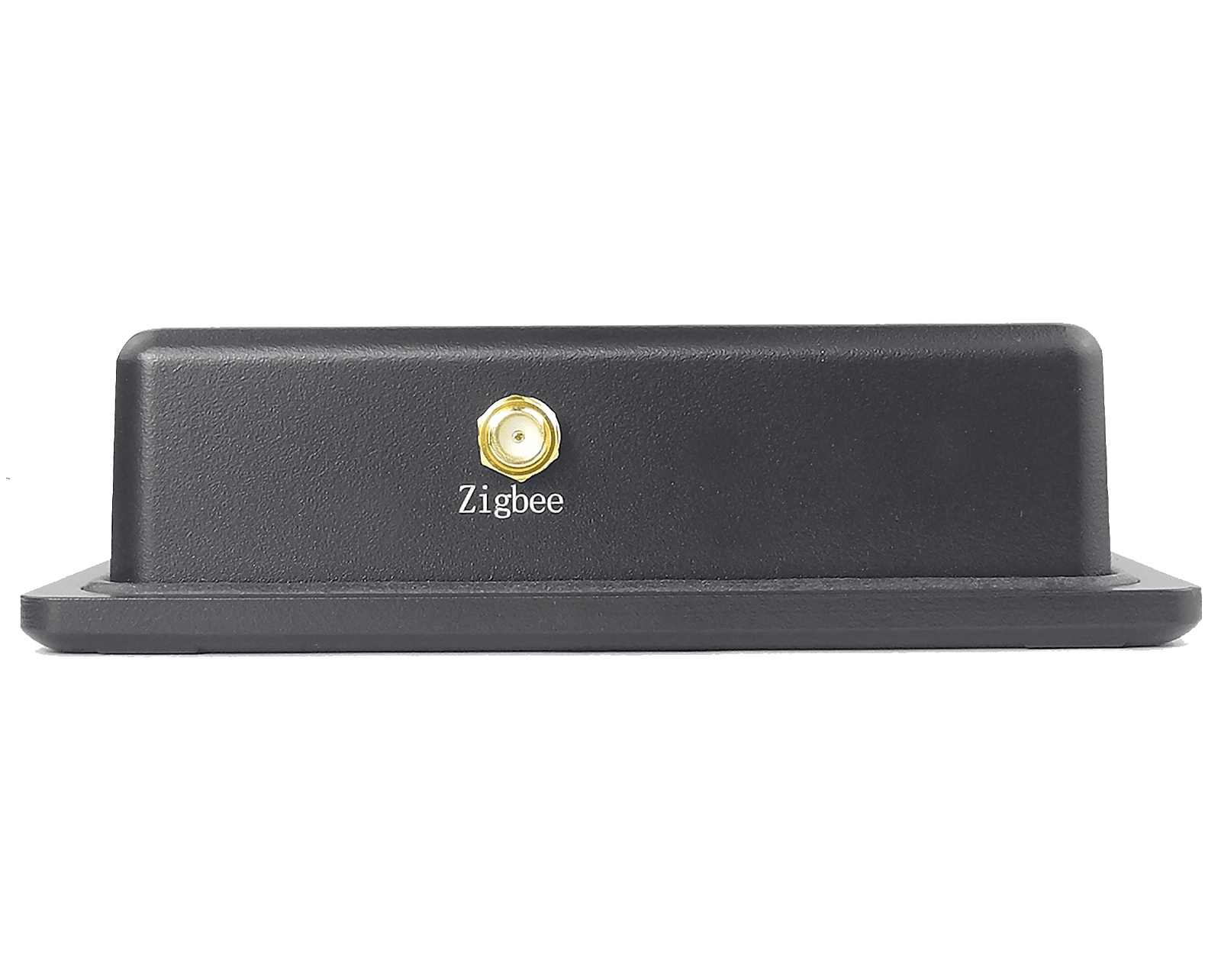

Zigbee

Optional

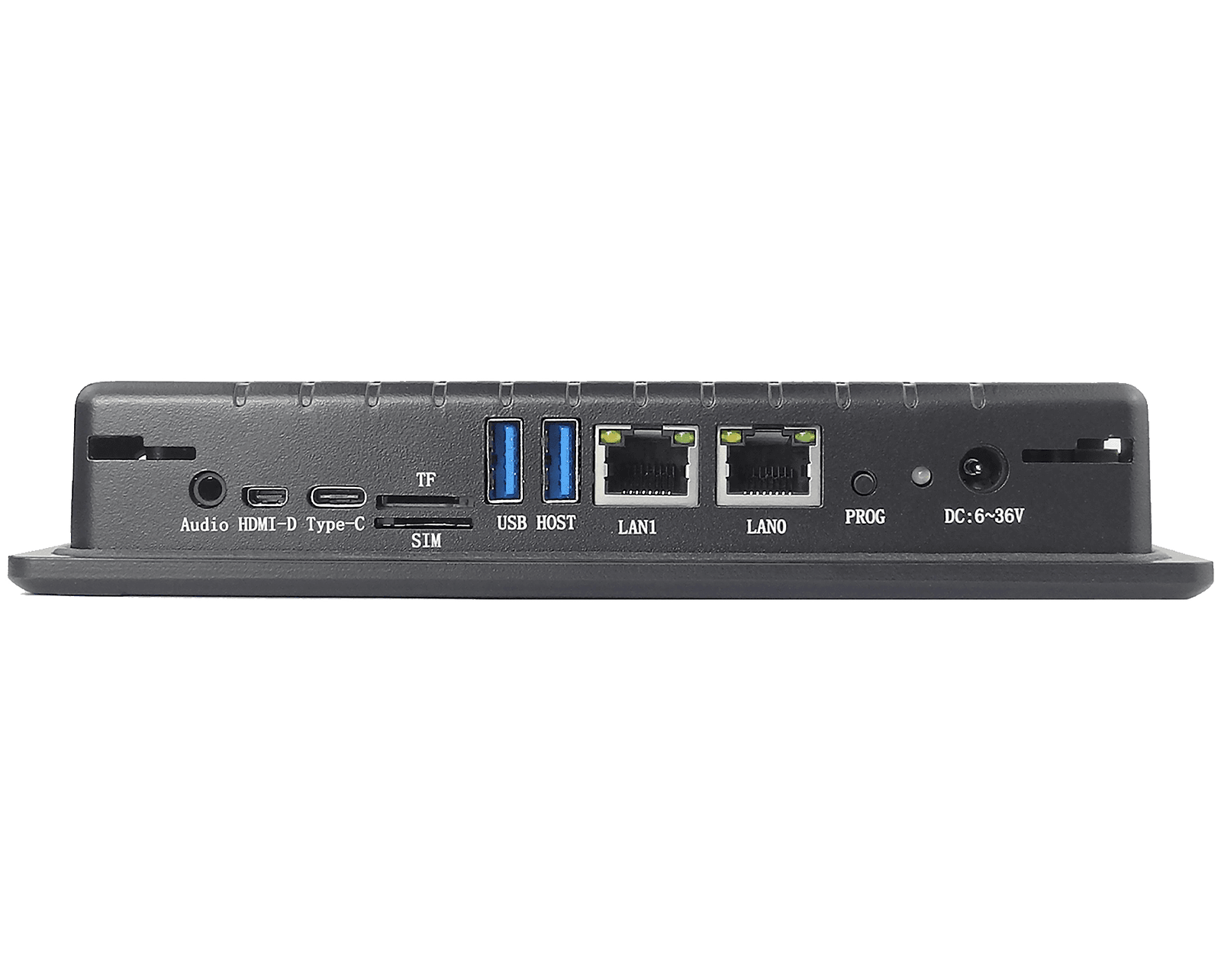

USB

1 x USB Type-C OTG; 2x USB 3.0 HOST

CAN

1 x CAN

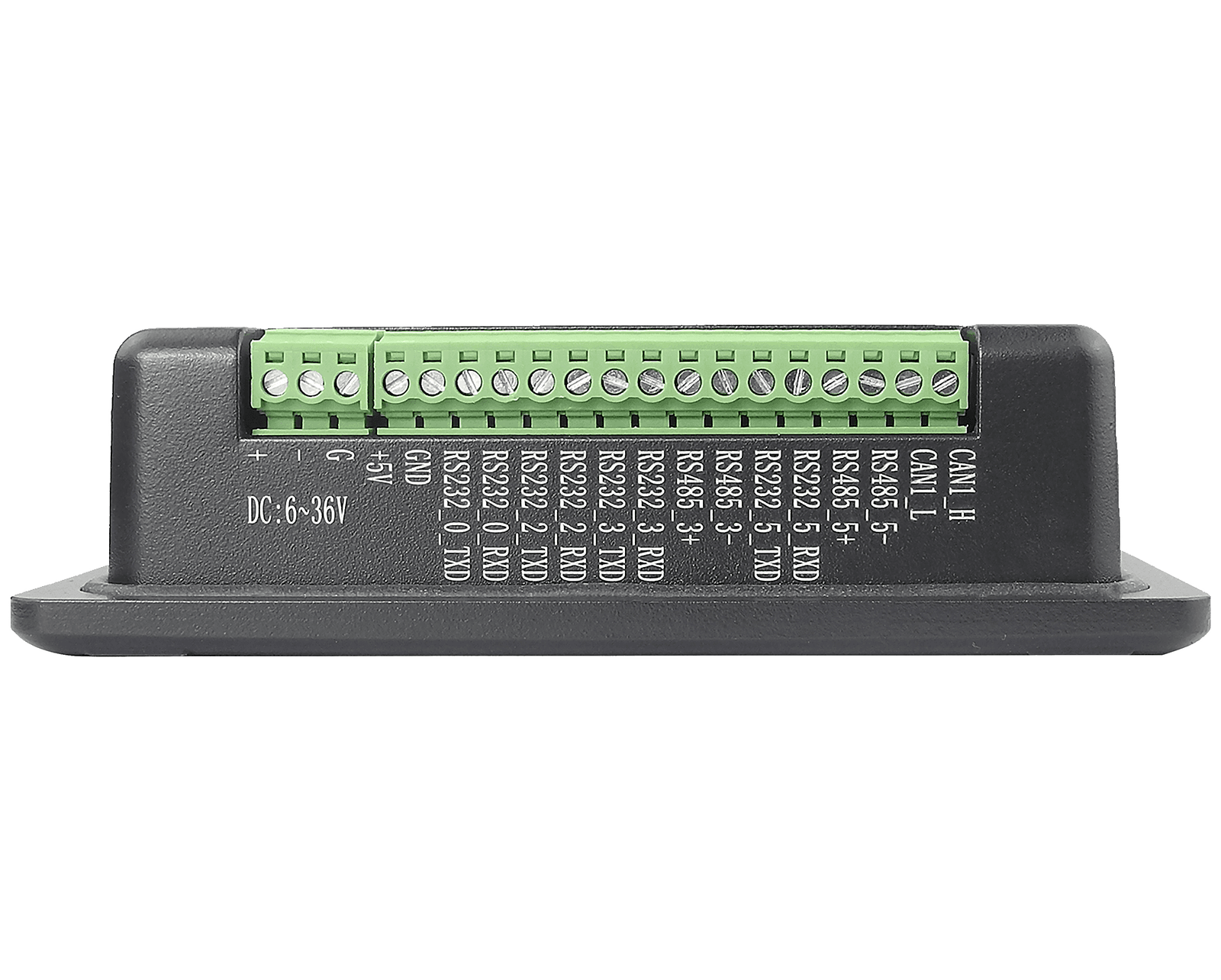

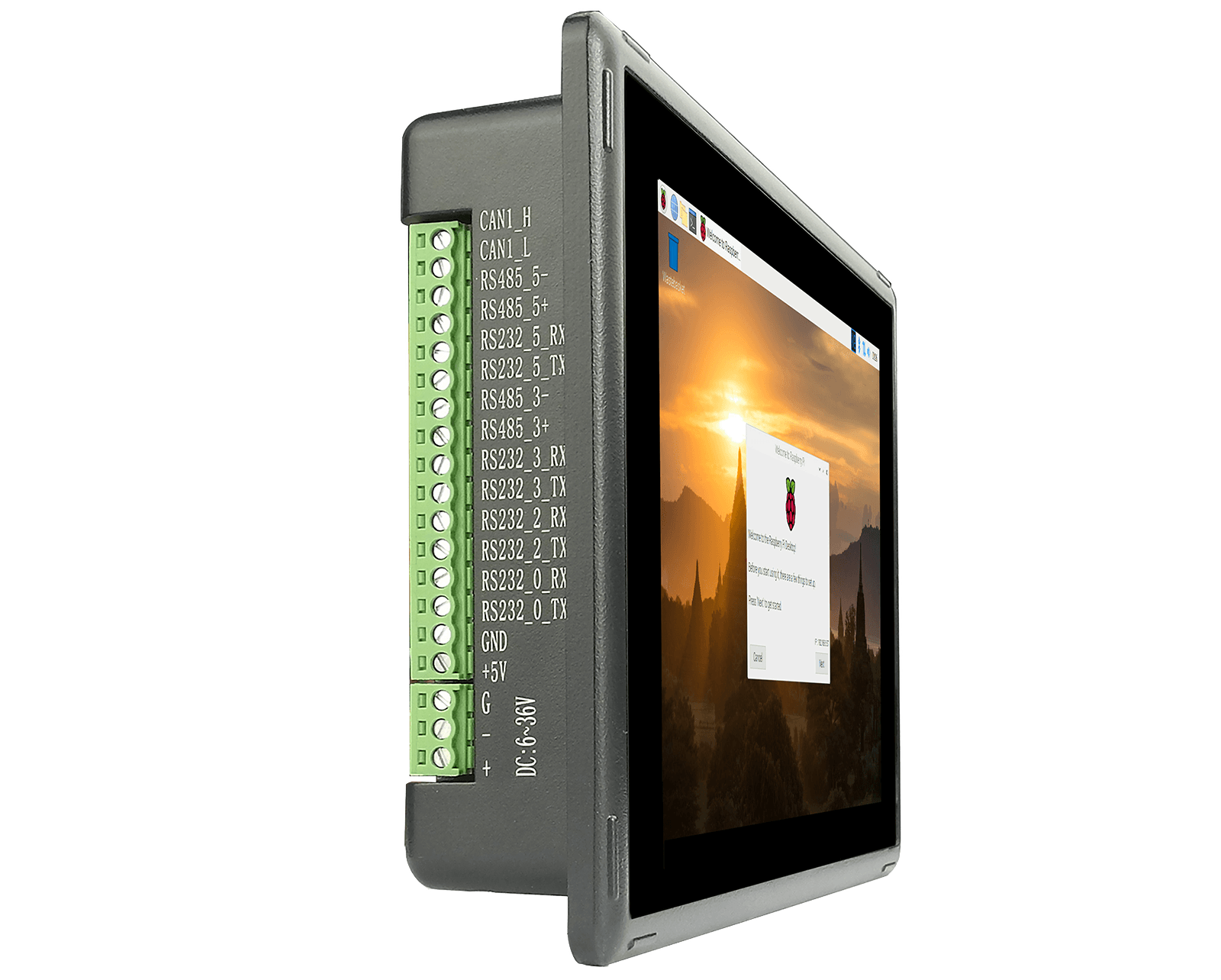

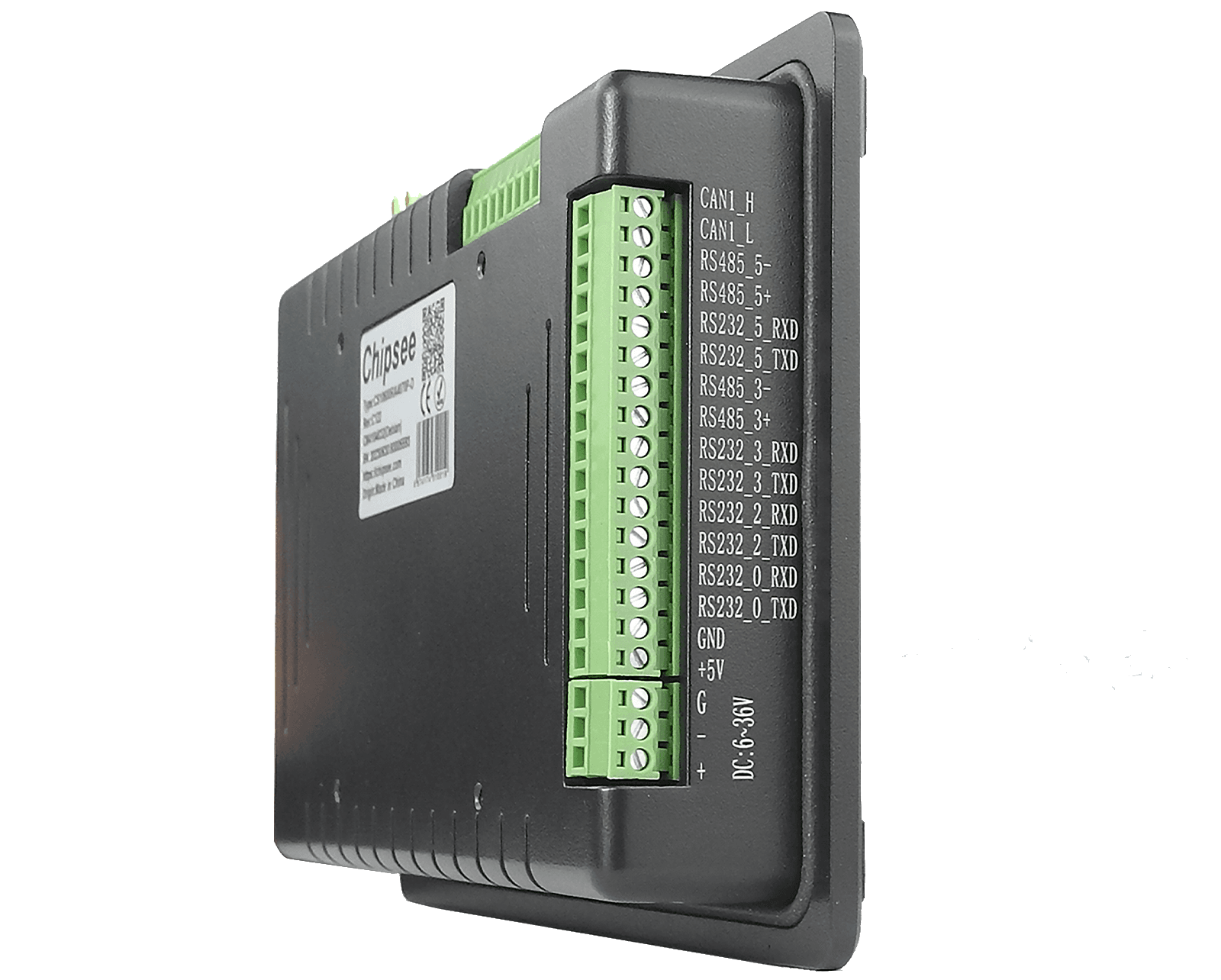

RS232

2 x RS232 by default, up to 4 x RS232

RS485

2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232

I2C

Not supported

GPIO

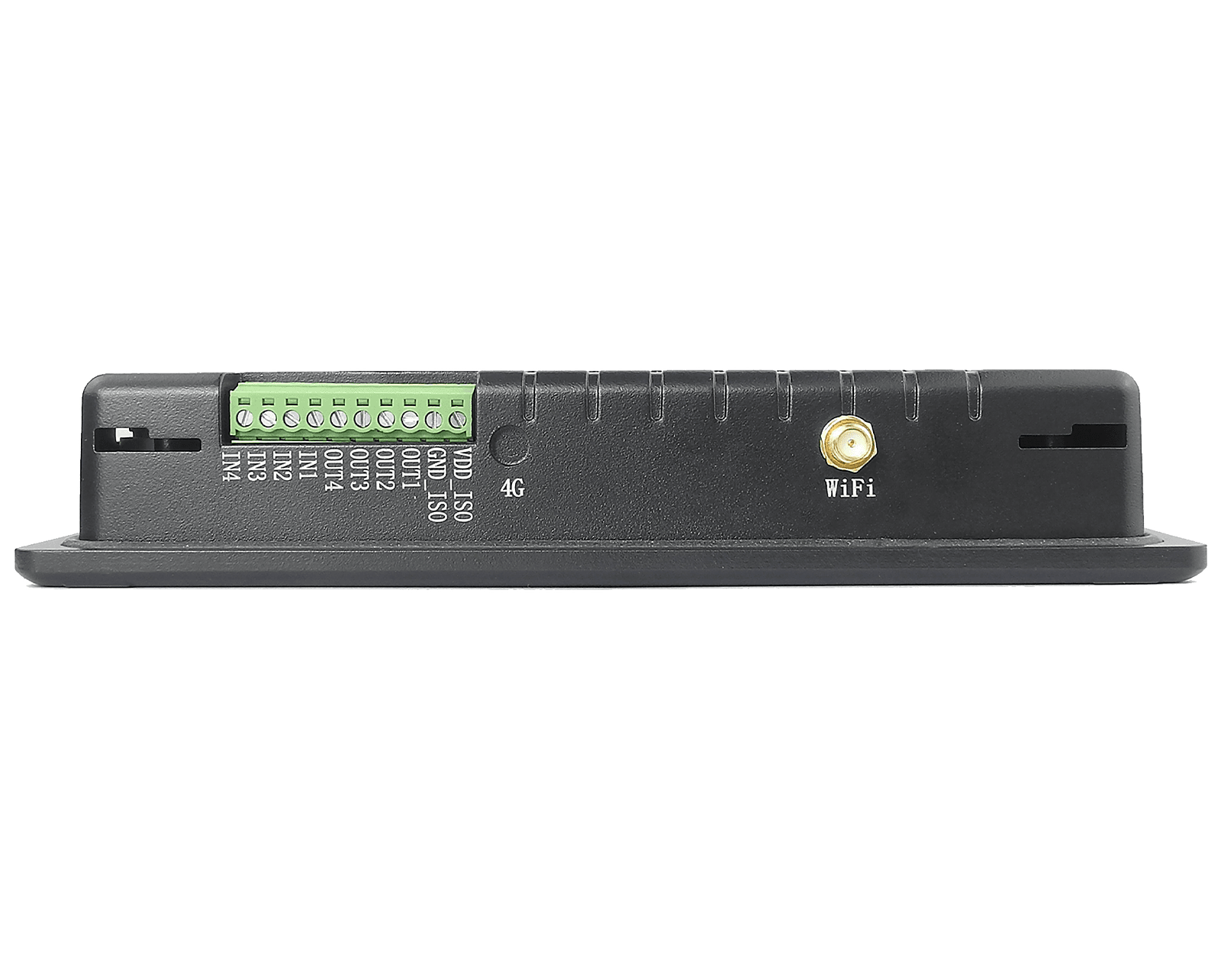

Option 1: 4 x input, 4 x output from expander IC (optical isolated, DEFAULT). Option 2: 6 x CM4 CPU GPIO (conflict with option 1).

HDMI

Yes

SATA II

Not supported

Ethernet

2 x RJ45, 1Gbps

Камера

Yes, not mounted by default. Available on the board in the embedded PC. Requires a customized case to be exposed in an enclosed PC.

Аудио

3.5mm Audio In/Out Connector; Internal 2W Speaker

Зумер

Onboard, driven by GPIO

RTC

High Accuracy RTC with Fara-Capacitor, can work 1 week after power off.

Операционна система

Raspberry Pi OS

Входно захранване

9V~36V DC

Консумация

8.4W (max); 6.36W (maximum backlight, idle); 4.8W (minimum backlight, idle)

Ток при 12 V

700mA (max); 530mA (maximum backlight, idle); 400mA (minimum backlight, idle)

Работна температура

0°C to +60°C

Начин на монтаж

Panel Mounting & VESA

Модул Raspberry Pi CM4

CM4002000 ($57): 2GB DDR, no WiFi, or eMMC; CM4002016 ($79): No WiFi/BT+2GB DDR+16GB eMMC; CM4002032 ($100): No WiFi/BT+2GB DDR+32GB eMMC; CM4102000 ($57): WIFI/BT+2GB DDR no eMMC; CM4102016 ($100): WiFi+2GB DDR+16GB eMMC; CM4102032 ($105): WIFI+2GB DDR+32GB eMMC; CM4104016 ($137): WIFI+4GB DDR+16GB eMMC; CM4104032 ($142): WIFI+4GB DDR+32GB eMMC; CM4108032 ($216): WIFI+8GB DDR+32GB eMMC
