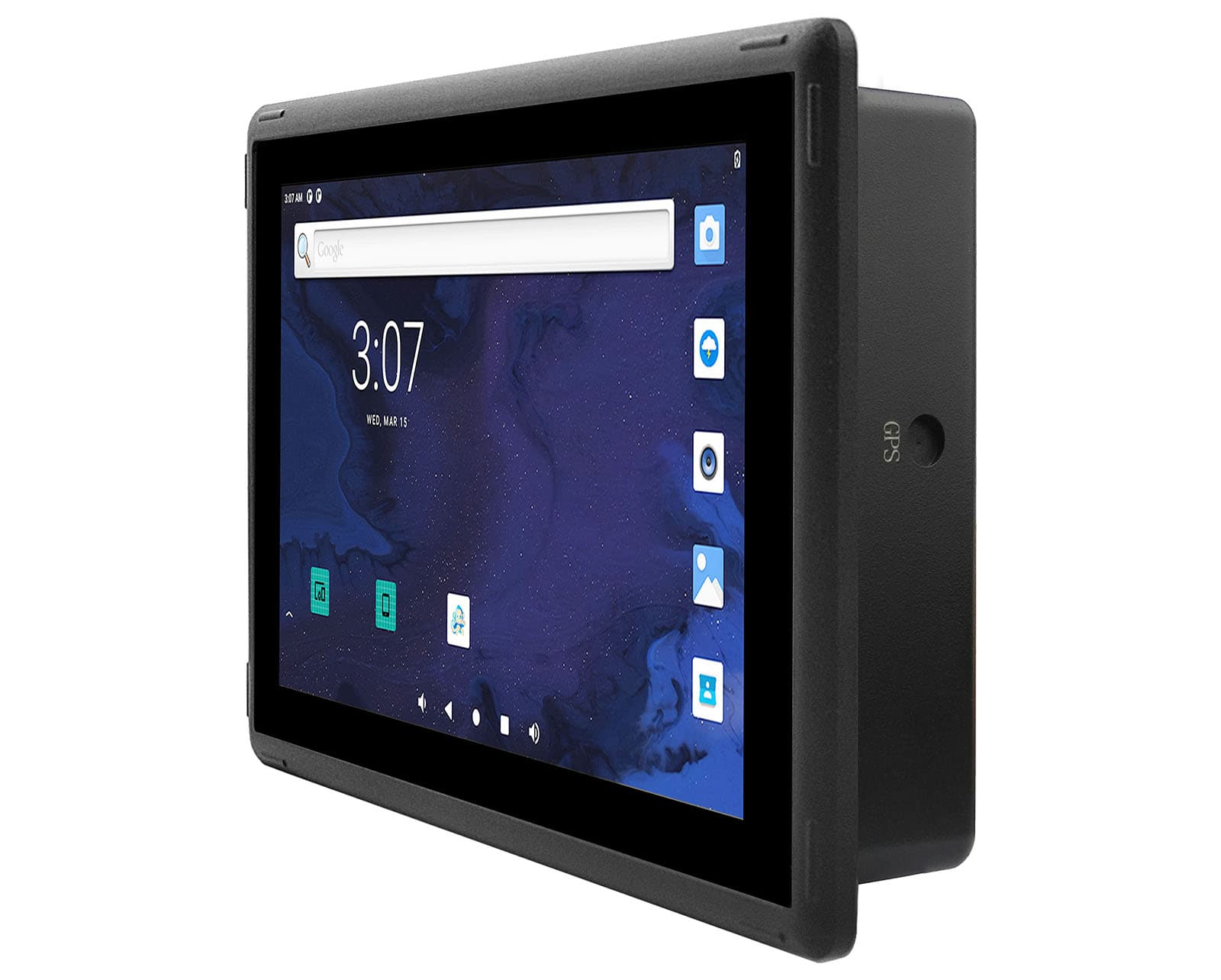

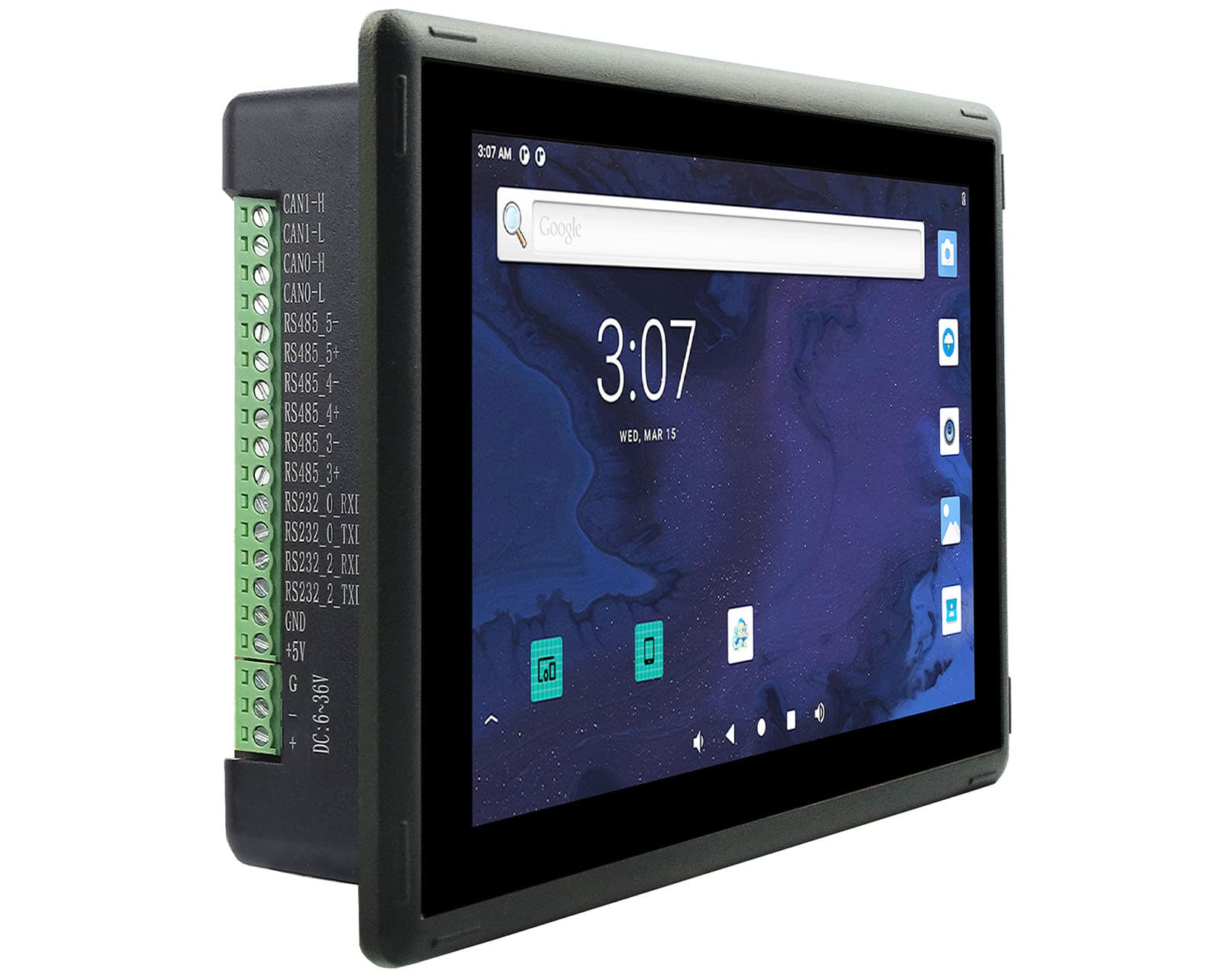

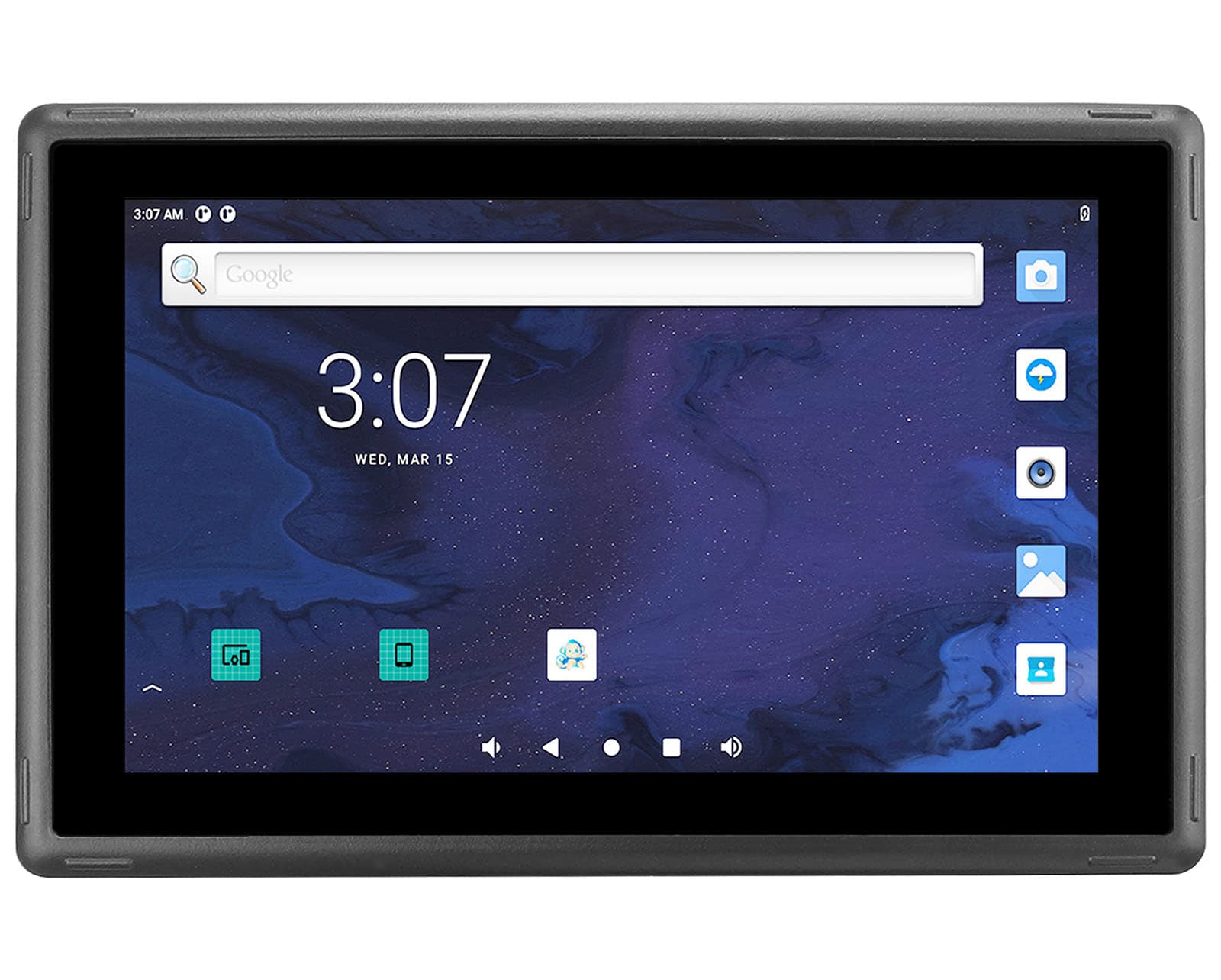

7.0" Панелни компютри и HMI — ARM: Rockchip RK3588J, 8GB LPDDR4, 64GB, 1024 × 600
Спецификации
- SKU
- CS10600-RK3588-070P
- Нетно тегло
- 700 g
- Процесор
- ARM: Rockchip RK3588J
- Тактова честота на процесора
- Quad(4)-core Cortex-A76 (2.0GHz) and Quad(4)-core Cortex-A55 (1.8GHz)
- Графичен процесор
- ARM Mali-G610 MC4. Up to 8K60 FPS video decoding, up to 8K30 FPS video encoding.
- NPU ускорител
- Neural network acceleration engine with 6Tops int8, supports Int4/8/16/FP16/BF16/TF32.
- Оперативна памет
- 8GB LPDDR4
- Вградена памет (eMMC)
- 64GB
- SSD
- Not supported
- Постоянна памет
- TF Card, Supports up to 128GB SDHC
- Диагонал на екрана
- 7.0″
- Разделителна способност
- 1024*600
- Яркост
- 400 NIT
- Сензорен екран
- Capacitive
- PCIe
- Not supported

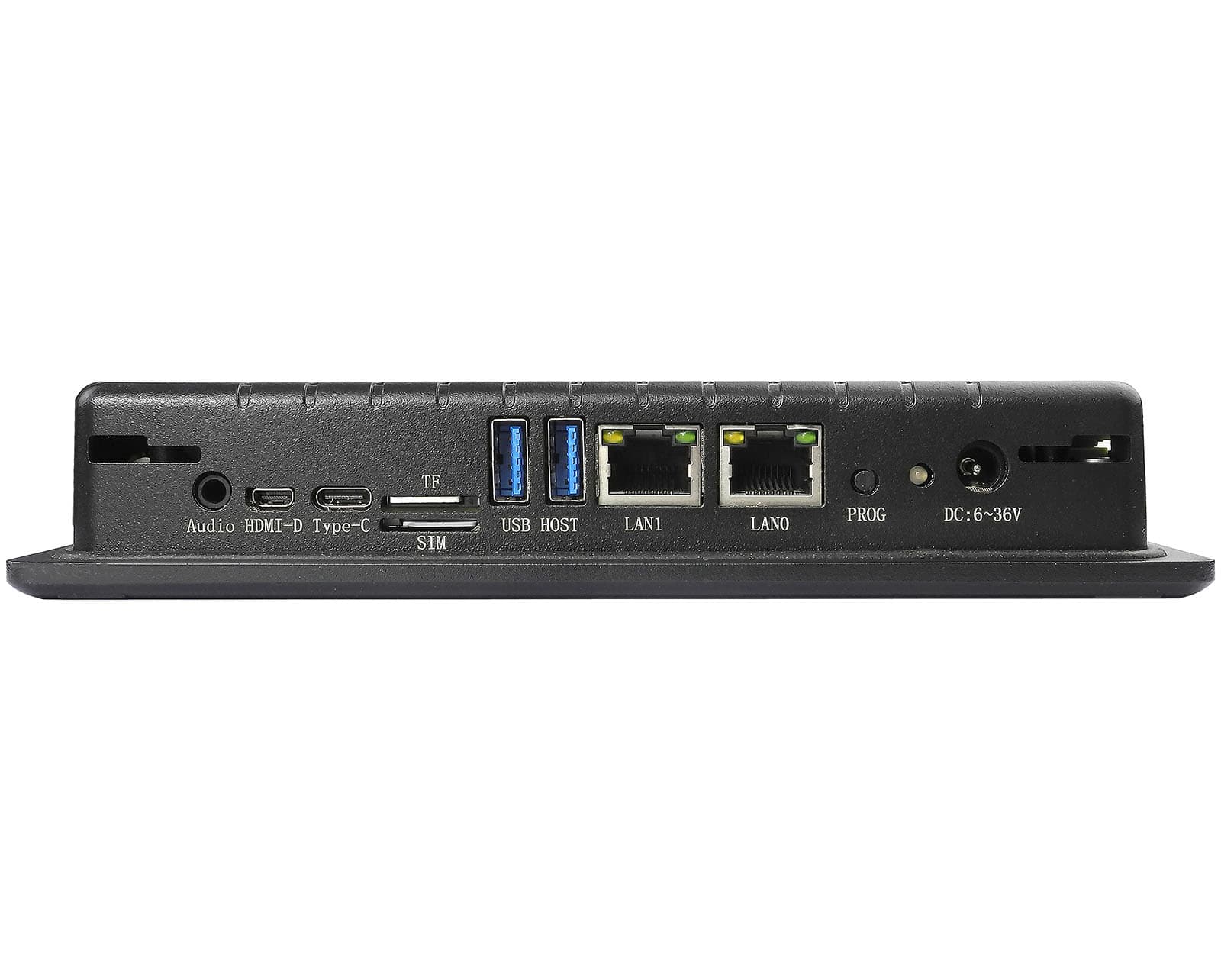

- USB
- 1x USB Type-C; 2x USB 3.0 HOST
- CAN
- 2 x CAN FD by default

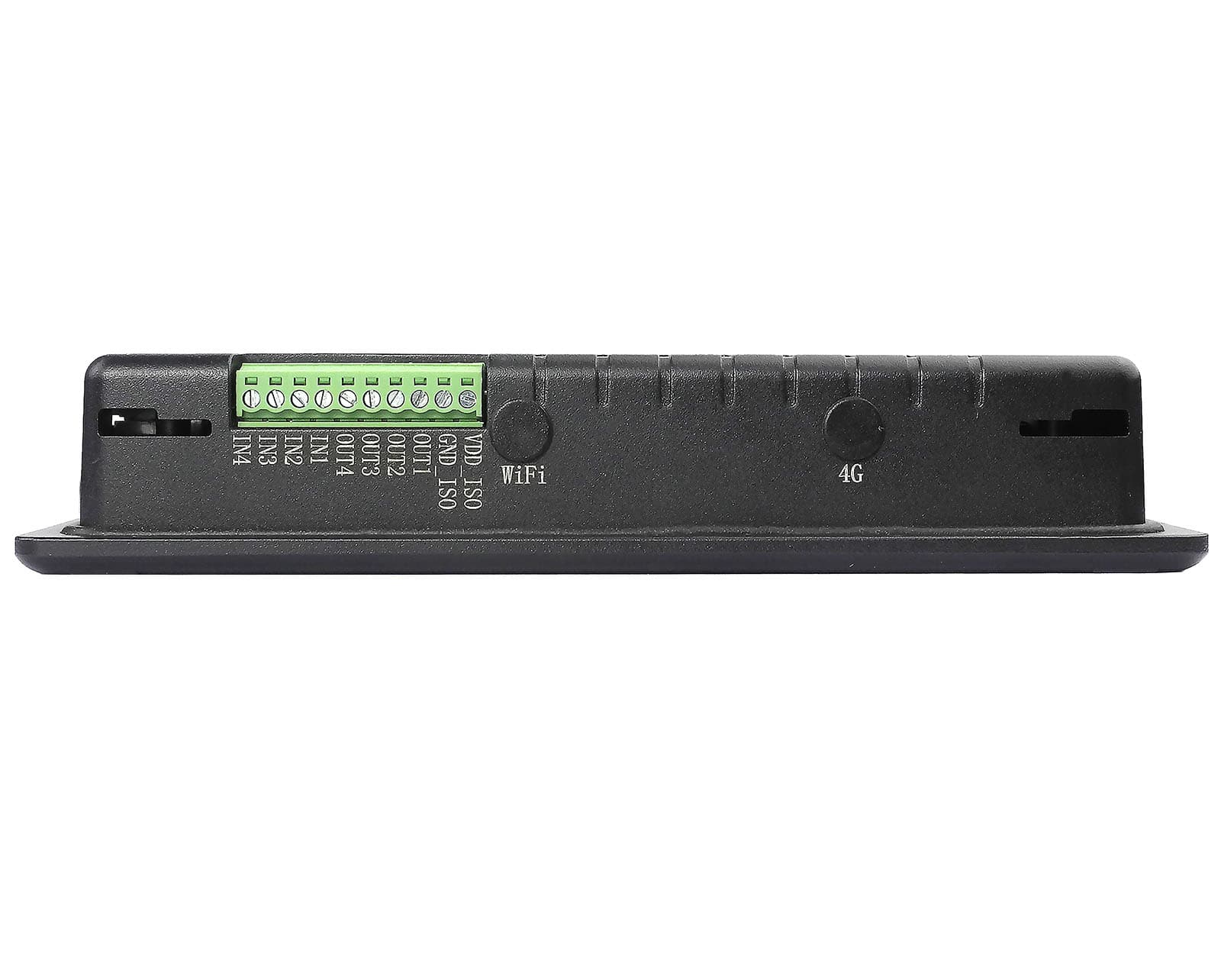

- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI-D (Micro HDMI) OUT

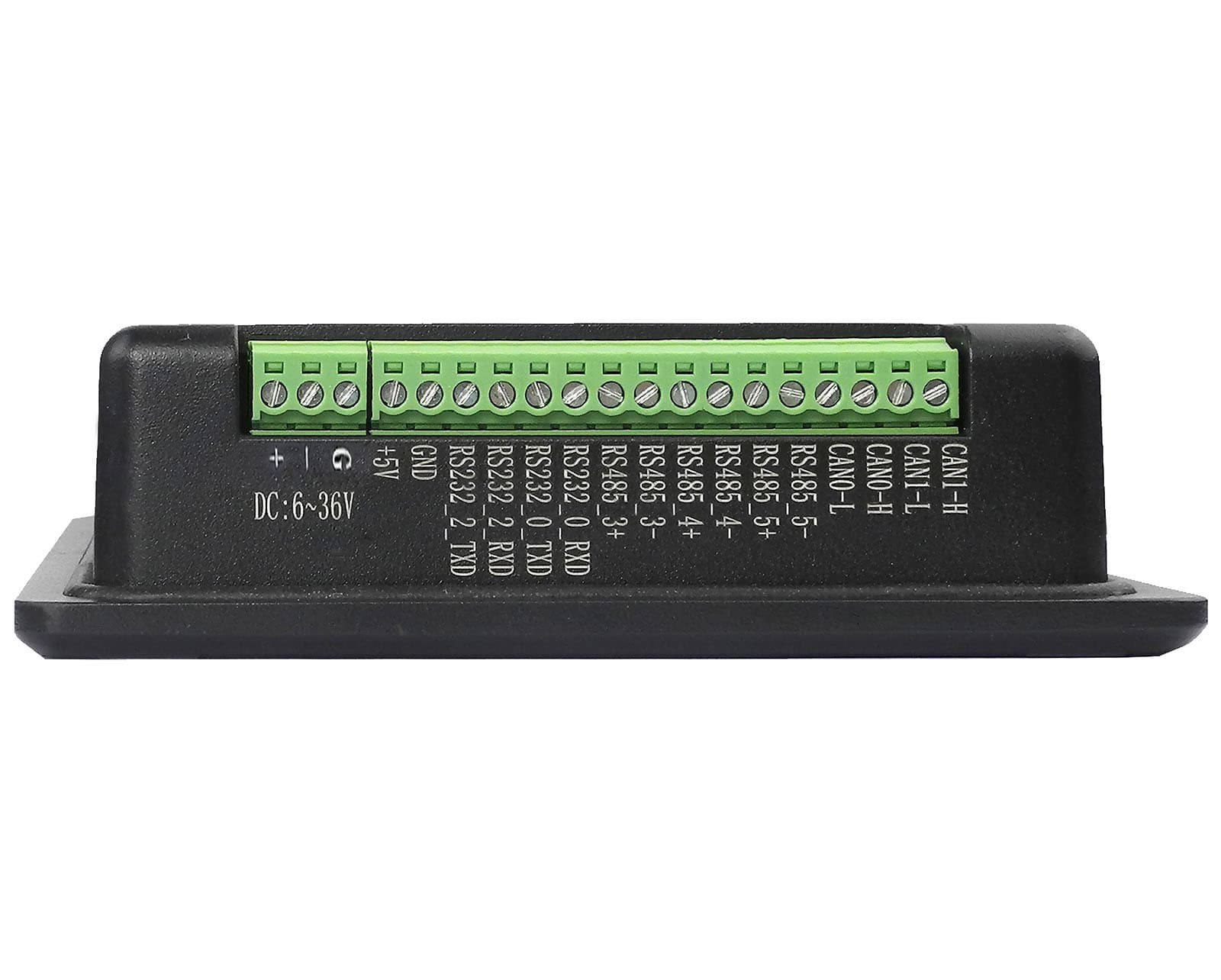

- RS232
- 2 x RS232 by default (Optional 6 x RS232 at most, include 1 debug port)
- RS485
- 3 x RS485 by default
- Ethernet
- 2 x RJ45, GbE
- Wi-Fi / Bluetooth
- Built-in
- 4G
- Optional
- PoE
- Not supported
- Аудио
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Зумер
- Onboard, driven by GPIO
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Входно захранване
- (supports optional 24V ignition signal); 9-30V DC
- Консумация
- 8W
- Работна температура
- -10°C to +60°C
- Операционна система
- Buildroot; Debian
- Начин на монтаж
- VESA, PANEL
