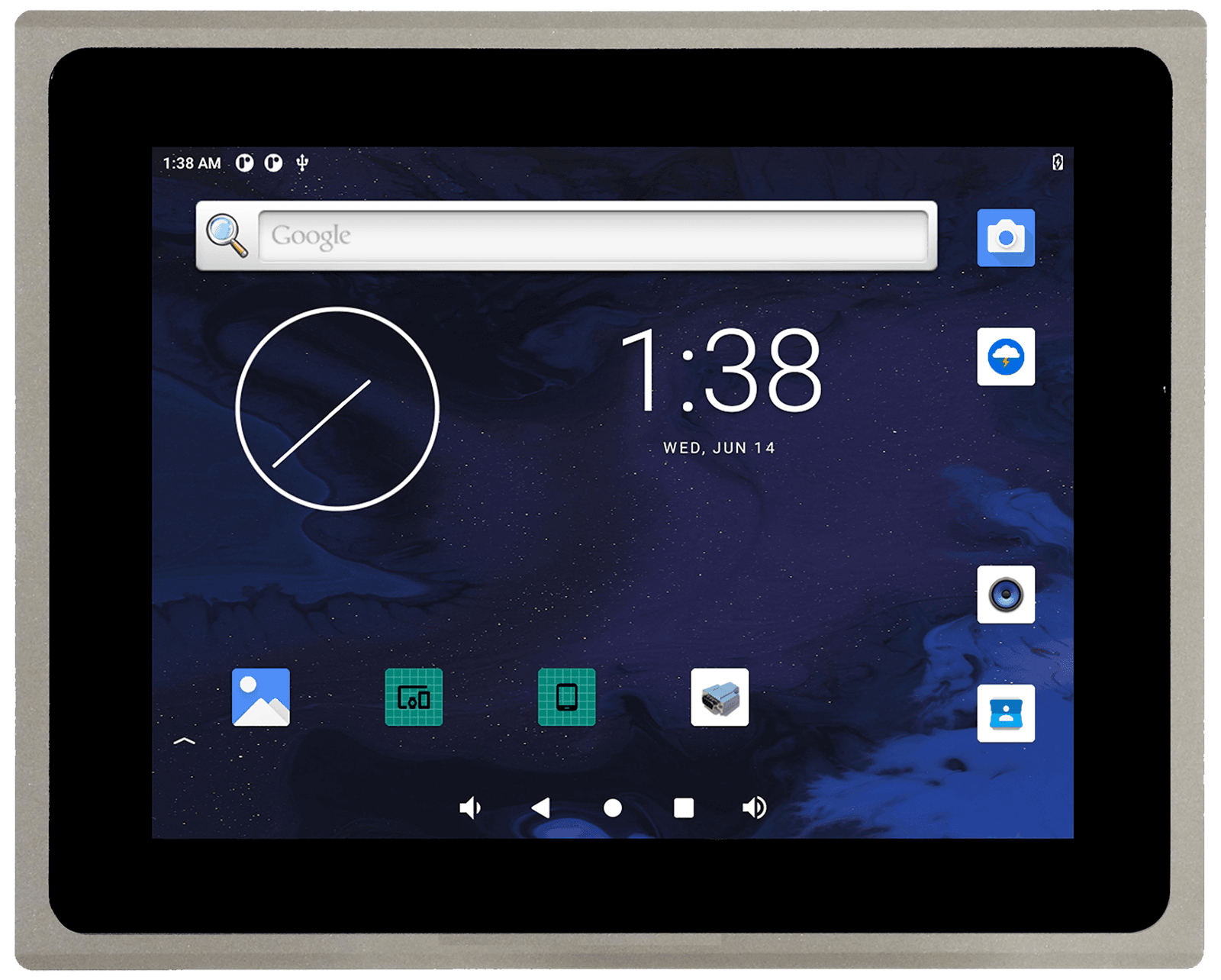

12.1" Панелни компютри и HMI — ARM: Rockchip RK3568, 4GB, 64GB, 1024 × 768
Спецификации
- SKU
- CS10768-RK3568-121P
- Нетно тегло
- 3100 g
- Процесор
- ARM: Rockchip RK3568
- Оперативна памет
- 4GB
- Вградена памет (eMMC)
- 64GB
- SSD
- Optional, supports M.2 2280 NVME SSD (PCI-E 3.0 x 2)
- Външна памет
- TF Card, Supports up to 128GB SDHC
- Диагонал на екрана
- 12.1"
- Разделителна способност
- 1024*768
- Яркост
- 400 NIT
- Сензорен екран
- Capacitive
- USB
- 1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST
- CAN
- 2 x CAN by default that can be configured to RS232
- RS232
- 2 x RS232 (including 1 debug port)by default. Up to 6 x RS232.
- RS485
- 2 x RS485 by default that can be configured to RS232
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- LAN
- 1 x RJ45, GbE
- HDMI
- 1 x HDMI OUT
- GPIO
- 8 Channels, 4 Input, 4 Output
- Аудио
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Wi-Fi / Bluetooth
- Onboard
- 4G / LTE
- Optional
- PoE
- Not supported
- Зумер
- Yes
- Входно захранване
- 15~36V DC
- Ток при 15 V
- 0.80A Max
- Консумация
- 12W
- Работна температура
- -20°C ~ 70°C.
- Операционна система
- Android; Buildroot; Debian
