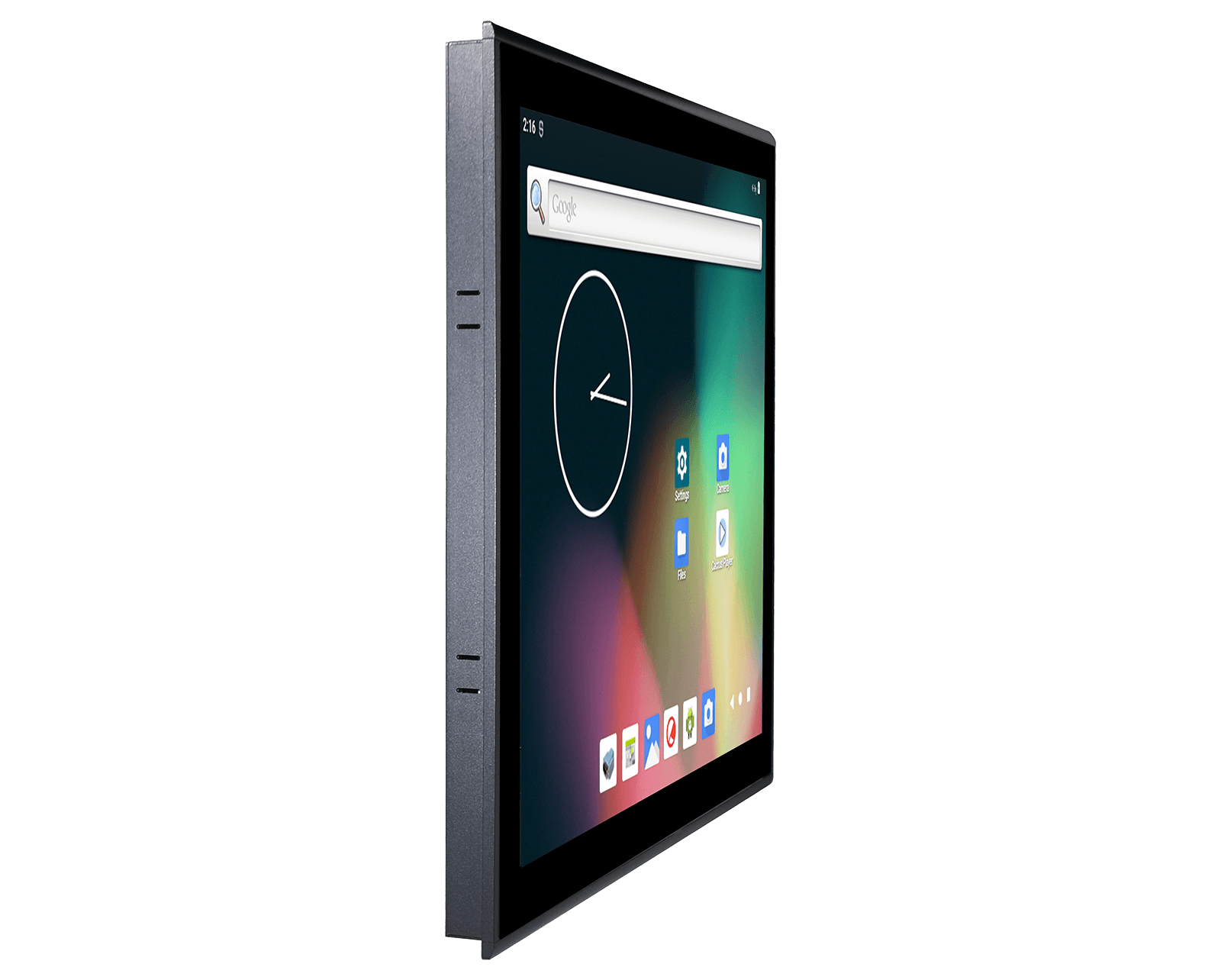

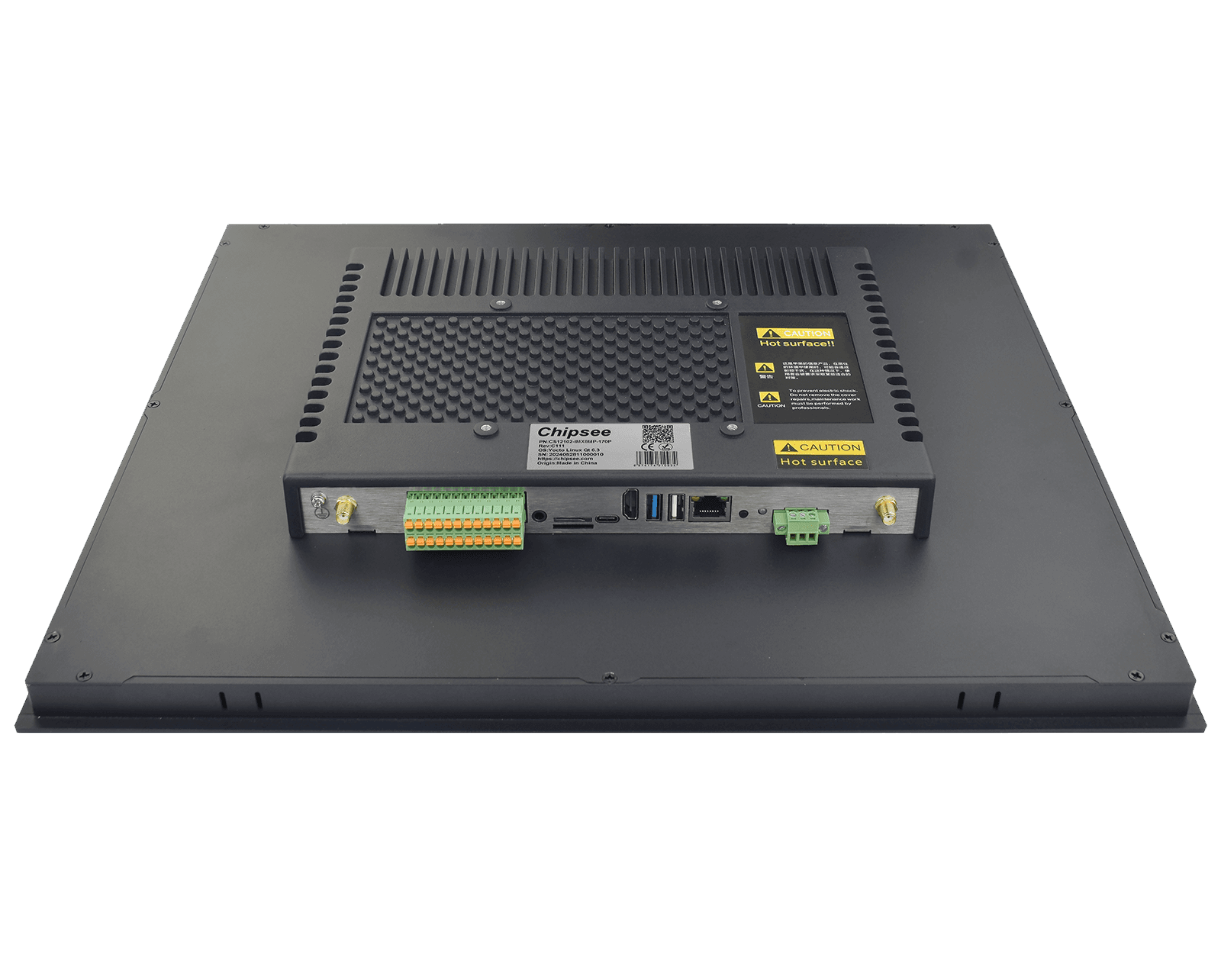

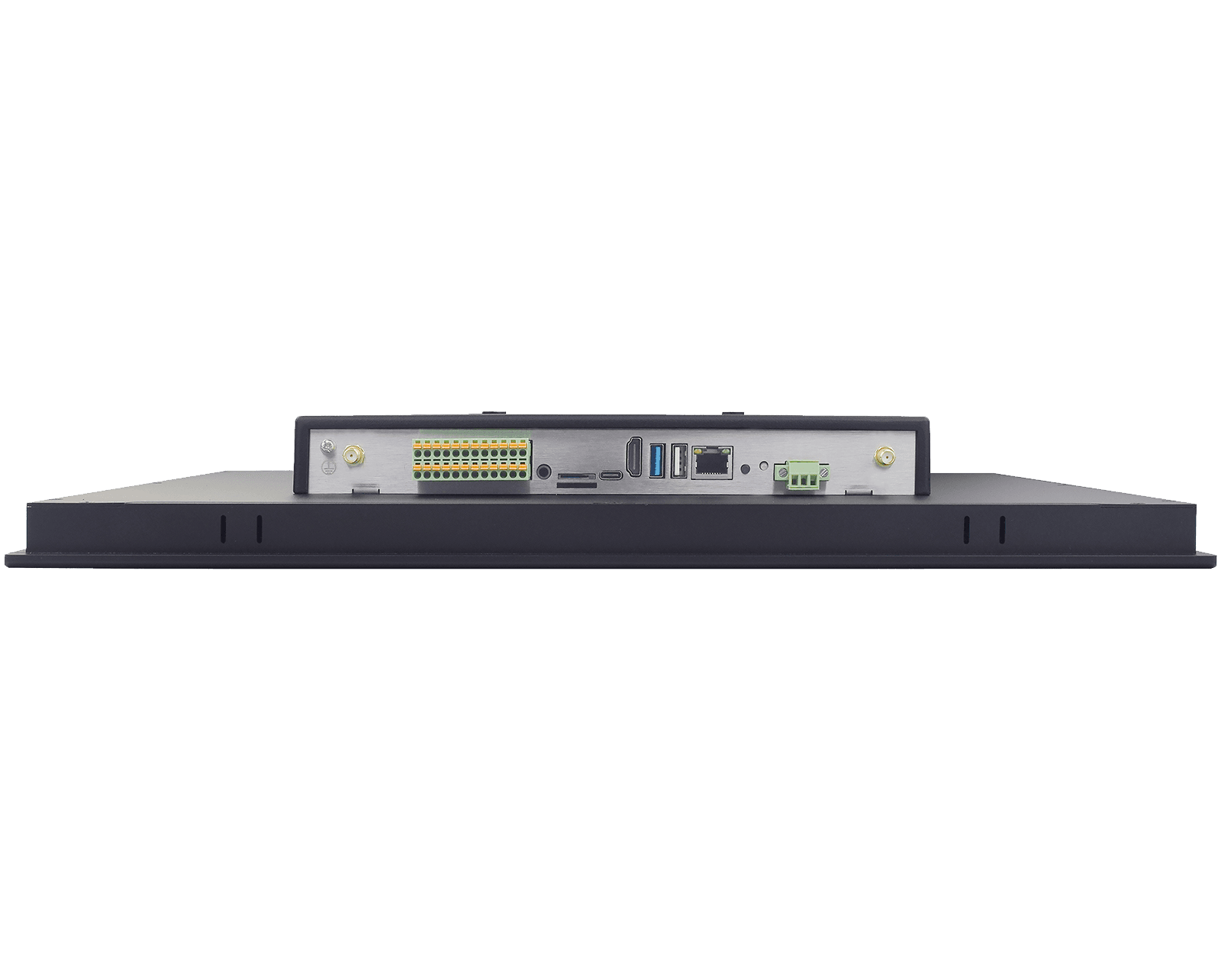

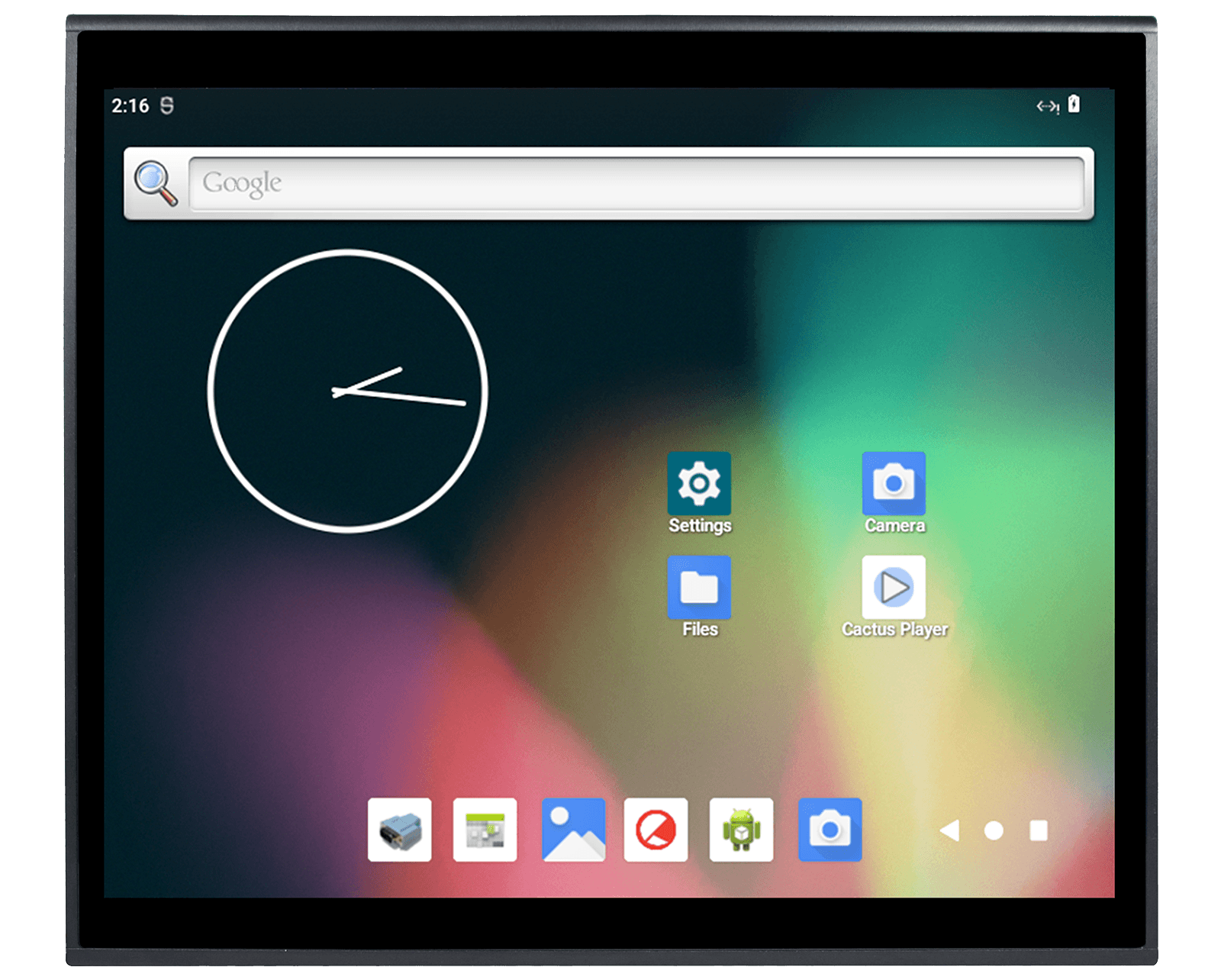

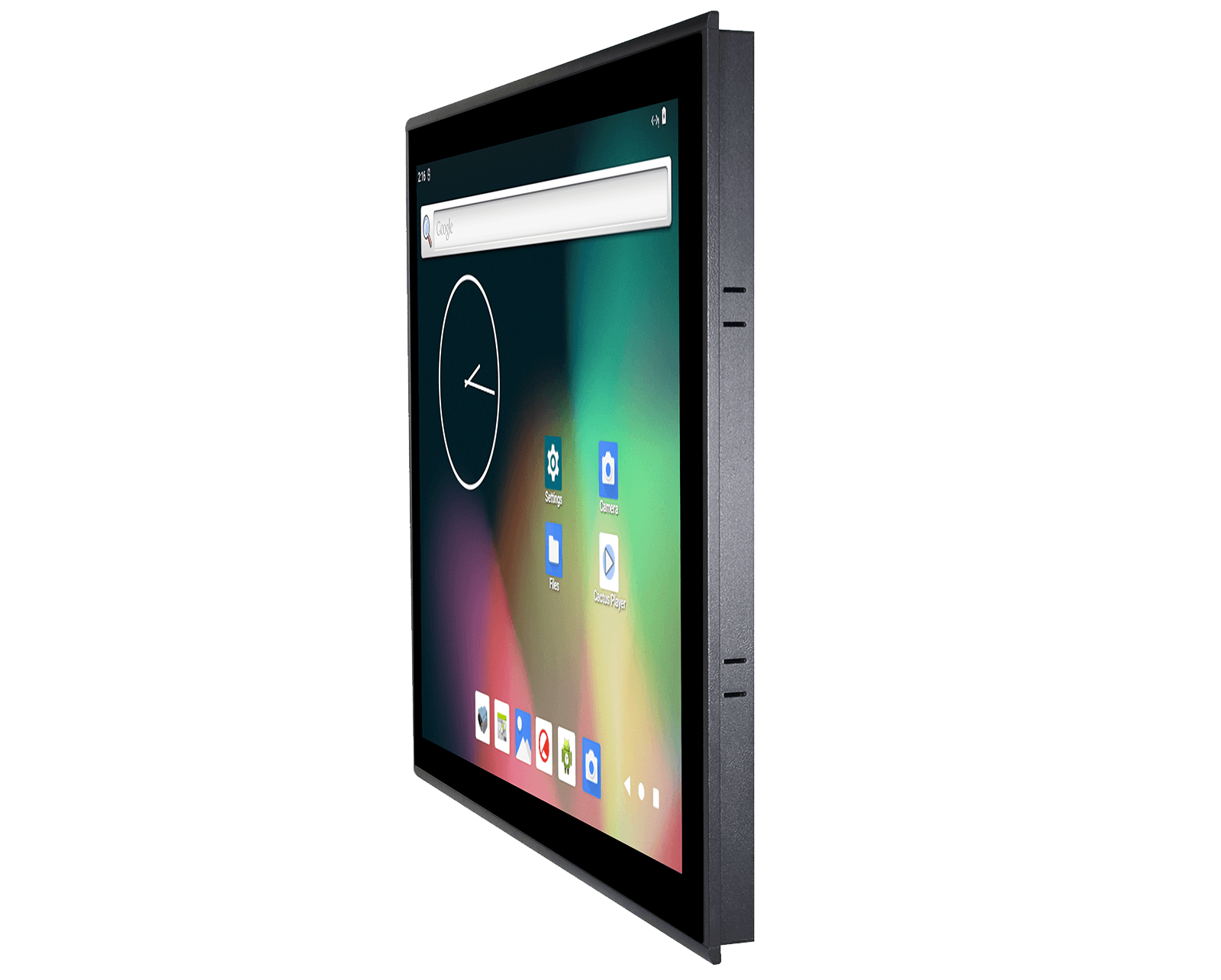

17.0" Панелни компютри и HMI — ARM: NXP i.MX8MP, LPDDR4 4GB, 32GB, 1280 × 1024
Спецификации
- SKU
- CS12102-IMX8MP-170P
- Нетно тегло
- 4600 g
- Форм-фактор
- Panel
- Процесор
- ARM: NXP i.MX8MP
- Тактова честота на процесора
- NPU 2.3TOPS; Quad Cortex A53, 1.6GHz
- Оперативна памет
- LPDDR4 4GB
- Вградена памет (eMMC)
- 32GB
- Постоянна памет
- TF Card, Supports up to 128GB SDHC
- Диагонал на екрана
- 17.0″
- Разделителна способност
- 1280*1024
- Яркост
- 340 NIT
- Сензорен екран
- Capacitive
- Wi-Fi / Bluetooth
- Onboard (Bluetooth is functional on Yocto Linux, but not on Android)
- 4G
- Optional
- USB
- 1x USB 2.0 HOST; 1x USB 3.0 HOST; 1x USB Type-C
- CAN
- 2 x CAN by default. Optionally, these 2 x CAN can be configured to RS232.
- RS232
- 2 x RS232 by default (Optional 6 x RS232 at most, include 1 debug port)
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI OUT
- Ethernet
- 1 x RJ45, GbE
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Аудио
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Зумер
- Onboard, driven by GPIO
- Операционна система
- Android; Yocto
- Входно захранване
- 15~36V DC
- Консумация
- 17.52W (max)
- Ток при 15 V
- 0.98A typical; 1.17A max
- Работна температура
- 0℃~50℃
- Начин на монтаж
- VESA, PANEL
