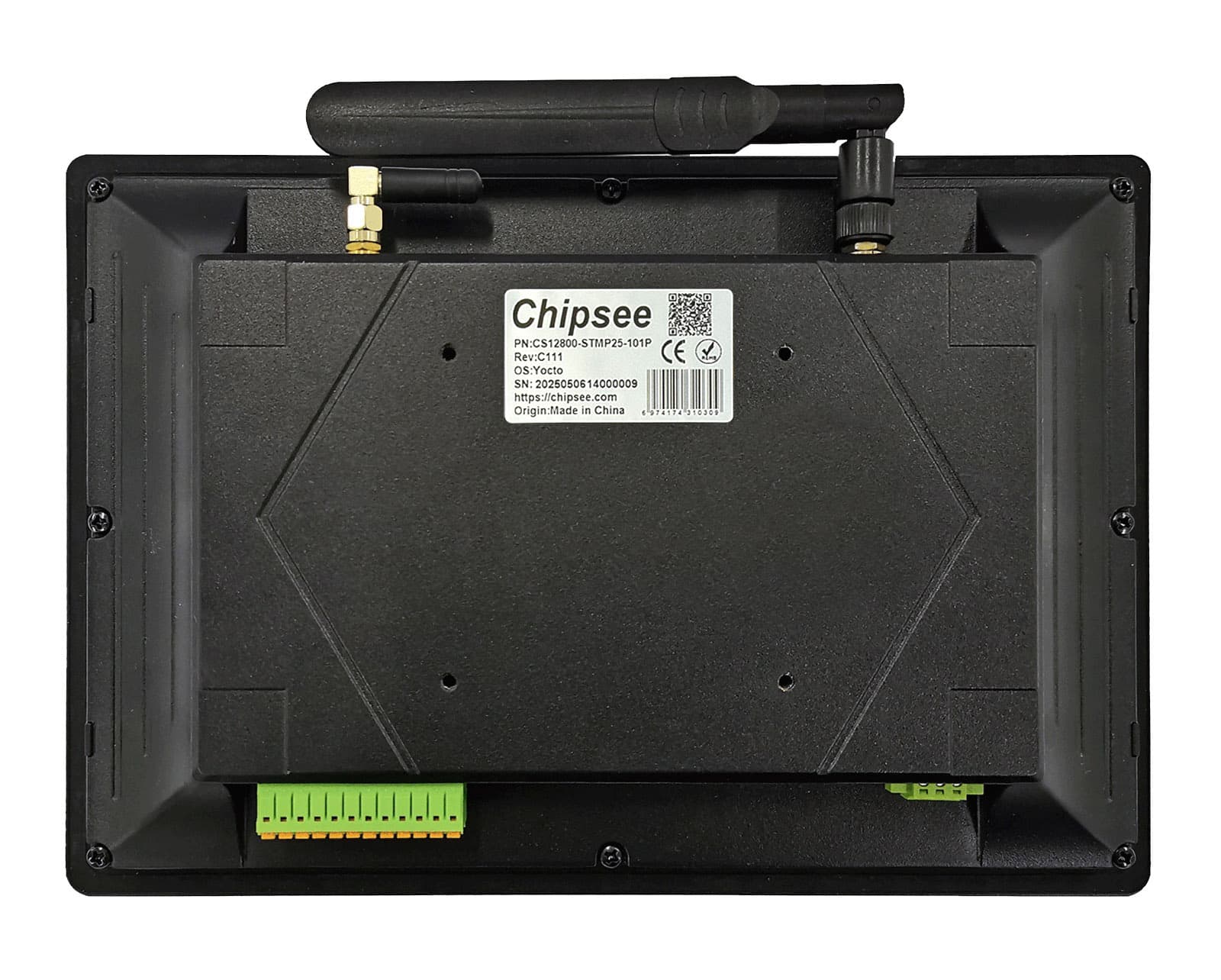

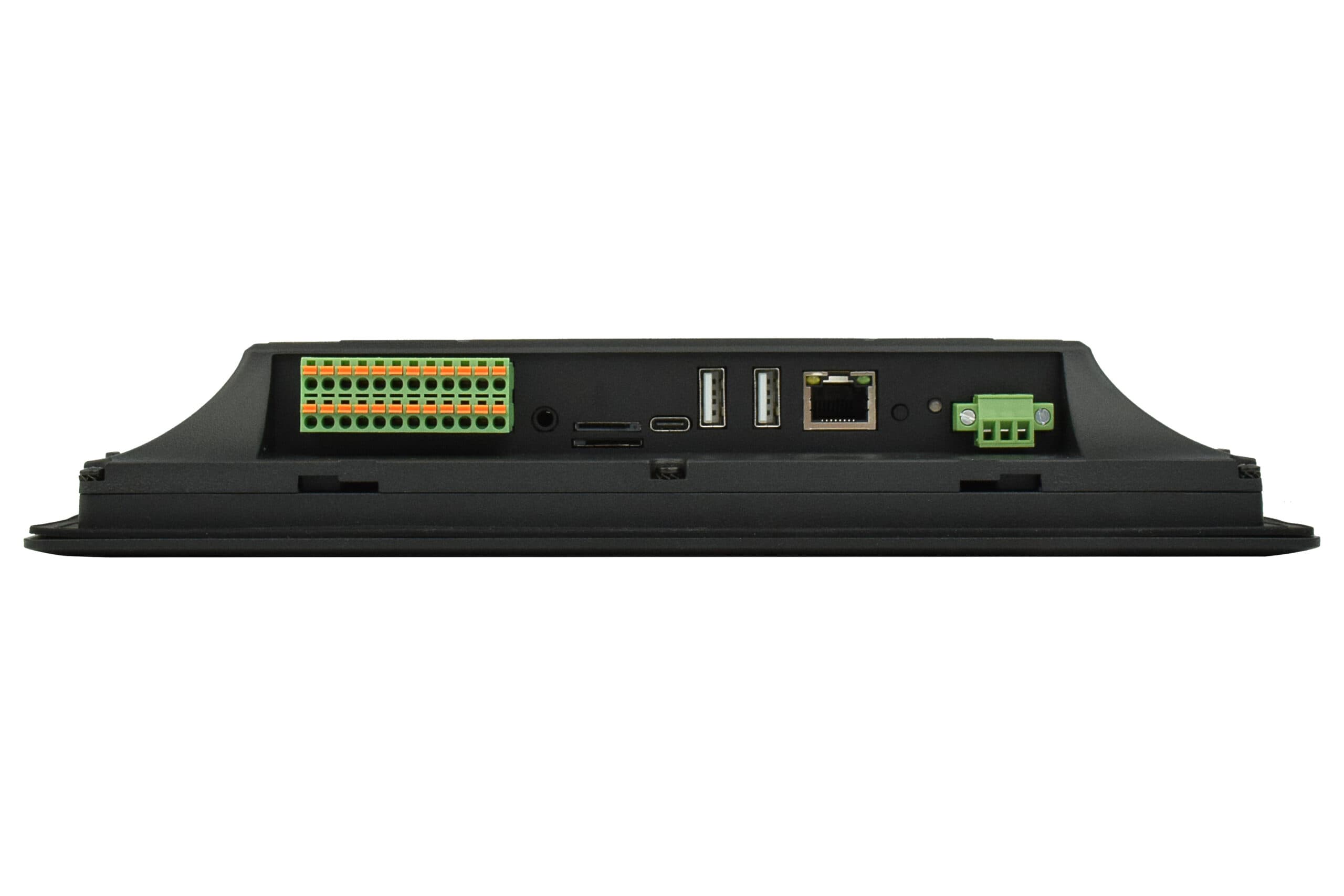

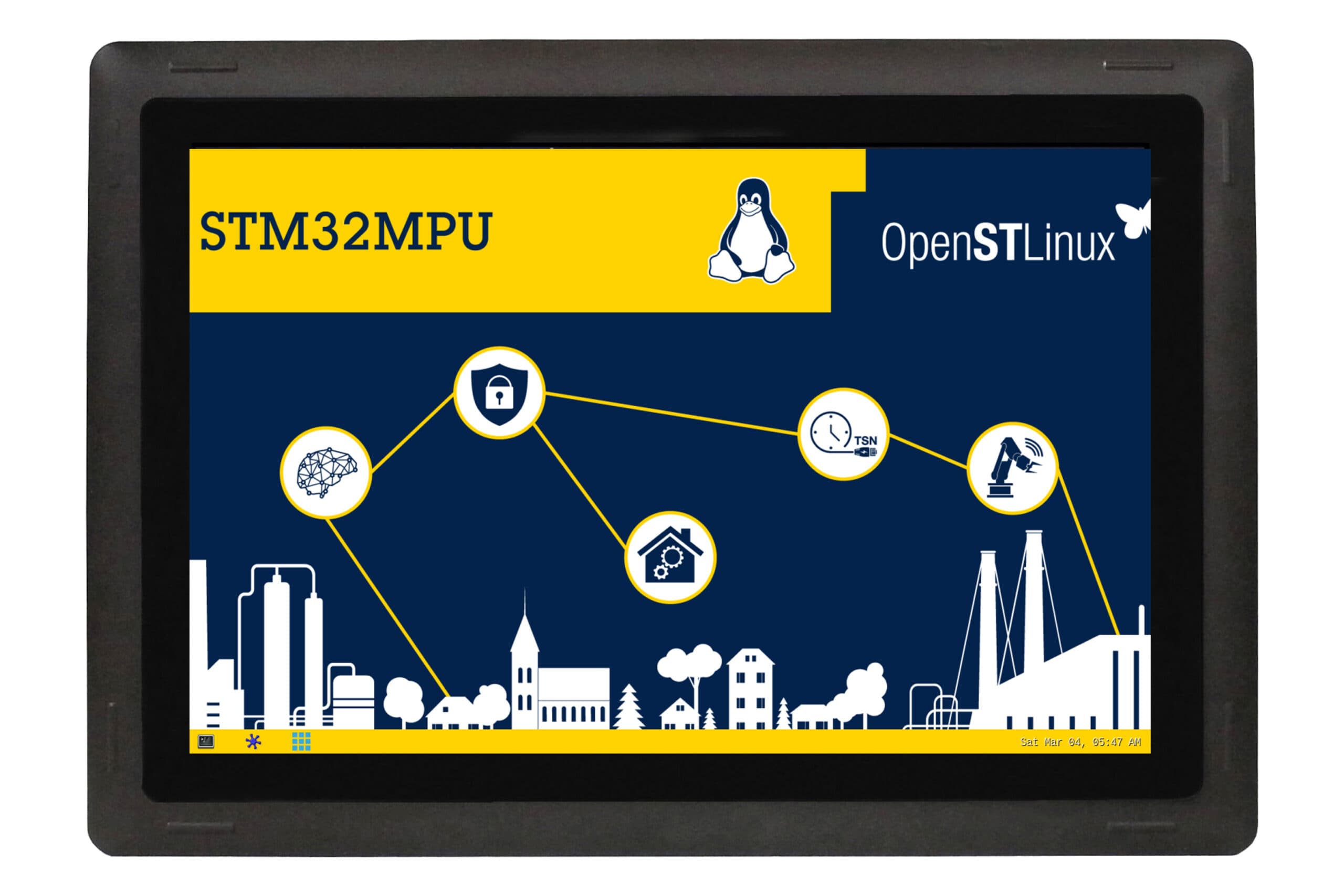

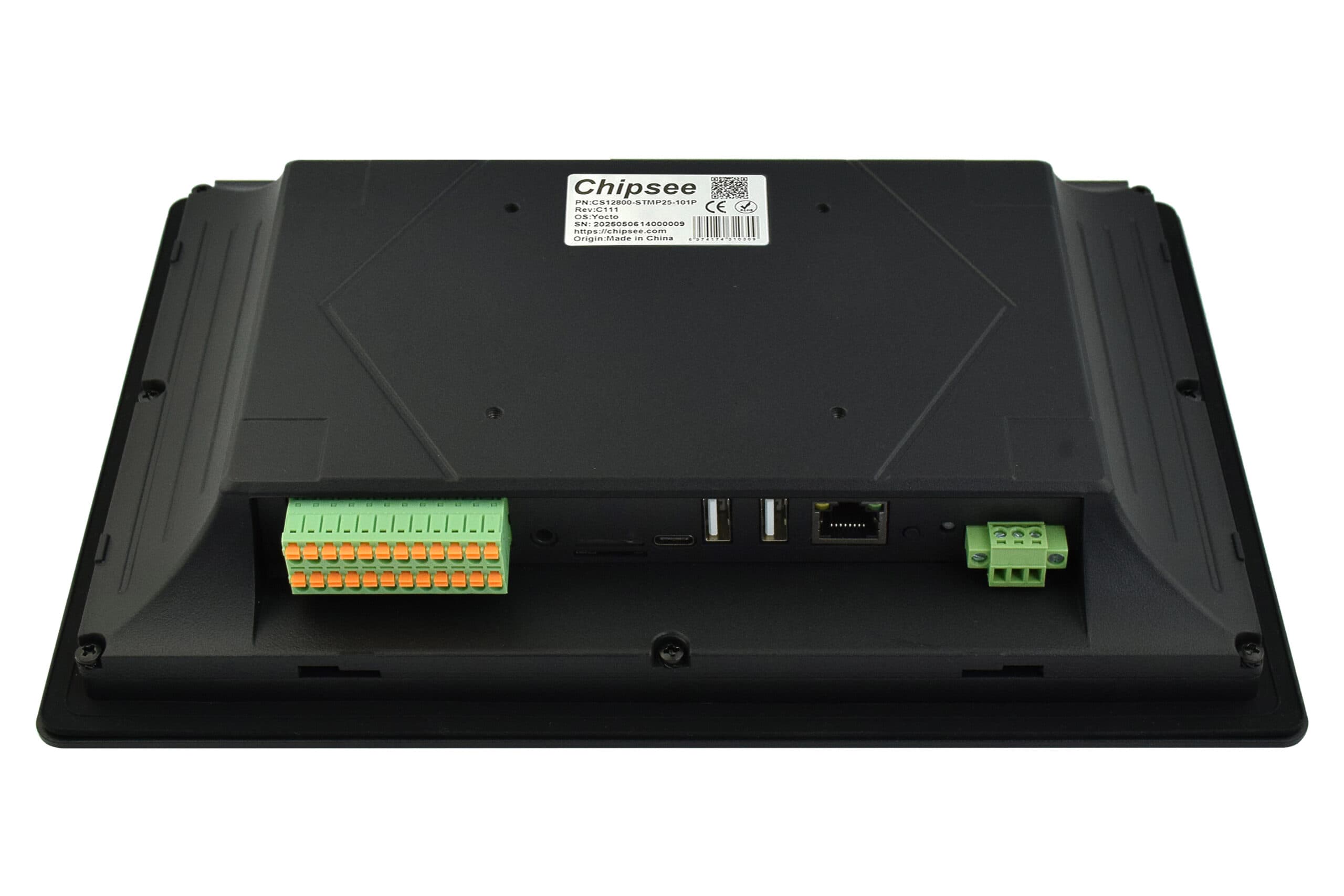

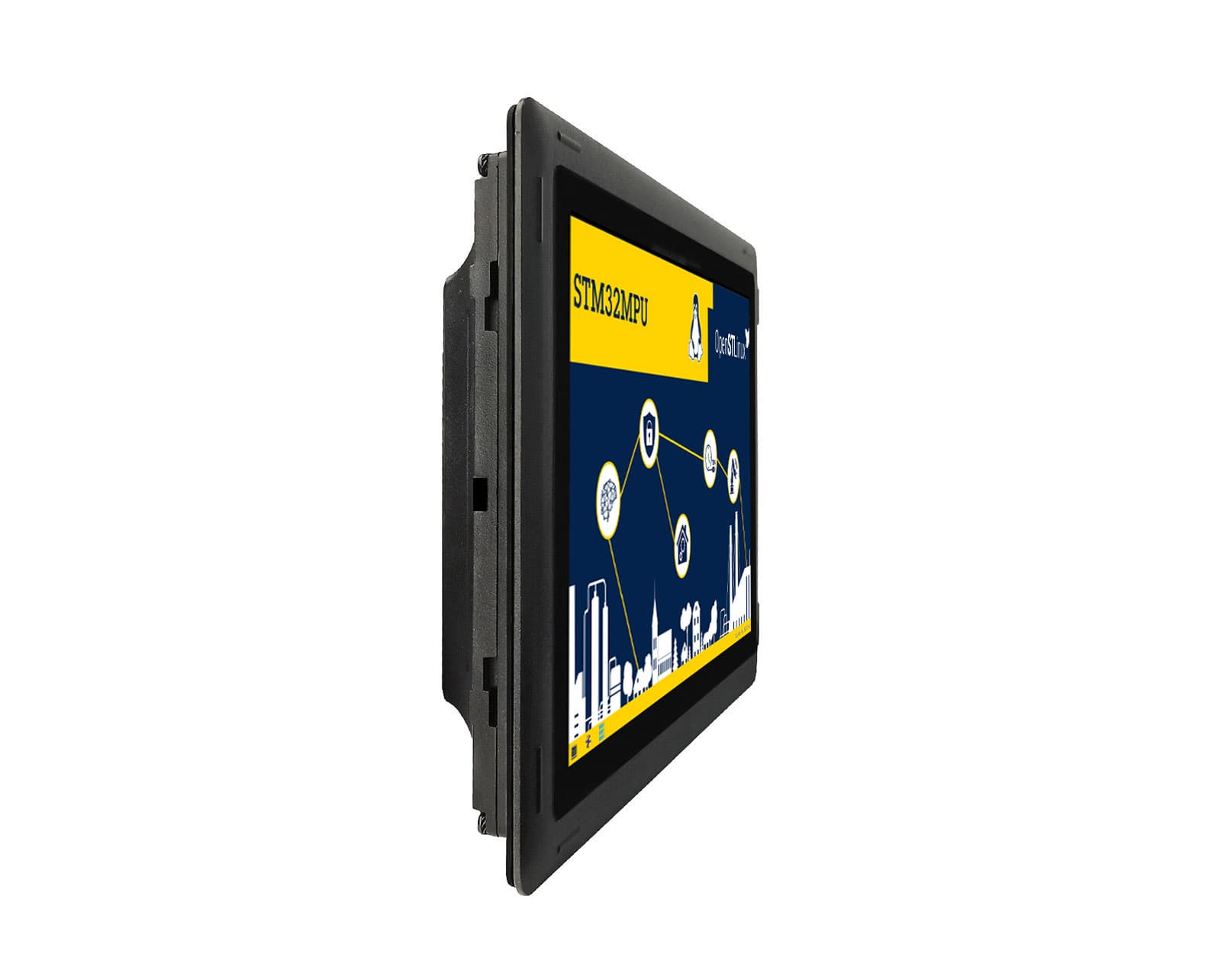

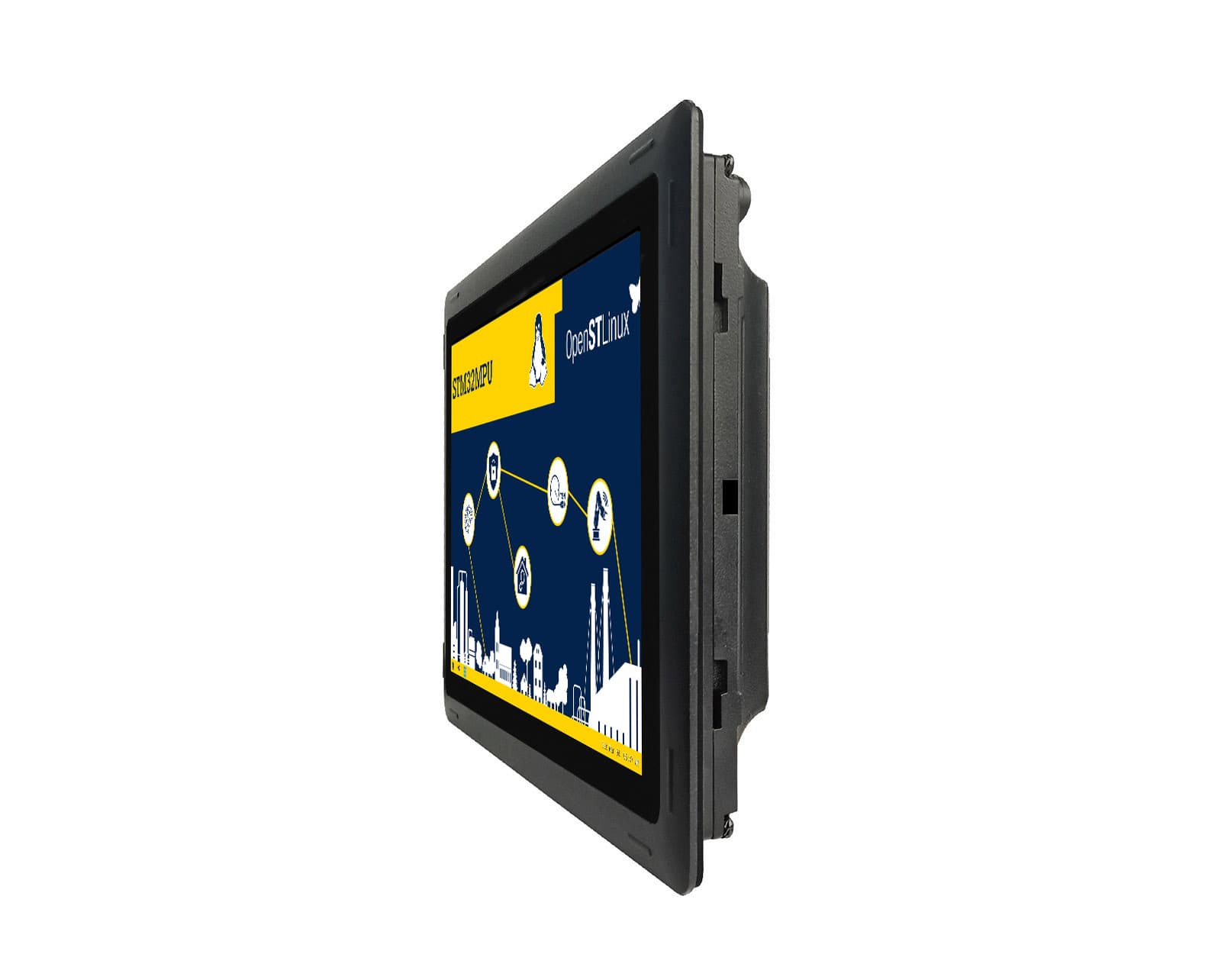

PPC-A35-101

Спецификации

SKU

CS12800-STMP25-101P

Нетно тегло

1300 g

Процесор

ARM: STM32MP257F

Тактова честота на процесора

Dual(2)-core Cortex®-A35 1.5GHz processor

NPU ускорител

VeriSilicon GC8000UL - TensorFlowLite - ONNX - Linux NN, 900 MHz, 1.35 TOPS

Графичен процесор

VeriSilicon GC8000UL - Open GL ES 3.2.8 - Vulkan 1.2, 900 MHz, up to 150 Mtriangle/s or 900 Mpixel/s

Постоянна памет

TF Card, Supports up to 128GB SDHC

Оперативна памет

2GB DDR4

Вградена памет (eMMC)

16GB

Диагонал на екрана

10.1"

Разделителна способност

1280*800

Яркост

400 NIT

Сензорен екран

Capacitive

USB

1 x USB Type-C; 2x USB 2.0 HOST

CAN

(optionally 2 x CAN FD can be configured to RS232 or 1 x CAN FD can be configured to RS485); 2 x CAN FD by default

RS232

2 x RS232 by default (Optional 6 x RS232 at most, include 1 debug port)

RS485

2 x RS485 by default (3 x RS485 at most)

GPIO

8 Channels, 4 Input, 4 Output

Ethernet

1 x RJ45, GbE (default), Power over Ethernet(PoE) (optional)

PCIe

1 x PCIe2.0 x1, M.2 M-Key 2230/2242/2260/2280 socket (Optional)

Wi-Fi / Bluetooth

YES

4G

Optional

Аудио

3.5mm Audio In/Out Connector; Internal 1W Speaker

Зумер

Onboard, driven by GPIO

RTC

High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

Входно захранване

(supports optional 24V ignition signal); 15-30V DC

Консумация

6W typical; 7.5W

Работна температура

-20°C ~ 70°C.

Ток при 15 V

400mA typical; 500mA max

Операционна система

Yocto

Начин на монтаж

VESA, PANEL
