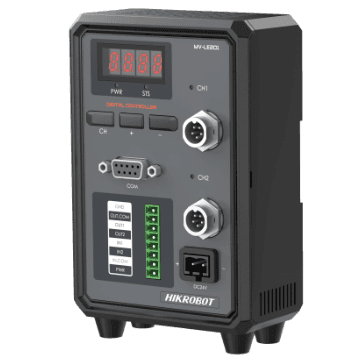

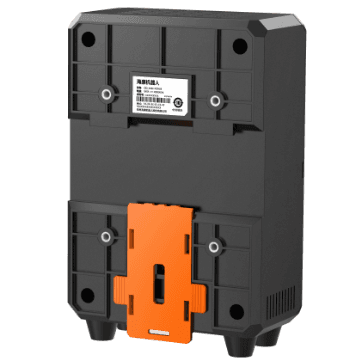

light controller for dot-type lighting
MV-LE201-30W5-2FDHikrobot
Осветление — IP30
Model
- Product Model
- MV-LE201-30W5-2FD
- Type
- light controller for dot-type lighting
Performance
- Dimming mode
- Control panel (via pressing button), software (serial port)
- Trigger mode
- External trigger and internal trigger
- Communication protocol
- Serial
Electrical feature
- Output current for each channel
- Max. 3 A
Physical specification
- Channel
- 2-channel
Mechanical
- Power supply interface
- 24 VDC terminal block
- Console interface
- DB9F serial port
- Digital I/O
- Opto-isolated input × 2, opto-isolated output × 2
- Dimension
- 139.5 mm × 90 mm × 55.5 mm (5.5" × 3.5" × 2.2")
- Shell material
- Plastic
- Weight
- 300 g (0.7 lb.)
- Temperature
- Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F)
- Humidity
- 20% RH to 85% RH (no condensation)
- Ingress protection
- IP30
General
- Certification
- CE, KC
Фърмуер
Подобни продукти
MV-LE100-500W24-1ED
Analog Light Controller，1 channel，500W/24V

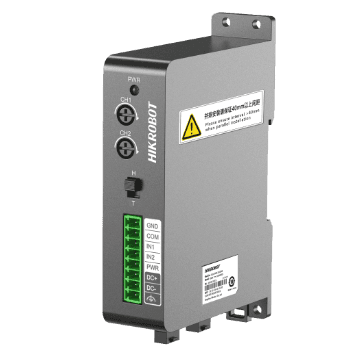

MV-LE100-24W24-2
Analog Light Controller，2 channel， 24W/24V

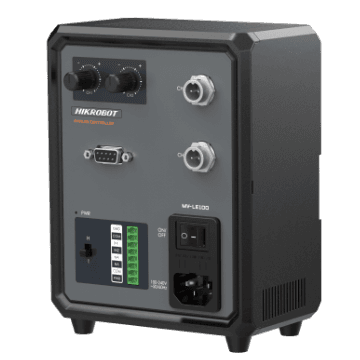

MV-LE100-200W24-2BD
Analog Light Controller，2 channel，200W/24V
MV-LE100-48W24-2
Analog Light Controller，2 channel，48W/24V

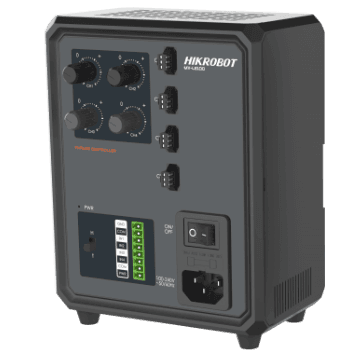

MV-LE100-120W24-4
Analog Light Controller，4 channel，120W/24V

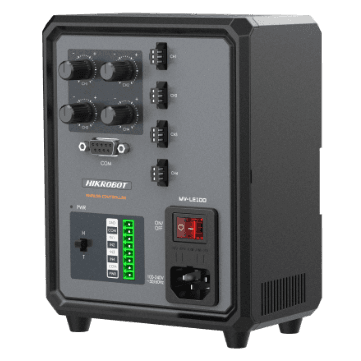

MV-LE100-60W24-4D
Analog Light Controller，4 channel，60W/24V

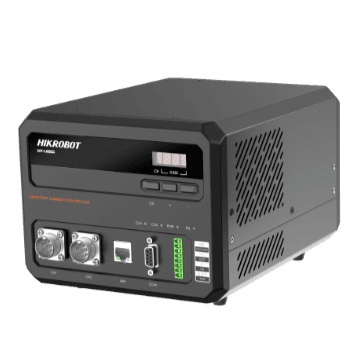

MV-LE201-200W48-2TD
Digital Light Controller，2 channel，200W/48V

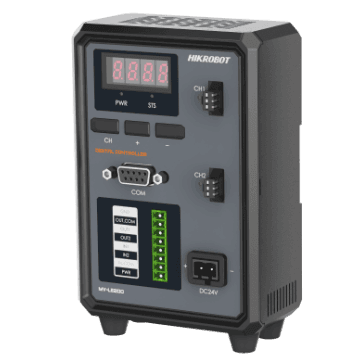

MV-LE200-48W24-2D
Digital Light Controller，2 channel，48W/24V

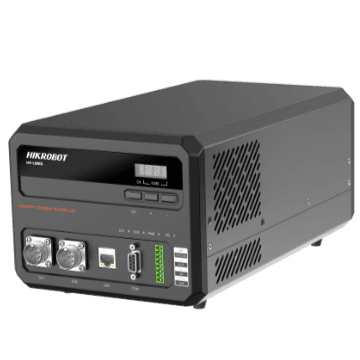

MV-LE201-500W48-2TD
Digital Light Controller，2 channel，500W/48V
MV-LE201-750W48-2TD
Digital Light Controller，2 channel，750W/48V

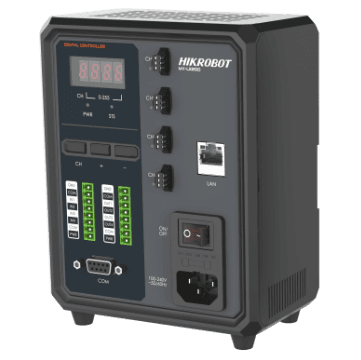

MV-LE200-120W24-4TD
