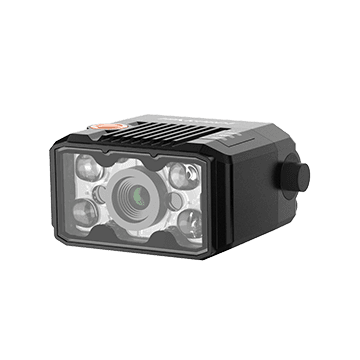

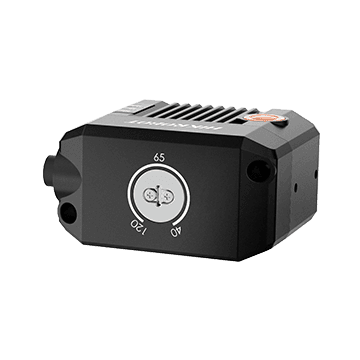

6mm focal length 1.6MP USB PRO Series Compact Industrial Code Reader
1–2 MP USB3 Четци на кодове — 6.72 mm, Global shutter, CMOS, M10-mount
Model
- Product Model
- MV-ID2016M-06S-RBN-U
- Type
- 6mm focal length 1.6MP USB PRO Series Compact Industrial Code Reader
Performance
- Symbologies
- 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix
- Max. frame rate
- 60 fps
- Max. reading speed
- 68 codes/sec
- Sensor type
- CMOS, global shutter
- Pixel size
- 3.45 μm × 3.45 μm
- Sensor size
- 1/2.9"
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 4.86 × 3.53 mm
- Диагонал на сензора
- 6.01 mm
- Resolution
- 1408 × 1024
- Exposure time
- 16 μs to 1 sec
- Gain
- 0 dB to 15 dB
- Mono
- Mono
- Communication protocol
- SmartSDK, USB
Electrical feature
- Data interface
- USB 3.0
- Digital I/O
- 17-pin M12 connector provides data transmission. Device trigger via pressing button on side supported.
- Power supply
- 5 VDC (USB 3.0 provides power supply)
- Max. power consumption
- Approx. 4.6 W @ 5 VDC
Mechanical
- Focal length
- 6.72 mm
- Lens mount
- M10-mount, adjusting focus manually supported
- Working distance
- 40 mm to 120 mm
- Ambient illumination
- 0 lux to 50000 lux
- Light source
- Red
- Aiming system
- Green LED
- Indicator
- Power indicator (PWR), network indicator (LNK), and status indicator (STS)
- Dimension
- 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
- Weight
- Approx. 160 g (0.4 lb.)
- Ingress protection
- IP65
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- IDMVS
- Certification
- CE, RoHS, KC
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
14.6 mm
Мащаб: 0.049×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
Кабели за данни, които пасват
Изчислено по конектора и протокола от каталога на производителя — не е негов официален списък. Питайте ни за потвърждение

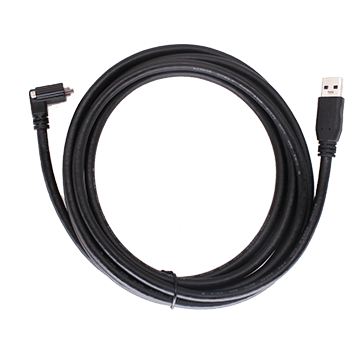

MV-ACU3-MBMS(DOWN)-AM-ST-0.5M
MV-ACU3-MBMs(down)-AM-ST-0.5m

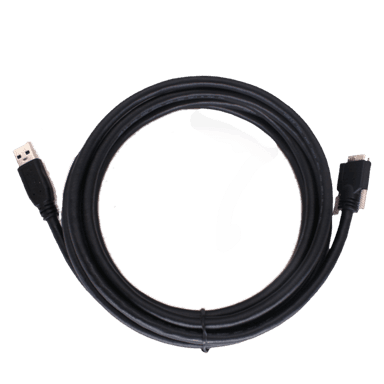

MV-ACU3-MBMS-AM-FL-3M
MV-ACU3-MBMs-AM-FL-3m
MV-ACU3-MBMS-AM-SF-10M
USB3.0 AOC fiber cable
MV-ACU3-MBMS-AM-ST-0.5M
MV-ACU3-MBMs-AM-ST-0.5m
MV-ACU3-MBMS(DOWN)-AM-ST-1M
MV-ACU3-MBMs(down)-AM-ST-1m
MV-ACU3-MBMS-AM-SF-15M
USB3.0 AOC fiber cable
MV-ACU3-MBMS-AM-ST-1M
MV-ACU3-MBMs-AM-ST-1m
MV-ACU3-MBMS(DOWN)-AM-ST-2M
MV-ACU3-MBMs(down)-AM-ST-2m
MV-ACU3-MBMS-AM-SF-20M
USB3.0 AOC fiber cable
MV-ACU3-MBMS-AM-ST-2M
MV-ACU3-MBMs-AM-ST-2m
MV-ACU3-MBMS(DOWN)-AM-ST-3M
MV-ACU3-MBMs(down)-AM-ST-3m
MV-ACU3-MBMS-AM-SF-3M
