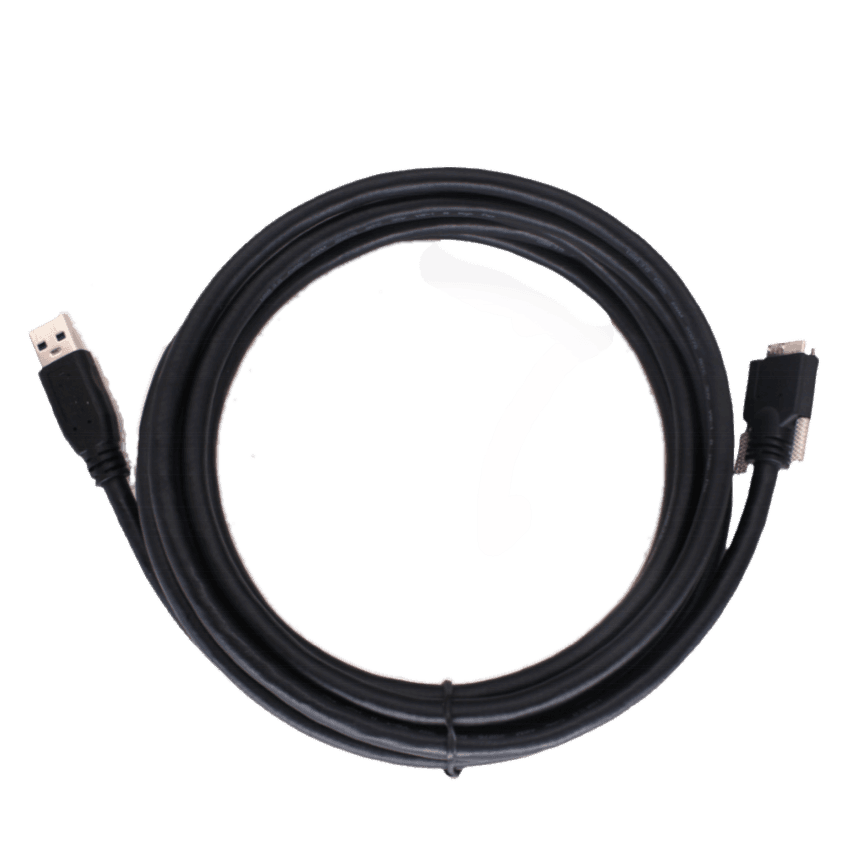

USB3 Кабели и аксесоари — 3 m, Drag chain
Model
- Product Model
- MV-ACU3-MBMs-AM-FL-3m
- Type
- MV-ACU3-MBMs-AM-FL-3m
Physical specification
- End A connector
- Micro-B male (with screw)
- End B connector
- A male
- Cable diameter
- 6.8 mm
- Length
- 3 m
- Cable mechanical
- 26#*1P+24#*2C+26#*(1P+D)+AL+D+B
- Jacket
- Nitrile PVC
- Cable color
- Black
- Connector durability
- >750 cycles
- Min. bending radius
- 81.6 mm
- Applicable scenario
- Drag chain
- Max. U-type bending cycles
- 100 thousand times
Electrical specification
- Max. voltage
- 5 VDC
Additional information
- Working temperature
- –20 °C to 80 °C (–4 °F to 176 °F)
- Certification
- RoHS,UL
- Packaging
- Individual package
