Вижън компоненти — PCI-E gen3 × 8
Model
- Product Model
- MV-GT1104P
- Type

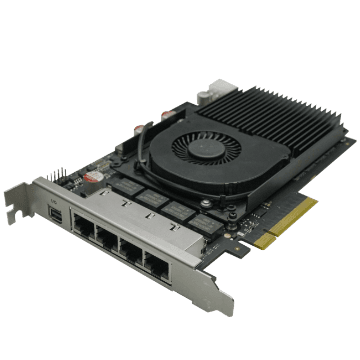

- Quad 10GigE Frame Grabbers
Memory
- On-board memory
- 4 GB DDR4-RAM
Host interface
- Interconnect
- PCI-E gen3 × 8
- Delivery bandwidth
- 7000 MB/s (max. transmission bandwidth) 6750 MB/s (sustained transmission bandwidth)
- Bus indicator
- 1
Camera interface
- Standard
- GigE Vision V2.0
- Interface
- RJ45 × 4, supports PoE
- Camera type supported
- GigE industrial camera, 10 GigE industrial camera, and 2.5 GigE industrial camera
- Camera quantity supported
- 4 at most (total bandwidth up to 40 Gbps)
- Camera connection speed
- 10 Gbps
- Stream
- 4
- Stream indicator
- 4 pairs
Processing feature
- Pixel format
- Mono 8/10/10p/12/12p/16 Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
GPIO
- I/O Type
- Configurable input/output × 6, compatible with single-ended/differential, and supports cascading of multiple frame grabbers I/O on bracket: Line 0/1/2/3 supports 3.3 VDC to 24 VDC input, and 3.3 VDC output, N-terminal reference voltage is adjustable simultaneously I/O on PCB: Line 4/5 supports 3.3 VDC to 24 VDC input and 3.3 VDC output
- Connector
- I/O on bracket: Mini-DP, female, 20-pin I/O on PCB: 9-pin header (2.54 mm pitch, 2 x 5, 10 pin blind holes)
Electrical feature
- Power consumption
- Typ. 28.5 W
Mechanical
- Dimension
- 181 mm × 126.3 mm × 22.4 mm (7.1" × 5.0" × 0.9")
- Temperature
- Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
- Humidity
- 10% RH to 95% RH (no condensation)
General
- Client software
- MVS
- Operating system
- Windows 7/10/11
- Certification
- CE, KC, RoHS
