Вижън компоненти — PCI-E gen2 × 4
Model
- Product Model
- MV-GE4002P
- Type

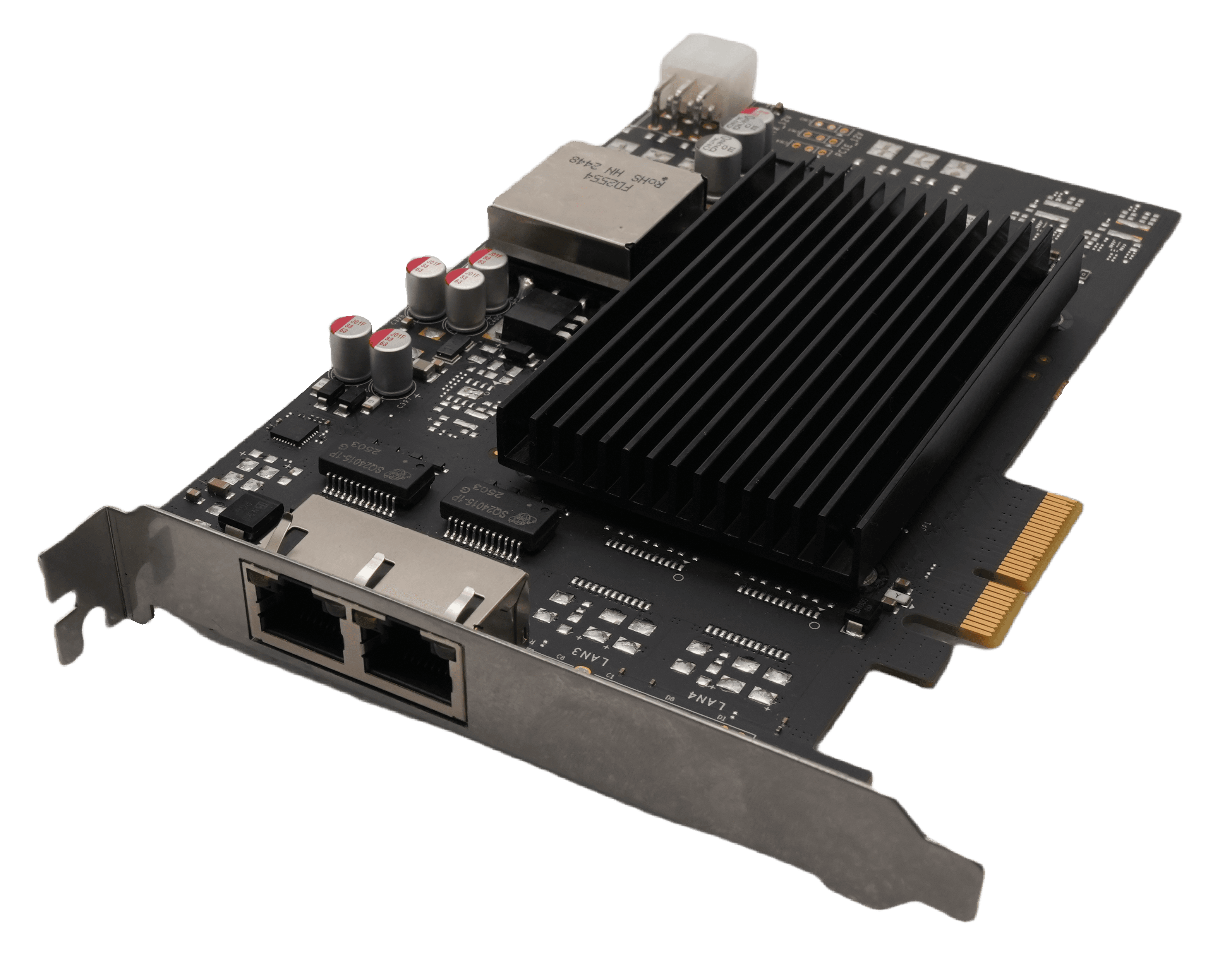

- Dual 2.5G Ethernet Adaptor, POE
Host interface
- Interconnect
- PCI-E gen2 × 4
- Delivery bandwidth
- 2000 MB/s (max. transmission bandwidth)
Camera interface
- Standard
- IEEE 802.3
- Interface
- RJ45 × 2 RJ45 × 4
- Camera type supported
- GigE industrial camera, 2.5 GigE industrial camera
- Camera quantity supported
- 2 at most 4 at most
- Camera connection speed
- 10/100/1000/2500 Mbps
- Stream
- 2 4
Electrical feature
- Power consumption
- 4 W (without POE), 6.1 W (without POE)
Mechanical
- Dimension
- 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
- Weight
- Approx. 202 g (0.4 lb.) Approx. 210 g (0.5 lb.)
- Temperature
- Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
- Humidity
- 10% RH to 95% RH (no condensation)
General
- Operating system
- Windows 7/10/11, Ubuntu18.04 to 24.04 on 64-bit Linux
- Certification
- CE, RoHS, KC
