Вижън компоненти — PCI-E gen3 × 4
Model
- Product Model
- MV-GT2002
- Type
- Dual 10GigE Ethernet Adaptor
Host interface
- Interconnect
- PCI-E gen3 × 4
- Delivery bandwidth
- 31.5 Gbps (max. transmission bandwidth) 20 Gbps (sustained transmission bandwidth)
Camera interface
- Standard
- IEEE 802.3
- Interface
- RJ45 × 2
- Camera type supported
- 10 GigE industrial camera
- Camera quantity supported
- 2 at most
- Camera connection speed
- 1000 Mbps / 10000 Mbps
- Stream
- 1 2
Electrical feature
- Power consumption
- Typ. 12 W
Mechanical
- Dimension
- 160.9 mm × 104.9 mm × 21.6 mm (6.3" × 4.1" × 0.9")
- Weight
- 125 g (0.3 lb.)
- Temperature
- Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 10% RH to 95% RH (no condensation)
General
- Operating system
- 64-bit Windows 7/10/11, Linux
- Certification
- RoHS, CE, KC
Кабели за захранване и I/O
Area Scan камери

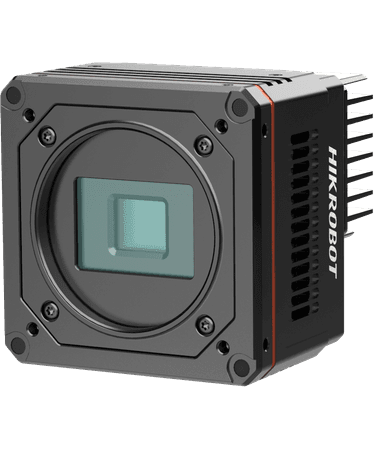

MV-CH240-10TM-C-NN
24MP Area Scan Camera, IMX540, 10GigE, Mono, C-mount, fanless

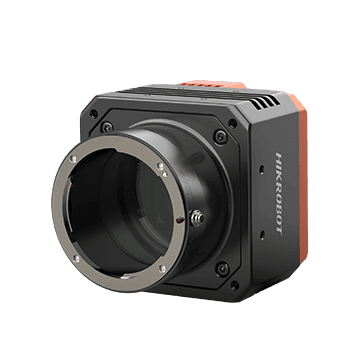

MV-CH250-25TM-M58S-NF
25MP Area Scan Camera, 10GigE, PYTHON25K, Mono, M58-mount

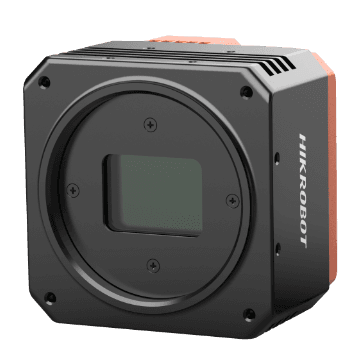

MV-CH250-60TM-M58S-NF
25MP Area Scan Camera, 10GigE, Mono, M58-mount, with fan

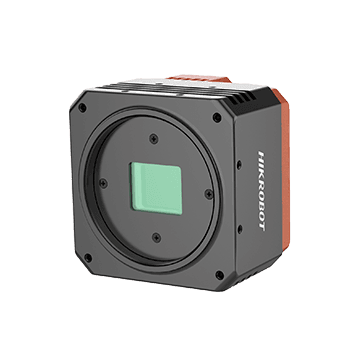

MV-CH250-90TC-M58S-NF
