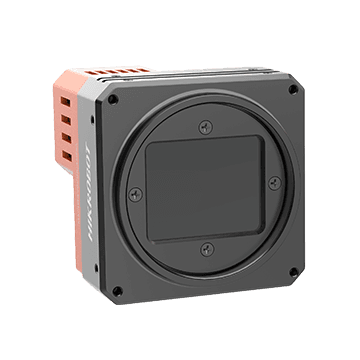

101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with fan
> 25 MP Camera Link Area Scan камери — IMX461, Rolling shutter, CMOS, M72-mount
Model
- Product Model
- MV-CH1010-10CM-M72-NF
- Type
- 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with fan
Performance
- Sensor type
- CMOS, rolling shutter
- Sensor model
- Sony® IMX461
- Pixel size
- 3.76 μm × 3.76 μm
- Sensor size
- 55 mm
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 43.8 × 32.86 mm
- Диагонал на сензора
- 54.75 mm
- Resolution
- 11648 × 8740
- Max. frame rate
- 8.1 fps @ 11648 × 8740 Mono 8
- Configuration mode
- Base, Medium, Full, 80-bit
- Tap geometry
- 2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y
- Tap number
- 2 Taps, 4 Taps, 8 Taps, 10 Taps
- Pixel clock
- 40 MHz, 60 MHz, 70 MHz, 85 MHz
- Dynamic range
- 78 dB
- SNR
- 45 dB
- Gain
- 0 dB to 36 dB
- Exposure time
- 14 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode, supports Global Reset
- Mono/color
- Mono
- Pixel format
- ADC 12-bit mode: Mono 8/10/12 ADC 16-bit mode: Mono 8/10/12/16
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Reverse image
- Supports horizontal reverse image output
Electrical feature
- Data interface
- Camera Link with SDR interface
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
- Power supply
- Camera with fan: 12 VDC to 24 VDC; Camera with TEC: 24 VDC
- Power consumption
- Typ. 14 W @ 24 VDC
Mechanical
- Lens mount
- M72*0.75, flange back length 19.55 mm
- Dimension
- Camera with fan: 90 mm × 90 mm × 71.5 mm (3.5" × 3.5" × 2.8") Camera with TEC: 100 mm × 100 mm × 87.2 mm (3.9" × 3.9" × 3.4")
- Weight
- Camera with fan: Approx. 790 g (1.7 lb.) Camera with TEC: Approx. 1.7 kg (3.7 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or frame grabber software meeting with GenlCam Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11
- Compatibility
- Camera Link V2.0, GenlCam
- Certification
- CE, RoHS, KC
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
131 mm
Мащаб: 0.44×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
Съвместими кабели за данни
Frame grabber-и
Обективи, които пасват на тази камера
Филтрирано по байонет M72-mount и по покритие на сензора — кръгът на изображението е поне 54.75 mm, колкото е диагоналът на тази матрица. По-малък кръг затъмнява ъглите на кадъра. Питайте ни за потвърждение
MVL-LF3040M-005-M72
30mm，F4.0，Image Size φ58mm，Recommended Magnification 0.031-0.145x，M72 Mount
MVL-LF4040M-01-M72
40mm，F4.0，Image Size φ64mm，Recommended Magnification 0.05-0.21x，M72 Mount
LF5545M-M72
LF5545M-M72
Large Format Φ67mm 55mm Focal Length FA LENS
MVL-LF6040M-013-M72
60mm，F4.0，Image Size φ58mm，Recommended Magnification 0.07-0.37x，M72 Mount
MVL-LF6040M-0168V-M72
60mm，F4.0，Image Size φ64mm，Recommended Magnification 0.067~0.2X，M72 Mount
MVL-LF8040M-021V-M72
