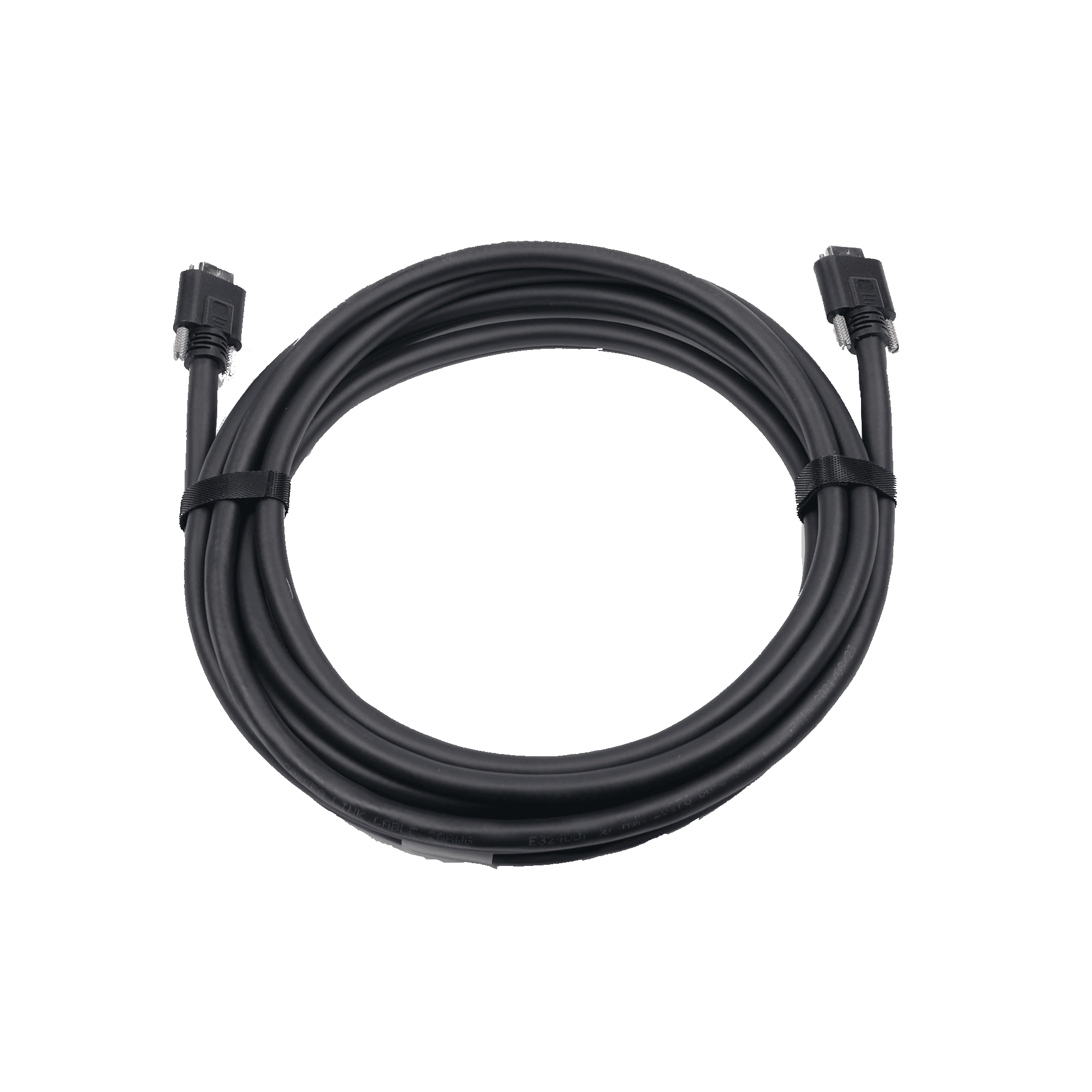

Camera Link Кабели и аксесоари — SDR26, 5 m, Static
Model
- Product Model
- MV-ACCL-SDR-SDR-ST-5m
- Type
- Camera Link cable(SDR-SDR)，standard，5m
Physical specification
- End A connector
- SDR
- End B connector
- SDR
- Cable diameter
- 9.5 mm
- Length
- 5 m
- Cable mechanical
- (28AWG*1P+AL)*11C+28AWG*2C+MY+AL+B, UL20276
- Jacket
- PVC
- Cable color
- Black
- Connector durability
- ≥500 cycles
- Min. bending radius
- 114 mm
- Applicable scenario
- Static scenes
Electrical specification
- Max. voltage
- 30 VDC
Additional information
- Working temperature
- -20°C~80°C
- Certification
- RoHS,UL
- Packaging
- Individual package
