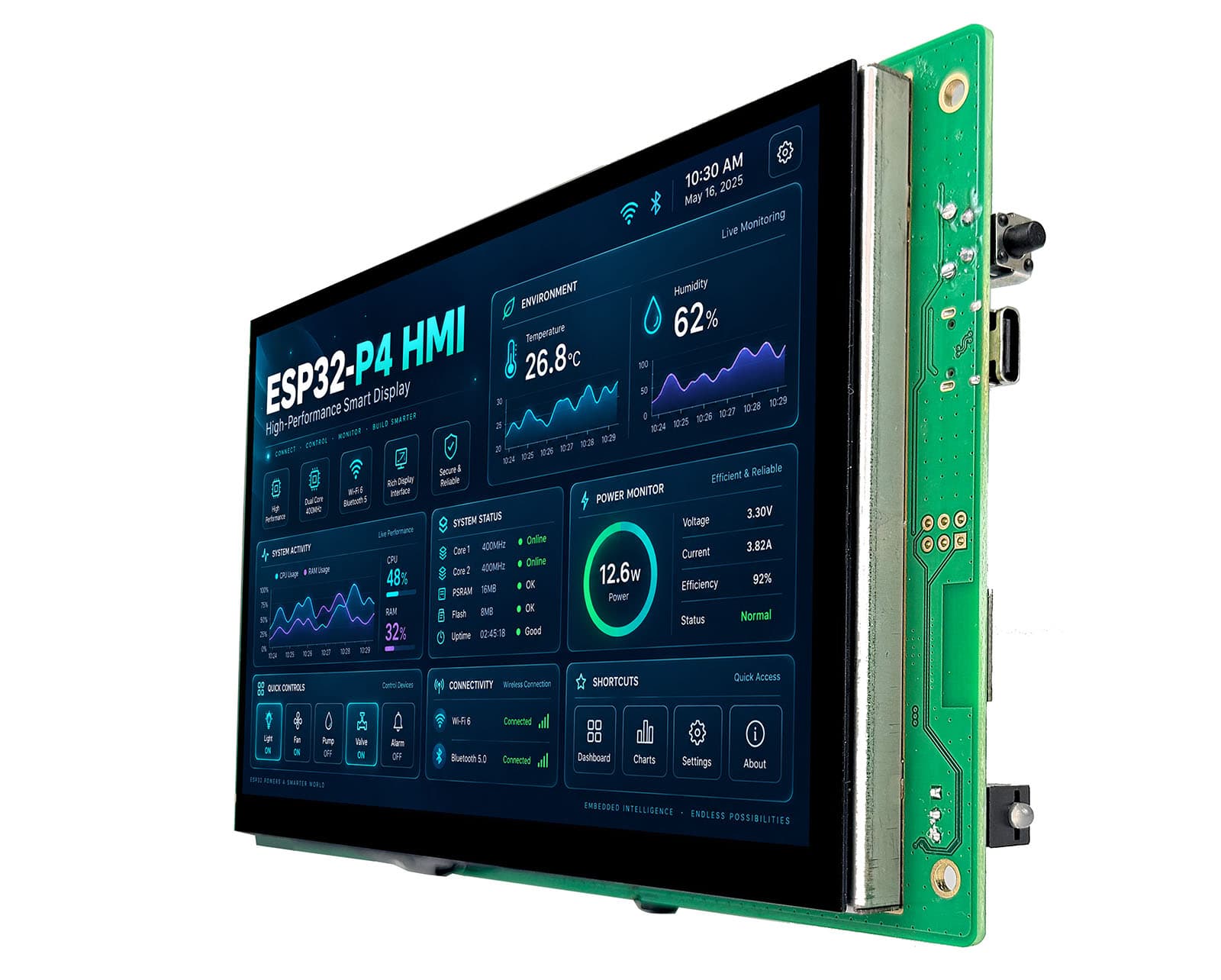

7.0" Панелни компютри и HMI — Espressif ESP32-P4, 768 KB HP L2MEM + 32 KB LP SRAM + 8 KB SPM; 32MB in-package PSRAM, 1024 × 600
Спецификации
- SKU
- CS10600-ESP32P4-070E
- Нетно тегло
- 600 g
- Форм-фактор
- Embedded
- Процесор
- Espressif ESP32-P4
- Постоянна памет
- 32MB external SPI Flash
- Оперативна памет
- 768 KB HP L2MEM + 32 KB LP SRAM + 8 KB SPM; 32MB in-package PSRAM
- microSD слот
- 1 x TF(micro SD) card slot
- Диагонал на екрана
- 7.0″
- Разделителна способност
- 1024*600
- Сензорен екран
- Capacitive
- Яркост
- 400 NIT
- GPIO
- 4 channels of non-isolated P4 direct out GPIO; 8 Channels, 4 Input, 4 Output
- USB
- 1 × USB 1.1 Type-C port for firmware flashing and debugging;; 2 x USB 2.0 HOST ports (Type A)
- RS232
- 2 x RS232 by default, up to 4 x RS232
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- CAN
- 1 x CAN
- Ethernet
- 1 x 100Mbps LAN
- Wi-Fi / Bluetooth
- Optional
- 4G
- Optional
- PoE
- Optional; Power Over Ethernet 802.3af/at
- Аудио
- 3.5mm Audio In/Out Connector; internal dual channel speaker
- Зумер
- Onboard buzzer, driven by I2C expanded IO
- RTC
- High accuracy RTC with lithium coin battery, can work 3 years after power off (optional, conflict with speaker); High-accuracy RTC with supercapacitor, can work 1 week after power off.
- Входно захранване
- 9-32V DC
- Консумация
- 3W typical; 4W max
- Ток при 15 V
- 200mA typical; 260mA max
- Работна температура
- -10°C to +60°C
- Начин на монтаж
- Embedded
