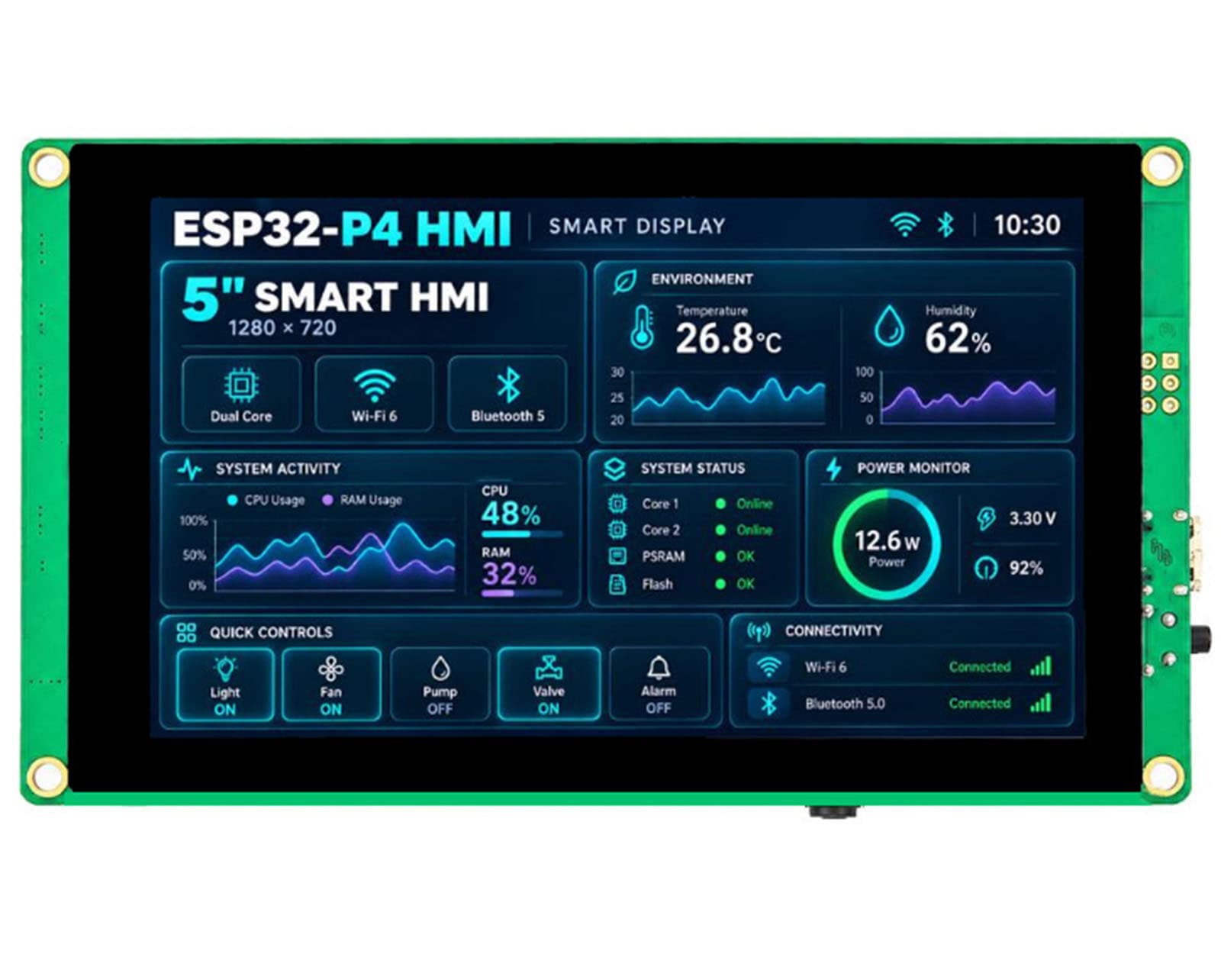

EPC-ESP32P4-050

Спецификации

SKU

CS12720-ESP32P4-050E

Нетно тегло

200g

Форм-фактор

Embedded

Процесор

Espressif ESP32-P4

Постоянна памет

32MB external SPI Flash

Оперативна памет

768 KB HP L2MEM + 32 KB LP SRAM + 8 KB SPM; 32MB in-package PSRAM

FRAM памет

Optional, not mounted by default

microSD слот

1 x TF(micro SD) card slot

Диагонал на екрана

5.0″

Разделителна способност

1280 x 720

Сензорен екран

Capacitive

Яркост

400 NIT

GPIO

Not supported

USB

1 × USB 1.1 Type-C port for firmware flashing and debugging; 2 x USB 2.0 Type-A high-speed host ports; Type-C port supports powering the device while programming

RS232

2 x RS232 by default; optionally up to 4 x RS232 by configuring RS485 as RS232

RS485

2 x RS485 by default. Optionally, these 2 x RS485 can be configured as RS232. 120Ohm terminal resistor is not installed by default. if you need one, please add a note when placing your order.

CAN

1 x CAN by default, bit rate up to 1Mbps. 120Ohm terminal resistor is NOT installed by default. If you need one, please add a note when placing your order.

I2C

1 x I2C (4 pin header)

Ethernet

1 x 100Mbps LAN

Wi-Fi / Bluetooth

WiFi 6, Bluetooth LE 5 (optional, ESP32-C6 is not mounted by default)

4G

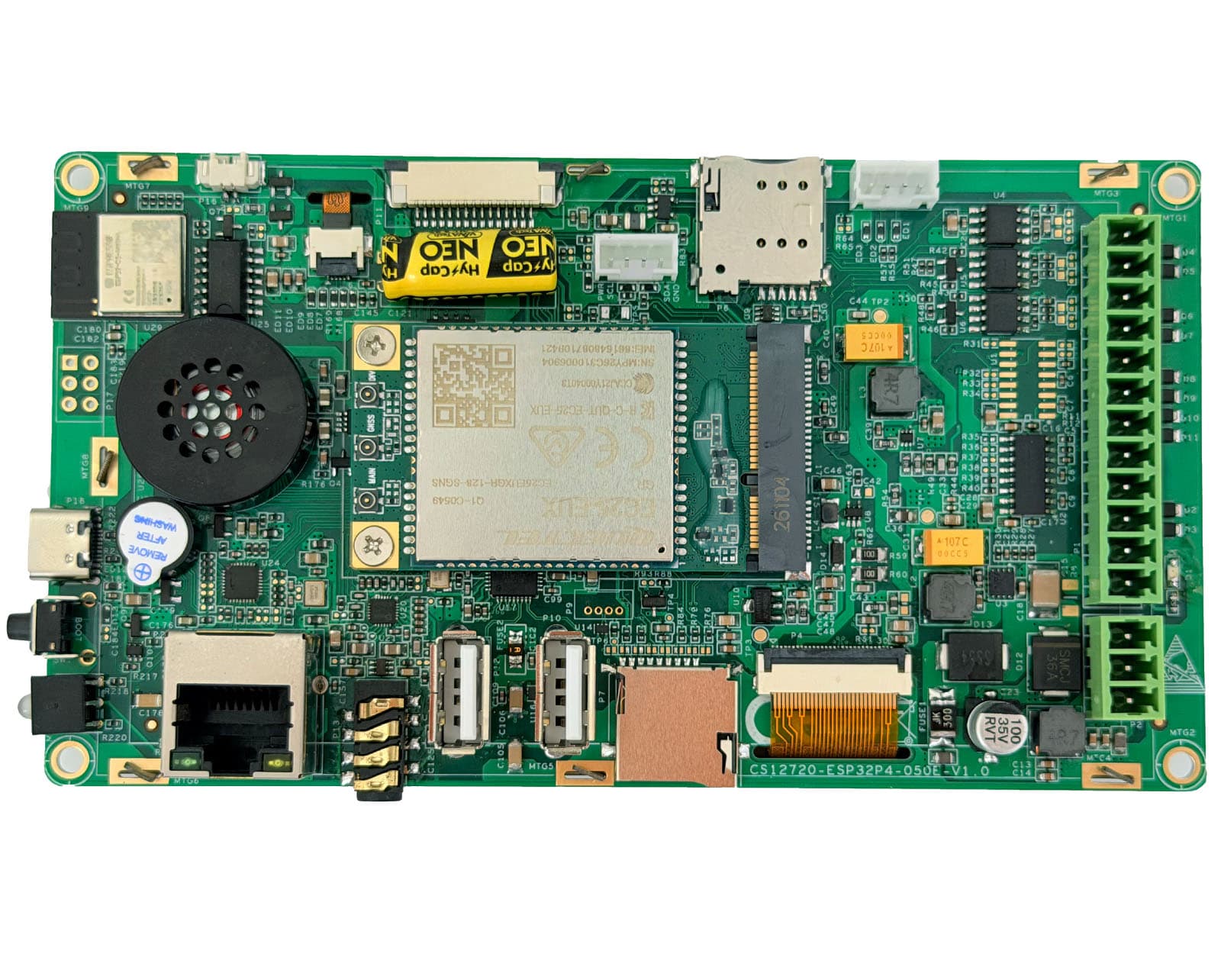

Internal Cat 1 4G/LTE module, not mounted by default

PoE

Not supported

Камера

1 x MIPI-CSI (2-lane) interface for connecting a MIPI-CSI (2-lane) 15-pin 1.0mm camera such as a Raspberry Pi (OV5647) Camera V1.3 (optional, not mounted by default)

Аудио

3.5mm Audio In/Out Connector; Internal 2W Speaker

Жироскоп

Optional, not mounted by default

Зумер

Onboard, driven by GPIO

RTC

High-accuracy RTC with supercapacitor, can work 1 week after power off.

Входно захранване

9-32V DC

Консумация

2W typical; 3W max

Ток при 15 V

133mA typical; 200mA max

Работна температура

-20℃ ~ 60℃

Начин на монтаж

Embedded
