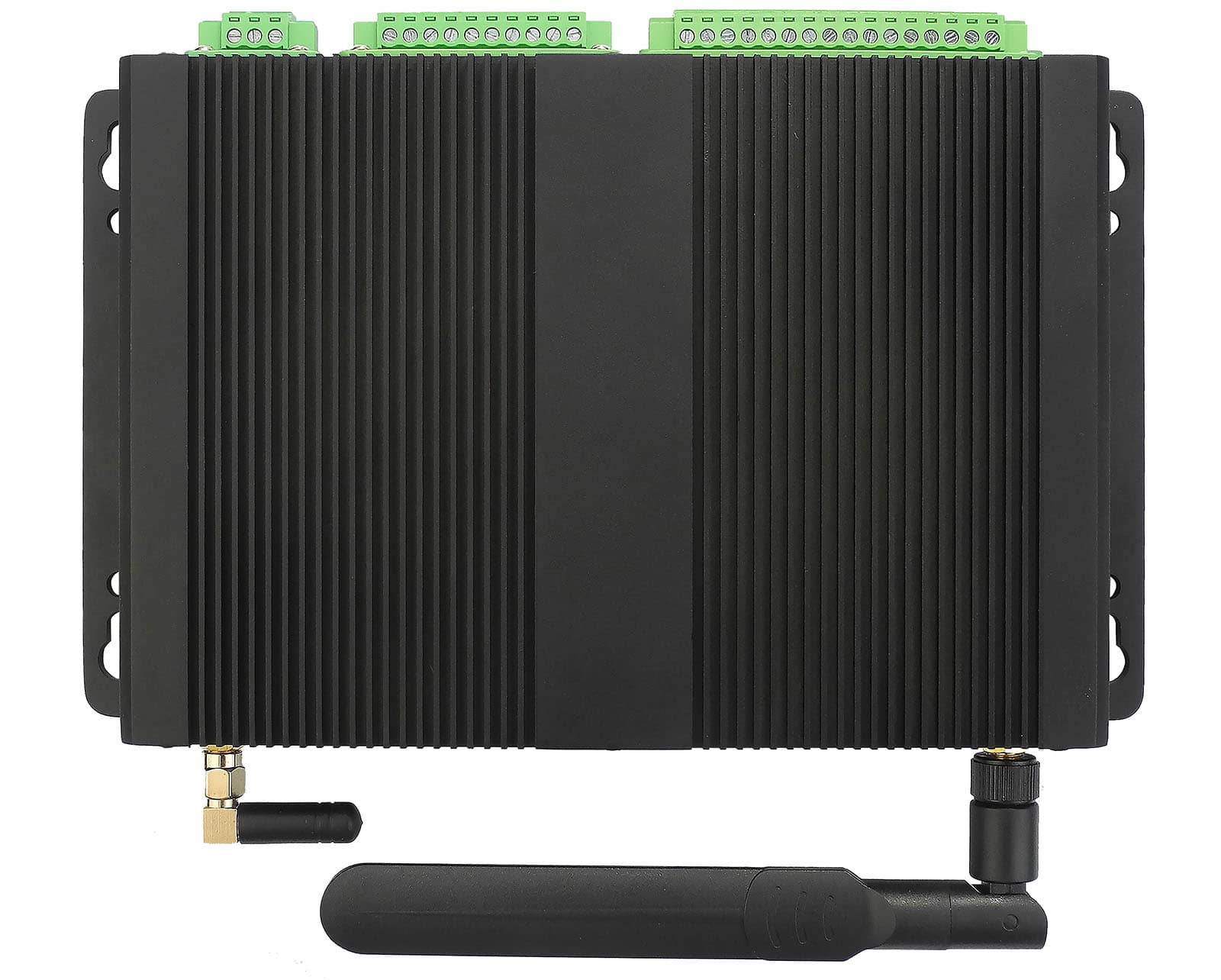

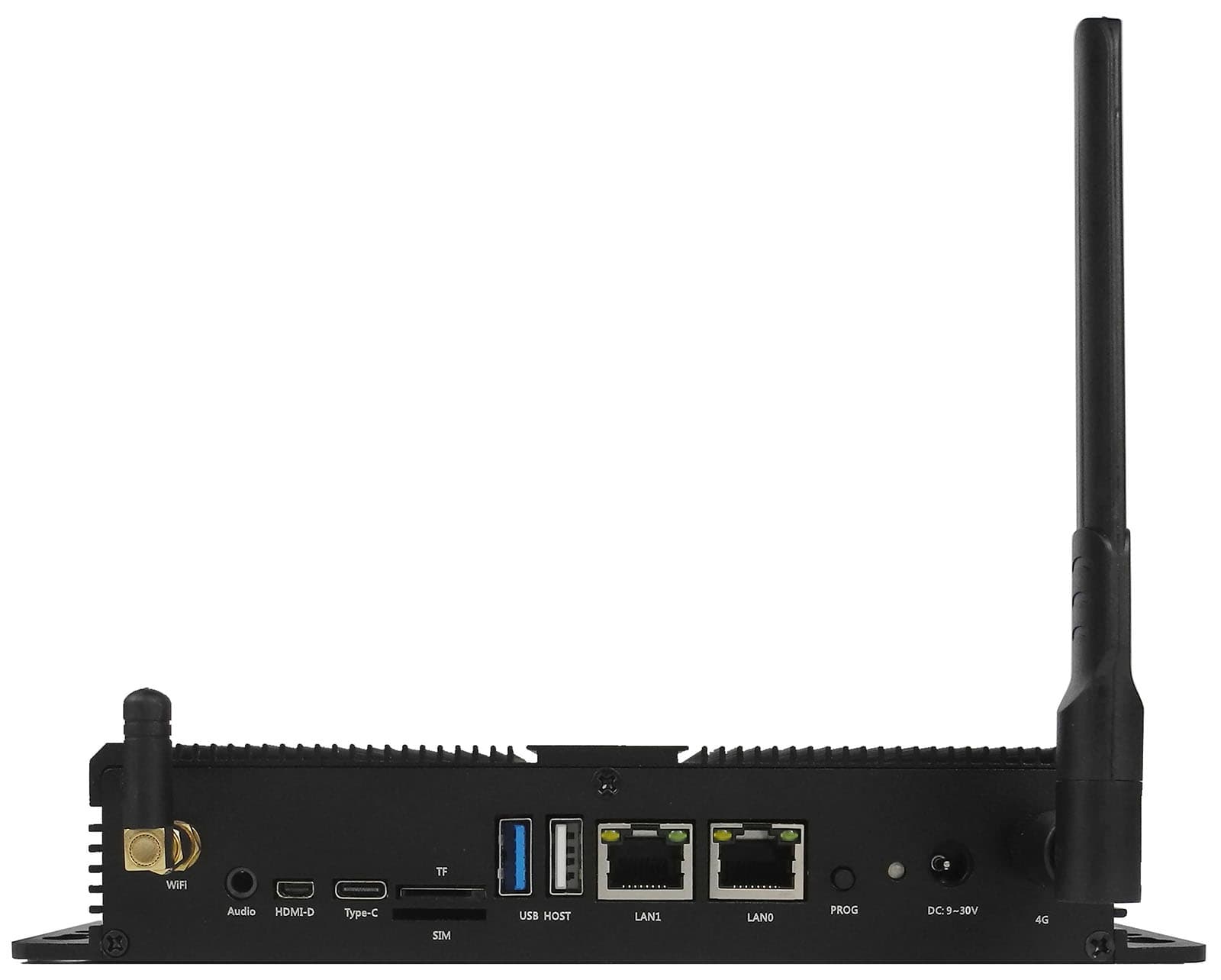

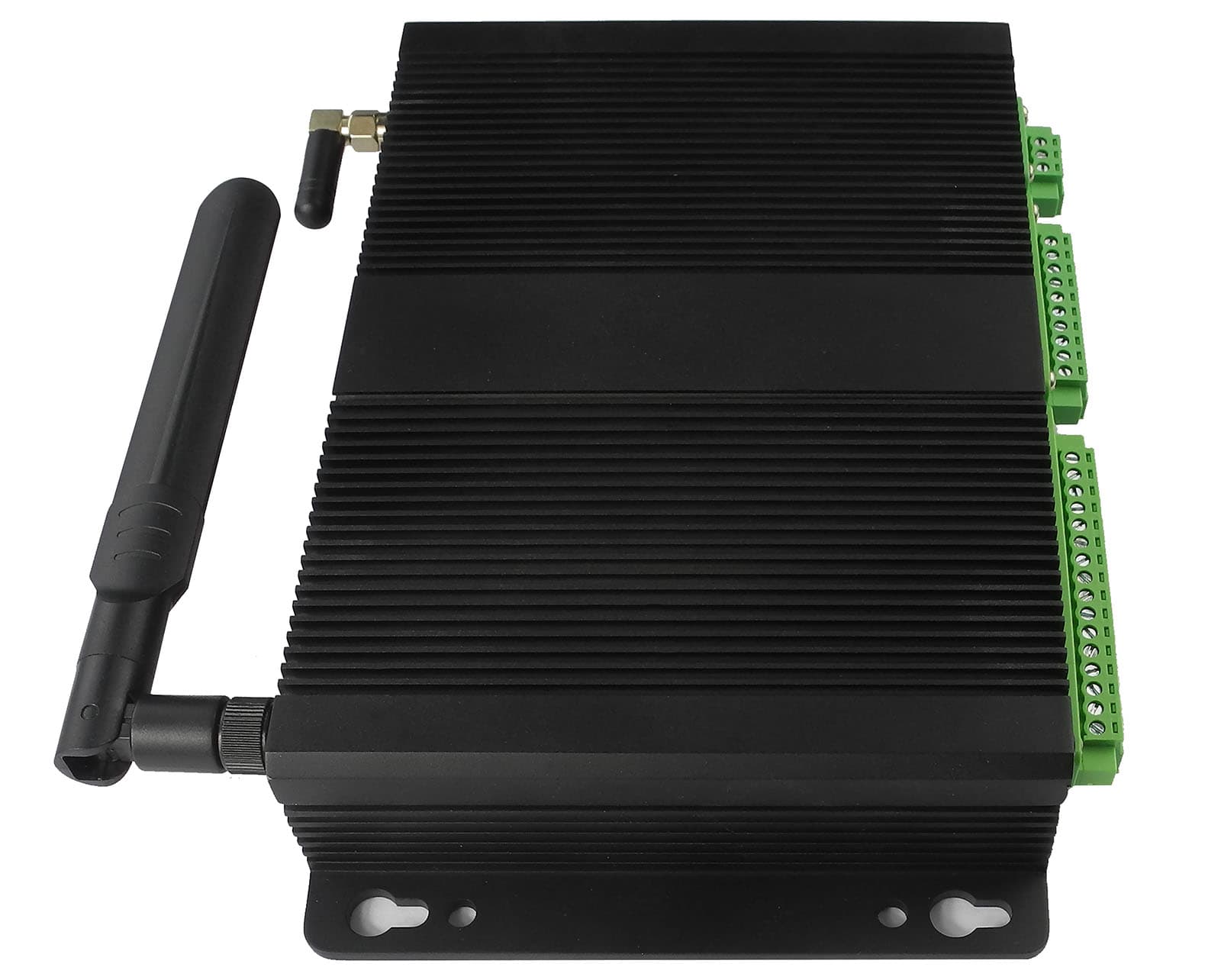

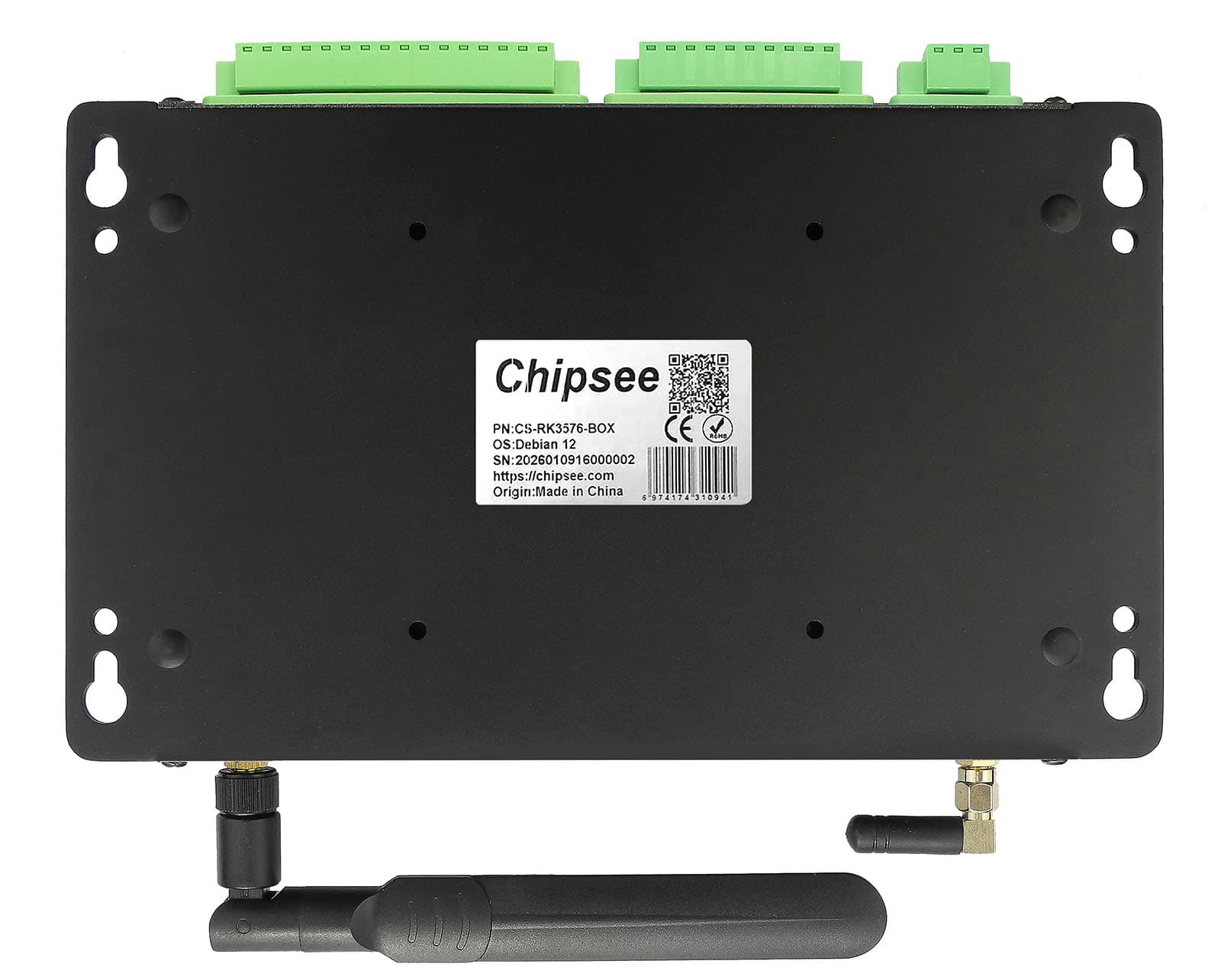

Бокс компютри — ARM: Rockchip RK3576, 4GB LPDDR5, 64GB
Спецификации
- Нетно тегло
- 900 g
- Форм-фактор
- Box
- Процесор
- ARM: Rockchip RK3576
- Тактова честота на процесора
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU ускорител
- 6 TOPS(Sparsity)@INT8
- Графичен процесор
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- Оперативна памет
- 4GB LPDDR5
- Вградена памет (eMMC)
- 64GB
- Постоянна памет
- TF Card, Supports up to 128GB SDHC

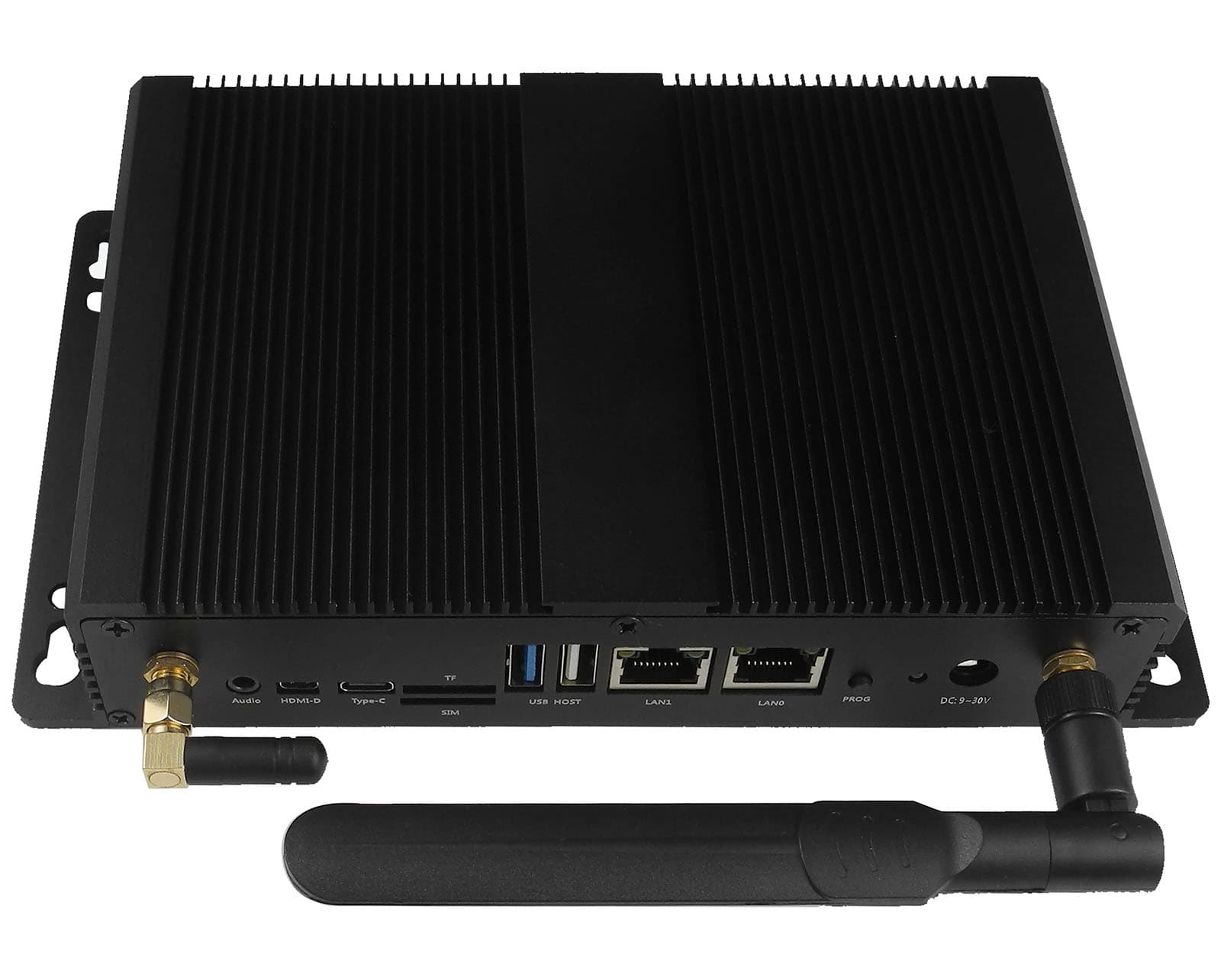

- USB
- 1 x USB Type-C; 1x USB 2.0 HOST; 2 x USB 3.0 HOST

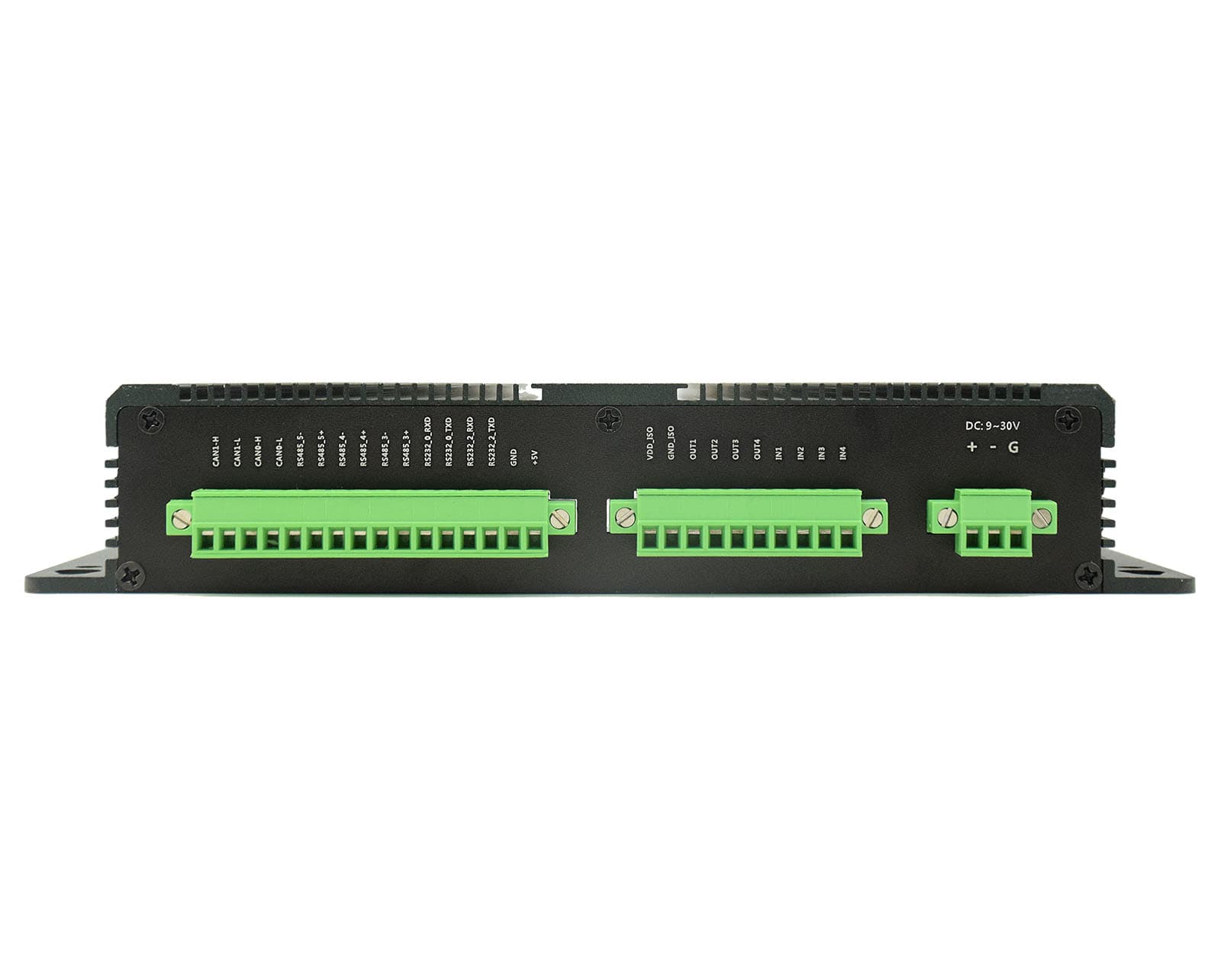

- CAN
- 2 x CAN FD by default; Optionally 1 x CAN (CAN1) can be configured as RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI-D (Micro HDMI) OUT
- RS232
- 2 x RS232 by default (Optional 6 x RS232 at most, include 1 debug port)
- RS485
- 3 x RS485 by default; Optionally these 3 x RS485 can be configured as RS232.
- Ethernet
- 2 x RJ45, GbE
- Wi-Fi / Bluetooth
- YES
- 4G
- Optional
- PoE
- Not supported
- Аудио
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Зумер
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Входно захранване
- (supports optional 24V ignition signal); 9-30V DC
- Консумация
- 6W (max)
- Ток при 15 V
- 400mA (max)
- Работна температура
- -40°C to +85°C
- Операционна система
- Android; Buildroot; Debian; Ubuntu
- Начин на монтаж
- Rear, VESA
