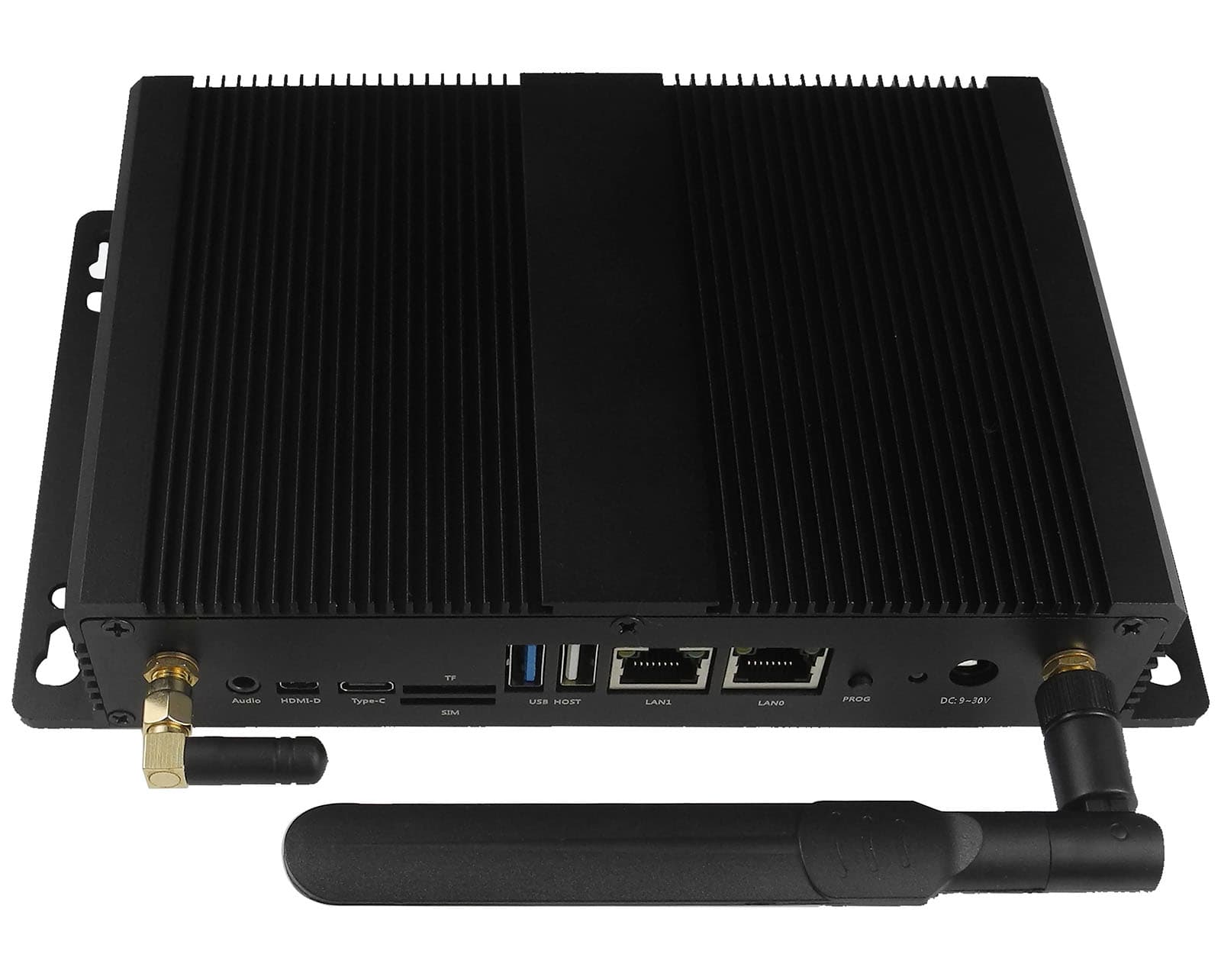

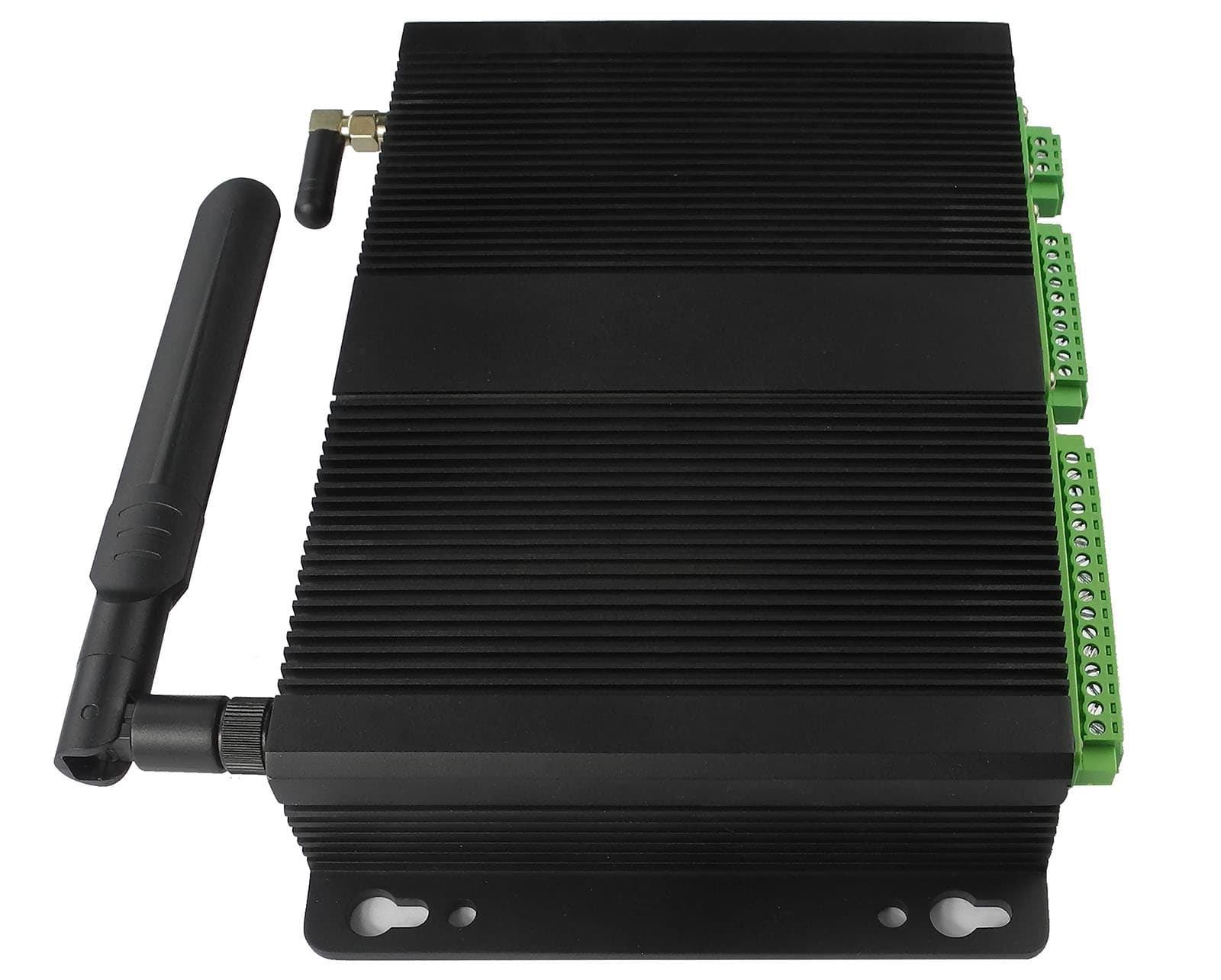

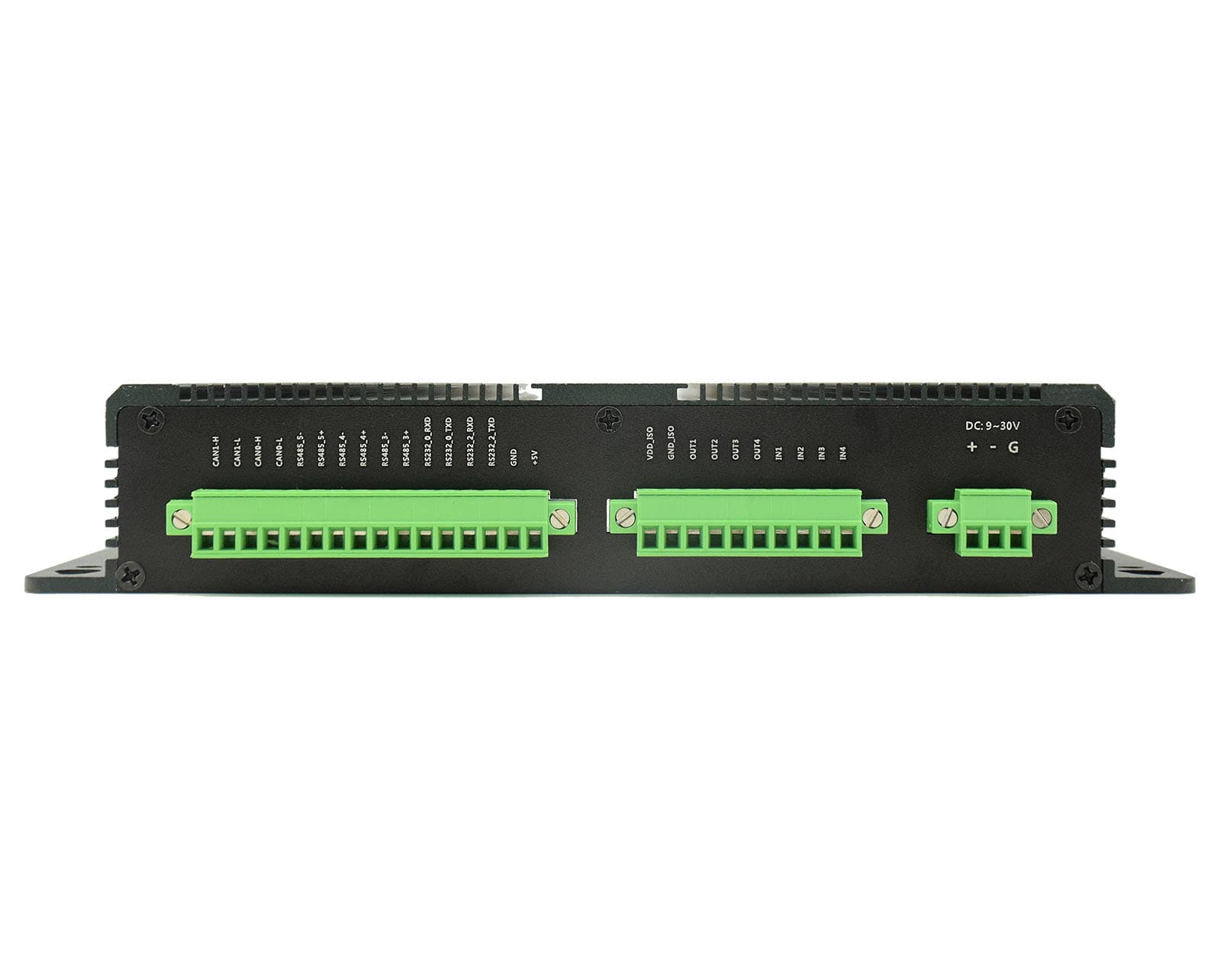

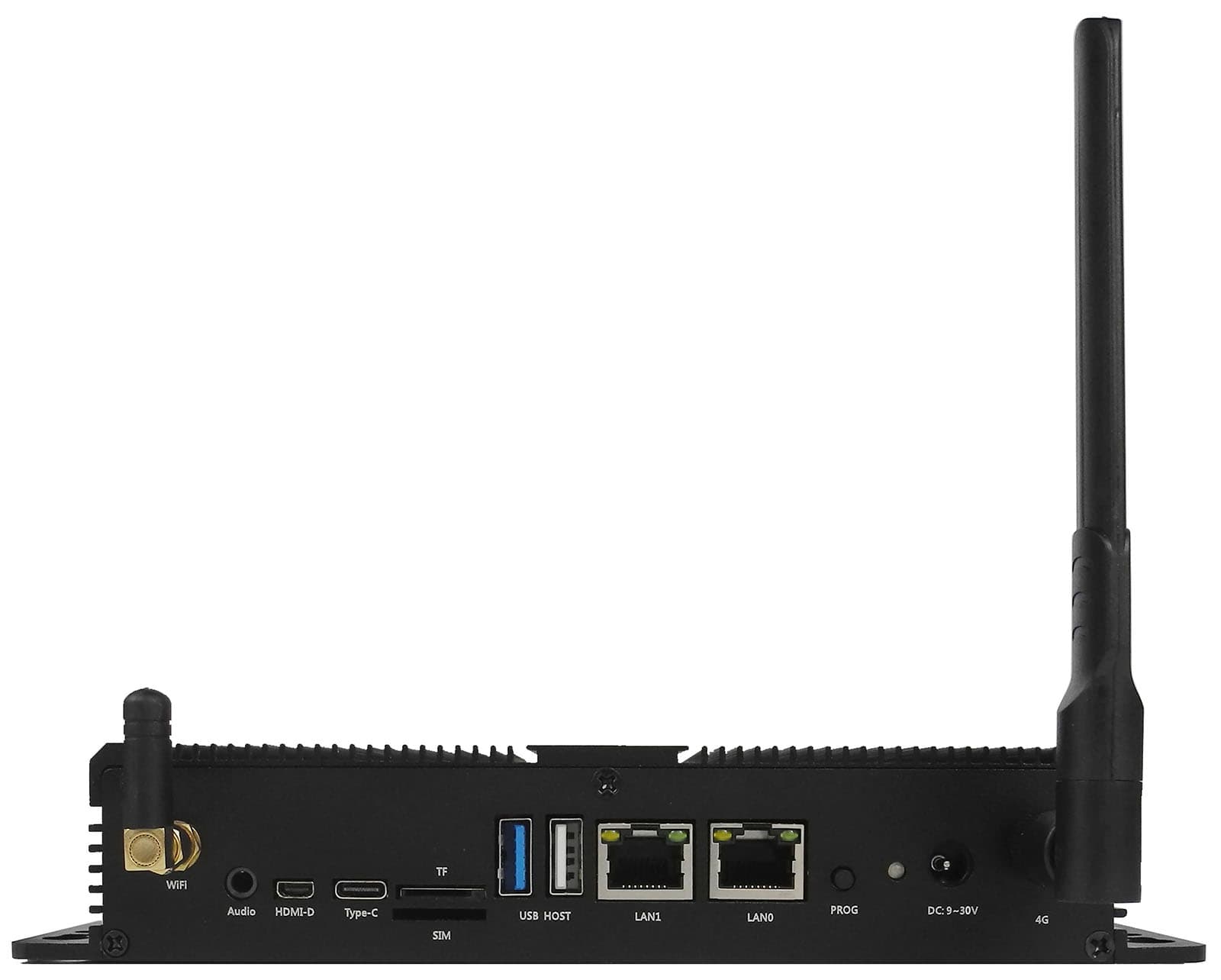

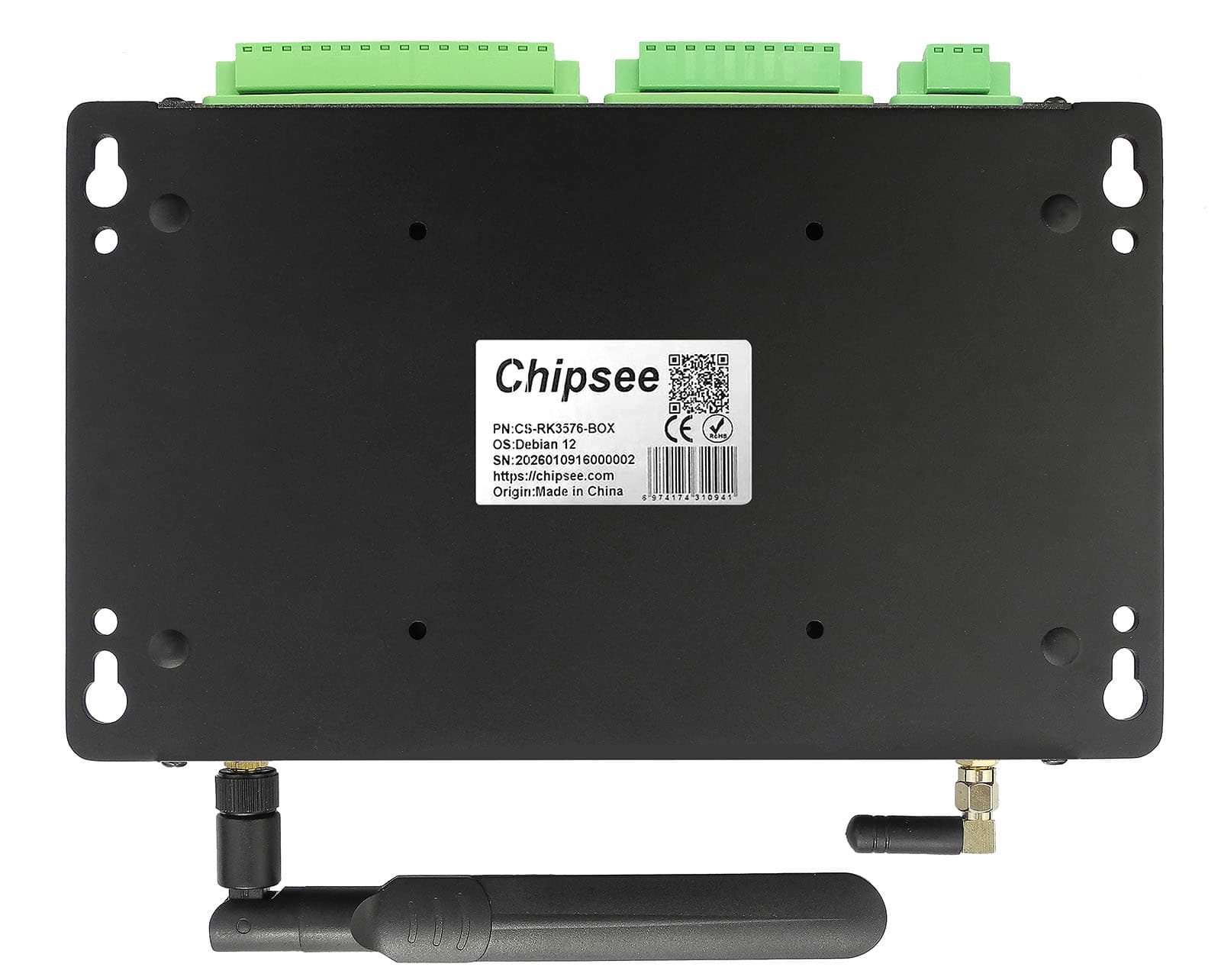

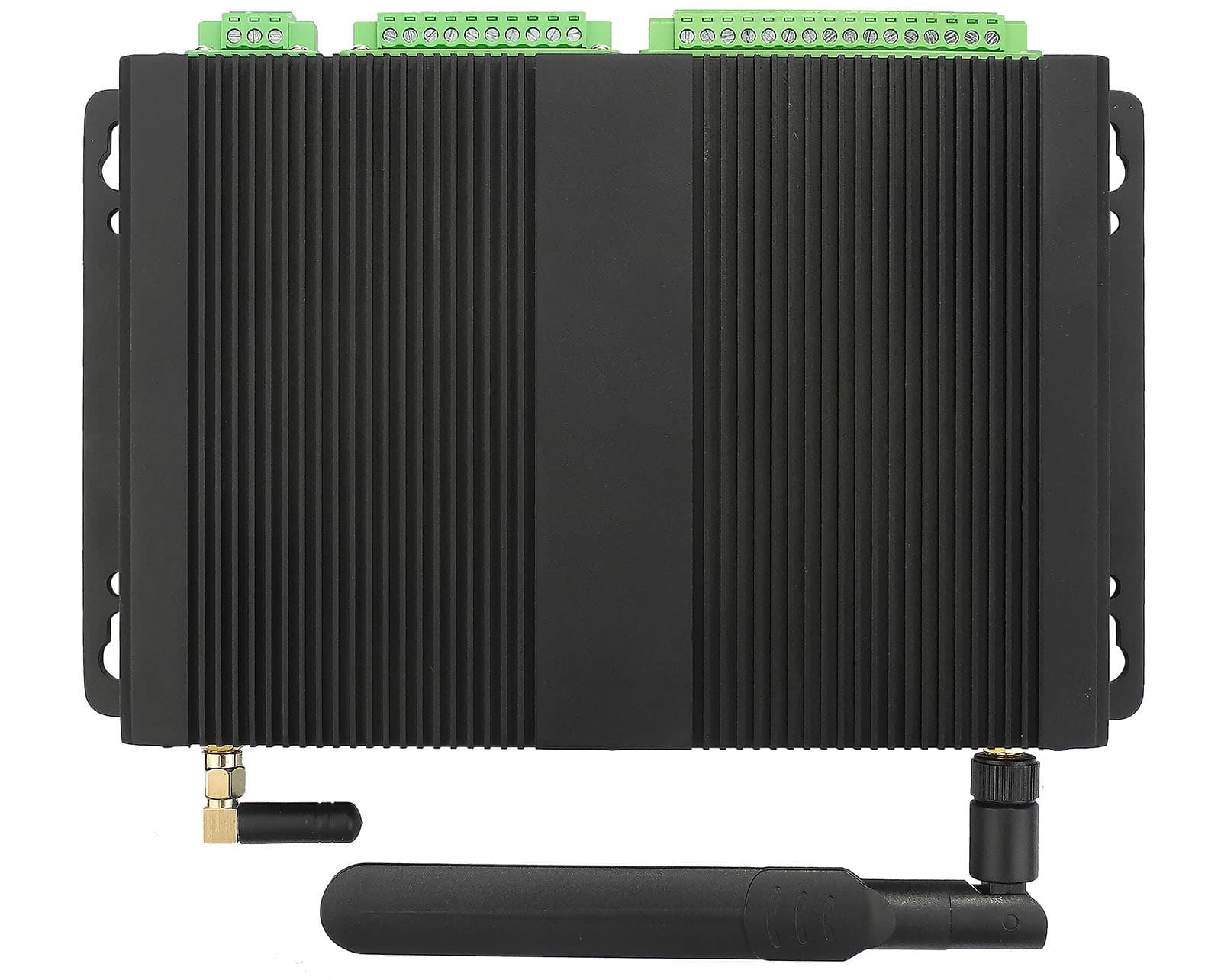

The CS-RK3576-BOX is a compact, IP65-compliant industrial box PC designed for reliable edge computing in harsh and space-constrained environments. Powered by the Rockchip RK3576J platform, it delivers a balanced combination of high CPU performance, AI acceleration, and industrial-grade durability. Its fanless aluminum enclosure, wide operating temperature range, and flexible mounting options make it well-suited for applications such as industrial automation, IIoT gateways, environmental monitoring, PLC systems, and automotive or mobile installations where a display is not required. Built for long-term deployment, the CS-RK3576-BOX supports multiple operating systems, including Android 14, Debian 12, and Buildroot Linux Qt, allowing developers and system integrators to deploy scalable, secure, and application-ready solutions at the edge.
Specifications
- Net weight
- 900 g
- Form-factor
- Box
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Storage
- TF Card, Supports up to 128GB SDHC
- USB
- 1 x USB Type-C; 1x USB 2.0 HOST; 2 x USB 3.0 HOST
- CAN
- 2 x CAN FD by default; Optionally 1 x CAN (CAN1) can be configured as RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI-D (Micro HDMI) OUT
- RS232
- 2 x RS232 by default (Optional 6 x RS232 at most, include 1 debug port)
- RS485
- 3 x RS485 by default; Optionally these 3 x RS485 can be configured as RS232.
- Ethernet
- 2 x RJ45, GbE
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Not supported
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- (supports optional 24V ignition signal); 9-30V DC
- Power Consumption
- 6W (max)
- Current at 15V
- 400mA (max)
- Working Temperature
- -40°C to +85°C
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- Rear, VESA
