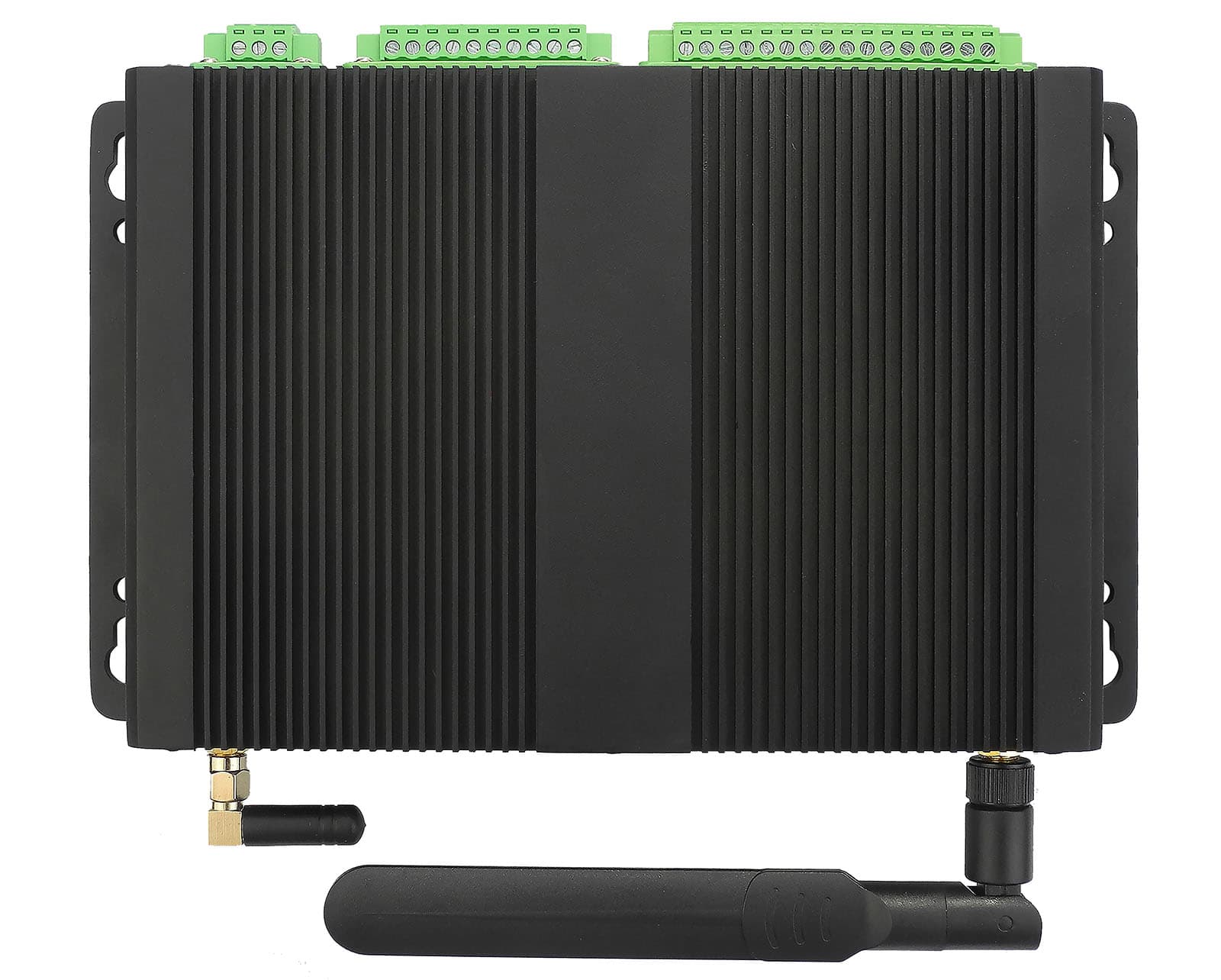

Бокс компютри — ARM: Raspberry Pi CM5, Based on CM5, Raspberry Pi OS
Спецификации
- SKU
- CSRA5BOX
- Форм-фактор
- Box
- Нетно тегло
- 790 g
- Процесор
- ARM: Raspberry Pi CM5
- Тактова честота на процесора
- Quad(4) Core Cortex-A76 at 2.4GHz
- PCIe
- PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242/2260/2280 socket (Optional)
- Оперативна памет
- Based on CM5
- Вградена памет (eMMC)
- Based on CM5
- Постоянна памет
- Supports 1 x TF Card
- USB
- 1 x USB 2.0 type-A Host; 1 x USB 3.0 type-A Host; 1 x USB Type-C OTG
- CAN
- 1 x CAN FD BUS, Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI-D (Micro HDMI) OUT; can be driven up to 4K 60FPS
- RS232
- 2 x RS232 by default, up to 4 x RS232
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 2 x Giga LAN
- I2C
- Not supported.
- Wi-Fi / Bluetooth
- Depends on CM5
- 4G
- Optional
- Аудио
- 3.5mm Audio Out Connector; Internal 2W Speaker
- Зумер
- Onboard, driven by GPIO
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Камера
- Optional
- Входно захранване
- (supports optional 24V ignition signal); 9-30V DC
- Консумация
- 6W typical; 9.6W
- Работна температура
- -20°C to 85°C
- Операционна система
- Raspberry Pi OS

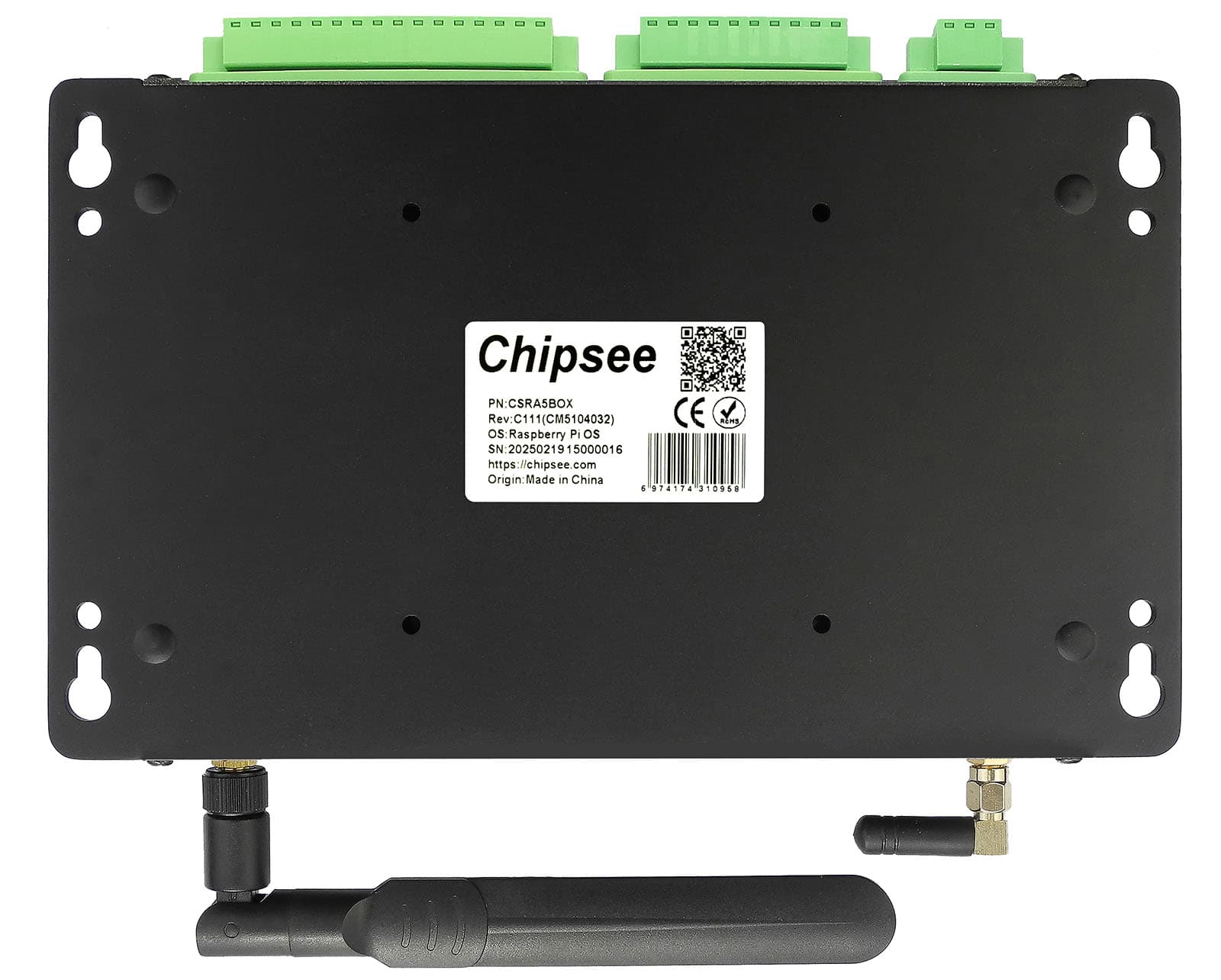

- Начин на монтаж
- Rear, VESA
- Модул Raspberry Pi CM5
- CM5102016 ($113): WiFi+2GB DDR+16GB eMMC; CM5104032 ($156): WiFi+4GB DDR+32GB; CM5108032 ($233): WiFi+8GB DDR+32GB
