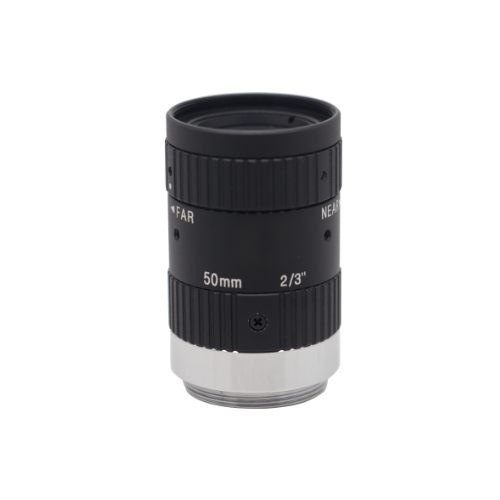

MVL-MF5028M-5MPE

HIKROBOT Lens, FA Series, MF

50mm, F2.8 ~ F16, Ø 11mm (2/3''), C-Mount

HIKROBOT Lens, FA Series, MF

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Product Downloads:

DrawingData Sheet

SKU: MVL-MF5028M-5MPE Categories: , Tags: , , ,
Compare
  • High resolution and consistency of image clarity
  • Lower distortion and higher relative illumination rate
  • Achromatic optical system design, Better imaging performance with color camera
  • Excellent performance at high and low temperature
  • Good optical performance at ultra-short working distance

Model Product Model MVL-MF5028M-5MPE
Type 50mm, F2.8, 2/3″, 5MP Lens, C-Mount
Performance Focal length 50 mm
F-Number F2.8 ~ F16
Image Size Φ11 mm(2/3”)
Distortion 0.08%
Minimum Operation Distance 0.4 m
Field of View D(11.1 mm):12.83°H(8.45 mm):9.86°V(7.07 mm):8.26°
Mechanical Iris Control Manual
Focus Control Manual
Filter Thread M27 × 0.5
Mount C-Mount
Flange Back Length 17.526 mm

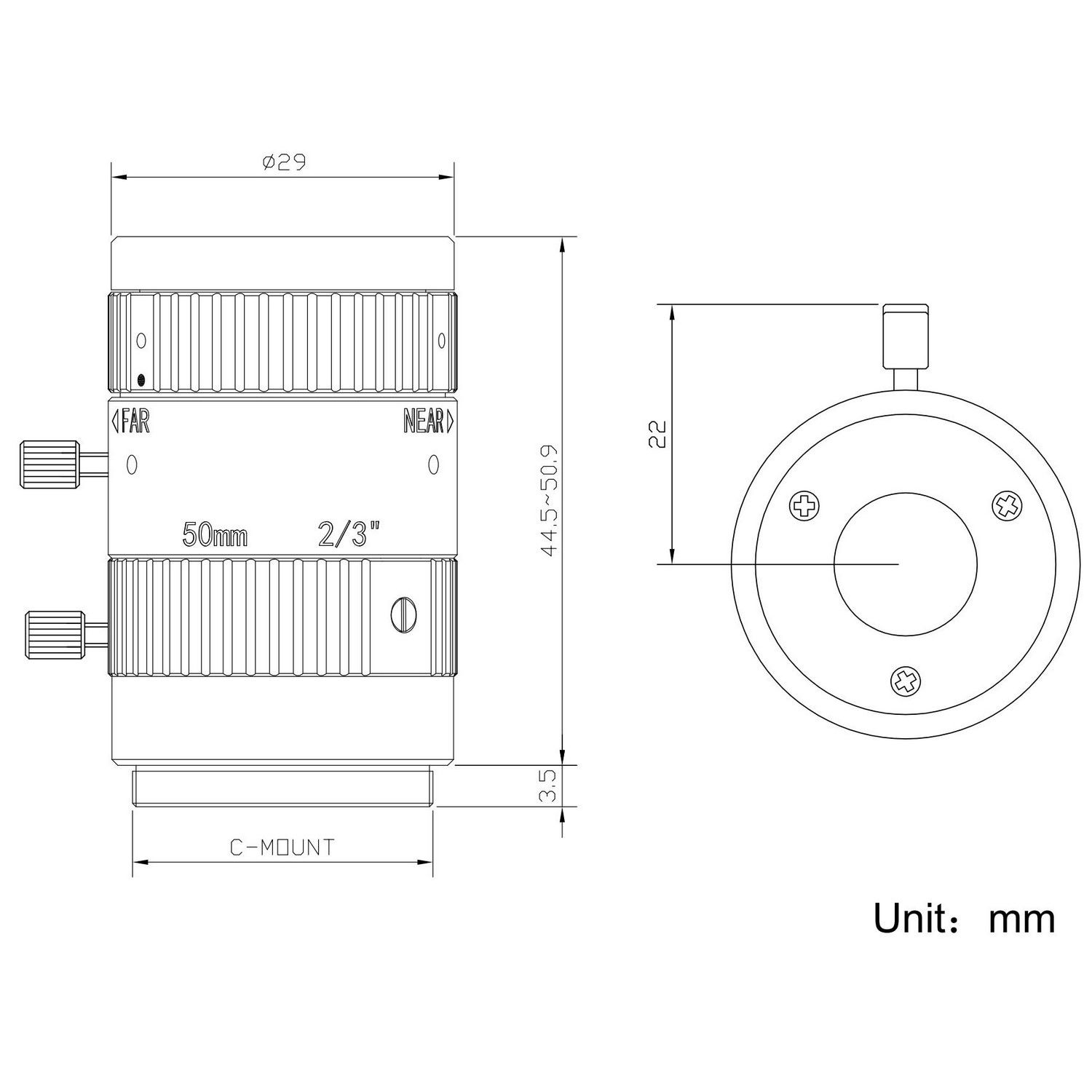

Dimension Φ29 × 44.5~50.9 mm
Weight 80.9 g
Temperature -10 ~ 50°C
General Certification RoHS2.0
