- Ultra-high central image clarity, up to 3.1µm resolution
- Low distortion and high relative illumination
- Image size Φ56 mm, supporting large target area scan cameras, 8K 5µm, 8K 7µm, 16K 3.5µm line scan cameras
- Optimize optical design for different magnification

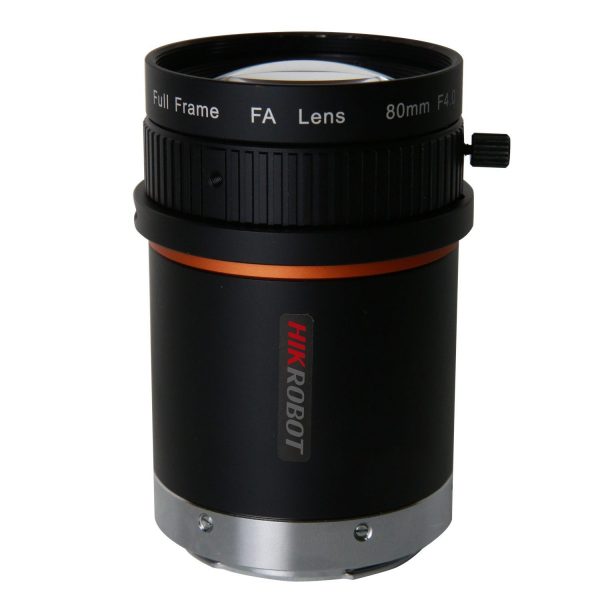

MVL-LF8040M-F
HIKROBOT Lens, FA Series, LF
HIKROBOT Lens, FA Series, LF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
| Model | Product Model | MVL-LF8040M-F |
| Type | 80mm, F4.0, Full Frame φ43.2mm, 100MP Lens, F-Mount | |
| Performance | Focal length | 80 mm |
| F-Number | F4.0 ~ F22 | |
| Image Size | Φ56 mm | |
| Optical Distortion | 0.12% | |
| Magnification Range | 0.4x ~ 0.01x | |
| Working Distance Range | 235 ~ inf mm | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M52 × 0.75 | |
| Mount | F-Mount | |
| Flange Back Length | 46.5 mm | |

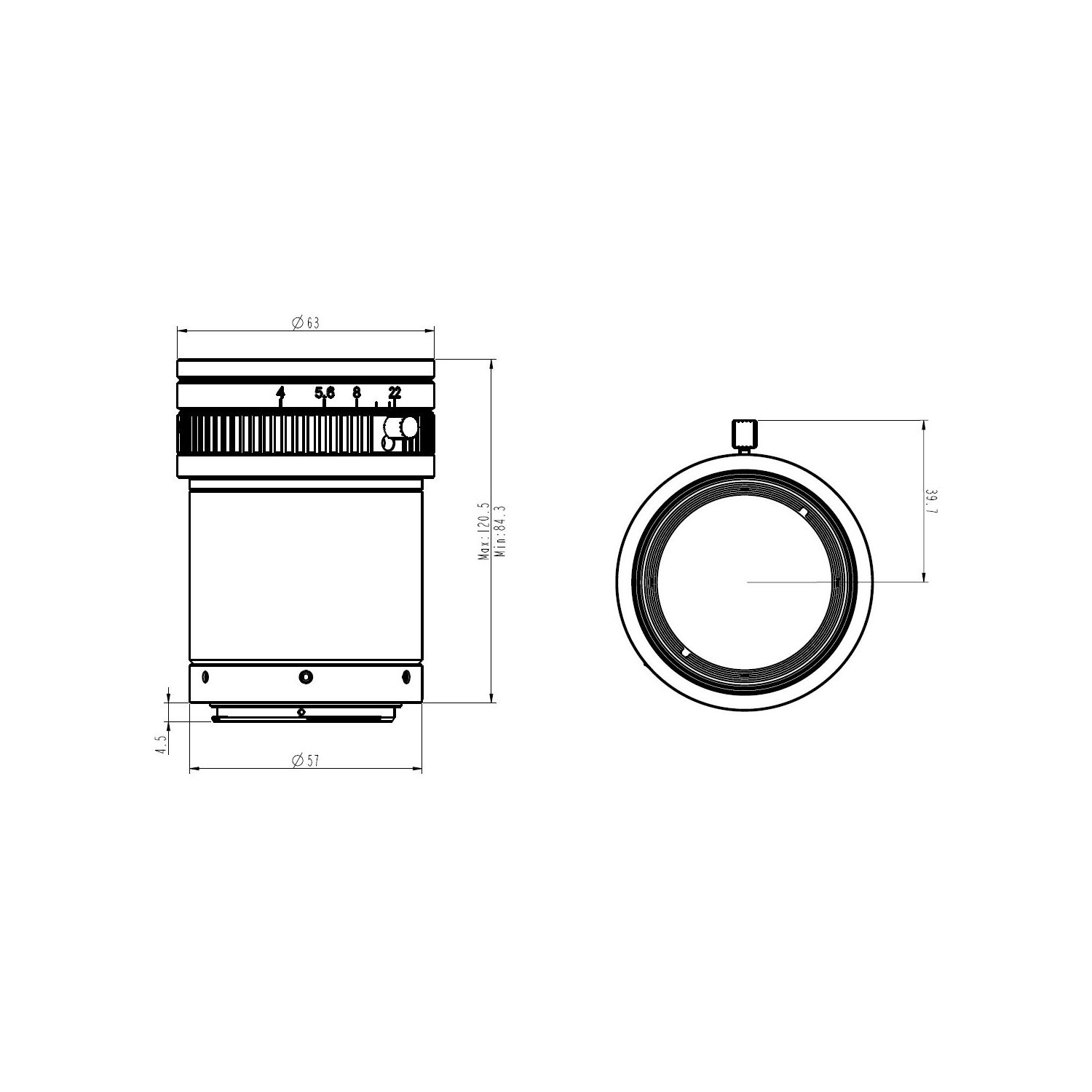

| Dimension | Φ63 × 120.5 mm | |
| Weight | 601.0 g | |
| Temperature | -10 ~ 50°C | |
| General | Certification | RoHS2.0 |
