- Ultra high resolution and consistency of image clarity
- 1.2″ image circle, bigger aperture, lower distortion, higher illumination relative
- Achromatic optical system design, better imaging performance with color camera
- Maintain excellent optical properties at different object distances
- Excellent vibration resistance and stability at high and low temperature performance, optical axis shifting within pixel level
- Multilayer and broadband coating design, compatible with visible and near infrared applications

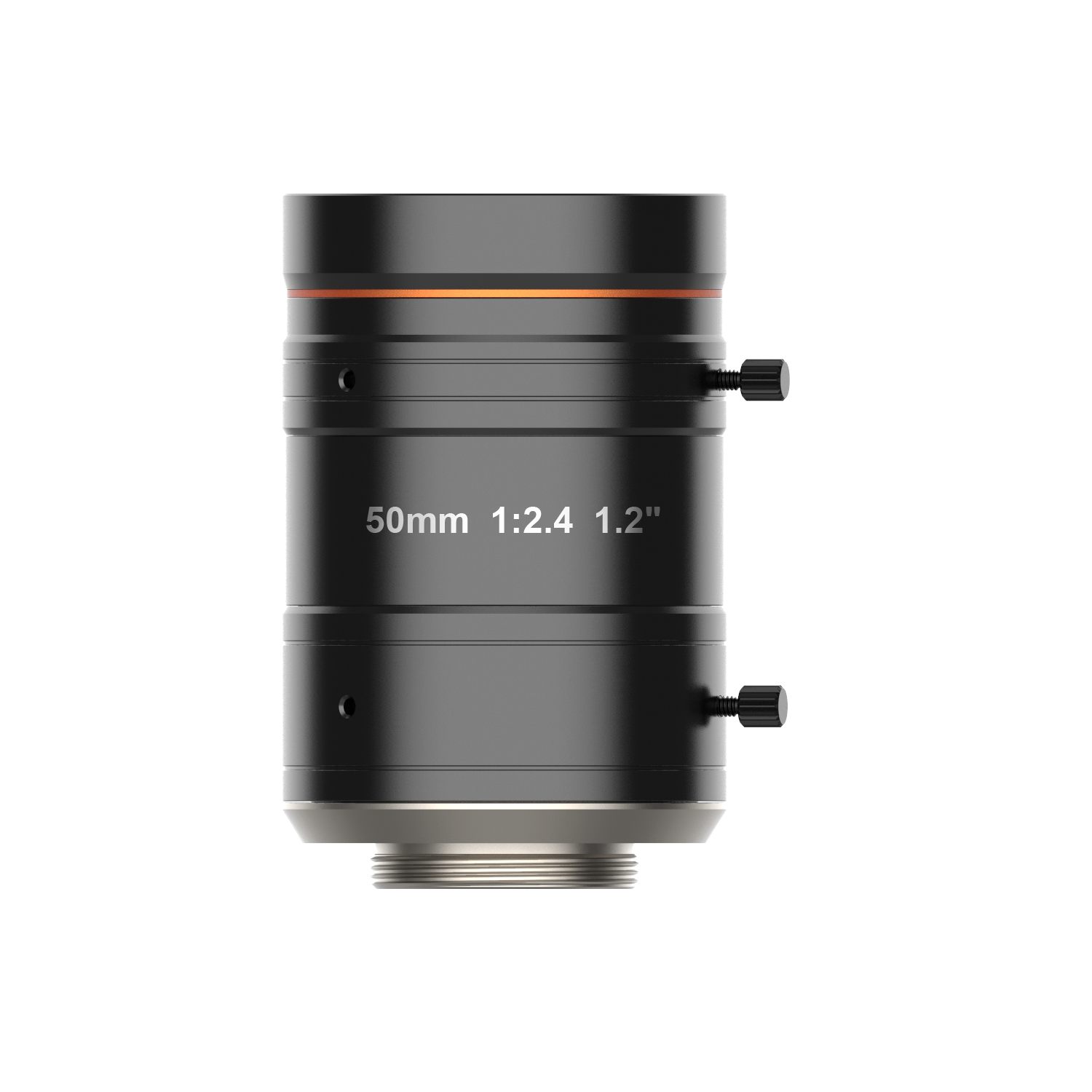

MVL-KF5024M-25MP
HIKROBOT Lens, FA Series, KF
HIKROBOT Lens, FA Series, KF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Product Downloads:
Model | Product Model | MVL-KF5024M-25MP |
Type | 50mm, F2.4, 1.2″, 25MP Lens, C-Mount | |
Performance | Focal length | 50 mm |
F-Number | F2.4 ~ F16 | |
Image Size | Φ19.3 mm(1.2″) | |
Distortion | 0.01% | |
Minimum Object Distance | 0.25 m | |
Field of View | D(19.30mm):20.60°H(14.60mm):15.66°V(12.63mm):13.57° | |
Mechanical | Iris Control | Manual |
Focus Control | Manual | |
Filter Thread | M40.5 × 0.5 | |
Mount | C-Mount | |
Flange Back Length | 17.526 mm | |

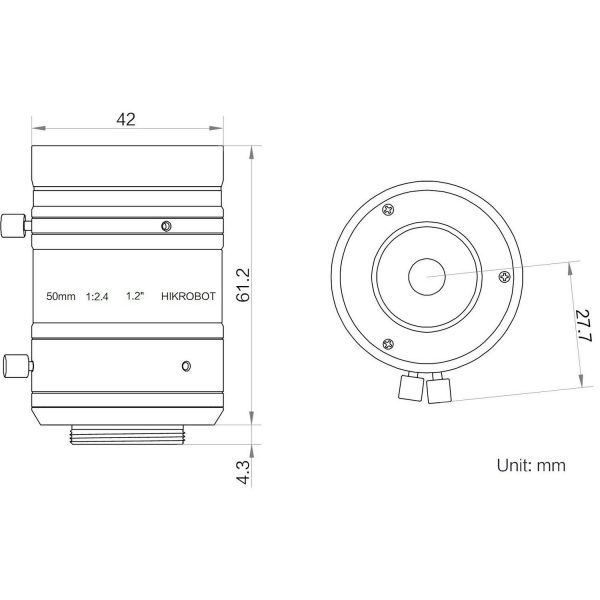

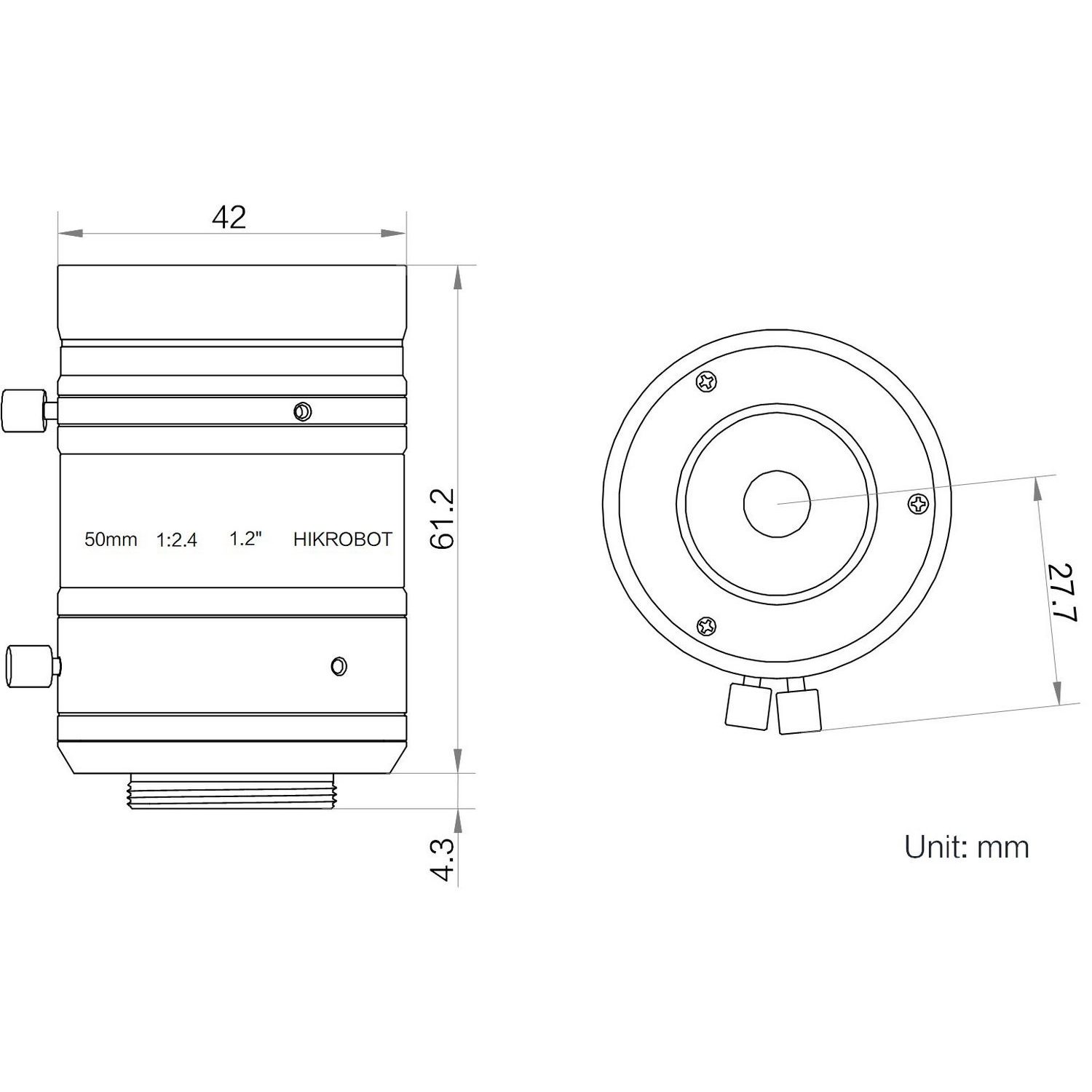

Dimension | Φ42 × 61.2 mm | |
Weight | 177 g | |
Temperature | -10 ~ 50°C | |
General | Certification | RoHS2.0 |
