- Higher image clarity and contrast ratio
- Ultra-low distortion and higher relative illumination rate
- Good optical performance at ultra-short working distance
- Compact design, convenient for device integration

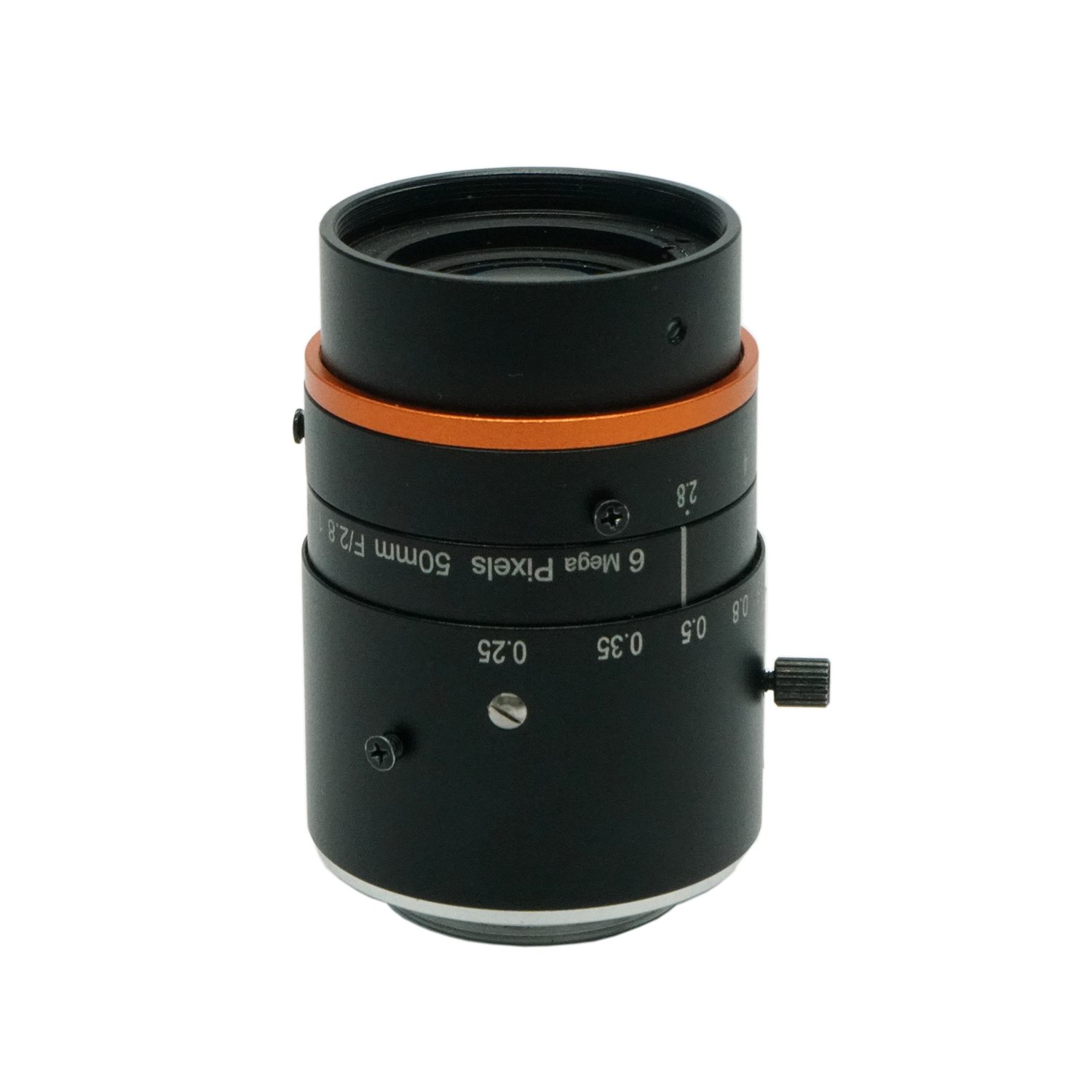

MVL-HF5028M-6MPE
HIKROBOT Lens, FA Series, HF
HIKROBOT Lens, FA Series, HF
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices.
The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
| Model | Product Model | MVL-HF5028M-6MPE |
| Type | 50mm, F2.8, 1/1.8", 6MP Lens, C-Mount | |
| Performance | Focal length | 50 mm |
| F-Number | F2.8~F16 | |
| Image Size | Φ9 mm(1/1.8'') | |
| Distortion | 0.03% | |
| Minimum Operation Distance | 0.25 m | |
| Field of View | D（8.96mm）：9.72° H（7.38mm）：7.84° V（4.92mm）：5.24° | |
| Mechanical | Iris Control | Manual |
| Focus Control | Manual | |
| Filter Thread | M30.5×0.5 | |
| Mount | C-Mount | |
| Flange Back Length | 17.526 mm | |

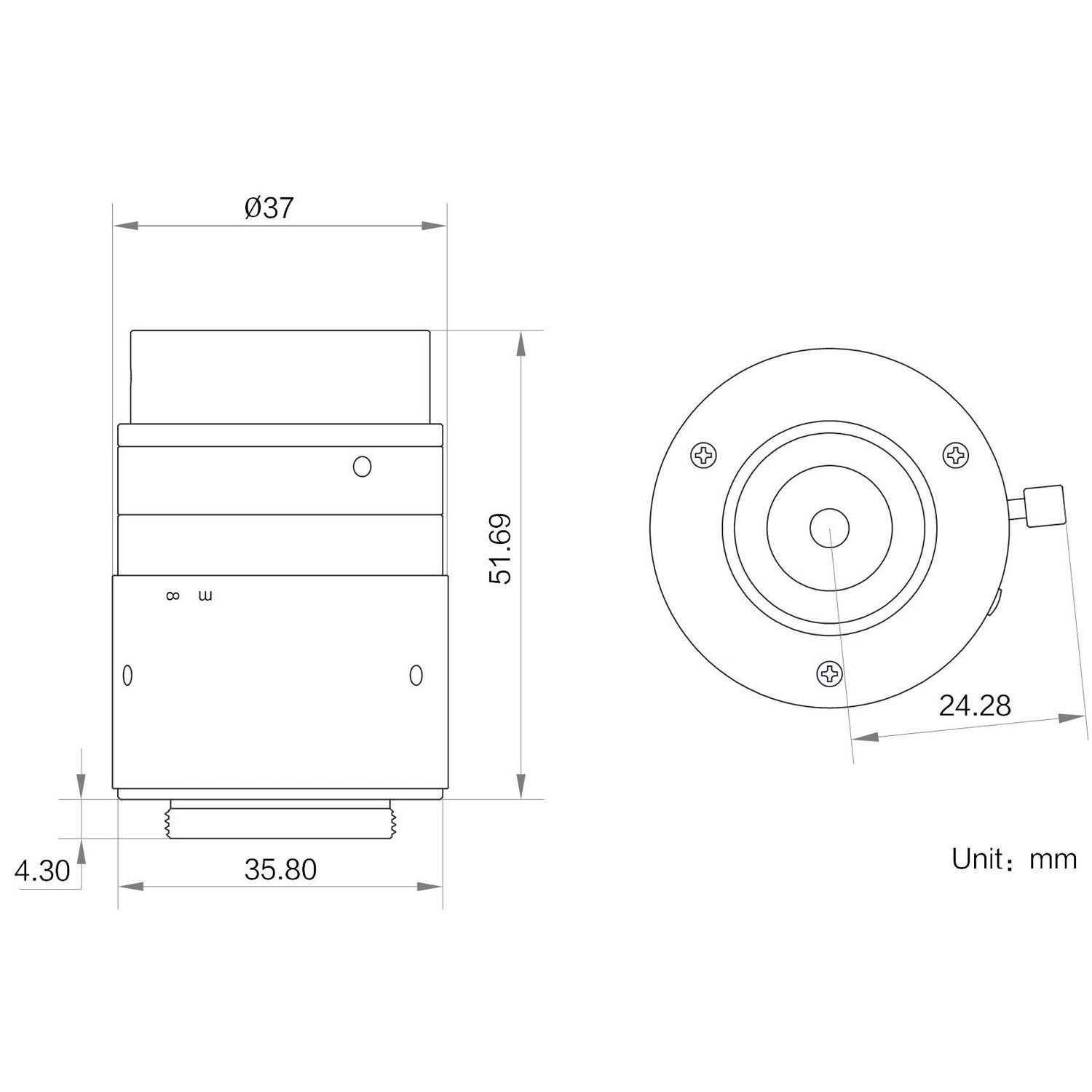

| Dimension | Φ37×51.7 mm | |
| Weight | 102 g | |
| Temperature | -10 ~ 50℃ | |
| General | Certification | RoHS2.0 |
