- Equipped with Intel’s eighth-generation CPU, providing strong computing performance
- Supports multiple GPIO functions, simple to use
- Supports multiple Gigabit network ports, supports high-speed and stable image transmission
- Built-in USB interface for on-site deployment and maintenance
- All-metal housing, durable and well protected
- Rich extension interface, support for extended mechanical hard disk, WIFI, etc.

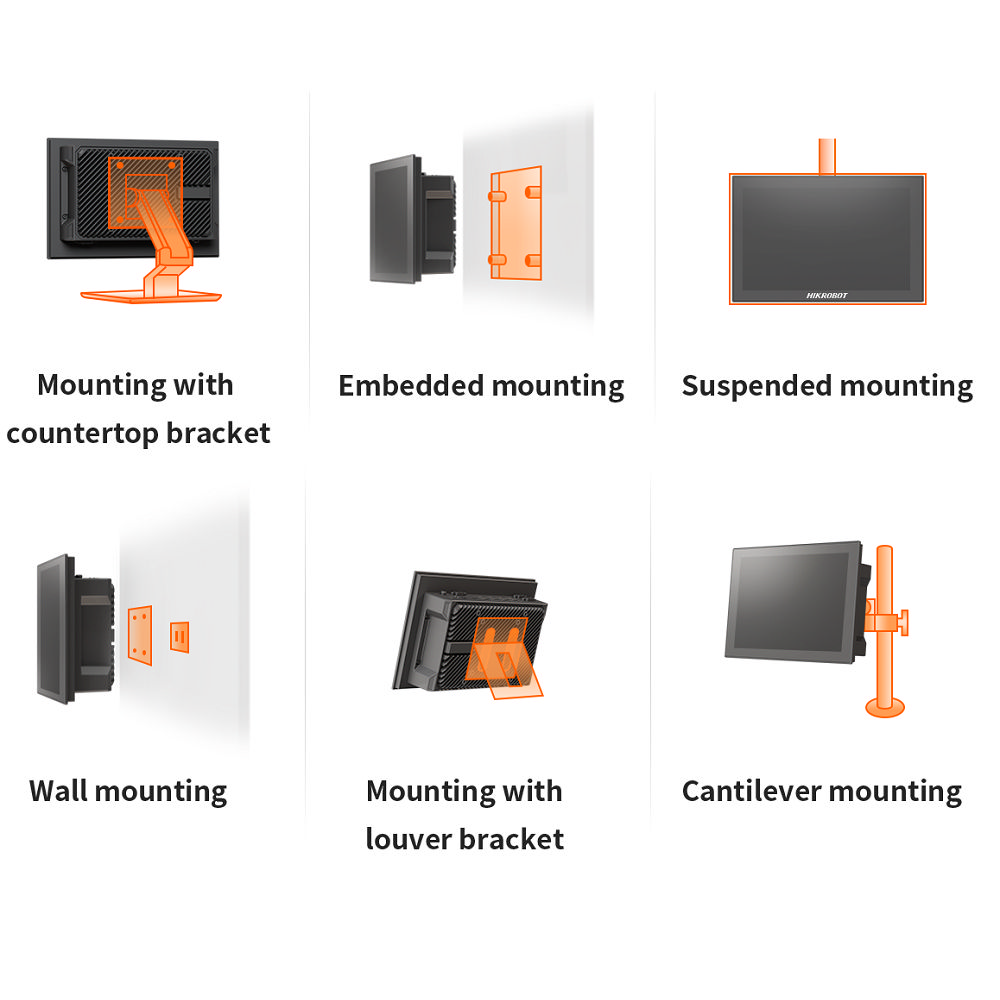

- Simple to install, VISA standard
MV-VT3700-128G40-NN
HIKROBOT Vision Controller Industrial PC
HIKROBOT Vision Controller Industrial PC
VT3000 series touch all-in-one machine using Intel8 generation desktop CPU, chassis, screen integrated design, with multi-point capacitive touch screen, accurate operation, sensitive use. With multiple Gigabit ports, USB, serial ports, etc., it supports 11 GPIO and other rich interfaces, which can be used in simple multi-camera vision applications, providing a more flexible choice for vision devices.

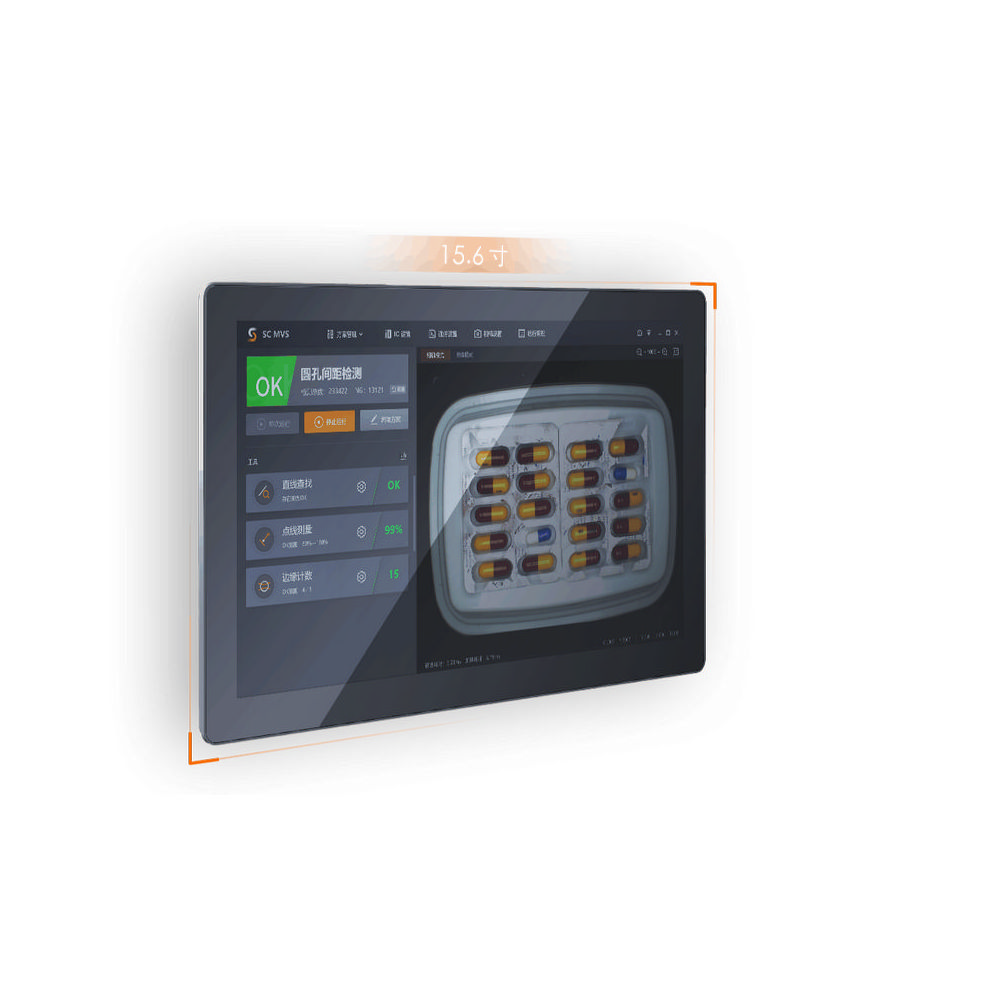

15.6 inch capacitive all-in-one machine, specially designed for visual applications to meet the needs of large-screen display on the spot, for users to bring a more comfortable experience.

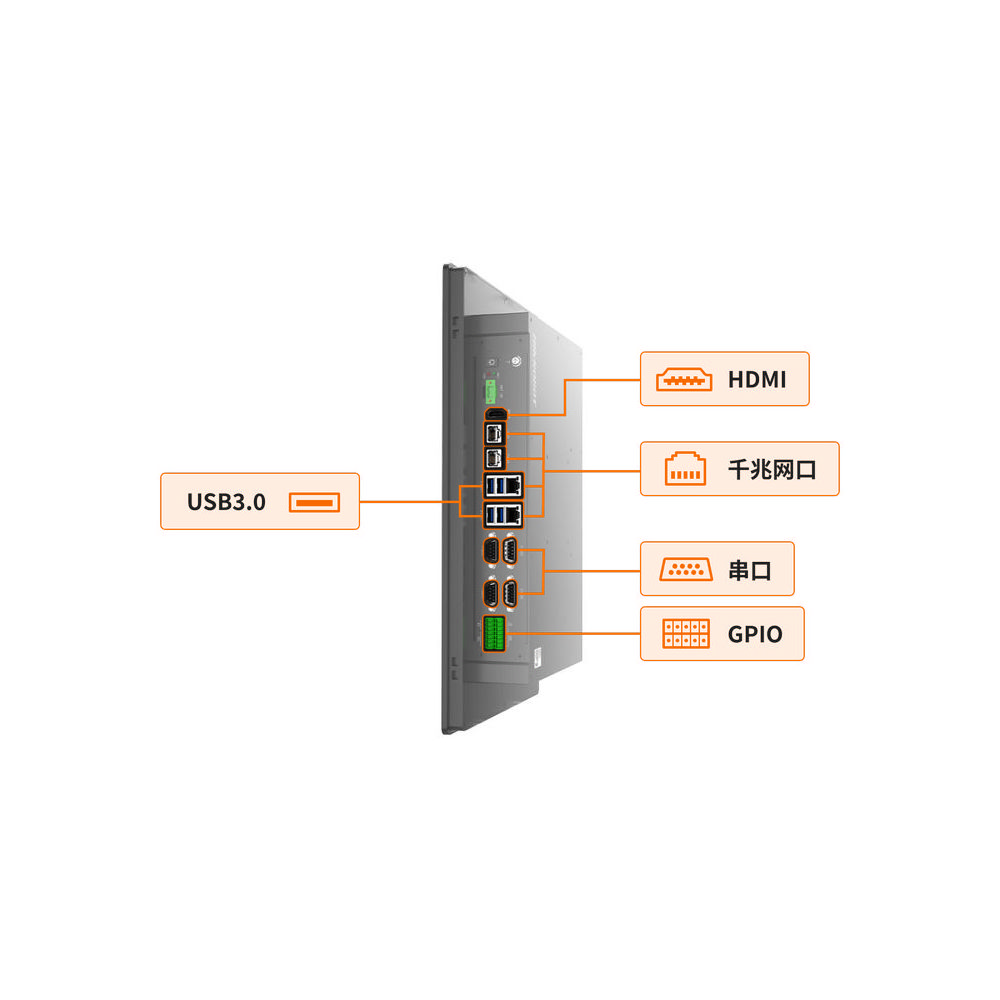

The VT3000 series all-in-one has a large number of interfaces for data transmission and control of vision systems: Gigabit network port, USB, serial port, GPIO, etc., to support secondary development of the interface control operation, to meet all kinds of visual inspection needs.
| Model | Model | MV-VT3700-128G40-NN |
| Name of | VT3000 all-in-one, I7-8700T, 8GB+128G SSD; | |
| Performance | Processor | Intel® CoreTM i7-8700T |
| Memory | 8 GB | |
| Storage | 128G SSD | |
| Operating system | Windows 10 is not activated. | |
| External interface | Display interface | 1 × HDMI (1920 × 1080) |
| Number of I/O | Support for 3 digital isolation inputs Supports 8-way optically coupled isolated output |
|
| Network interface | 4 × Gigabit network port | |
| USB interface | 4 x USB 3.0 | |
| Serial port | 4 RS-232, can be switched to RS-485/RS-422 | |
| Electrical characteristics | Power supply | 24 VDC |
| Typical power consumption | 120 W | |
| Display | Screen size | 15.6 inches |
| Resolution | 1920 × 1080 | |
| Display area | 344.16 mm × 193.59 mm | |
| Backlight | LED | |
| Backlight life | 50,000 hrs | |
| The View | 89°(R)/89°(L)/89°(B)/89°(T) | |
| Contrast | 1200:1 | |
| Brightness | 500 cd/m2 | |
| Touch screen | Touch screen type | Multi-point capacitive touch screen |
| Multi-touch | 10 touch points under Windows | |
| Number of hits | 35 million times. | |
| Light transmittance | ≥87% | |
| Surface hardness | ≥6 H | |

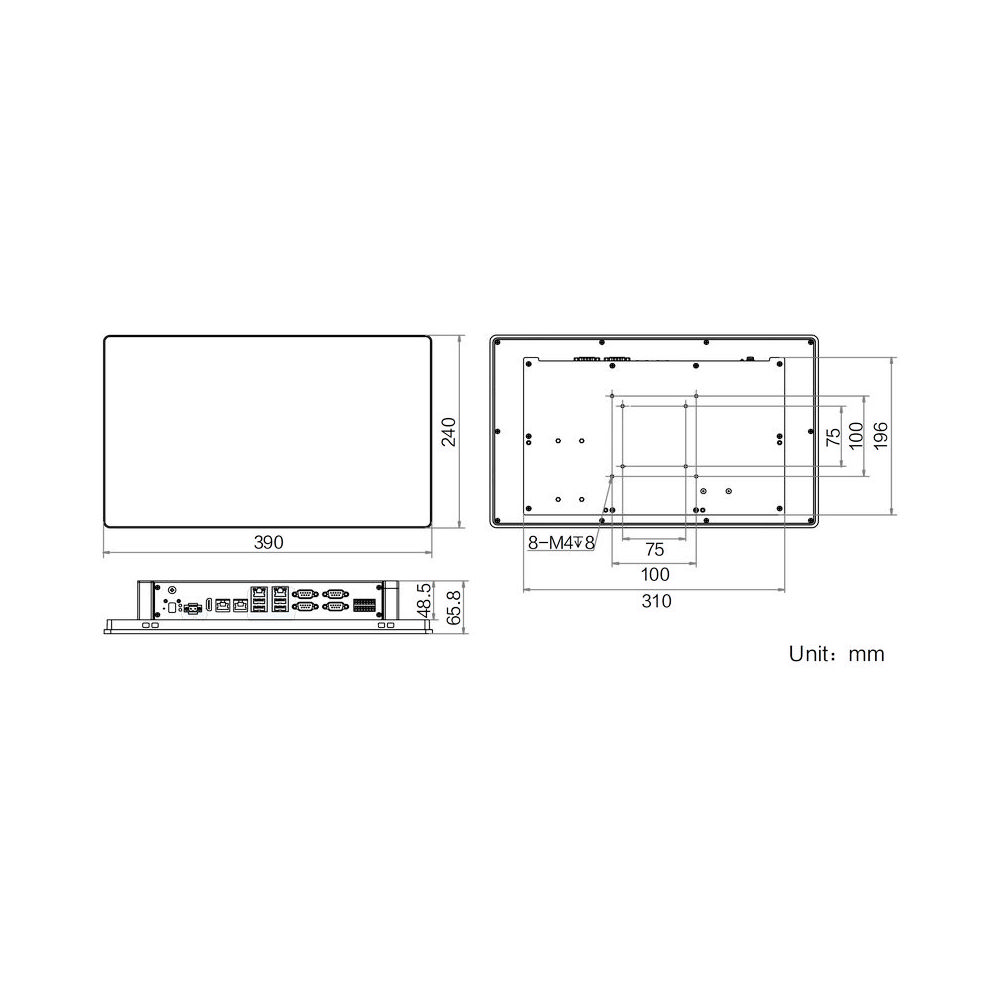

| Structure | External dimensions | 390 mm × 240 mm × 65.8 mm |
| Weight | 4.8 kg | |
| temperature | Operating temperature 0 ~ 50 °C, storage temperature -30 ~ 70 °C | |
| Humidity | 20% to 80% RH without condensation | |
| General norms | Certification | CCC, CE, KC |
