- Adopts embedded hardware platform to realize high-speed image processing.
- Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.
- Supports RS-232, TCP, UDP, FTP, ModBus, PROFINET, EtherNet/IP and other communication modes.
- Adopts multiple IO interfaces for input and output signals.
- Supports viewing the device’s status in real time via 360° visual indicator, convenient for debugging and maintenance.
- Rotatable cable tail design, suitable for narrow space.
- Adopts polarized, diffused, and full-transparent multiple optical lighting with good environmental adaptability.
- IP67 protection without fear of harsh industrial application environments.
MV-SC3050XC-12M-WBN

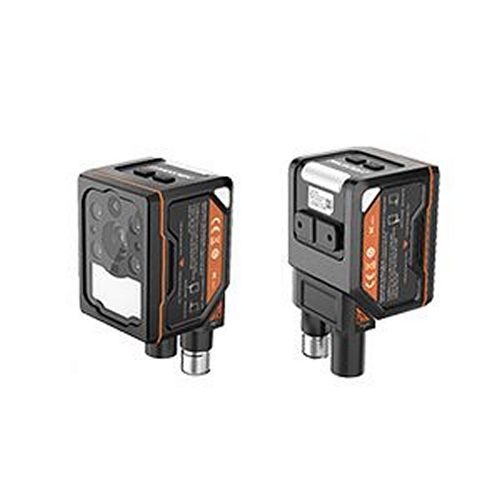

HIKROBOT Smart Camera SC3000X Series
HIKROBOT Smart Camera SC3000X Series
Integrated with imaging, processing and communication functions, the SC3000 series has a more compact size and the vision detection tools lead to better performance. Equipped with a new SCMVS for on-site deployment and lower debugging requirements, bringing a more comprehensive and cost-effective choice for visual inspection!
Comprehensive Error-proofing Detection Algorithm Inspection solutions such as presence/absence, U/D, Positioning, counting, etc. are often used for error-proof inspection. More visual inspection tools can provide the optimal solution for parts of different shapes on the production line, making visual application easier.
Red, blue, white and infrared light sources provide better imaging for products of different colors.
Visible light polarization mirror to filter glare interference.
SV series display interface box, providing a visual SC2000Pro real-time detection interface and statistics
Vertical and coaxial wiring supported, to adapt to more field applications.
| Model | Product Model | MV-SC3050XC-12M-WBN |
| Type | SC3000X series vision sensor，12mm focal length，5MP，Color | |
| Tool | Vision tool | Count: Spot count, edge count, pattern count, contour count, color countDefect detection: Exception detectionExistence: Circle existence, line existence, spot existence, edge existence, pattern existence, contour existenceLocation: Match calibration, match location, position fixtureLogic tool: If module, condition judge, logic judge, combination judge, string comparison, calculatorMeasurement: Color size, L2L angle, diameter measurement, brightness analysis, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurementRecognition: OCR, code recognition, color contrast, color recognition, classification registration, object detection registrationDeep learning: DL object detection, DL classification |
| Solution capacity | Supports importing and exporting project, up to 32 projects can be stored. | |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, ModBus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm × 3.45 µm | |
| Sensor size | 1/1.45" | |
| Resolution | 2432 × 2048 | |
| Max. frame rate | 40 fps | |
| Dynamic range | 77.8 dB | |
| SNR | 43 dB | |
| Gain | 0 dB to 15 dB | |
| Exposure time | 6 μs to 1 sec | |
| Pixel format | RGB 8, Mono 8 | |
| Mono/color | Color | |
| Electrical feature | Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1Supports triggering device via pressing top trigger button | |
| Power supply | 24 VDC | |
| Power consumption | Approx. 6.5 W@24 VDC | |
| Mechanical | Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 12 mm (0.5") | |
| Lens cap | Polarized + diffused + full-transparent lens cap | |
| Light source | White spot light source. Red/blue/IR point light source is optional | |
| Aiming system | Orange LED | |
| Indicator | 360° visual indicator | |

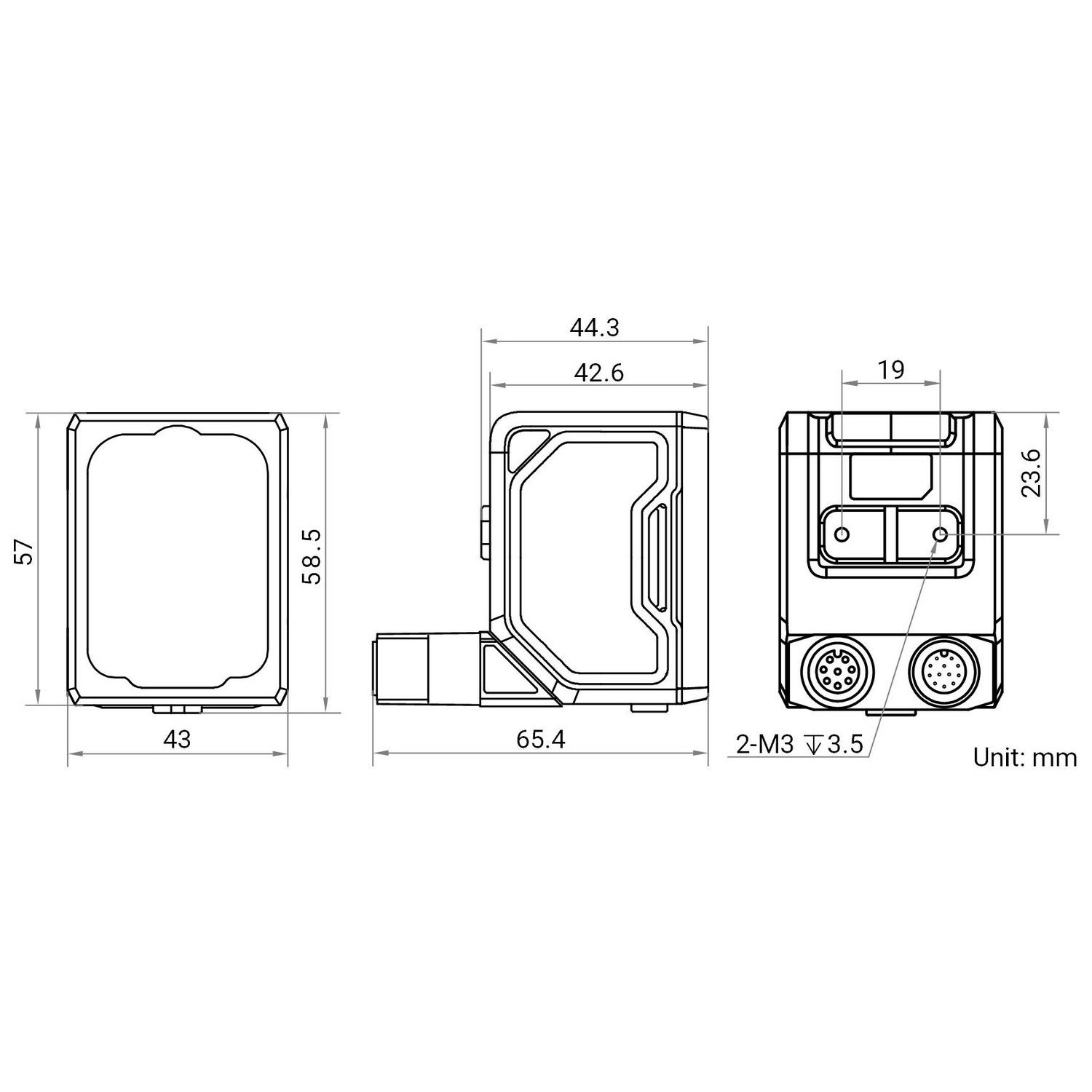

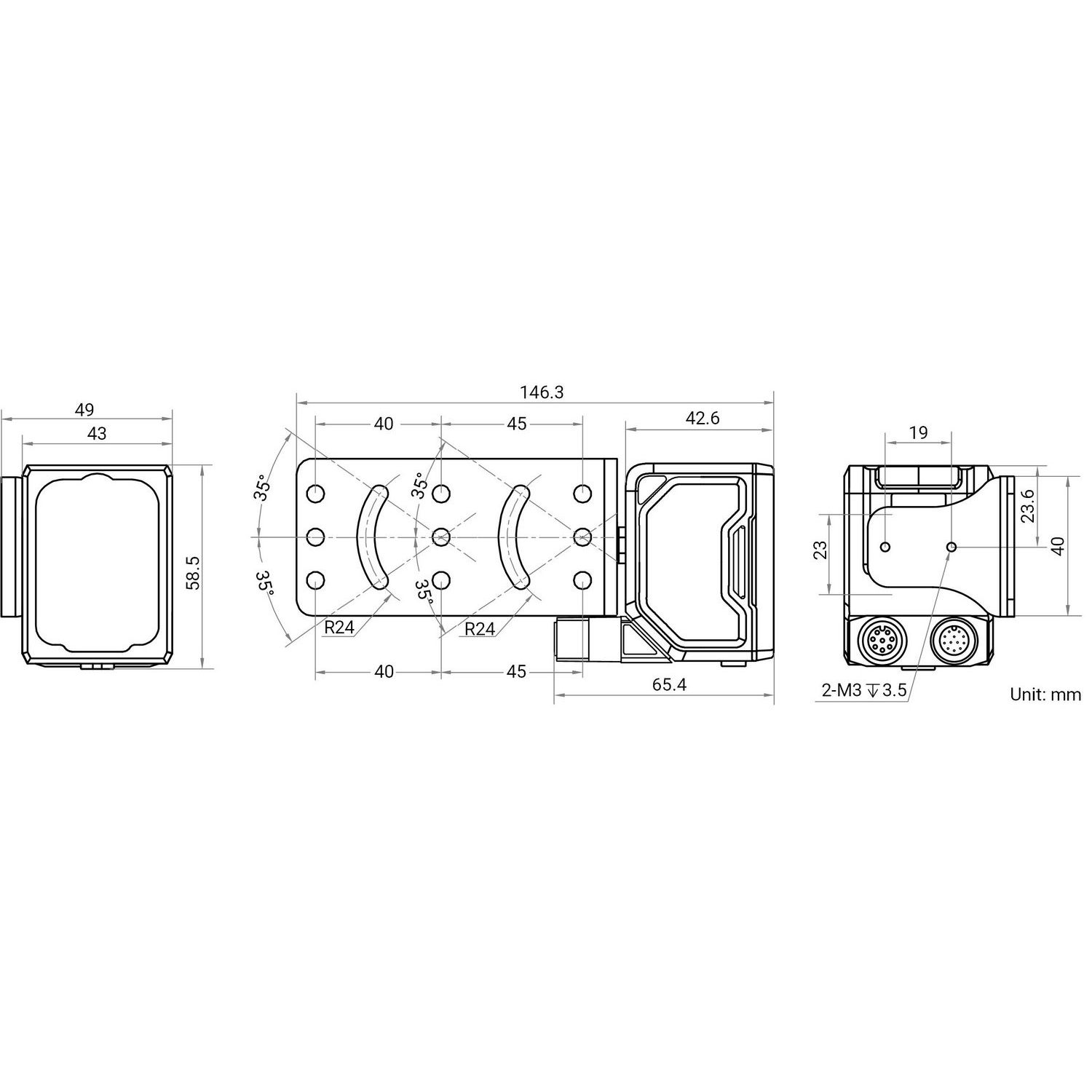

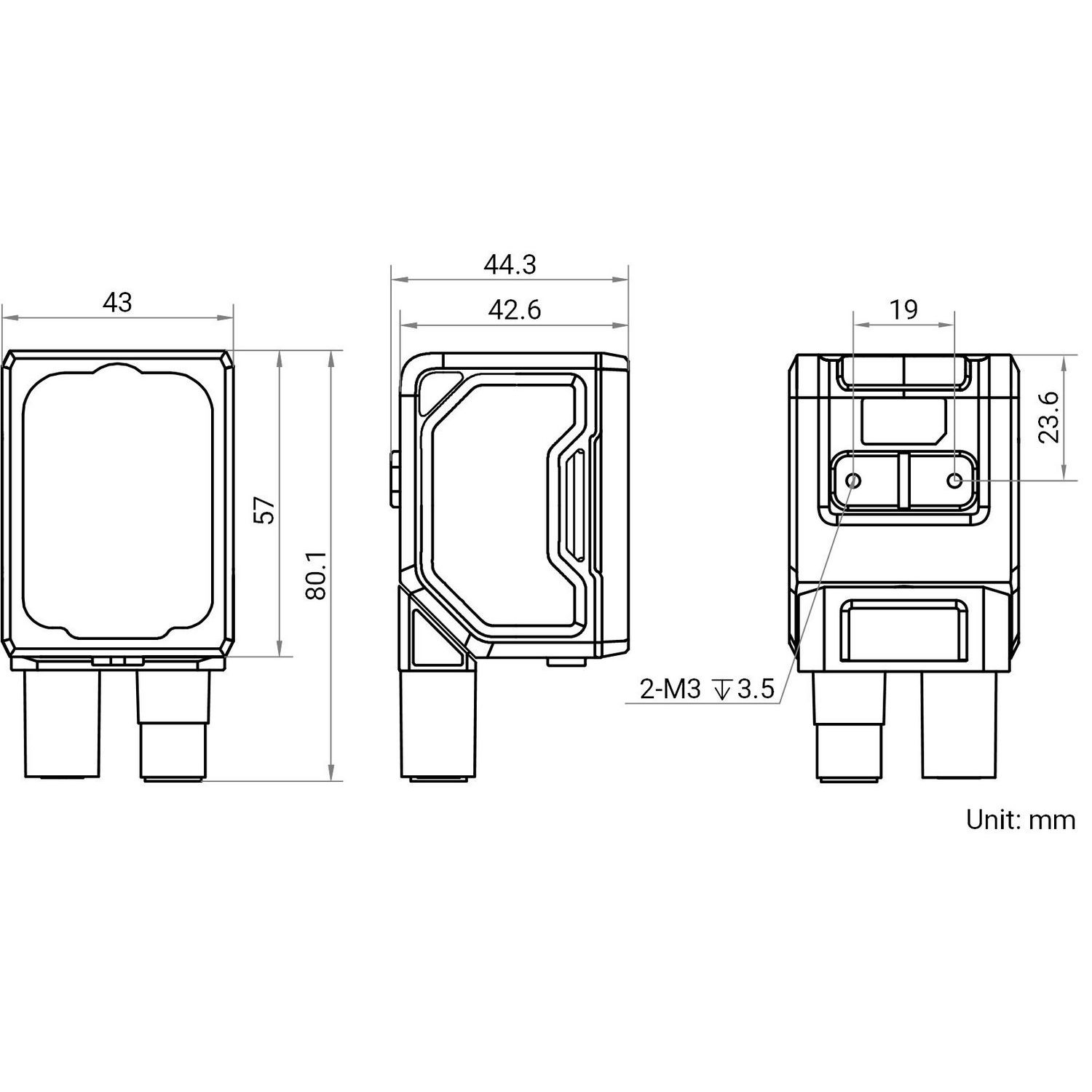

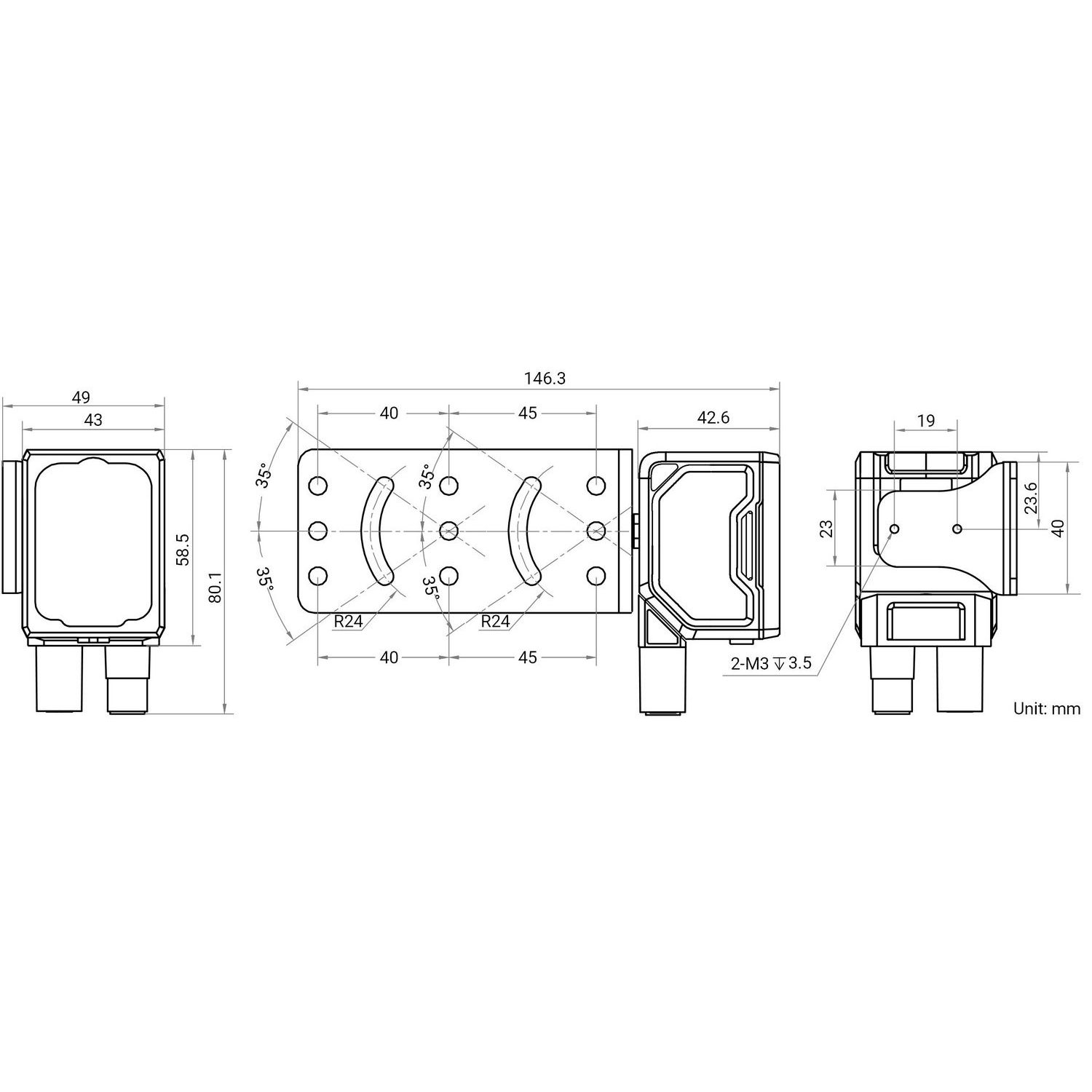

| Dimension | Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7")Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6") | |
| Weight | Approx. 190 g (0.4 lb.) | |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | SCMVS |
| Certification | CE, KC |
