MV-LTDS-H-1200-W

HIKROBOT Light Source, Line Type

504W, 1270x58x90.5mm, 6000 ~ 7000K, Area 1200x17mm, Line, White

HIKROBOT Light Source, Line Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

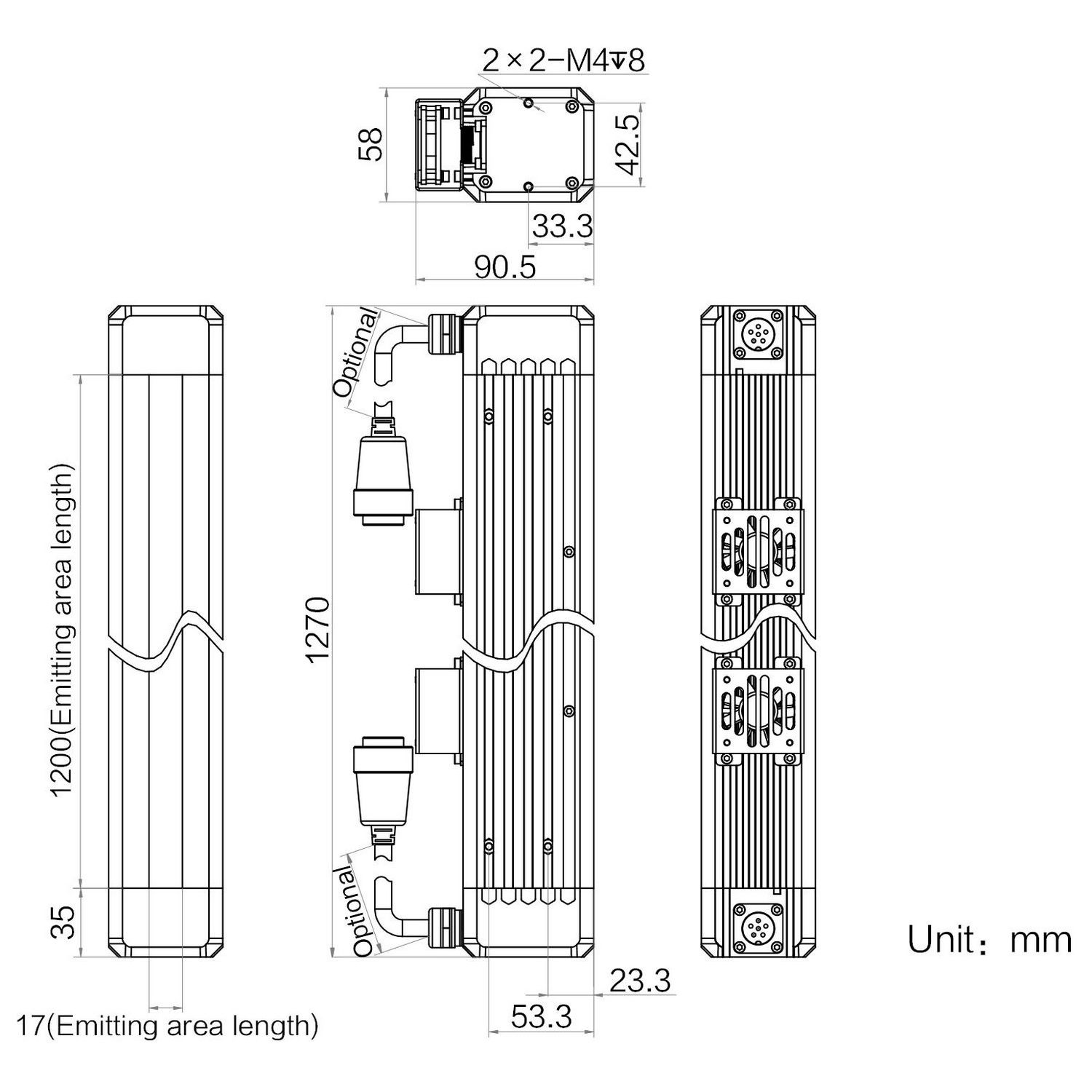

Data SheetDrawing

Compare
  • The high-power LED light bead is designed with a high condensing structure, and the illumination on the surface of the lighting can reach 1 million lux.
  • The enclosure is equipped with a fan for heat dissipation, which improves the working life of the lighting.
  • Multi-side for flexible installation.

ModelProduct ModelMV-LTDS-H-1200-W
TypeMV-LTDS-H-1200-W
PerformanceColorWhite
Color temperature6000 ~ 7000K
Center illuminance≥100W Lux@WD=50 mm
Best working distance10 ~ 200 mm
Electrical featurePower consumption504 W
Connector typeDual-channel 19M-8H
MechanicalDimension1270 mm × 58 mm × 90.5 mm
Emitting area dimensions1200 mm × 17 mm
LED rows1
Weight6.73 kg
Cable lengthAdditional options
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity20% to 90%RH, non-condensing
