MV-LRDS-H-140-90-W

HIKROBOT Light Source, Ring Type

21.5W, 6000 ~ 7500K, Angle 90°, Area Ø 126, Bore: Ø 75, LED Rows: 5, Outer: Ø 140, Ring, White

HIKROBOT Light Source, Ring Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

DrawingData Sheet

Compare
  • High density LED array design.
  • Various outer diameter sizes and irradiation angles are available for selection.
  • Compact structure design, good heat dissipation design.
  • Provide diffuse plate included, improve lighting uniformity.

ModelProduct ModelMV-LRDS-H-140-90-W
TypeMV-LRDS-H-140-90-W
PerformanceColorWhite
Best working distance90~120 mm
Irradiation angle90°
Color temperature6000 ~ 7500K
Electrical featurePower consumption21.5 W
Input voltage24 VDC
Connector typeSMR-03V-B

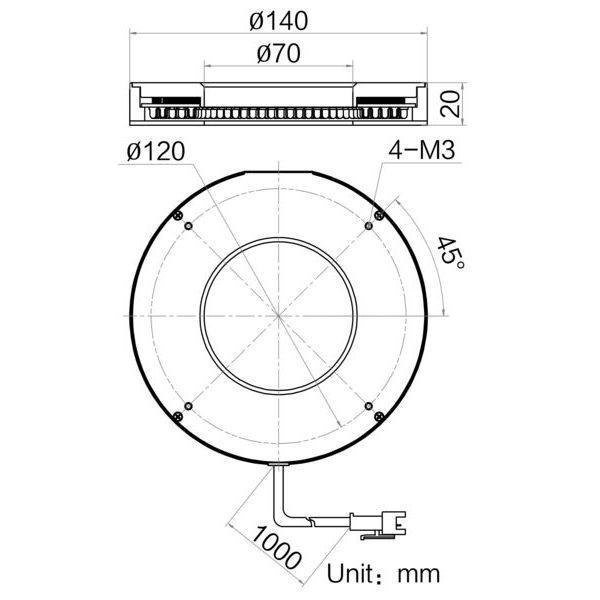

MechanicalDimensionΦ140 mm × 20 mm
Outer dimensionsΦ140 mm
Bore dimensionsΦ70 mm
Emitting area lengthΦ126 mm
LED rows5
Weight441.5 g
Cable length1 m
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity20% to 90%RH, non-condensing
Diffuse plate includedPMMA
