MV-LLDS-H-100-40-IR940

HIKROBOT Light Source, Bar Type, Infra-red

8.6W, 108x40x30mm, 6000 ~ 7500K, Area 96x31.6mm, Bar, LED Rows: 6, IR940

HIKROBOT Light Source, Bar Type, Infra-red

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

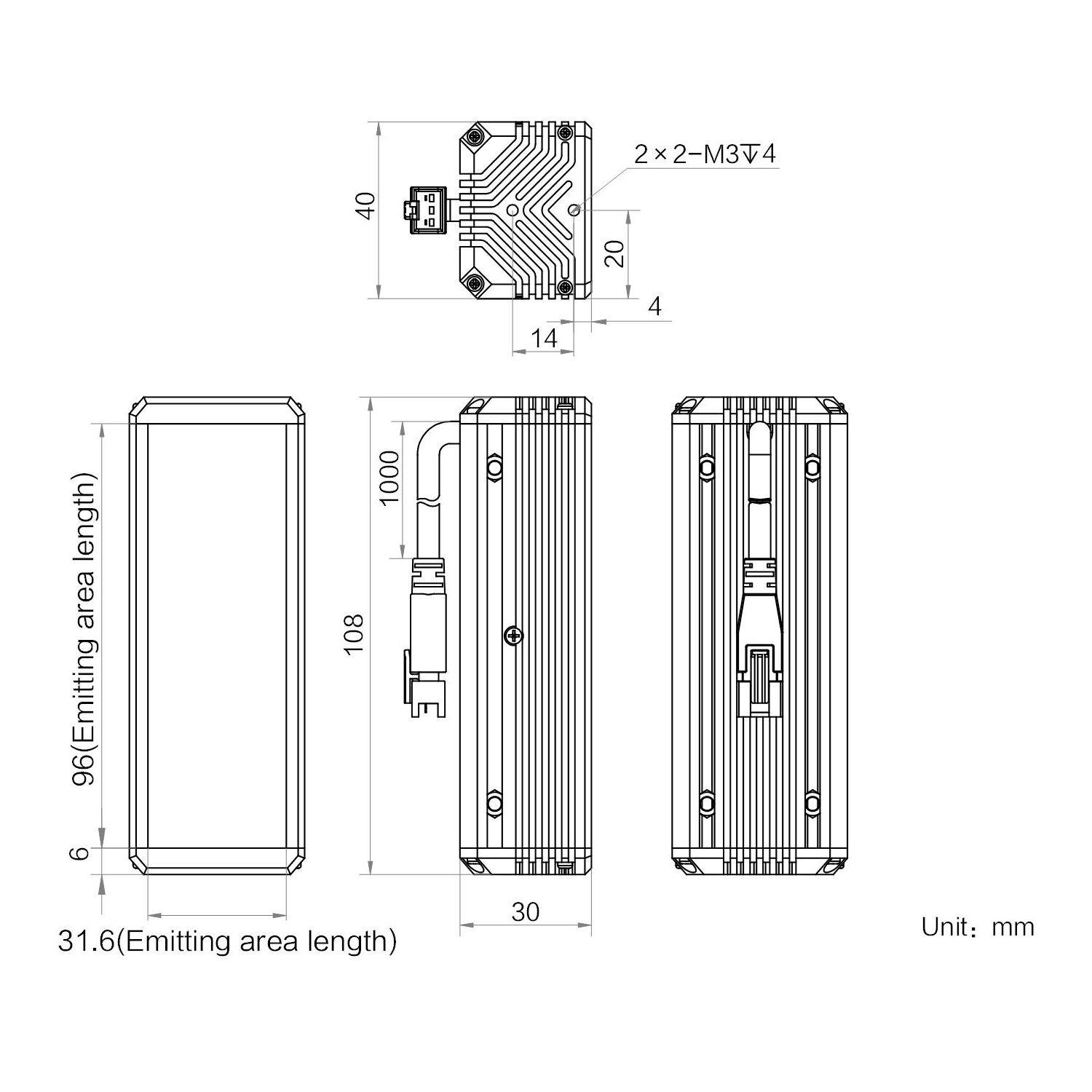

Data SheetDrawing

Compare
  • The irradiation direction and angle can be adjusted freely.
  • Support multi-side installation.
  • High quality LED particles, stable lighting and high brightness.

ModelProduct ModelMV-LLDS-H-100-40-IR940
TypeMV-LLDS-H-100-40-IR940
PerformanceColorIR940
Best working distance30 ~ 500 mm
Wavelength940 nm
Color temperatureW: 6000K to 7500K
Electrical featurePower8.6 W
Connector typeSMR-03V-B
MechanicalDimension108 mm × 40 mm × 30 mm
Emitting area dimension96 mm × 31.6 mm
LED rows6
Weight0.23 kg
Cable length1 m
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)
Diffuse plate includedPMMA
