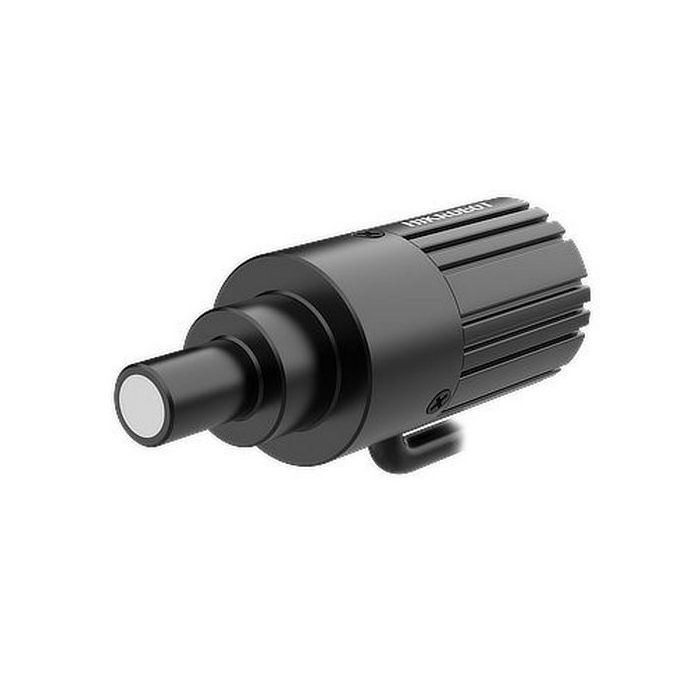

MV-LDSS-H-8-3-W

HIKROBOT Light Source, Spot Type

2W/680mA, 6000 ~ 7000K, Area Ø 8, Dot, Ø 24*59, White

HIKROBOT Light Source, Spot Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

DrawingData Sheet

Compare
  • The light outlet adopts special light guide column, brightness concentration.
  • Compact size,high heat dissipation type structural design.
  • Can be matched with telecentric series lenses.

ModelProduct ModelMV-LDSS-H-8-3-W
TypeDot lighting,standard,white
PerformanceColorWhite
Center illuminance> 20K lux@WD=100 mm
Best working distance65 ~ 200 mm
Wavelength/
Color temperature6000 ~ 7000K
Electrical featurePower consumption2 W
Connector typeSMR-03V-B

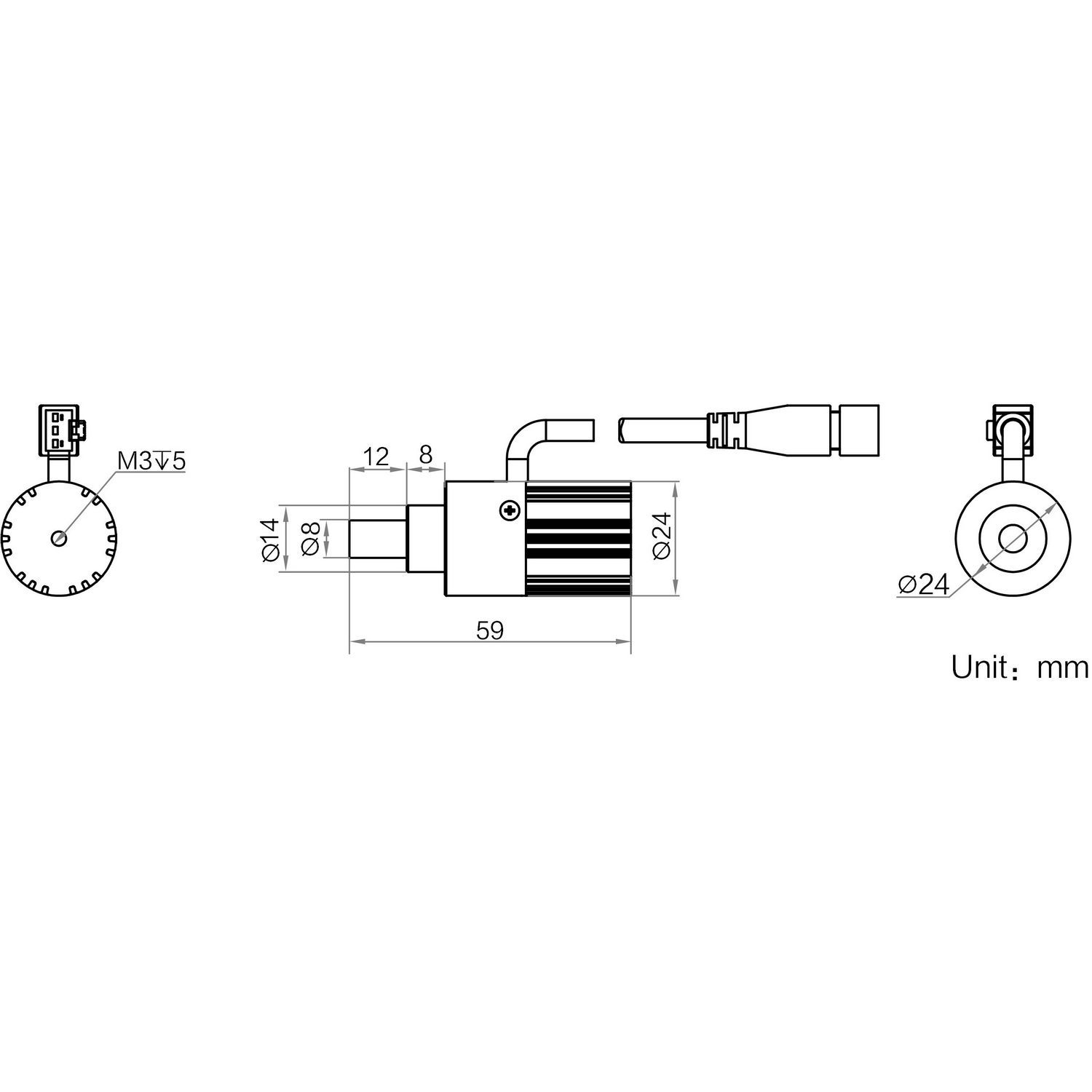

MechanicalDimension59 mm × Ø24 mm
Optical outlet diameterØ 8 mm
Weight75 g
Cable length1 m
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity20% to 90ziramn %RH, non-condensing
