MV-LBSS-H-200-200-W

HIKROBOT Light Source, Flat Type

66W, 232x213x18mm, 6000 ~ 7000K, Area 200x200mm, Flat, White

HIKROBOT Light Source, Flat Type

Hikrobot light source, covering ring light source, strip light source series and line light source series. Designed with new product family style, is efficient and stable, can meet the needs of most conventional visual lighting applications.
The color rendering index of this light source is higher than before, and the color reproduction is more realistic; the illumination range covers 0-2 million lux. It has higher brightness and luminous uniformity under the same size, ensuring image consistency and improving visual solution lighting performance.
Available in a variety of sizes and specifications, it can be adapted to various installation scenarios to meet the stringent and complex requirements of machine vision for light source environments.

Product Downloads:

Data SheetDrawing

Compare
  • High density array LED, provides uniform lighting.
  • Provide side mounting lugs, flexible installation mode.

ModelProduct ModelMV-LBSS-H-200-200-W
TypeFlat lighting,200x200
PerformanceColorWhite
Center illuminance≥ 80000 lux@100 mm
Color temperature6000 ~ 7000K
Electrical featurePower consumption66 W
Output voltage24 VDC
Connector typeSMR-03V-B

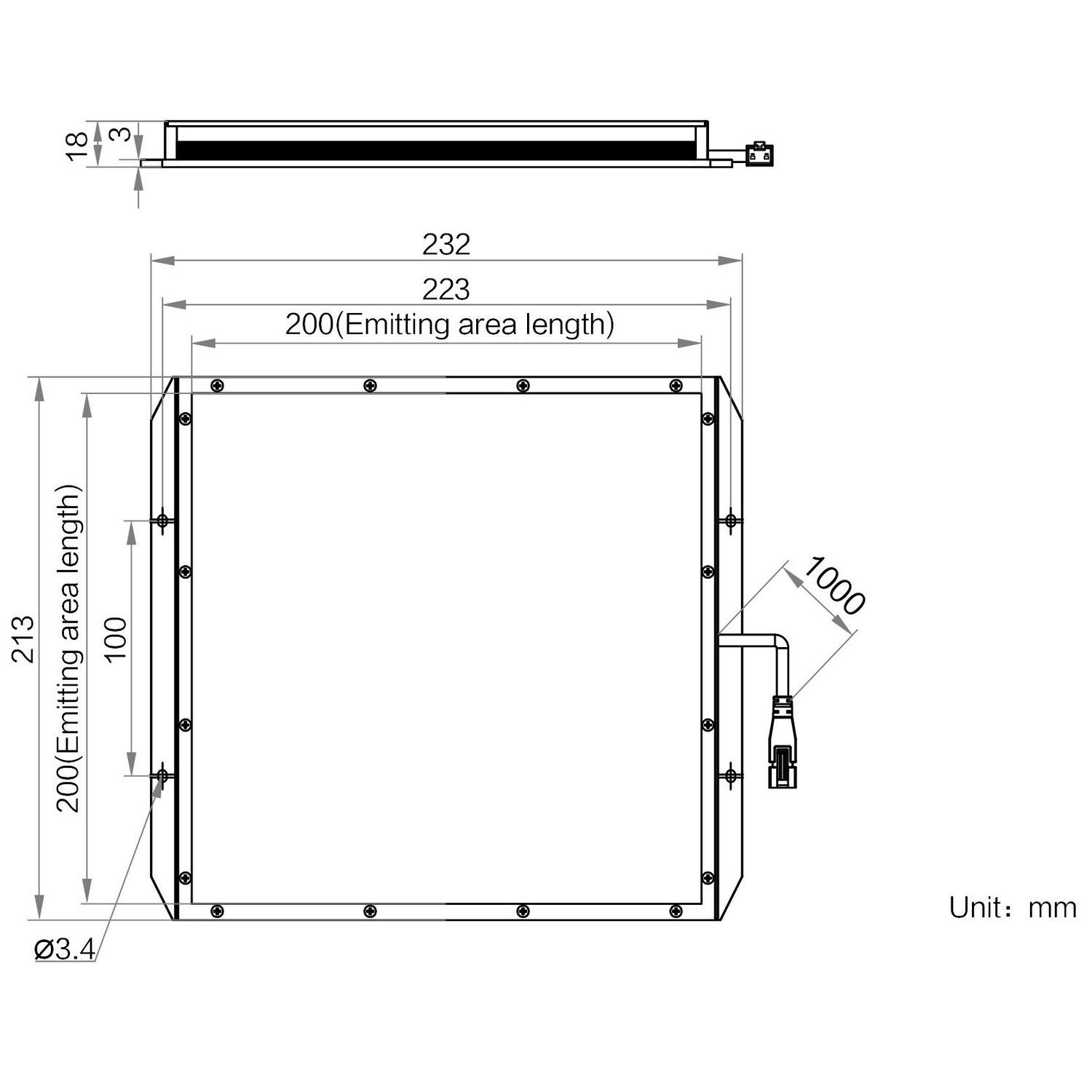

MechanicalDimension232 mm × 213 mm × 18 mm
Emitting area dimensions200 mm × 200 mm
Weight0.8 kg
Cable length1 m
Cooling modeNaturual cooling
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity20% to 90%RH, non-condensing
Diffuse plate includedIncluded
