MV-ID6120PM-00C-NNG

HIKROBOT Logistics Code Reader ID6000 Series

C-mount, 12MP (4096 × 3072), 38 fps, 84 codes/sec, No light, Gigabit

HIKROBOT Logistics Code Reader ID6000 Series

Image-based high-resolution barcode reader ID6000 is specialized for the logistics industry. ID6000 has especially developed in algorithm development to cope with various complex logistics code reading application scenarios.
Based on high-performance multi-core deep learning processor, ID6000 series has specially optimized decoding algorithm and high decoding frames rate. It can identify complex codes in common environment such as stained, defective and poorly printing codes.
ID6000 series can be matched with various types of external integrated light sources, combined with high-performance decoding algorithms, to achieve a super-large depth of field effect of over 700mm, can cover packages under 700mm through 1 camera.

Product Downloads:

Data SheetDrawingUser Manual

SKU: MV-ID6120PM-00C-NNG Category: Tags: , , , , ,
Compare
  • Adopts 12 MP sensor to provide high-quality images.
  • Flexible installation and convenient debugging.
  • Supports continuous reading of various codes without stopping.
  • Supports recognizing various poor printing quality codes.
  • Supports networking of multiple devices.
  • Ingress protection 67.

Model Product Model MV-ID6120PM-00C-NNG
Type 12MP Logisitc Code Reader
Performance Symbologies 1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE2D codes: QR Code, Data Matrix
Max. frame rate 28 fps
Max. reading speed 84 codes/sec
Sensor type CMOS, global shutter
Pixel size 3.2 μm × 3.2 μm
Sensor size 1″
Resolution 4096 × 3072
Exposure time 16 μs to 1 sec
Gain 0 dB to 40 dB
Mono/color Mono
Communication protocol SmartSDK, TCP Client, TCP Server, Serial, FTP
Electrical feature Data interface GigE
Digital I/O 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1
Power supply 12 VDC to 24 VDC
Max. power consumption 12 W@24 VDC
Mechanical Lens mount C-mount
Light source Not included
Lens cap Included

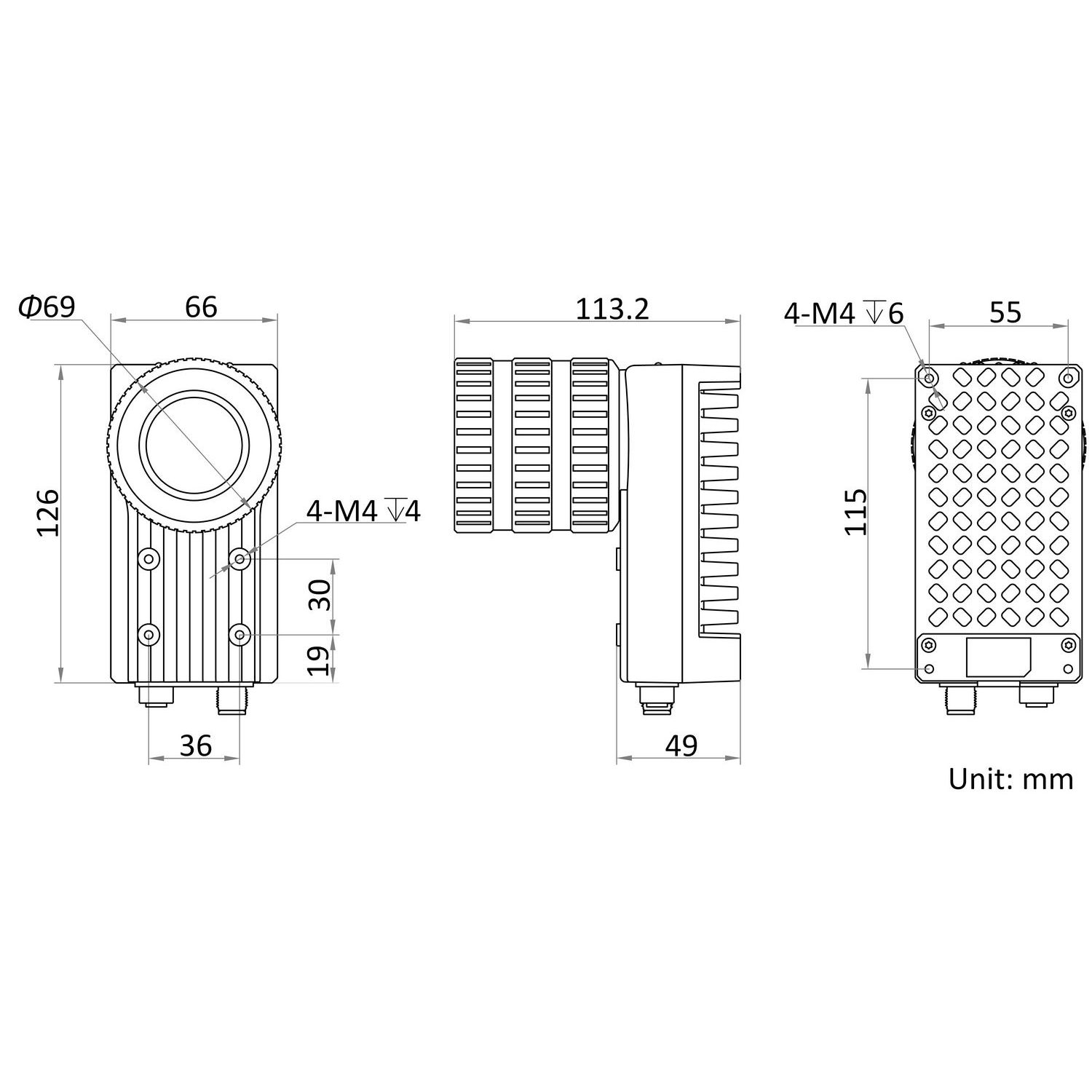

Dimension 126 mm × 66 mm ×113.2 mm (5.0″ × 2.6″ × 4.5″)
Weight Approx. 750 g (1.7 lb.)
Ingress protection IP67 ( under proper installation of waterproof lens cap)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, without condensation
General Client software IDMVS
Certification CE, RoHS
