MV-ID5050M-16S-WBN

HIKROBOT Smart Code Reader ID5000 Series

16mm, 4.2MP (2368 × 1760), 40 fps, 90 codes/sec, White, Gigabit

HIKROBOT Smart Code Reader ID5000 Series

Based on multi-core deep learning processor, the full-featured code reader brings powerful code reading performance. Equipped with mechanical focus lens and various components, ID5000 can reach up to 20M pixels, suitable for various code reading applications.
The Smart Code Reading Camera adopts embedded multi-core algorithm. The reconstructed data stream is processed in parallel among the underlying CPU, FPGA, and DSP chips; multi-threading of shooting, positioning and decoding is realized, and the efficiency of collective auditing learning technology is improved by 3 times.
Covers 1.6-12MP resolution, cameras achieve super high code-reading accuracy and large field of view. A single device can replace the use of multiple code readers at one time, which makes complex systems easier.

SKU: MV-ID5050M-16S-WBN Category: Tags: , , , , ,
Compare
  • Adopts built-in deep learning algorithm to read codes with good robustness.
  • Adopts CMOS global shutter sensor to provide high quality images.
  • Adopts mechanical autofocus lens to achieve automatic focusing.
  • Supports code score and quality evaluation for code printing quality.
  • Adopts controllable light source design providing diversified light.
  • Ingress protection rating 67.

Model Product Model MV-ID5050M-16S-WBN
Type ID5000 Series 4.2MP,16mm,white lighting industrial Code Reader
Performance Symbologies 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 252-dimensional codes: QR Code, Data MatrixStack codes: PDF 417
Max. frame rate 40 fps
Max. reading speed 90 codes/sec
Sensor type CMOS, global shutter
Pixel size 3.2 µm × 3.2 µm
Sensor size 1/1.7″
Resolution 2368 × 1760
Exposure time 60 μs to 1 sec
Gain 0 dB to 18 dB
Mono/color Mono
Communication protocol SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP
Electrical feature Data interface GigE
Digital I/O 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
Power supply 24 VDC
Max. power consumption 60 W@24 VDC (light source enabled)
Mechanical Focal length 16 mm (0.6″)
Lens mount M12-mount, mechanical autofocus supported.
Lens cap Half polarization lens cap by default. Transparent and full polarization lens cap are optional.
Light source White light by default. Red/blue/IR light is optional.
Indicator Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).

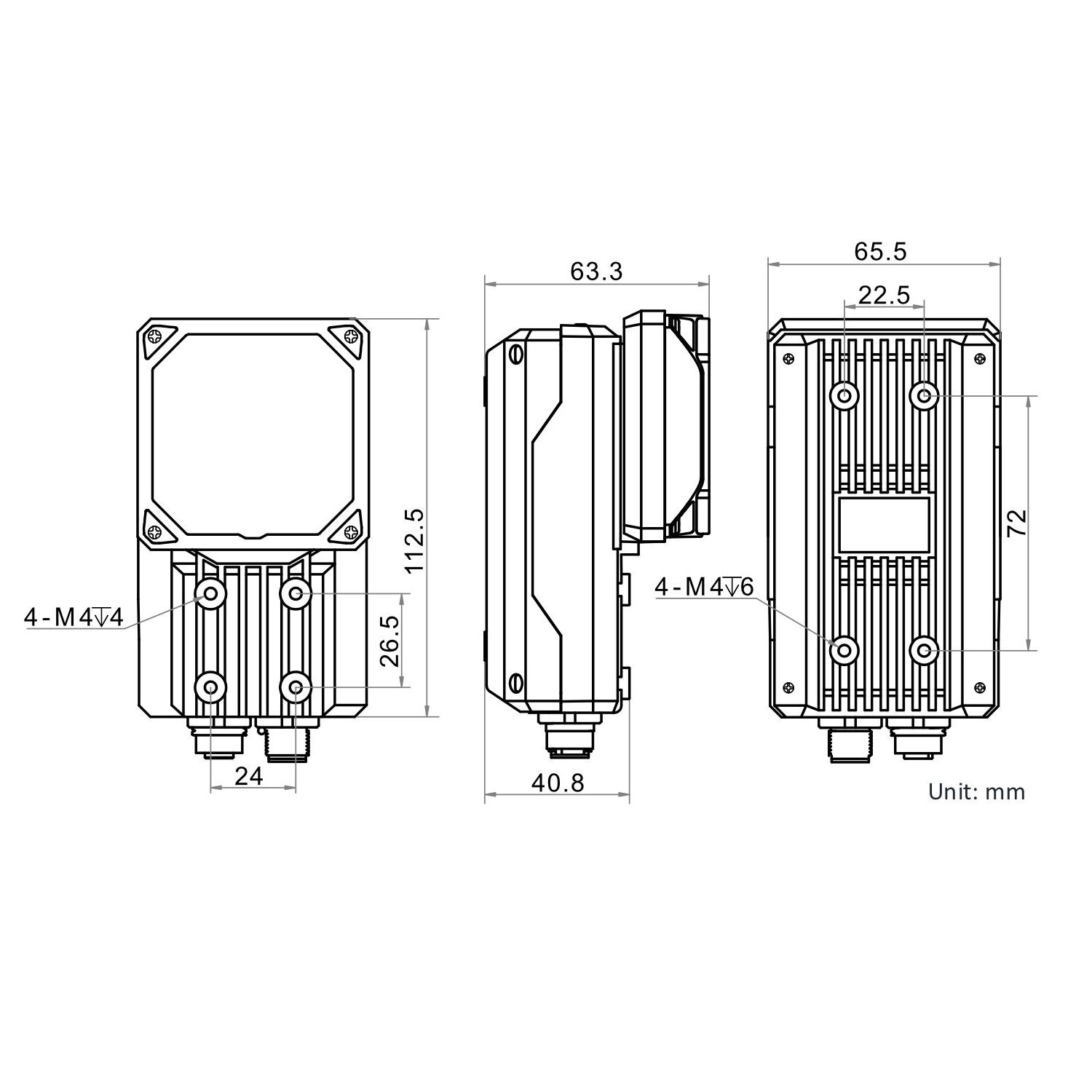

Dimension 112.5 mm × 65.5 mm × 63.3 mm (4.4″ × 2.6″ × 2.5″)
Weight Approx. 450 g (1.0 lb.)
Ingress protection IP67 (under proper installation of waterproof lens cap)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software IDMVS
Certification CE, FCC, RoHS, KC
