- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS global shutter sensor to provide high quality images.
- Adopts multiple IO interfaces for input and output signals.
- Adopts 14 LED lamps to provide light source.
- Supports polarized and non-polarized modes.
- Adopts 2 LED aiming lamps for easy installation and code aiming.
- Indicators on device display device status and code reading results.
MV-ID3013PM-15M-WBN
HIKROBOT Smart Code Reader ID3000 Series
HIKROBOT Smart Code Reader ID3000 Series
Based on the embedded deep-learning platform, ID3000 adopt compact & modular design. With easy debugging (mechanical focusing), automatic polarization function and controllable light source branching, ID3000 can be widely used in various code reading scenarios.
The ID3000 series integrates a deep-learning system chip (Soc), which has powerful computing power and lower energy consumption ratio. ID3000 series has a high-speed recognition efficiency and stable recognition for label paper and DPM barcodes.
The ID3000 series has a rich selection of light source, lens and other modules, which is easy to switch, can ensure the best image lighting effect and adapt to the requirements of different working distances and fields of view in complex working conditions.
Product Downloads:
Model | Product Model | MV-ID3013PM-15M-WBN |
Type | 15mm focal length 1.3MP Compct Industrial Code Reader | |
Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 252-dimensional codes: QR Code, Data MatrixStack codes: PDF 417 |
Max. frame rate | 60 fps | |
Max. reading speed | 84 codes/sec | |
Sensor type | CMOS, global shutter | |
Pixel size | 4 µm × 4 µm | |
Sensor size | 1/2.7″ | |
Resolution | 1280 × 1024 | |
Exposure time | 35 μs to 1 sec | |
Gain | 0 dB to 15 dB | |
Mono/color | Mono | |
Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP | |
Electrical feature | Data interface | Fast Ethernet |
Digital I/O | 17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 0/1/2) × 3, RS-232 input × 1, RS-232 output × 1. Device trigger via pressing button on top supported. | |
Power supply | 24 VDC | |
Max. power consumption | Approx. 20 W@24 VDC (light source enabled) | |
Mechanical | Focal length | 14.8 mm (0.6″) |
Lens mount | M12-mount, mechanical autofocus supported. | |
Lens cap | Half polarized front cover by default. Polarized and transparent ones are optional. | |
Light source | White light by default. Red/blue/IR light is optional. | |
Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) | |

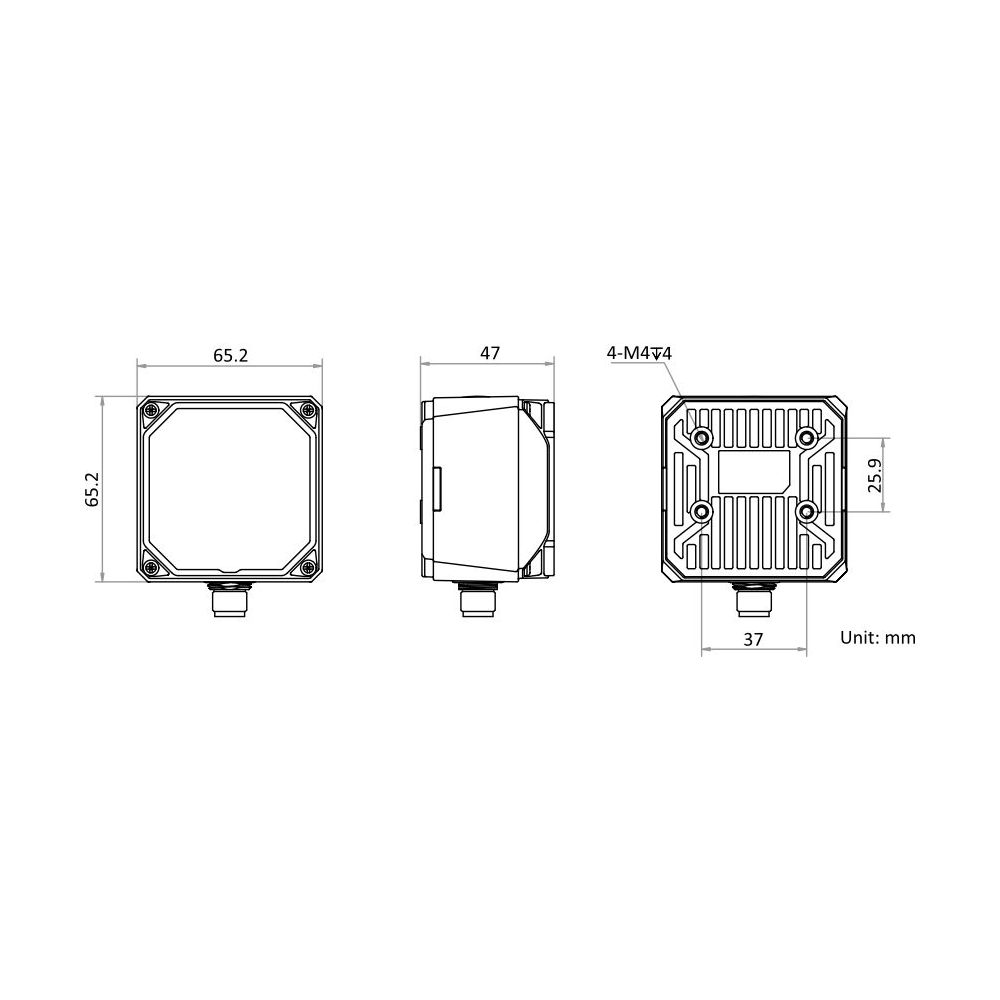

Dimension | 65.2 mm × 65.2 mm × 47 mm (2.6″ × 2.6″ × 1.9″) | |
Weight | Approx. 280 g (0.6 lb.) | |
Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
Humidity | 20% to 95% RH, non-condensing | |
General | Client software | IDMVS |
Certification | CE, RoHS |
