MV-CS050-20GC

HIKROBOT Area Scan Camera CS Series

3.2 μm, 22.7 fps @ 2592 × 2048, Mono, C-Mount, Gigabit GC

HIKROBOT Area Scan Camera CS Series

The new second-generation CS series industrial cameras are equipped with excellent image sensors, high dynamic range, good signal-to-noise ratio, excellent image quality, excellent power consumption design, compatible with machine vision standard protocols and GenlCam standards, and seamlessly connect with third-party software.
New-generation appearance structure, four-sided installation support, wider voltage access, wider temperature width, better adapt to complex visual application scenarios.
The camera has built-in a variety of complex algorithms and functions, such as lossless compression, 2D noise reduction, lens shading correction, CCM, etc., which can improve the camera image quality in all directions, while ensuring the camera has a higher frame rate and more excellent quality.

Compare
  • Adopts brand new design to reduce power consumption.
  • Supports contrast ratio function to adjust image clarity.
  • Supports auto or manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Model Product Model MV-CS050-20GC
Type 5MP Area Scan Camera,GigE,XGS5000,Color,Basic
Performance Sensor type CMOS, global shutter
Sensor model XGS5000
Pixel size 3.2 μm × 3.2 μm
Sensor size 2/3″
Resolution 2592 × 2048
Max. frame rate 22.7 fps @2592 × 2048
Dynamic range 66 dB
SNR 39.6 dB
Gain 0 dB to 18 dB
Exposure time UltraShort exposure mode: 23 μs to 99 μsStandard exposure mode: 100 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Color
Pixel format Mono 8/10/12,Bayer RG 8/10/10Packed/12/12Packed,YUV422Packed, YUV422_YUYV_Packed,RGB 8, BGR 8
Binning Supports 1 × 1, 2 × 2, 4 × 4
Decimation Supports 1 × 1, 2 × 2
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface GigE
Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply 9 VDC to 24 VDC, supports PoE
Power consumption Typ. 2.7 W@12 VDC
Mechanical Lens mount C-Mount

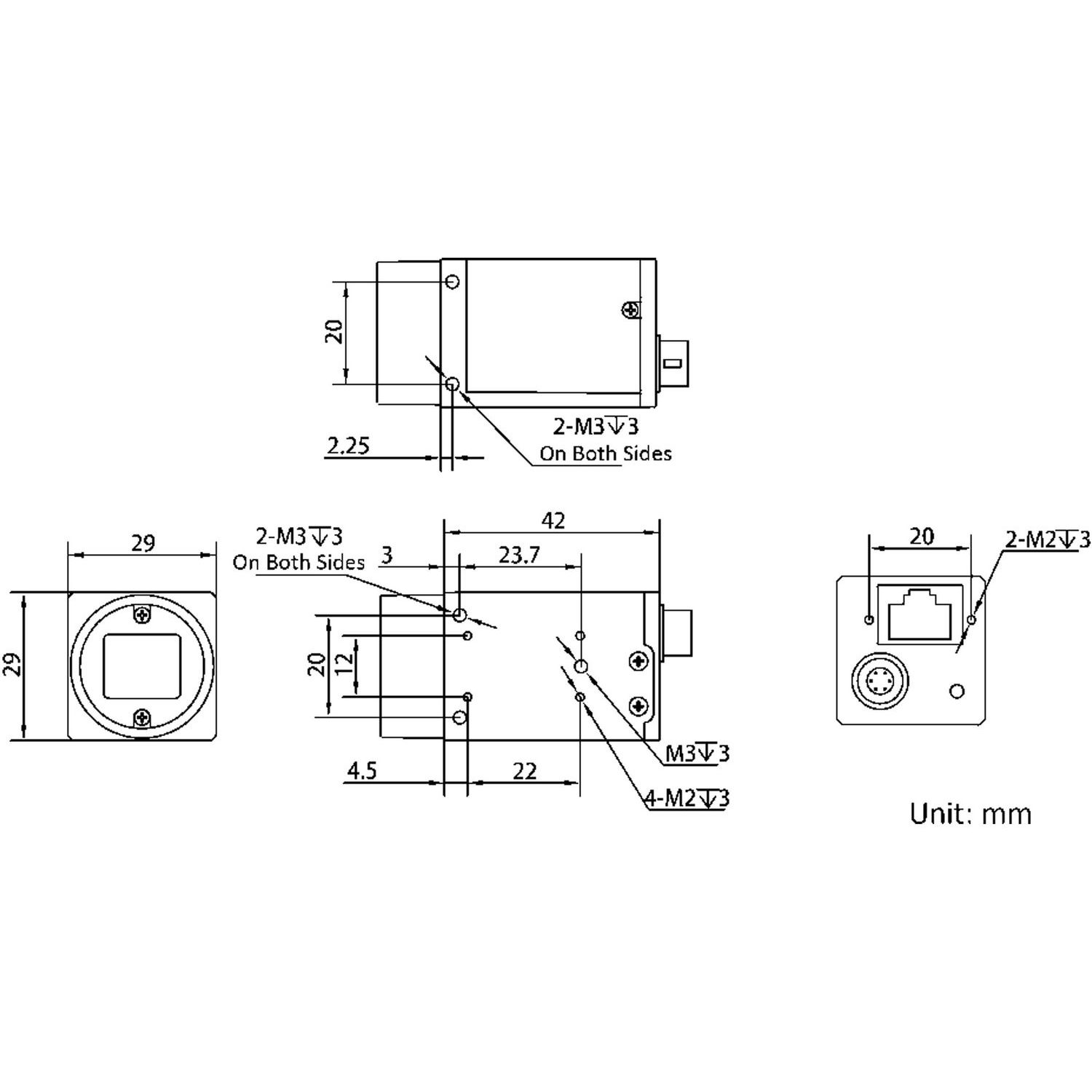

Dimension 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.2″)
Weight Approx. 100 g (0.22 lb.)
Ingress protection IP40 (under proper lens installation and wiring)
Temperature Working temperature: -30 °C to 60 °C (-22 °F to 140 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility GigE Vision V2.0, GenICam
Certification CE, RoHS, KC
