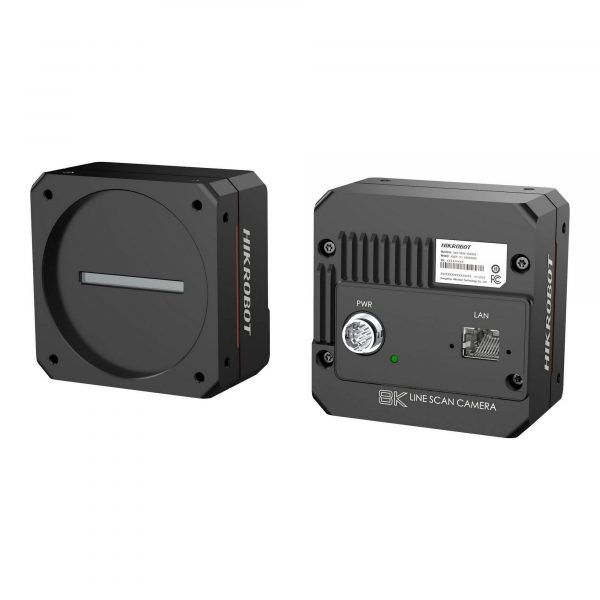

MV-CL084-91GM

HIKROBOT Line Scan Camera CL Series

5 μm, 8192 × 4, Mono, M72 *0.75, Gigabit

HIKROBOT Line Scan Camera CL Series

The CL series covers 2K-16K pixels and equipped with GigE/Camera Link/XoF interfaces, support a variety of ISP and algorithms that can fulfill various application needs of line scan cameras.
The CL camera supports various ISP functions: Flat field correction, Gamma, LUT, white balance, CCM, SC, etc. to help users obtain higher quality image data; Despite timed exposure, a new acquisition method of trigger-width controlled exposure is added, and with external (soft/hard) trigger signals, it can flexibly adapt to external lighting conditions and exposure control needs.
The High-Bandwidth Mode is equipped in the new GigE CL line scan camera. Breaking through the physical bandwidth of the gigabit network, the line frequency can been improved by 1.5-2 times, which provide users with a more cost-effective solution.

Product Downloads:

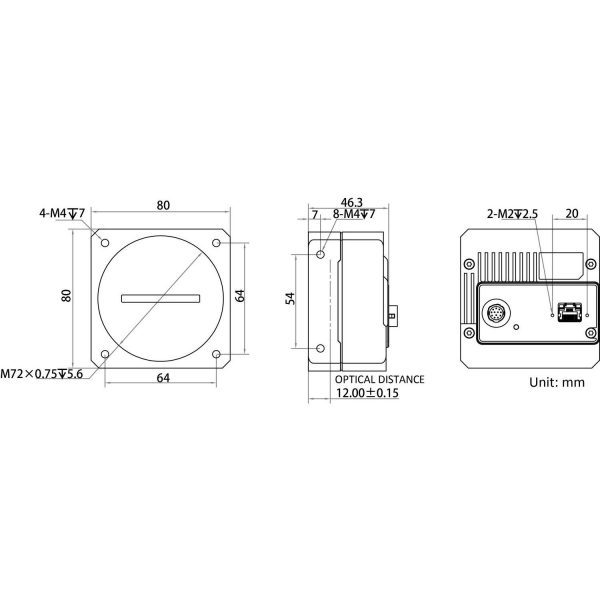

DrawingUser ManualData Sheet

Compare
  • Supports image compression mode, TDI, trigger-width exposure, etc.
  • Supports manual adjustment for Gamma correction, PRNUC correction, LUT, black level, etc.
  • Adopts bi-directional I/O hardware design.
  • Compact design and flexible installation.
  • Compatible with GigE Vision V2.0 and GenlCam standard.

ModelProduct ModelMV-CL084-91GM
Type8K GigE Line Scan Cameras,Mono
PerformanceSensor typeCMOS
Pixel size5 μm
Resolution8192 × 4
Image modeSupports 1-line, 2-TDI, 4-TDI
Max. line rate*Standard mode: 14 kHz @Mono 8, 7 kHz @Mono 10/12, 9.4 kHz @Mono 10Packed/Mono 12Packed*High-bandwidth mode: 29.8 kHz @Mono 8, 20 kHz @Mono 10/Mono 12
Dynamic range54.8 dB
SNR40.3 dB
GainSupports 1.2 ×, 2.7 ×, 4.6 ×
Exposure time3 μs to 10 ms
Exposure modeOff/ Once/ Continuous exposure mode, and supports trigger-width exposure
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical featureData interfaceGigE
Digital I/O12-pin P10 connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and support single-ended/differential
Power supply12 VDC to 24 VDC
Power consumptionTyp. 12.4 W@12 VDC
MechanicalLens mountM72 *0.75, flange focal length 12 mm (0.5")
Dimension80 mm × 80 mm × 46.3 mm (3.1" × 3.1" × 1.8")
WeightApprox. 465 g (1.0 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: -20 °C to 55 °C (-4 °F to 131 °F); Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
Humidity5% to 90% RH, non-condensing
GeneralClient softwareMVS or the third-party software meeting with GigE Vision protocol
Operating system32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux, and 64-bit MacOS
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, FCC, RoHS, KC
