- Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.
- Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
- Supports LSC sequencer polling function.
- Adopts CXP-12 interface to transmit data.
- Supports the flat field correction.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
MV-CH650-90YC-F-NN
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH650-90YC-F-NN |
| Type | 65MP Area Scan Camera, CXP-12, GMAX3265, Color, F-mount, without fan | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | GMAX3265 | |
| Pixel size | 3.2 µm × 3.2 µm | |
| Sensor size | 29.9 mm × 22.4 mm | |
| Resolution | 9344 × 7000 | |
| Max. frame rate | 71 fps @9344 × 7000 | |
| Dynamic range | 66 dB | |
| SNR | 40 dB | |
| Gain | 1.25x | |
| Exposure time | 15 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/12 | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | CoaXPress |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. | |
| Power supply | 24 VDC, CXP-1 and CXP-2 connectors support PoCXP | |
| Power consumption | Typ. 13.0 W@24 VDC | |
| Mechanical | Lens mount | M58*0.75, optical back focal length 11.48 mm (0.5″) |

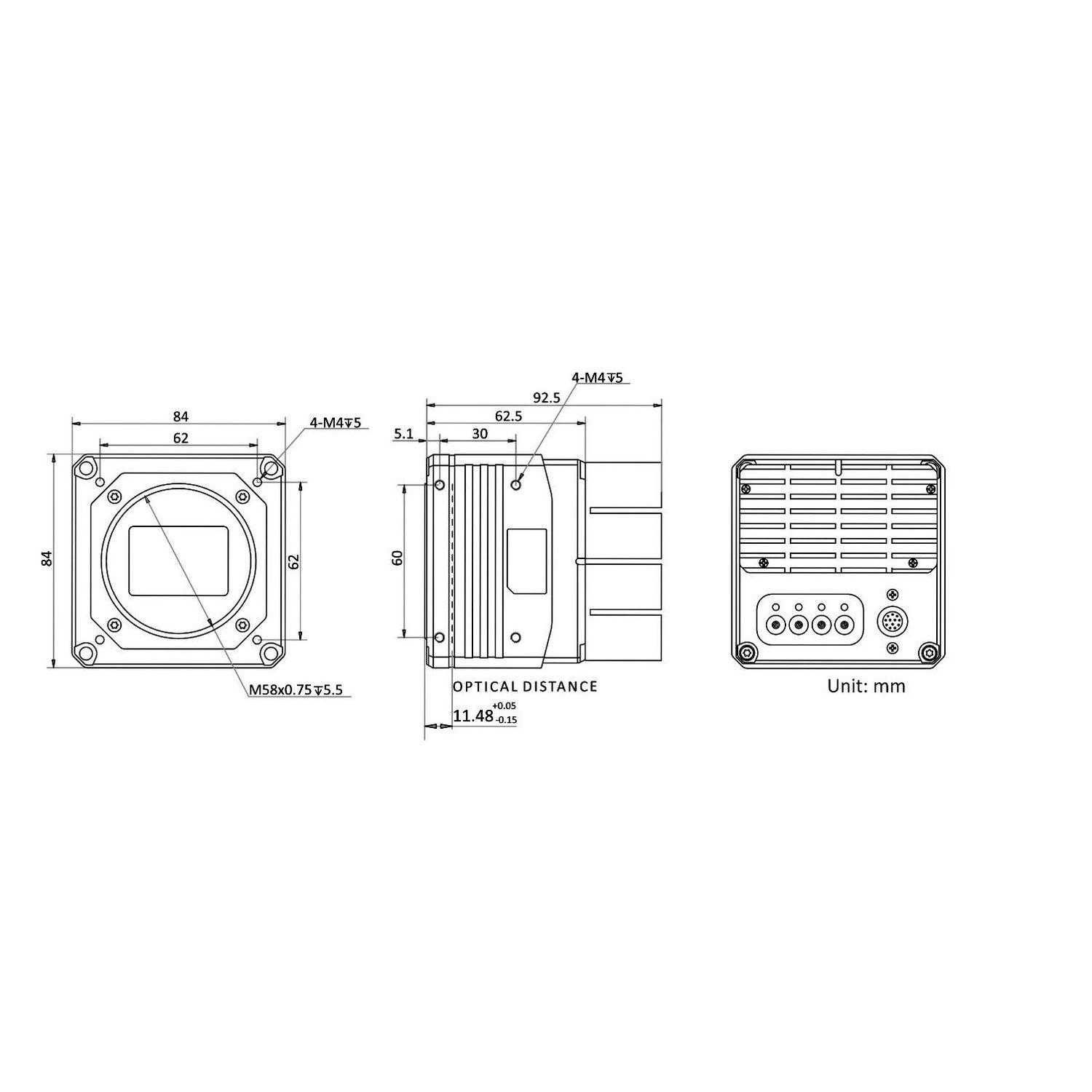

| Dimension | 84 mm × 84 mm × 62.5 mm (3.3″ × 3.3″ × 2.5″) | |
| Weight | Approx. 650 g (1.4 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10 with 8 GB memory or above | |
| Compatibility | CoaXPress, GenlCam | |
| Certification | CE, RoHS, KC |
