MV-CH250-25TC-M58S-NF

HIKROBOT Area Scan Camera CH Series

4.5 μm, 40 fps @ 5120 × 5120, Color, M58-Mount, 10 Gigabit

HIKROBOT Area Scan Camera CH Series

High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.

Product Downloads:

Data SheetUser ManualDrawing

Compare
  • Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
  • Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
  • Supports auto or manual adjustment for gain, exposure time, and manual adjustment for Look-Up Table (LUT), Gamma correction, etc.
  • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.

Model Product Model MV-CH250-25TC-M58S-NF
Type 25MP Area Scan Camera, 10GigE, PYTHON25K, Color, M58-mount
Performance Sensor type CMOS, global shutter
Sensor model PYTHON25K
Pixel size 4.5 µm × 4.5 µm
Sensor size 23 mm × 23 mm
Resolution 5120 × 5120
Max. frame rate 40 fps @5120 × 5120
Dynamic range 58 dB
SNR 41 dB
Gain 0 dB to 15 dB
Exposure time 45 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Color
Pixel format Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface 10GigE
Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply 9 VDC to 24 VDC
Power consumption Typ. 12.5 W@24 VDC

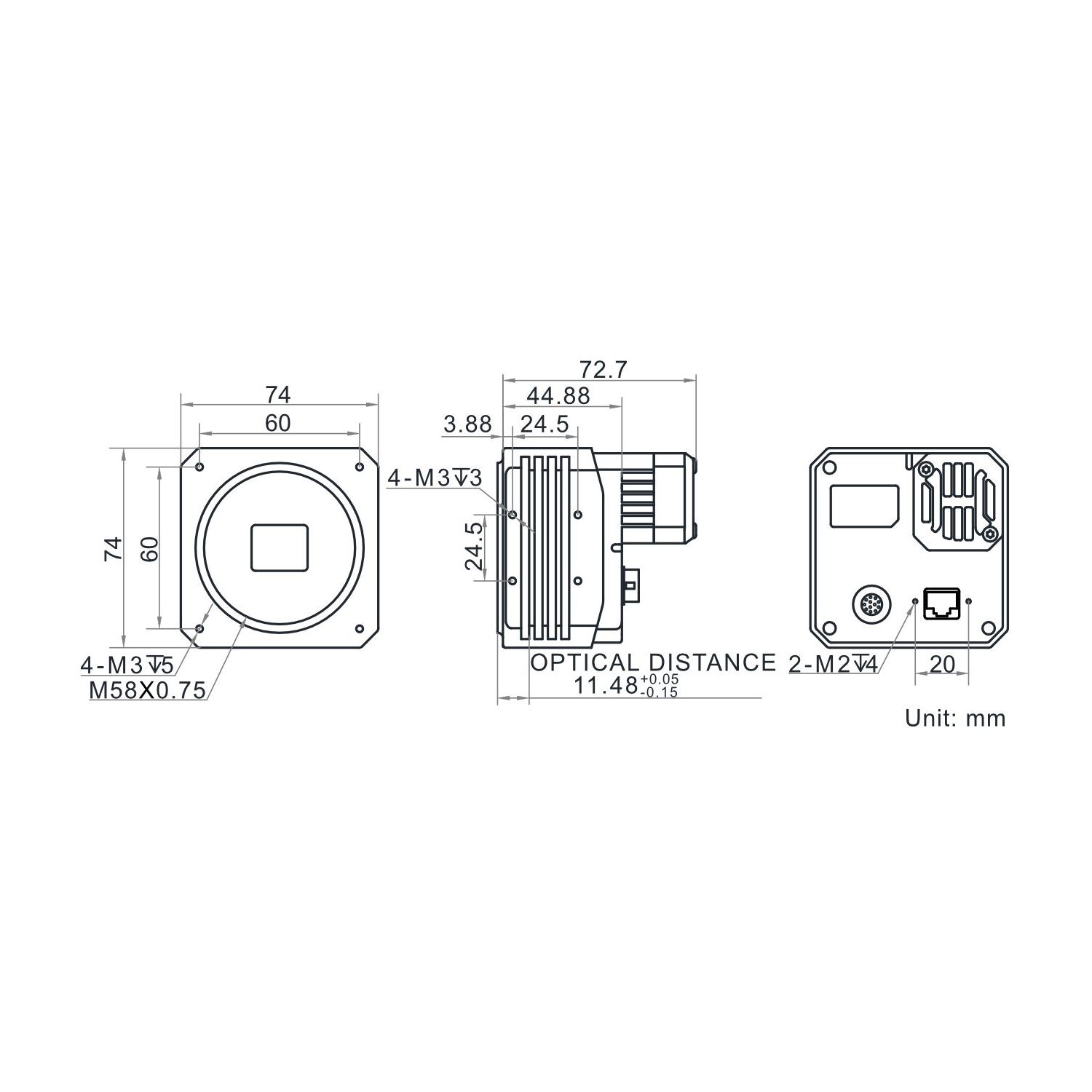

Mechanical Lens mount M58-mount, optical back focal length 11.48 mm (0.5″)
Dimension M58-mount with fan: 74 mm × 74 mm × 72.7 mm (2.9″ × 2.9″ × 2.9″)
Weight M58-mount with fan: approx. 550 g (1.2 lb.)
Ingress protection IP40 (under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows XP/7/10
Compatibility GigE Vision V2.0, GenlCam
Certification CE, RoHS, KC
