- Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
- Adopts global shutter CMOS sensor providing wide dynamic range and high-quality image.
- Supports configuration modes of Full and 80-bit via the Camera Link interface.
- Adopts compact design with mounting holes for flexible mounting.

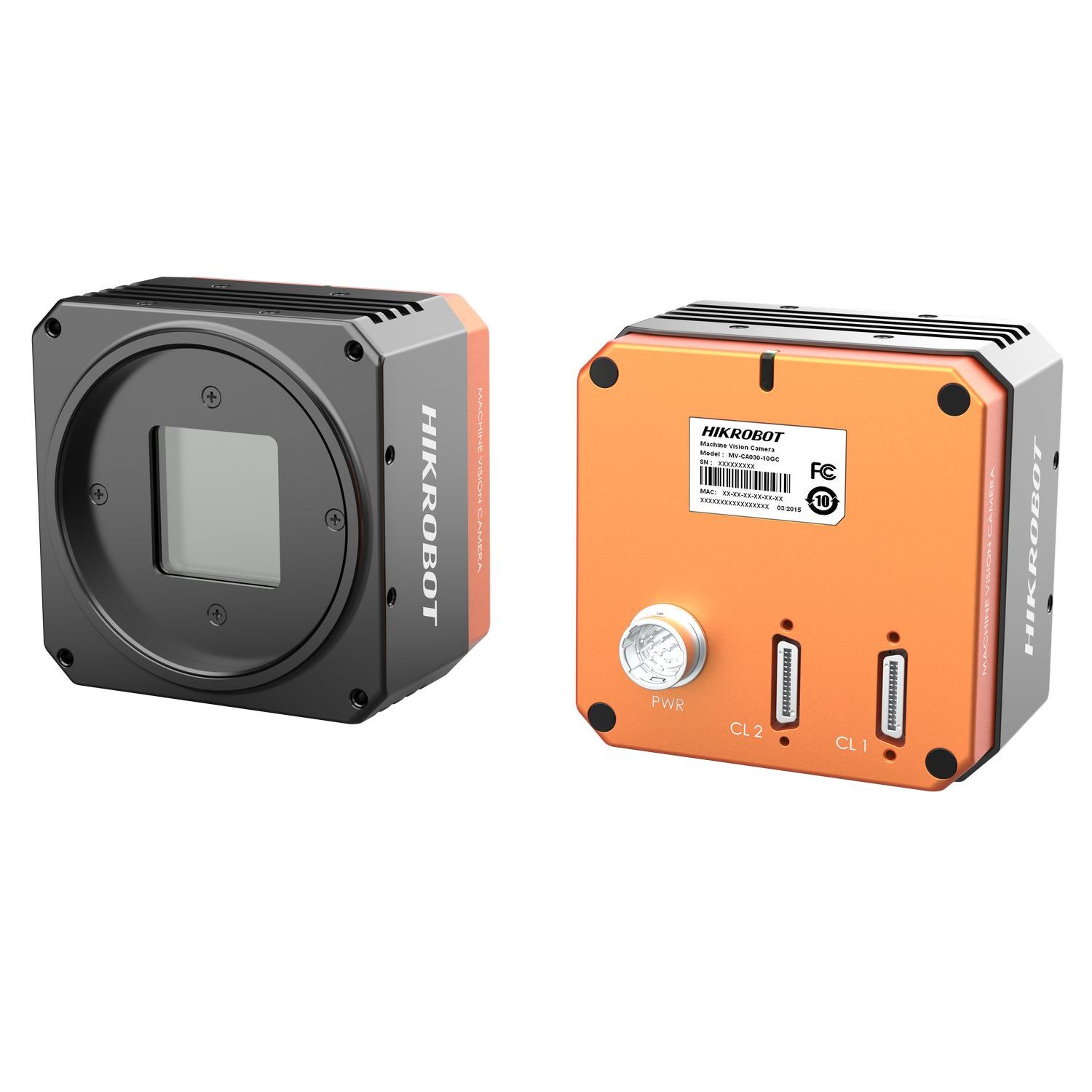

MV-CH250-20CM-M58S-NN
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH250-20CM-M58S-NN |
| Type | 25MP Area Scan Camera, Camera Link, PYTHON25K, Mono, M58-mount, without fan | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | Python25K | |
| Pixel size | 4.5 µm × 4.5 µm | |
| Sensor size | 23 mm × 23 mm | |
| Resolution | 5120 × 5120 | |
| Configuration mode | Full, 80-bit | |
| Tap geometry | 8X_1Y, 10X_1Y | |
| Tap number | 8 Taps, 10 Taps | |
| Max. frame rate | 31.3 fps @5120 × 5120 | |
| Pixel clock | 60 MHz, 70 MHz, 85 MHz | |
| Dynamic range | 59 dB | |
| SNR | 41 dB | |
| Gain | 0 dB to 32 dB | |
| Exposure time | 45 μs to 10 sec | |
| Mono/color | Mono | |
| Pixel format | Mono 8 | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Binning | Not support | |
| Decimation | Not support | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | Camera Link |
| Digital I/O | 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 | |
| Power supply | 9 VDC to 24 VDC | |
| Power consumption | Typ. 9.4 W@24 VDC | |
| Mechanical | Lens mount | M58-Mount, optical back focal length 11.48 mm (0.5″) |

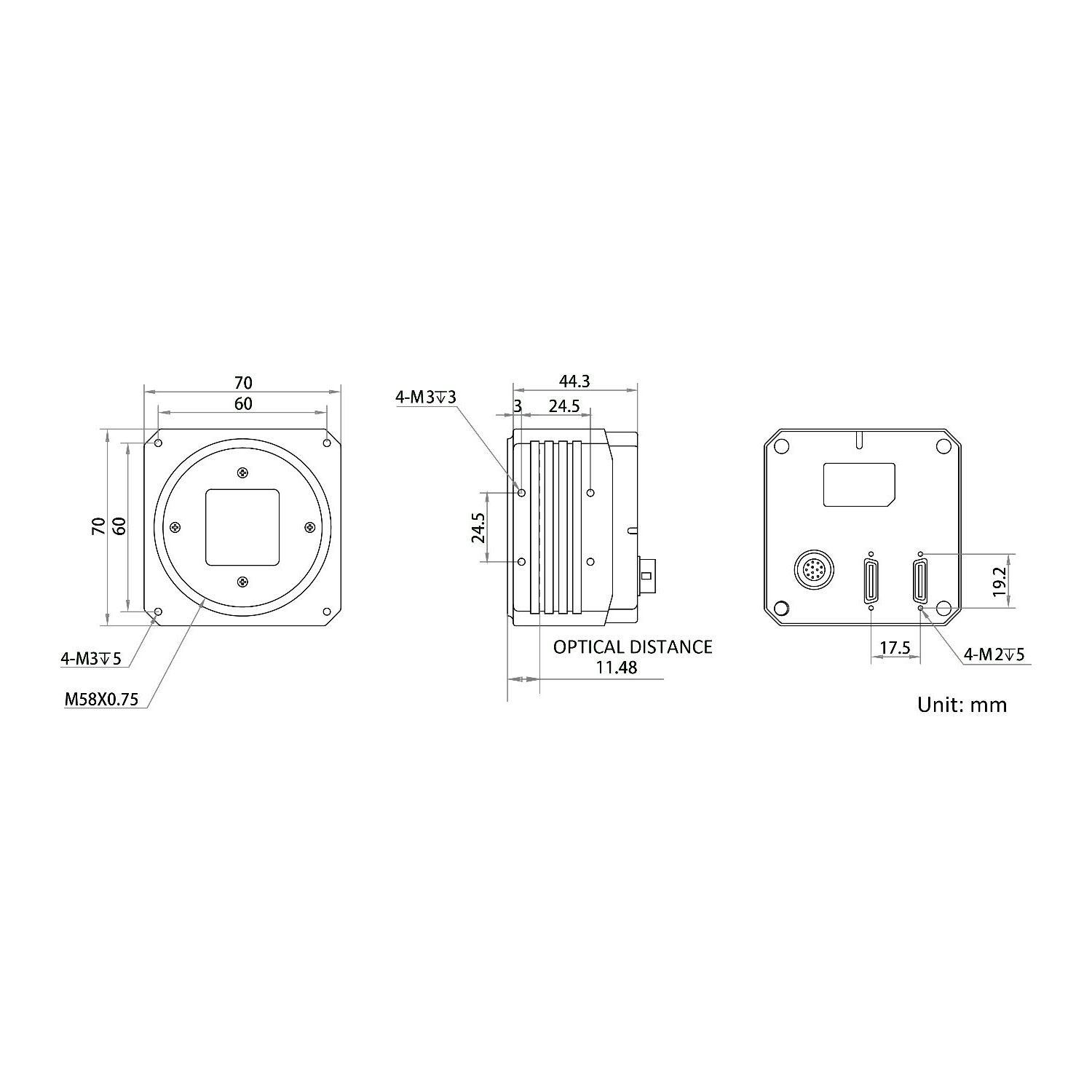

| Dimension | 70 mm × 70 mm × 44.3 mm (2.8″ × 2.8″ × 1.7″) | |
| Weight | Approx. 380 g (0.8 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows XP/7/10 | |
| Compatibility | Camera Link V2.0, GenlCam | |
| Certification | CE, RoHS, KC |
