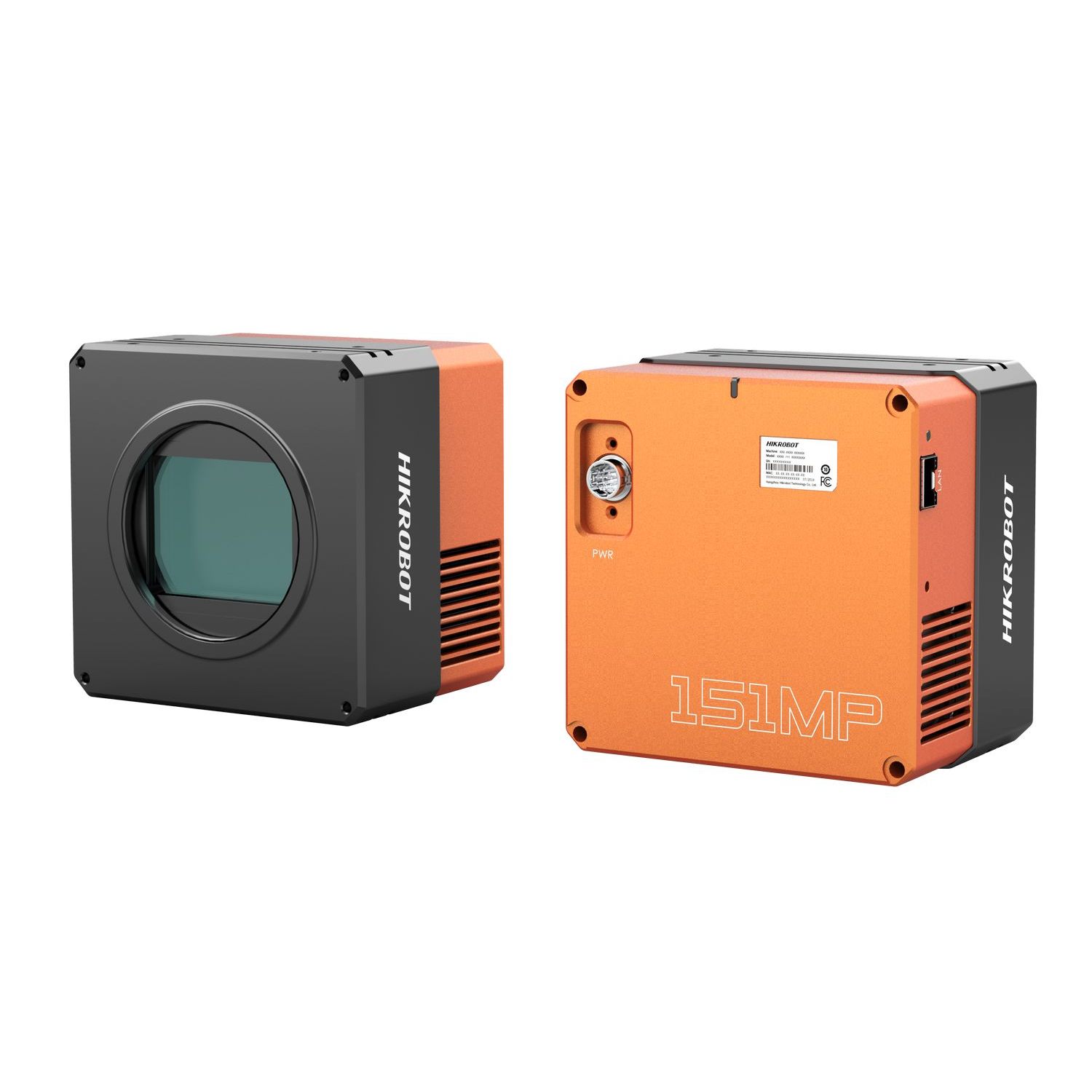

MV-CH1510-10FM-M72-TF

HIKROBOT Area Scan Camera CH Series

3.76 μm, 6.2 fps @ 14208 × 10640 Mono 8, Mono, M72*0.75, 10 Gigabit

HIKROBOT Area Scan Camera CH Series

High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.

Compare
  • Supports Binning, LSC Sequencer, FFC and other ISP functions.
  • Adopts 10GigE over Fiber interface to transmit data, and max. transmission distance reaches 300 m.
  • Adopts TEC technology to reduce sensor temperature and ensure high-quality images under long-time exposure condition.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Model Product Model MV-CH1510-10FM-M72-TF
Type 151MP Area Scan Camera, 10G BASE-X, IMX411
Performance Sensor type CMOS, rolling shutter
Sensor model IMX411
Pixel size 3.76 μm × 3.76 μm
Sensor size 66.7 mm
Resolution 14208 × 10640
Max. frame rate 6.2 fps @14208 × 10640
Dynamic range 78.7 dB
SNR 45 dB
Gain 0 dB to 36 dB
Exposure time 30 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode, supports Global Reset and Rolling mode
Mono/color Mono
Pixel format Mono 8/10/10p/12/12p/16
Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image Supports horizontal reverse image output
Electrical feature Data interface 10GigE
Digital I/O 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply 24 VDC
Power consumption Typ. 11.3 W@24 VDC (non-TEC mode)Typ. 49 W@24 VDC (TEC mode)
Mechanical Lens mount M72*0.75, optical back focal length 19.55 mm (0.8″)

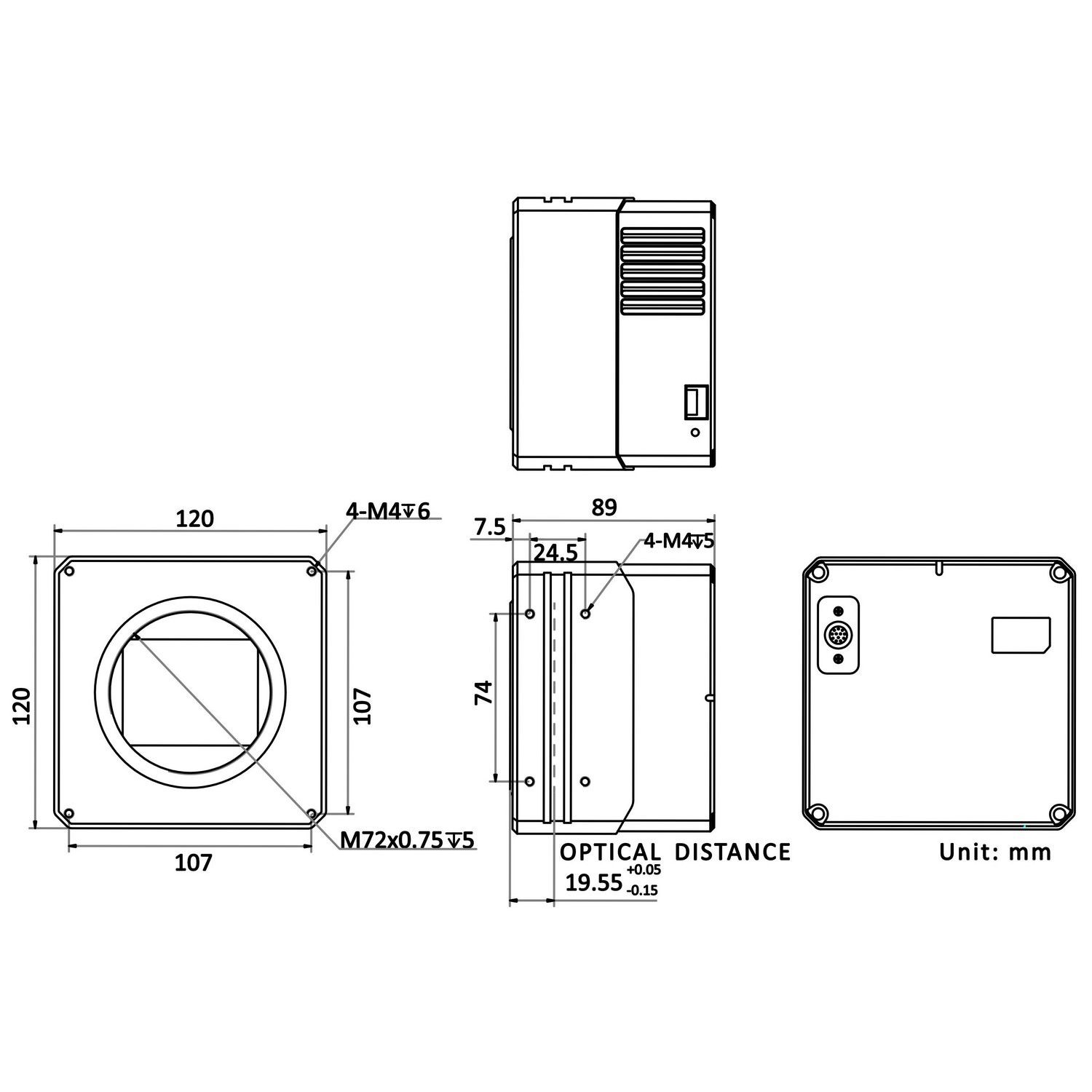

Dimension 120 mm × 120 mm × 89 mm (4.7″ × 4.7″ × 3.5″)
Weight Approx. 2.5 kg (5.5 lb.)
Ingress protection IP40 (under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows XP/7/10
Compatibility GigE Vision V2.0, GenICam
Certification CE, RoHS, KC
