MV-CH120-15TM-M58S-NF

HIKROBOT Area Scan Camera CH Series

3.45 μm, 68.3 fps @ 4096 × 3000, Mono, M58-mount, 10 Gigabit

HIKROBOT Area Scan Camera CH Series

High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.

Product Downloads:

User ManualDrawingData Sheet

Compare
  • Resolution of 4096 × 3000, and pixel size of 3.45 μm × 3.45 μm.
  • Supports auto or manual adjustment for gain, exposure time, Gamma correction, LUT, etc.
  • Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
  • Compact design with mounting holes on panels for flexible mounting.
  • Compatible with GigE Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Model Product Model MV-CH120-15TM-M58S-NF
Type 12MP Area Scan Camera, 10GigE, IMX253, Mono, M58-mount
Performance Sensor type CMOS, global shutter
Sensor model IMX253
Pixel size 3.45 μm × 3.45 μm
Sensor size 1.1″
Resolution 4096 × 3000
Max. frame rate 68.3 fps @4096 × 3000
Dynamic range 71.6 dB
SNR 39.7 dB
Gain 0 dB to 18 dB
Exposure time UltraShort exposure mode: 2 μs to 14 μsStandard exposure mode: 15 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Mono
Pixel format Mono 8/10/10Packed/12/12Packed
Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface 10GigE
Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply 9 VDC to 24 VDC
Power consumption Typ. 9.6 W@24 VDC
Mechanical Lens mount M58-mount, optical back focal length: 11.48 mm (0.5″)

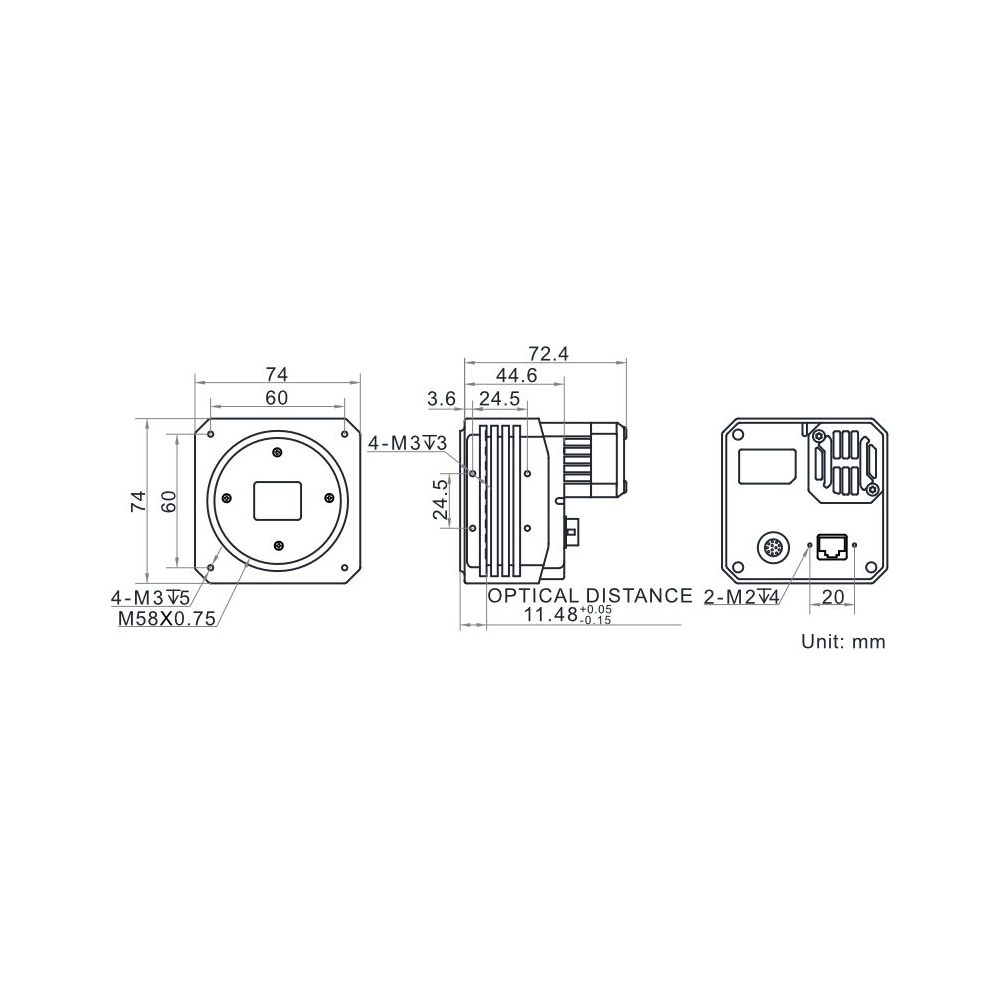

Dimension 74 mm × 74 mm × 72.4 mm (2.9″ × 2.9″ × 2.9″)
Weight Approx. 550 g (1.2 lb)
Ingress protection IP40 ( under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows XP/7/10
Compatibility GigE Vision V2.0, GenICam
Certification CE, RoHS, KC
