MV-CH1010-10CM-M72-NF

HIKROBOT Area Scan Camera CH Series

3.76 μm, 8.1 fps @ 11648 × 8740, Mono, M72*0.75, Camera Link

HIKROBOT Area Scan Camera CH Series

High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.

Compare
  • Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
  • Supports FFC correction function.
  • Supports 16-bit ADC output with high acquisition accuracy and wide dynamic range.
  • Provides camera with fan or TEC to meet different working temperature requirements.
  • Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
  • Compatible with Camera Link V2.0 Protocol, GenlCam Standard, and the frame grabber software meeting with GenICam Protocol.

Model Product Model MV-CH1010-10CM-M72-NF

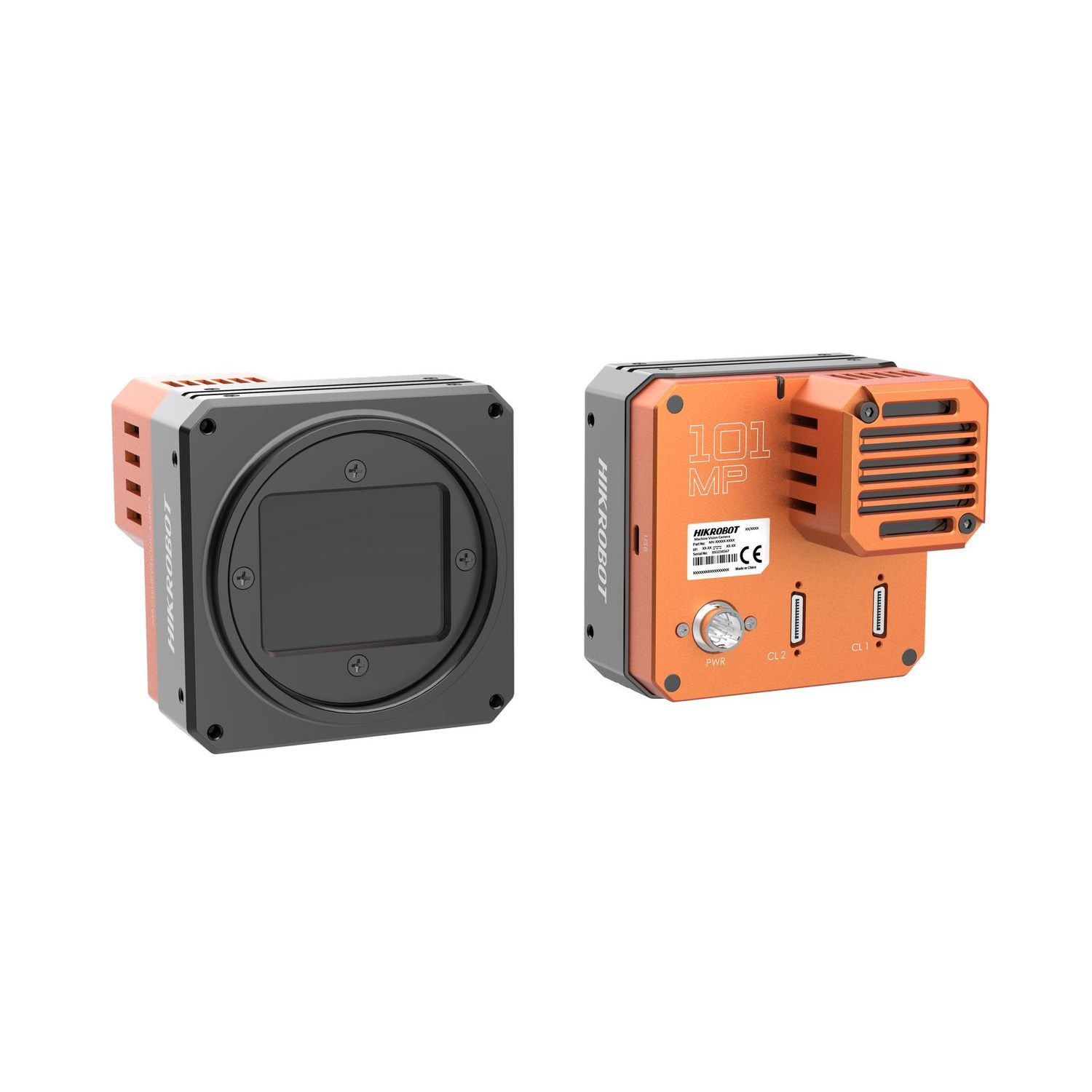

Type 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with fan
Performance Sensor type CMOS, rolling shutter
Sensor model IMX461
Pixel size 3.76 μm × 3.76 μm
Sensor size 55 mm
Resolution 11648 × 8740
Max. frame rate 8.1 fps @11648 × 8740
Configuration mode Base, Medium, Full, 80-bit
Tap geometry 2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y
Tap number 2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock 40 MHz, 60 MHz, 70 MHz, 85 MHz
Dynamic range 78 dB
SNR 45 dB
Gain 0 dB to 36 dB
Exposure time 14 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode, supports Global Reset
Mono/color Mono
Pixel format ADC 12-bit mode: Mono 8/10/12; ADC 16-bit mode: Mono 8/10/12/16
Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image Supports horizontal reverse image output
Electrical feature Data interface Camera Link
Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
Power supply 12 VDC to 24 VDC
Power consumption Typ. 14 W@24 VDC

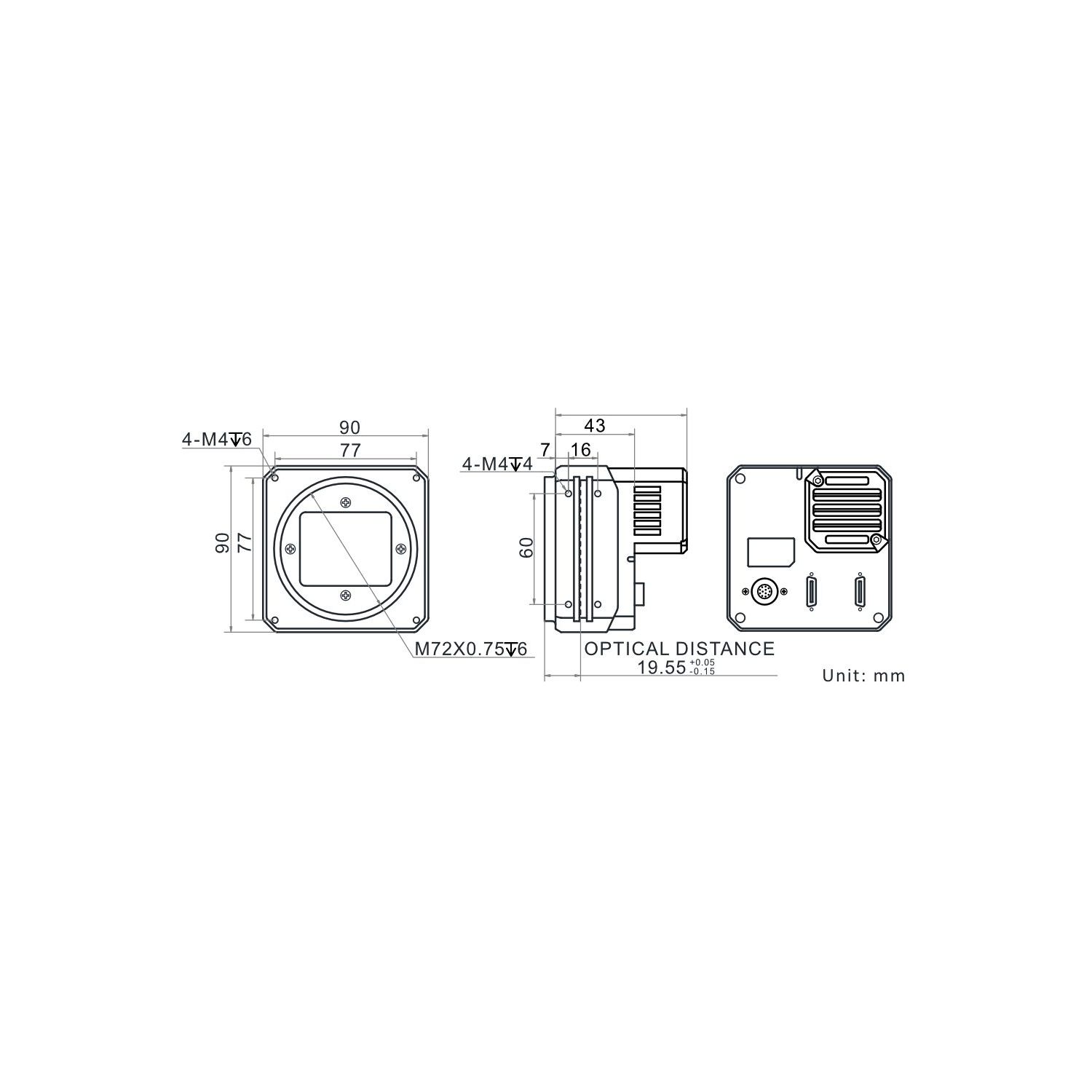

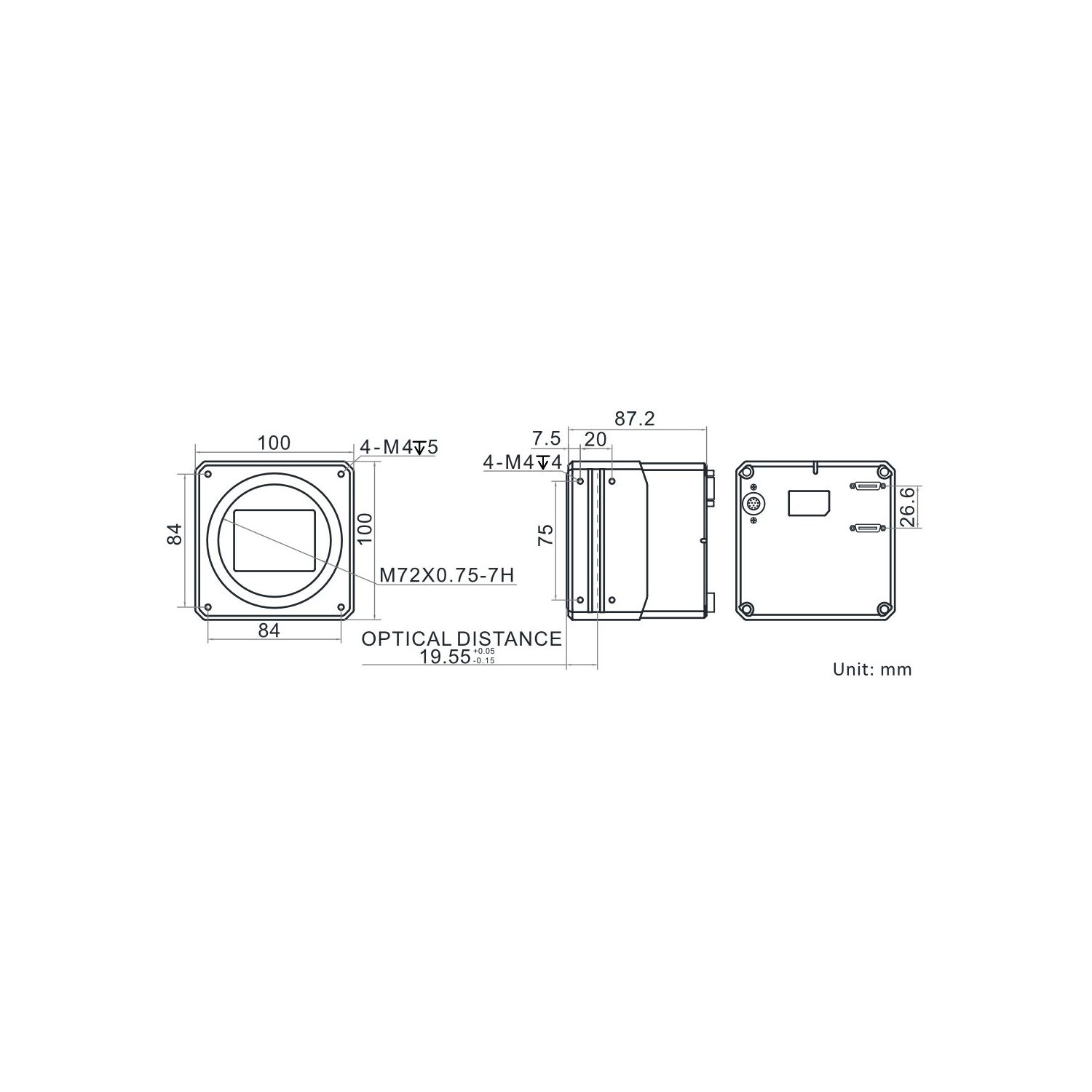

Mechanical Lens mount M72*0.75, flange back focal length 19.55 mm (0.8″)
Dimension 90 mm × 90 mm × 71.5 mm (3.5″ × 3.5″ × 2.8″)
Weight Approx. 790 g (1.7 lb.)
Ingress protection IP40 (under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 95% RH, non-condensing
General Client software MVS or frame grabber software meeting with GenlCam Protocol
Operating system 32/64-bit Windows XP/7/10
Compatibility Camera Link V2.0, GenlCam
Certification CE, RoHS, KC
