- Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc.
- Supports customized ROI and horizontal and vertical reverse image output.
- Supports hardware trigger, software trigger, free run, and supports triggering via Camera Link frame grabber.
- Supports Base, Medium, Full, 80-bit configuration mode.
- Compatible with Camera Link V2.0 Protocol and GenlCam Standard.
MV-CH040-A0CM
HIKROBOT Area Scan Camera CH Series
HIKROBOT Area Scan Camera CH Series
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage.
Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Product Downloads:
| Model | Product Model | MV-CH040-A0CM |
| Type | 4MP Area Scan Camera, Camera Link | |
| Performance | Sensor type | CMOS, global shutter |
| Pixel size | 5.5 μm × 5.5 μm | |
| Sensor size | 1″ | |
| Resolution | 2048 × 2048 | |
| Max. frame rate | 180 fps @2040 × 2048 Mono 8 | |
| Configuration mode | Base, Medium, Full, 80-bit | |
| Tap geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y | |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps | |
| Pixel clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz | |
| Dynamic range | 59.7 dB | |
| SNR | 39.6 dB | |
| Gain | 0 dB to 12 dB | |
| Exposure time | 28 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/12 | |
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 | |
| Decimation | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | Camera Link |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).Camera Link interface provides I/O (CC1/CC2/CC3/CC4) | |
| Power supply | 9 VDC to 24 VDC, supports PoCL | |
| Power consumption | Typ. 3.6 W@12 VDC | |
| Mechanical | Lens mount | C-mount |

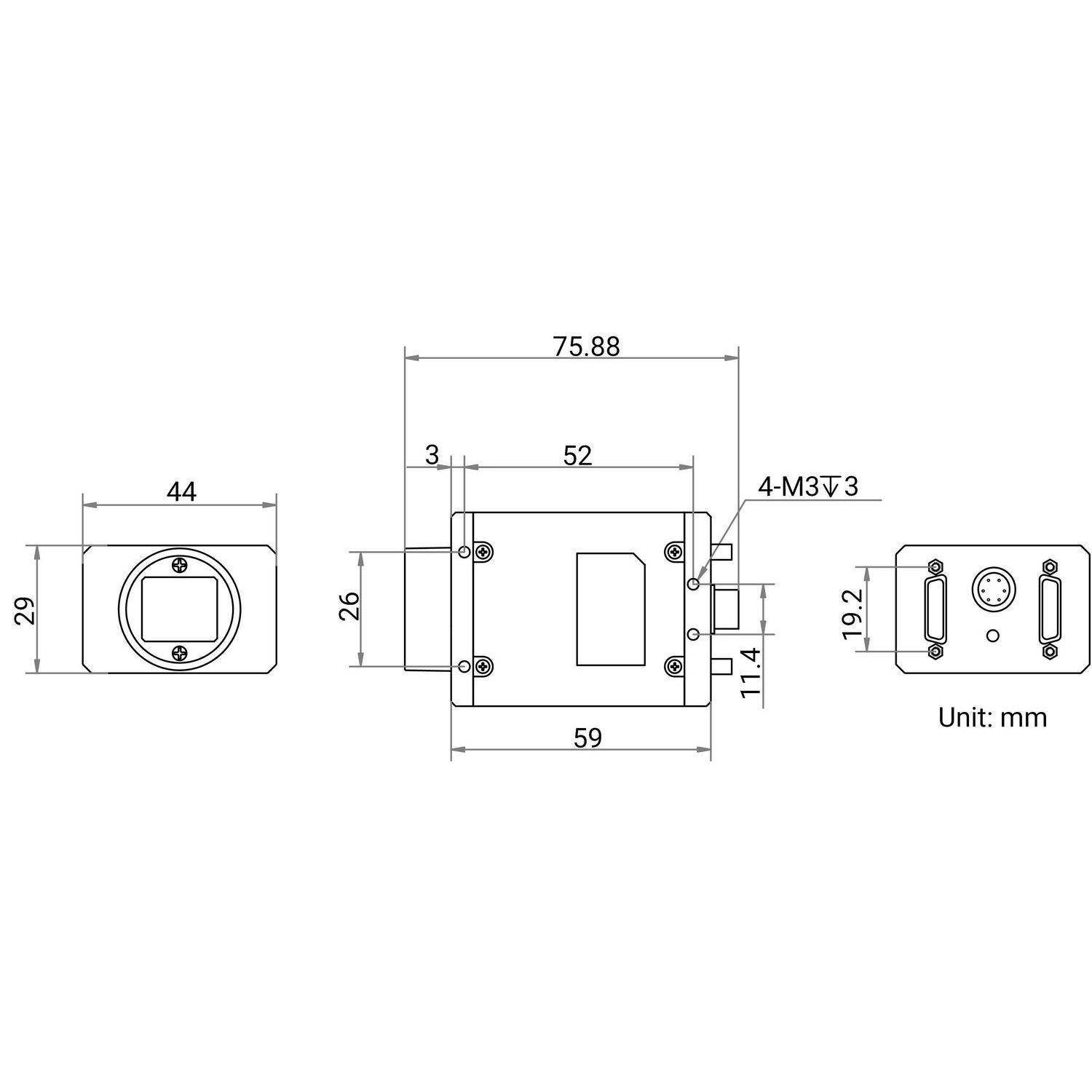

| Dimension | 44 mm × 29 mm × 59 mm (1.7″ × 1.1″ × 2.3″) | |
| Weight | Approx. 100 g (0.2 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 64-bit Windows 11 | |
| Compatibility | Camera Link V2.0, GenlCam | |
| Certification | CE, RoHS, KC |
