- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
MV-CE120-10UC
HIKROBOT Area Scan Camera CE Series
HIKROBOT Area Scan Camera CE Series
As an essential series, CE series cameras cover 0.3-20M pixels with mainly rolling shutter exposure and provides Gigabit Ethernet / USB 3.0 interfaces to meet various industrial needs.
All series compatible of C-mount lenses which takes up only the size of an GigE or USB3.0. Built-in image improving parameters to optimize the imaging effect.
| Model | Product Model | MV-CE120-10UC |
| Type | 12MP Area Scan Camera, USB3,IMX226,Color | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | IMX226 | |
| Pixel size | 1.85 μm × 1.85 μm | |
| Sensor size | 1/1.7" | |
| Resolution | 4000 × 3036 | |
| Max. frame rate | 31.9 fps @4000 × 3036 | |
| Dynamic range | 70.5 dB | |
| SNR | 40.5 dB | |
| Gain | 0 dB to 27 dB | |
| Exposure time | 30 μs to 0.5 sec | |
| Exposure mode | Off/Once/Continuous exposure mode, supports Rolling and Global Reset | |
| Mono/color | Color | |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 | |
| Binning | Not support | |
| Decimation | Not support | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Image buffer | 128 MB | |
| Electrical feature | Data interface | USB3.0 |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) | |
| Power supply | 9 VDC to 24 VDC, USB3.0 power supply | |
| Power consumption | Typ. 3.42 W@5 VDC (USB3.0 provides power supply) | |
| Mechanical | Lens mount | C-Mount |

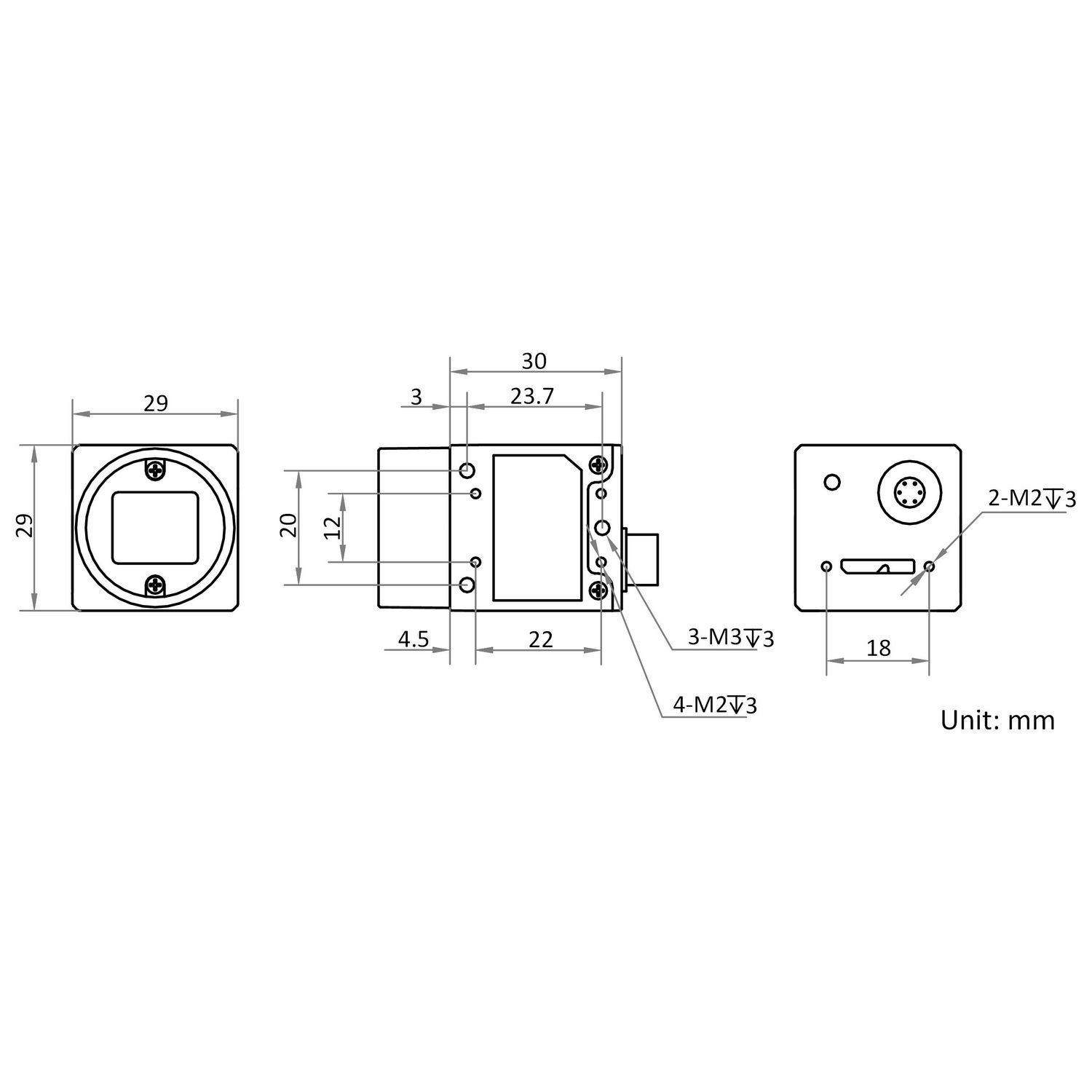

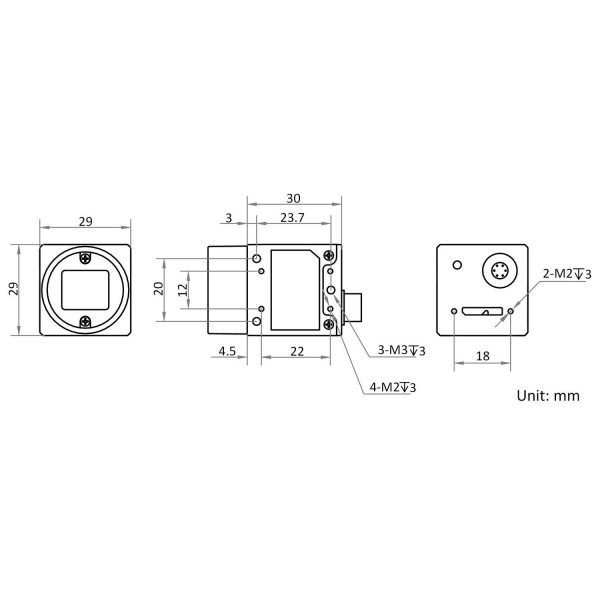

| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") | |
| Weight | Approx. 80 g (0.2 lb.) | |
| Ingress protection | IP30 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | USB3 Vision, GenICam | |
| Certification | CE, FCC, RoHS, KC |
