MV-CE013-80GM

HIKROBOT Area Scan Camera CE Series

4.0 μm, 89.9 fps @ 1280 × 1024, Mono, C-Mount, Gigabit

HIKROBOT Area Scan Camera CE Series

As an essential series, CE series cameras cover 0.3-20M pixels with mainly rolling shutter exposure and provides Gigabit Ethernet / USB 3.0 interfaces to meet various industrial needs.
All series compatible of C-mount lenses which takes up only the size of an GigE or USB3.0. Built-in image improving parameters to optimize the imaging effect.

Product Downloads:

Data SheetUser ManualDrawing

Compare
  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
  • Supports hardware trigger, software trigger, free run, etc.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on protocol and standard.

Model Product Model MV-CE013-80GM
Type 1.3MP Area Scan Camera, GigE, SS, Mono
Performance Sensor type CMOS, global shutter
Sensor model SS
Pixel size 4.0 µm × 4.0 µm
Sensor size 1/2.7″
Resolution 1280 × 1024
Max. frame rate 89.9 fps @1280 × 1024
Dynamic range 60 dB
SNR 40 dB
Gain 0 dB to 20 dB
Exposure time 31 μs to 1 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Mono
Pixel format Mono 8/10/10p/12/12p
Binning Supports 1 × 1, 2 × 2
Decimation Supports 1 × 1, 2 × 2
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface GigE
Digital I/O 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply 9 VDC to 24 VDC, supports PoE
Power consumption Typ. 2.4 W@12 VDC
Mechanical Lens mount C-Mount

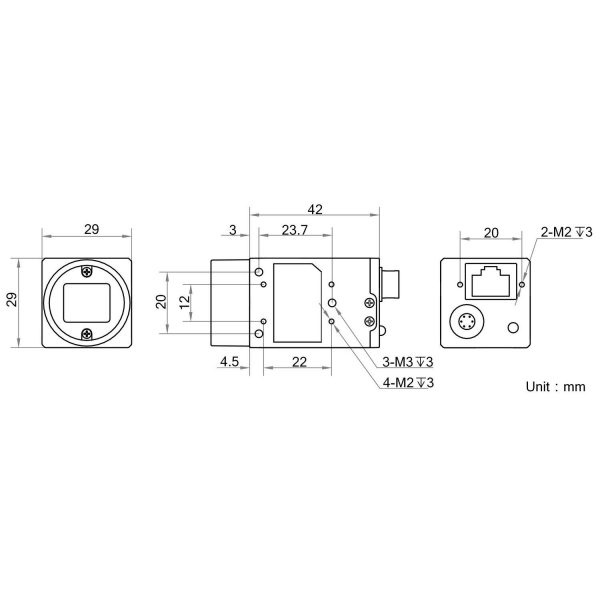

Dimension 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
Weight Approx. 96 g (0.21 lb.)
Ingress protection IP30 (under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 80% RH, non-condensing
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility GigE Vision V2.0, GenlCam
Certification CE, FCC, RoHS, KC
