- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on protocol and standard.
MV-CE013-80GC
HIKROBOT Area Scan Camera CE Series
HIKROBOT Area Scan Camera CE Series
As an essential series, CE series cameras cover 0.3-20M pixels with mainly rolling shutter exposure and provides Gigabit Ethernet / USB 3.0 interfaces to meet various industrial needs.
All series compatible of C-mount lenses which takes up only the size of an GigE or USB3.0. Built-in image improving parameters to optimize the imaging effect.
Product Downloads:
| Model | Product Model | MV-CE013-80GC |
| Type | 1.3MP Area Scan Camera, GigE, SS, Color | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | SS | |
| Pixel size | 4.0 µm × 4.0 µm | |
| Sensor size | 1/2.7″ | |
| Resolution | 1280 × 1024 | |
| Max. frame rate | 89.9 fps @1280 × 1024 | |
| Dynamic range | 60 dB | |
| SNR | 40 dB | |
| Gain | 0 dB to 20 dB | |
| Exposure time | 31 μs to 1 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Color | |
| Pixel format | Mono 8/10/12, Bayer BG 8/10/10p/12/12p, YUV422_YUYV_Packed, YUV422 Packed, RGB 8, BGR 8 | |
| Binning | Supports 1 × 1, 2 × 2 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | GigE |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 2.6 W@12 VDC | |
| Mechanical | Lens mount | C-Mount |

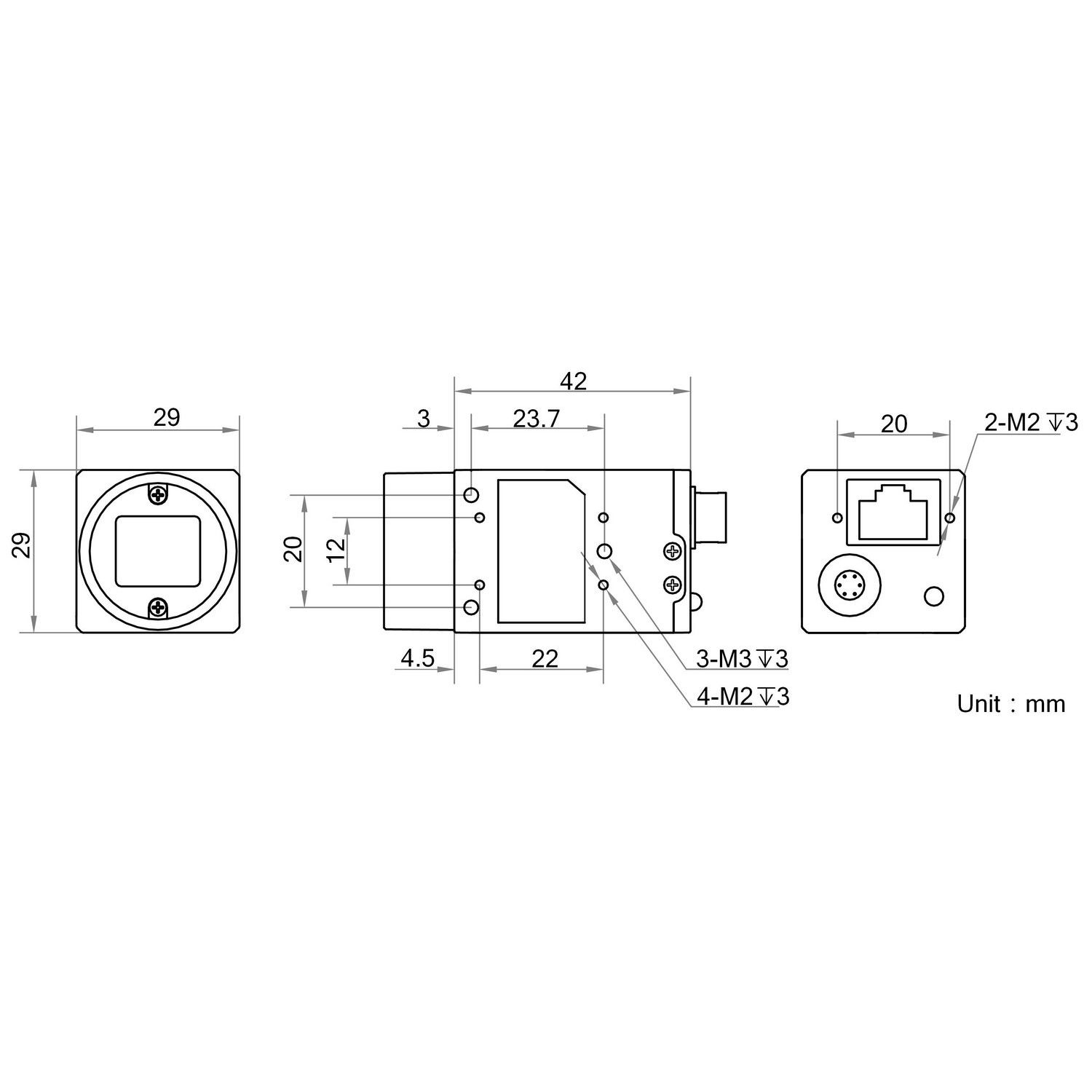

| Dimension | 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″) | |
| Weight | Approx. 96 g (0.21 lb.) | |
| Ingress protection | IP30 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenlCam | |
| Certification | CE, FCC, RoHS, KC |
