HIKROBOT Board Level Camera CB Series

1.85 μm, 21 fps @ 4032 × 3036, Color, None, USB 3.0

HIKROBOT Board Level Camera CB Series

The CB series board-level products is designed with a single board or multi-board stacked, which supports GigE or U3V protocol. It is applicable to the industrial, embedded, 3D, medical and other scenarios with more stringent space requirements.
Ultra-small size, flexible for application – with a compact size, the board-level camera series is easier to be integrated into end users’ product structures.

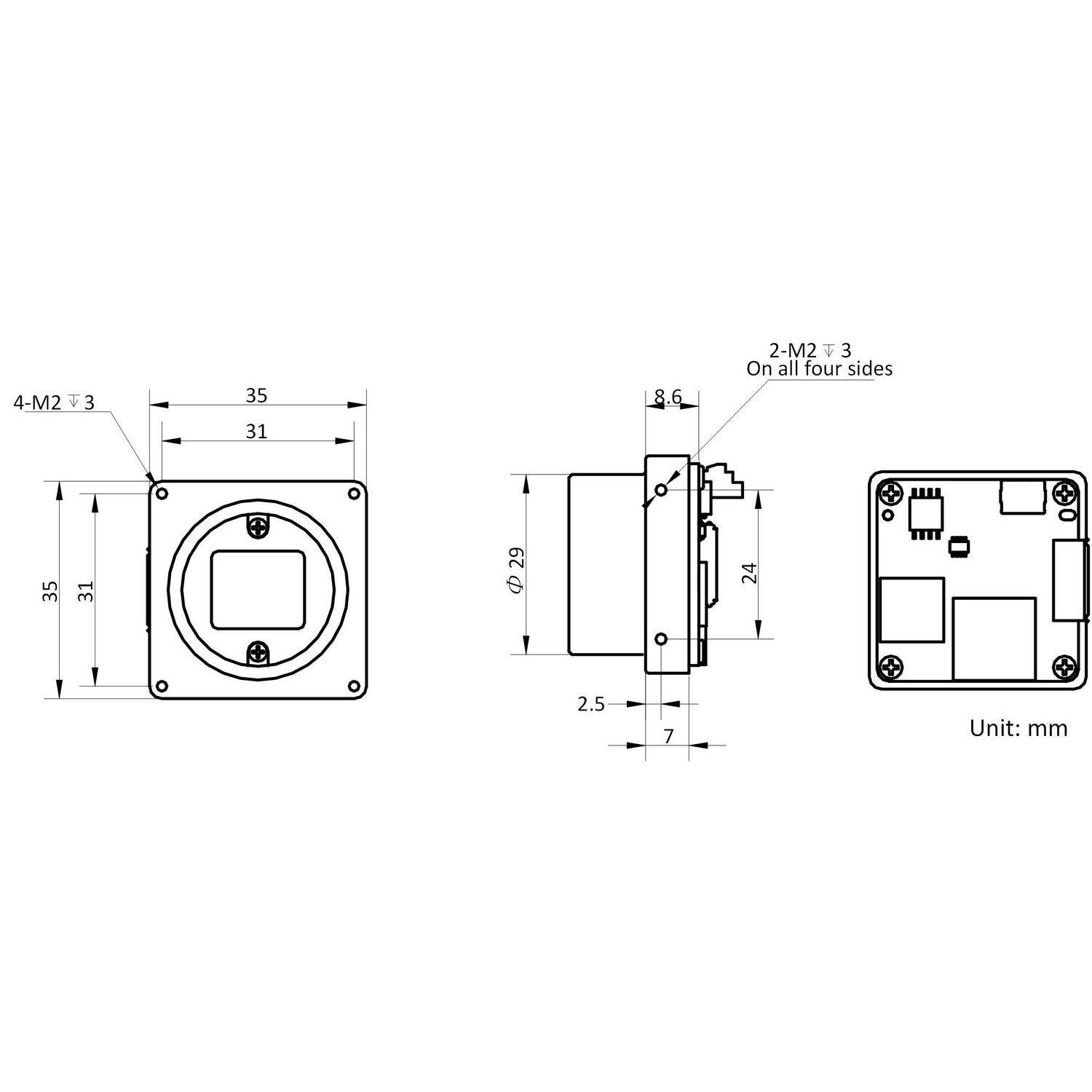

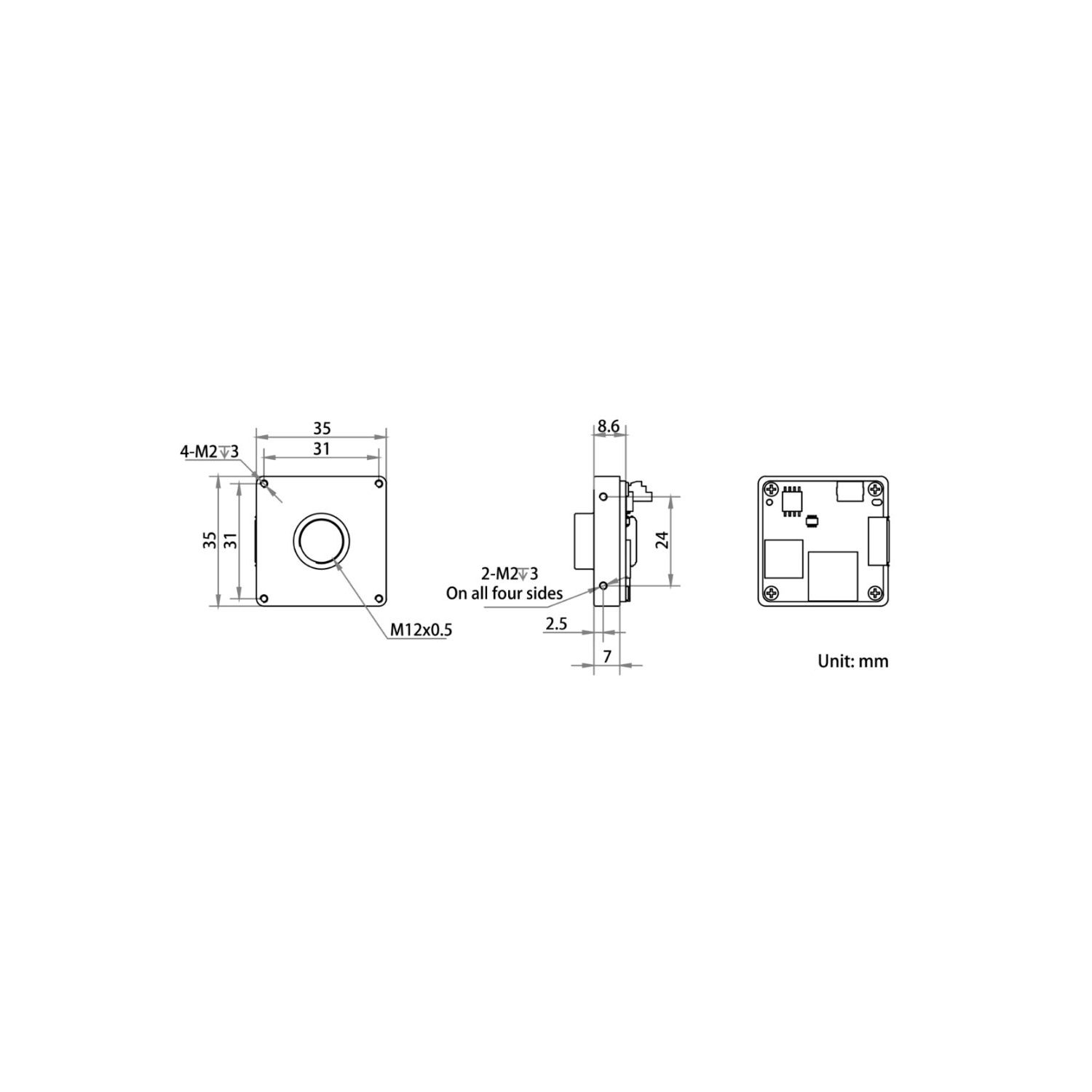

The board-level camera can support a variety of lens interface options, bare board (B), C interface (C) and M12 interface (S) to fulfill various requirements.

  • Compact design for flexible installation.
  • Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.
  • Adopts image interpolation algorithm for color camera to have better color correction.
  • Power supply and data transmission via USB3.0 interface.
  • Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.

Model Product Model MV-CB120-10UC-B
Type 12MP Board Level Camera, USB3,MX226,Color,Bare Board
Performance Sensor type CMOS, rolling shutter
Sensor model IMX226
Pixel size 1.85 µm × 1.85 µm
Sensor size 1/1.7″
Resolution 4032 × 3036
Max. frame rate 21 fps @4032 × 3036
Dynamic range 70.5 dB
SNR 40.5 dB
Gain 0 dB to 20 dB
Exposure time 23 μs to 2 sec
Exposure mode Supports Off/ Once/ Continuous exposure mode, and Global Reset.
Mono/color Color
Pixel format Mono8/10/12, Bayer RG 8/10/10p/12/12pYUV 422 Packed, YUV422_YUYV_Packed, RGB 8
Binning Not support
Decimation Not support
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface USB3.0
Digital I/O Bi-directional non-isolated I/O x 2 (Line 1, Line 2)
Power supply USB3.0 power supply
Power consumption Typ. 2.45 W@5 VDC
Mechanical Lens mount Single board camera: none

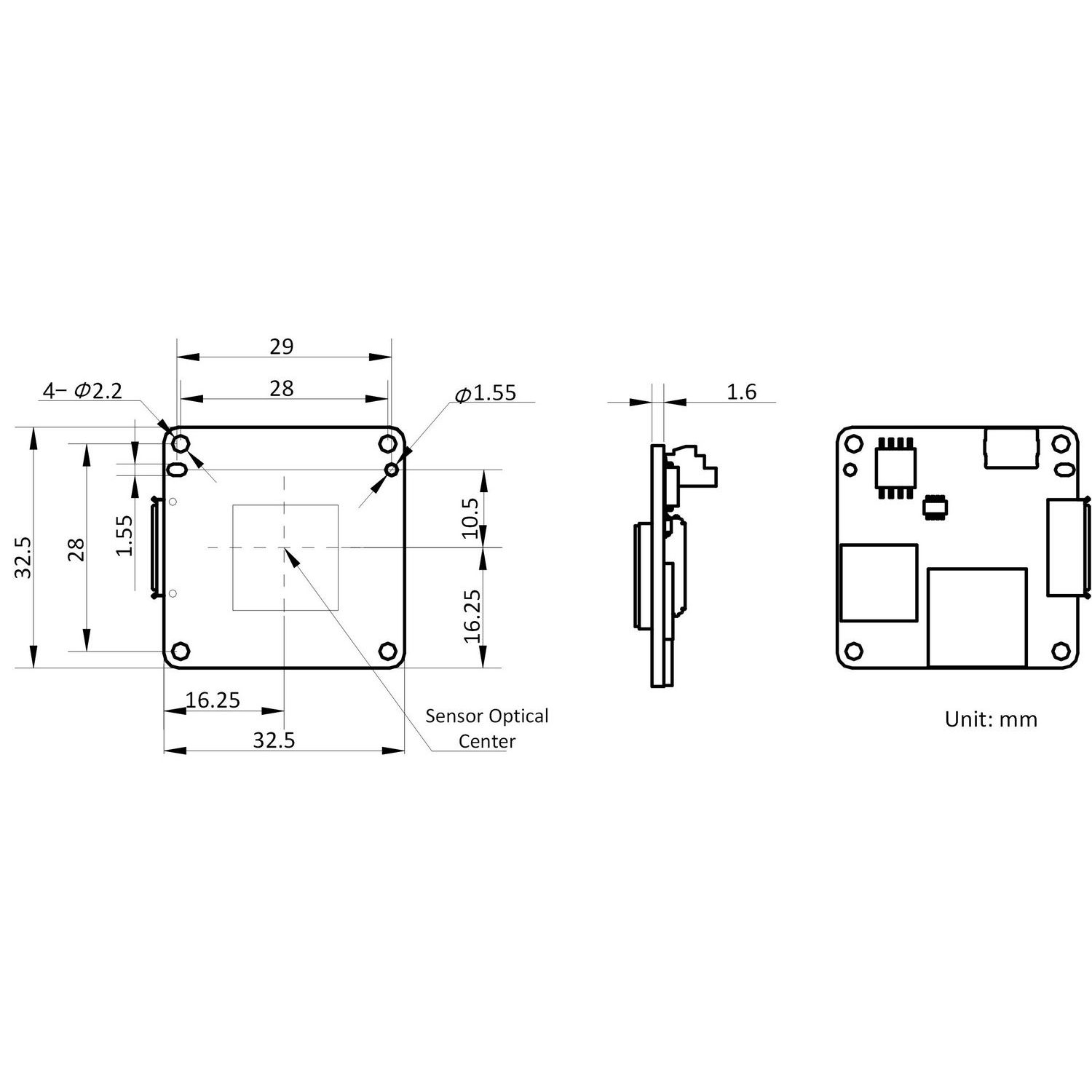

Dimension Single board camera: 32.5 mm × 32.5 mm × 1.6 mm (1.3″ × 1.3″ × 0.1″)
Weight Single board camera: Approx. 10 g (0.02 lb.)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 80% RH, non-condensing
General Client software MVS or third-party software with USB3 Vision Protocol
Operating system 32/64-bit Windows XP/7/10, 32/64-bit Linux
Compatibility USB3 Vision, GenICam
Certification CE, FCC, RoHS, KC
