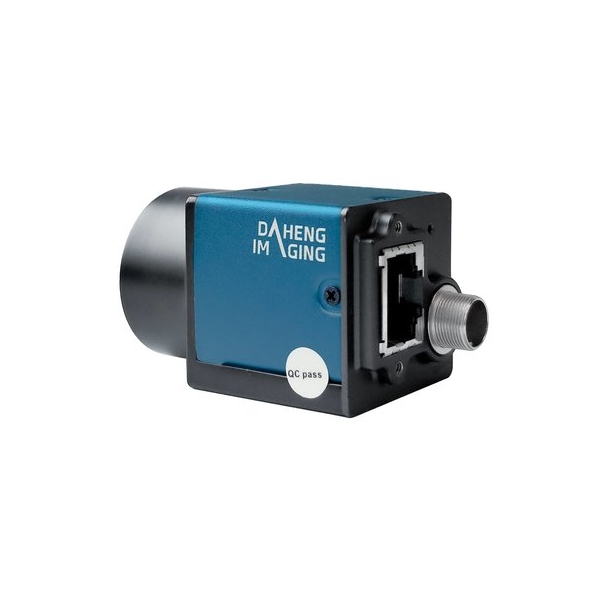

MER2-231-41GM

Ultra-small GigE industry digital camera

1/1.2", 41fps, 1920x1200, Mono, Global shutter, IMX249, GigE

The MERCURY2 GigE series (MER2-G) camera is DAHENG IMAGING’s new generation area scan industrial digital camera, featuring outstanding performance and compact design.

The MER2-231-41GM/C camera is a monochrome/color GigE Vision camera with the Sony IMX249 Global shutter CMOS sensor. The MER2-231-41GM/C camera has opto-isolated I/Os. The GPIOs give MER2-G maximum flexibility to adapt to specific needs. Thanks to the compact design (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments.

The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

Compare
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Four acquisition controls: Single frame acquisition / Continuous acquisition / Software trigger acquisition / External trigger acquisition
  • Support ExposureEnd Event notification
  • Trigger mode: Frame Start /Frame Burst Start
  • Support Decimation, Binning and Digital Shift
  • Support Reverse X/Y(horizontal and vertical mirroring)
  • Adjustable Gamma and Sharpness for optimizing the brightness and sharpness of images
  • Support Remove Parameter Limit to expand the range of exposure, gain, white balance, and so on
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable packet-size and packet-delay, and reserved bandwidth
  • Programmable LUTs and storable user sets
  • Long cable lengths: up to 100 m (without any hubs, repeaters etc.)
  • Compatible with GenICam™ and GigE Vision®, can be used in a wide range of 3rd-party software such as HALCON, MERLIC and LabVIEW directly
  • Optimized software package for 32/64bit Windows, and support Linux, ARMv7, ARMv8 and Mac OS
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, GigE Vision
Spectral Response Data:



MER2-231-41GM Spectral Response



MER2-231-41GC Spectral Response

SpecificationsMER2-231-41GMMER2-231-41GC
Resolution1920 (H) × 1200 (V)
Frame Rate41fps
Sensor Type1/1.2", global shutter, Sony IMX249
Pixel Size5.86 μm × 5.86 μm
SpectrumMonoColor
Pixel Data FormatsMono8/Mono10Bayer RG8/Bayer RG10
Data InterfaceRJ45
Power Consumption<3W
Power Supply12~24V DC
Lens MountC Mount
Dimensions (L × W × H)29mm × 29mm × 29mm (without lens adapter or connectors)
Operating Temp.0°C ~+45°C
Storage Temp.-20°C ~ +70°C
Operating Humidity10% ~80%
Weight62g
RegulationsRoHS, CE, GigE Vision, GenICam
